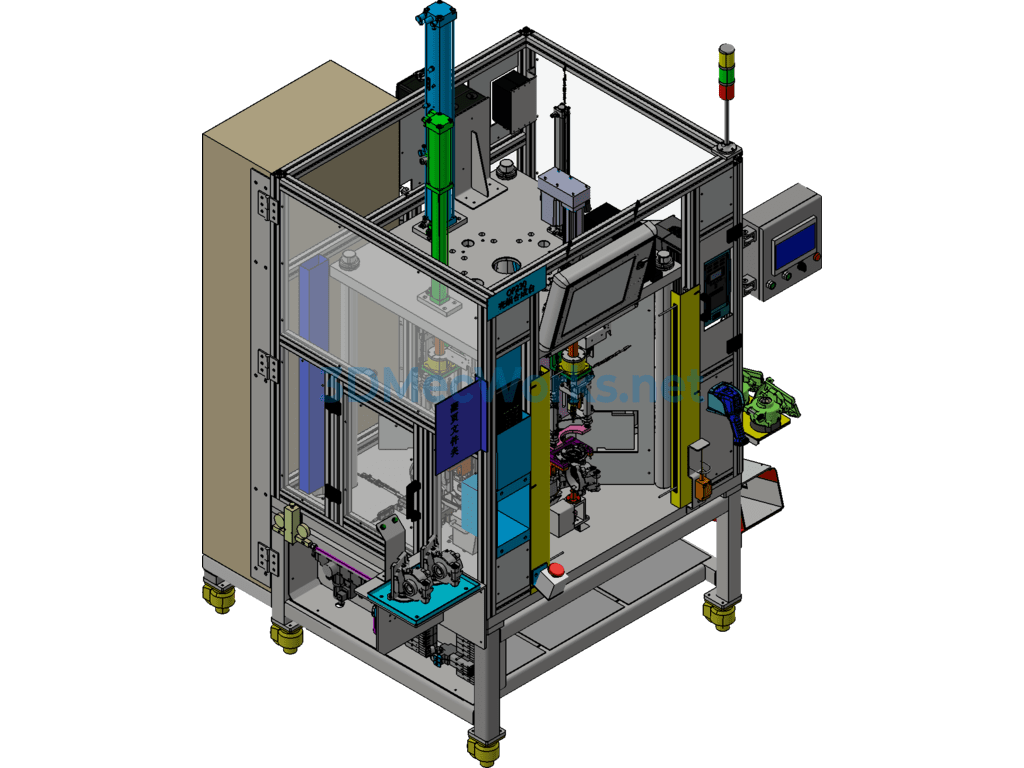

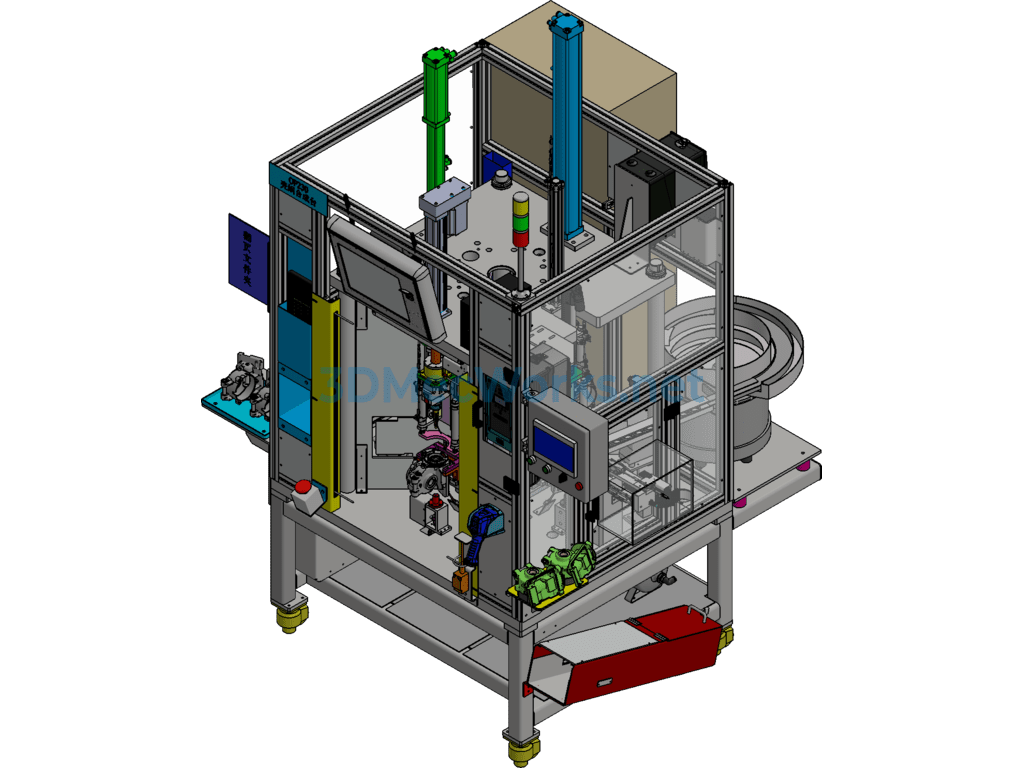

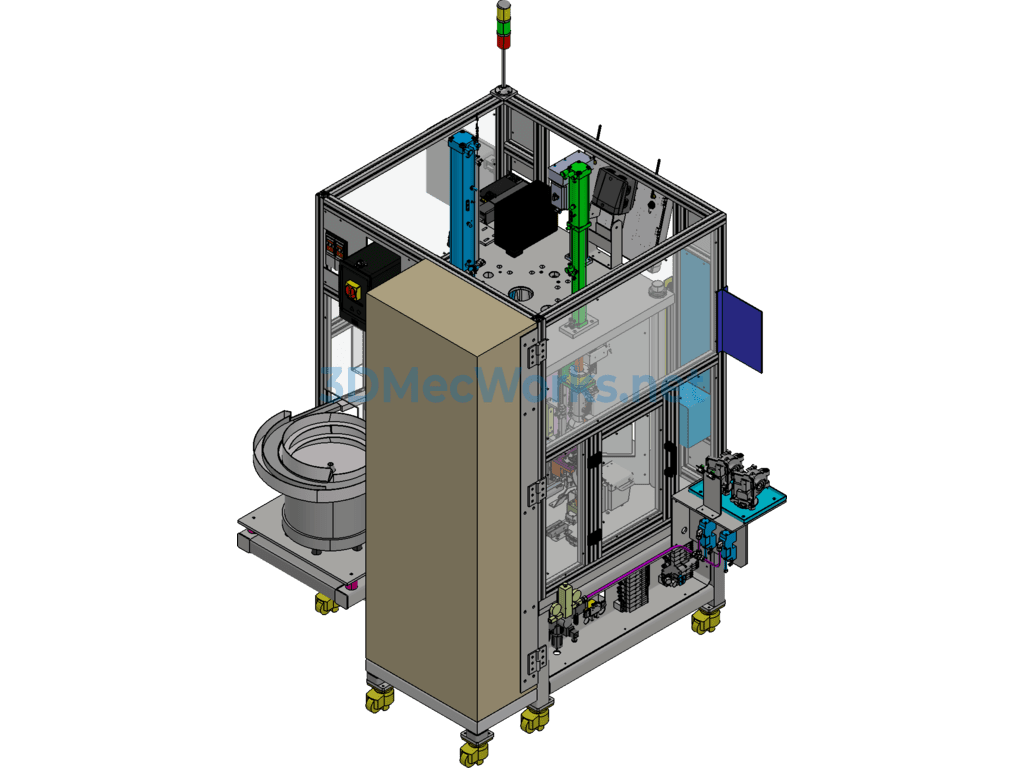

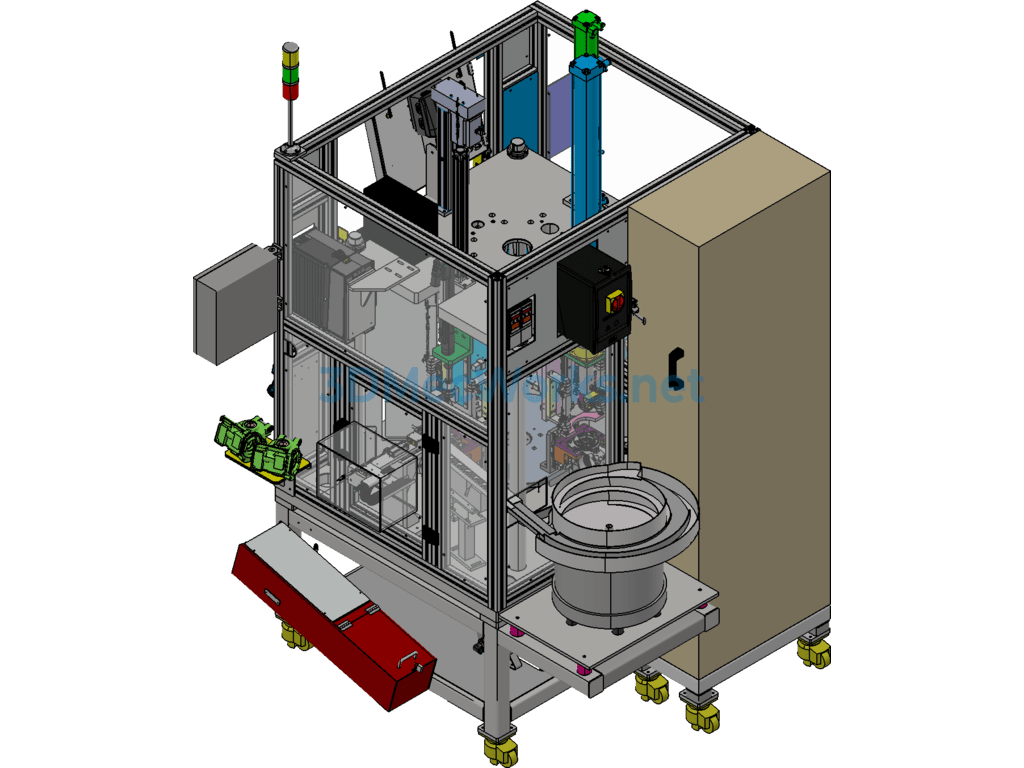

OP230 Shell Worm Synthesis Platform_x000D_
1. Purpose: Install the worm gear assembly into the housing, tighten the lock nut, rivet the lock nut, press the steel ball into the housing_x000D_
2. Equipment Specifications: 1400mm(W)x1500mm(L)x2260mm(H), including control panel._x000D_
3. Production Cycle: ≤36s_x000D_
4. Equipment Technical Parameters_x000D_
4.1 Equipment Power: 15kw;_x000D_
4.2 Equipment Operation Mode: Loading/unloading is performed by the operator (manual), tightening and riveting work is automatically completed by the equipment_x000D_
4.3 Equipment Requirements: The pressure head adopts a floating mechanism to ensure rigidity; the pressure head and fixture are equipped with identifiable sensors, and the equipment can automatically recognize them._x000D_
4.4 Pressing Force Monitoring: Pressure sensor range is 10KN, accuracy is 0.3%FS, with self-calibration feature and segmented monitoring curves._x000D_
4.5 Press Displacement Monitoring: Stroke of 300mm, accuracy ±0.01mm, full stroke monitoring._x000D_
4.6 Press-Fit Judgment: During the pressing process, both force and displacement are within the set tolerance range._x000D_
4.7 Equipment Requirements: The pressure head uses a floating mechanism, ensuring rigidity; the pressure head and fixture are equipped with recognizable sensors, and the equipment can automatically identify them._x000D_
4.8 Model Change: The tooling fixtures needing replacement are placed below the equipment with a specially made placement tray._x000D_
4.9 Equipment CPK Value ≥1.33; the precision of pressed parts and assembly precision are inspected according to the drawing requirements._x000D_
5. Compatible Product: D591000_x000D_
6. Workflow:_x000D_
STA1 Servo Press Worm Component (36s)_x000D_
STA2 Tighten Nut (25s)_x000D_
STA3 Rivet Nut (13s)_x000D_
STA4 Rivet Steel Ball (14s)
