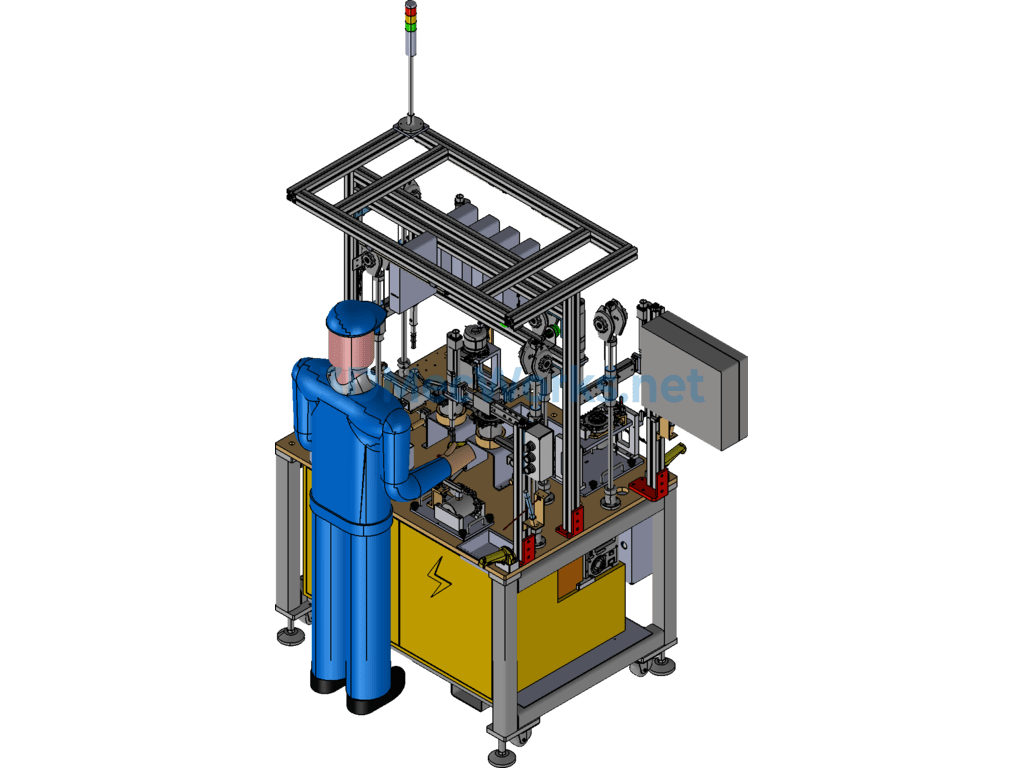

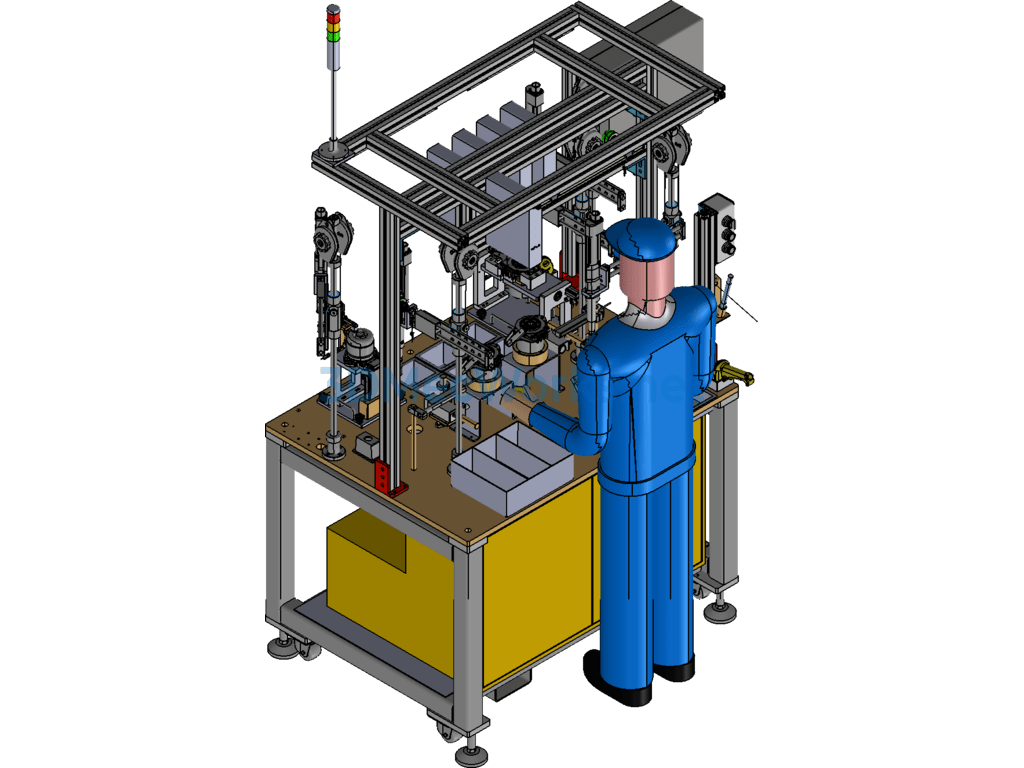

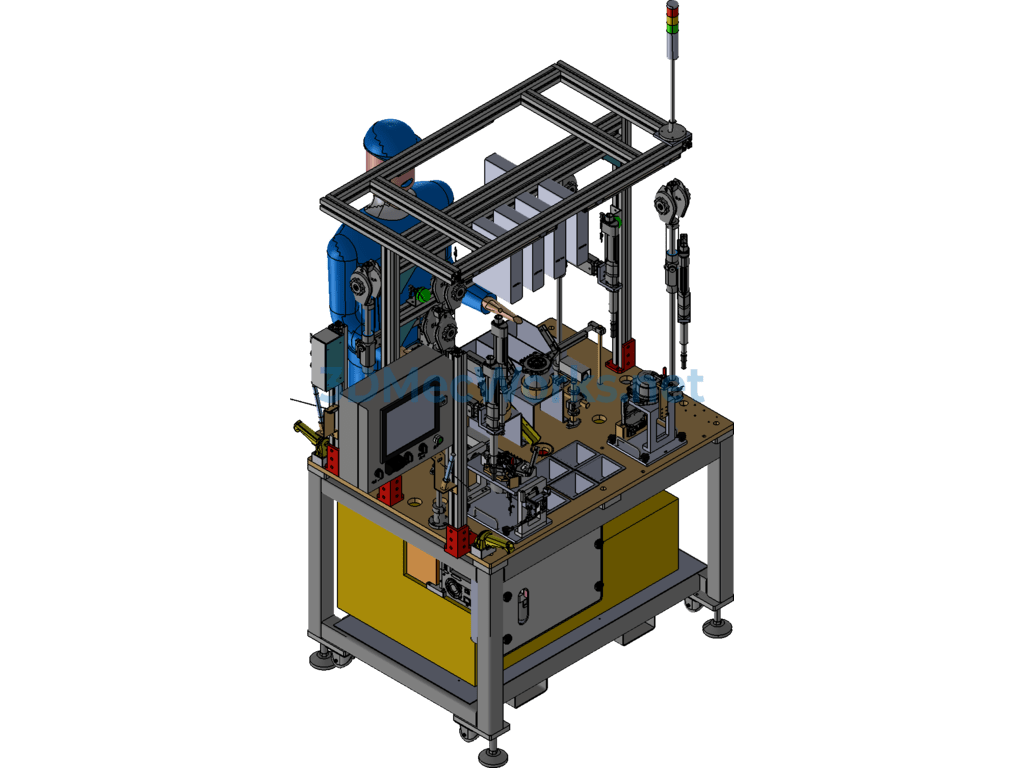

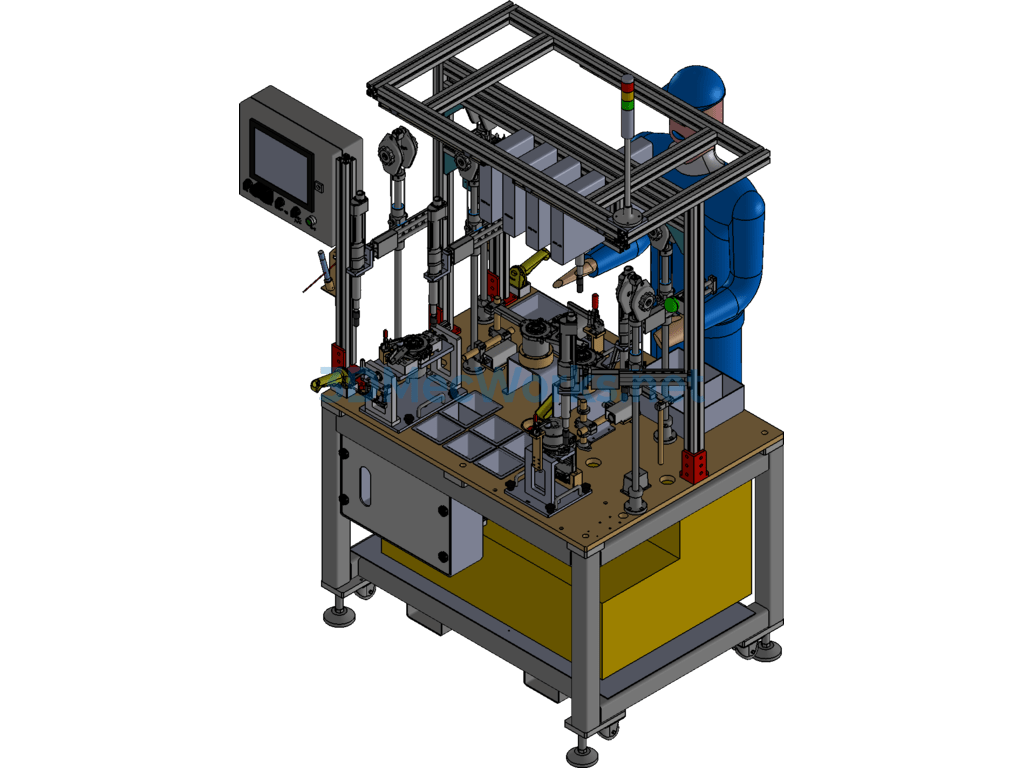

OP220+OP230 ECU and Motor Assembly Station,_x000D_
1. Purpose: To assemble the ECU, wiring harness, etc. onto the motor using screws_x000D_
2. Compatible Products: A13TE, FE-3DA, ZTM11E_x000D_
3. Equipment Specifications: 2000mm(W)x1500mm(L)x2000mm(H)_x000D_
4. Production Cycle: ≤50s_x000D_
5. Equipment Technical Parameters_x000D_
5.1 Equipment Power: 5kw;_x000D_
5.2 Air Source: ≥0.5Mpa clean, oil-free, and water-free compressed air source. Air Consumption: 3L/min._x000D_
5.3 Equipment Operation Mode: Product loading/unloading is performed by the operator (manual), assembly work is completed by the operator (manual)_x000D_
5.4 Electric Tightening Wrench Accuracy: ±5% Nm_x000D_
5.5 Qualification Criteria: Bolt tightening torque must be within the required range;_x000D_
6. Control Points: Fixture error-proofing; error-proofing for missed tightening (torque gun torque feedback); detection marker pen point inspection; manual wrench confirmation
