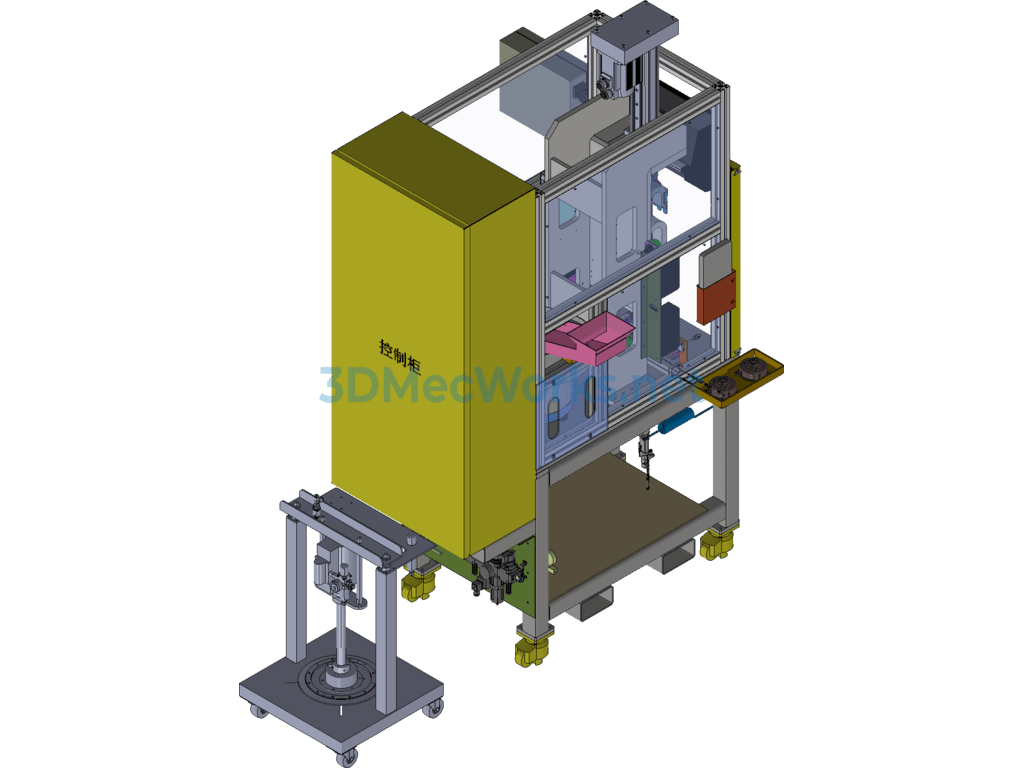

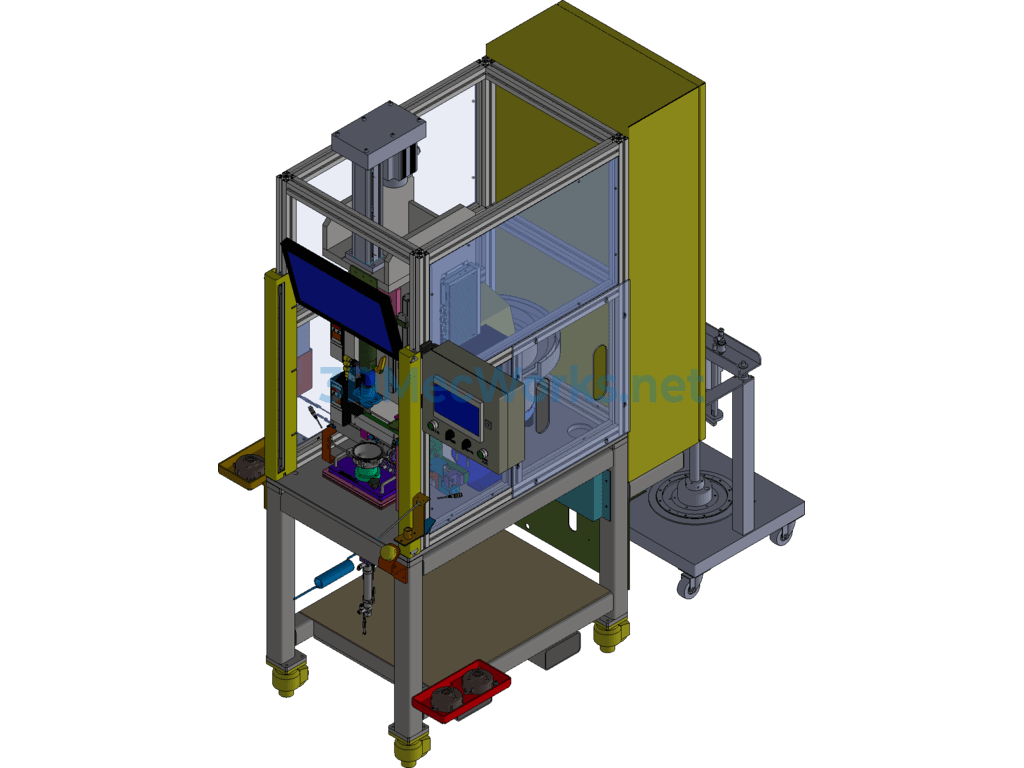

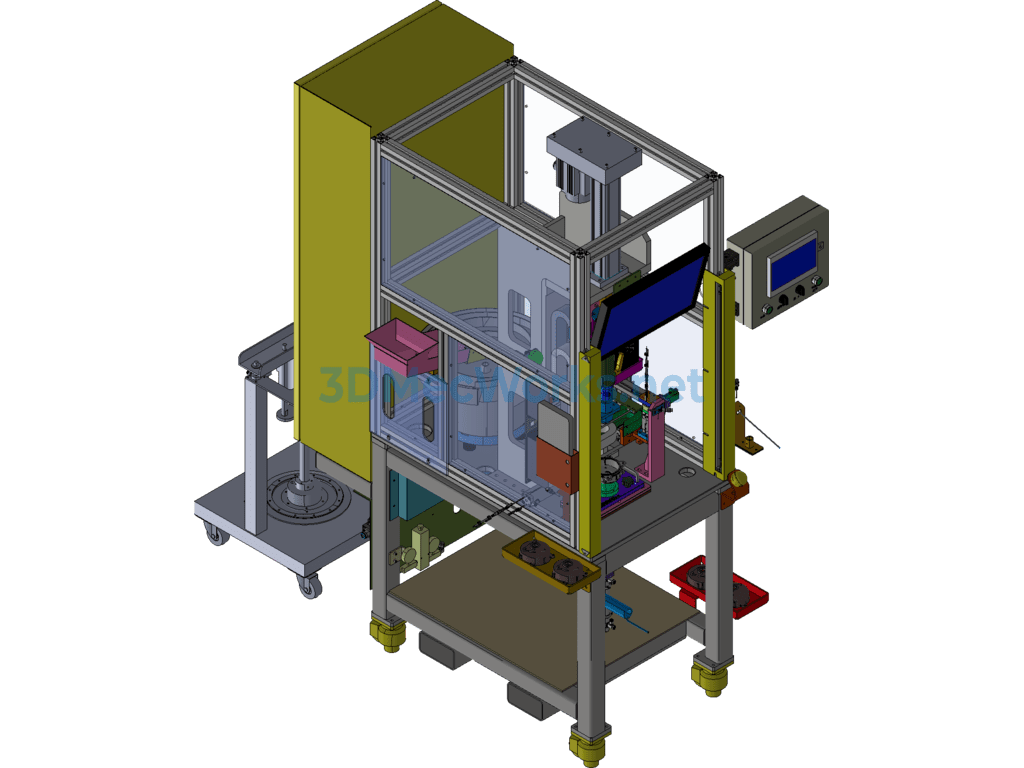

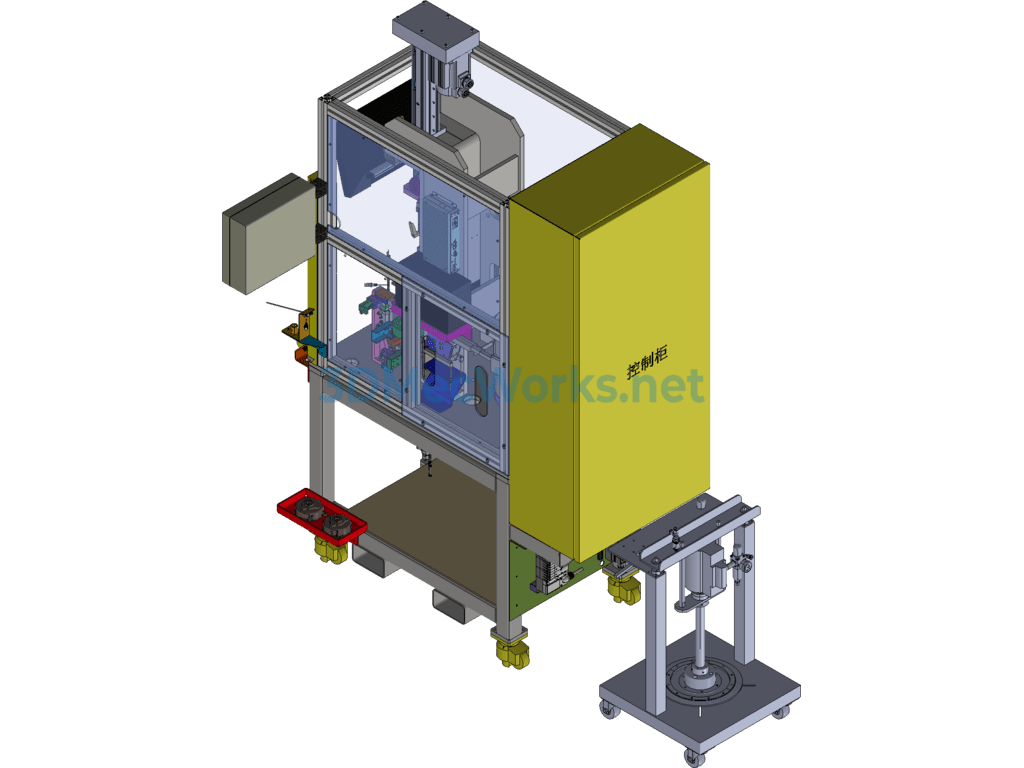

OP210 Upper Casing Bushing Press Installation_x000D_
1. Purpose: Lubricate the upper casing and press the bushing into the upper casing;_x000D_
2. Equipment specifications: 1000mm(W)x1400mm(L)x2000mm(Aluminum Profile H)._x000D_
3. Equipment Technical Parameters_x000D_
3.1 Equipment Power: 5kw;_x000D_
3.2 Air Source: ≥ 0.5Mpa clean compressed air without oil or water. Air consumption: 5 liters/min._x000D_
3.3 Equipment Operation Mode: Product loading/unloading done by operator (manual), bushing automatic loading, pressing operation completed by equipment (automatic)._x000D_
3.4 Press Force Monitoring: Pressure sensor range 10KN, precision 0.3%FS, with self-calibration function, sectional monitoring curve available._x000D_
3.5 Press Displacement Monitoring: Stroke 300mm, precision ±0.02mm, full stroke monitoring._x000D_
3.6 Press Assembly Judgment: Whether pressure and displacement are within qualified range._x000D_
3.7 Position Accuracy: Coaxiality of the pressing head positioning center hole and the fixture positioning installation hole is less than 0.05mm, verticality of pressing head to the workbench surface is 0.05mm._x000D_
3.8 Equipment Requirements: Pressing head adopts floatable mechanism while ensuring rigidity; pressing head and fixture equipped with identifiable sensors, equipment can identify automatically._x000D_
3.9 Model Change: Fixtures to be replaced are placed below the equipment, with a special placement tray manufactured._x000D_
3.10 Equipment CPK value ≥1.33; precision of pressed parts and pressing precision to be verified according to drawing requirements._x000D_
4. Compatible Products: XK507C, JLFC3C, SP232C
