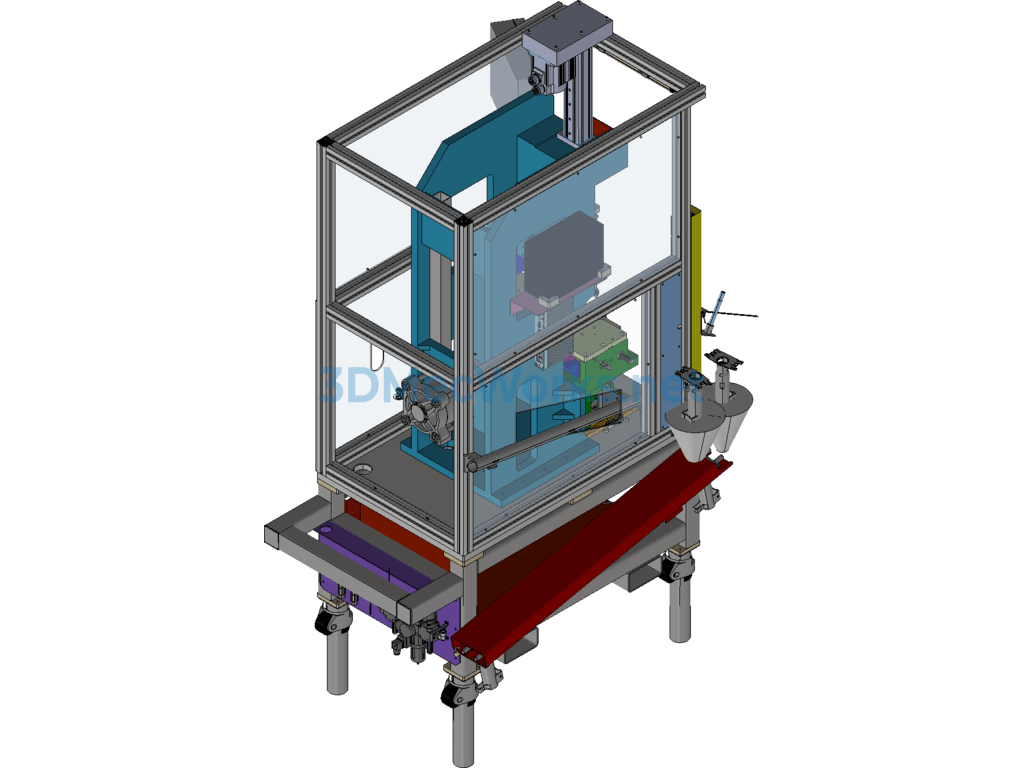

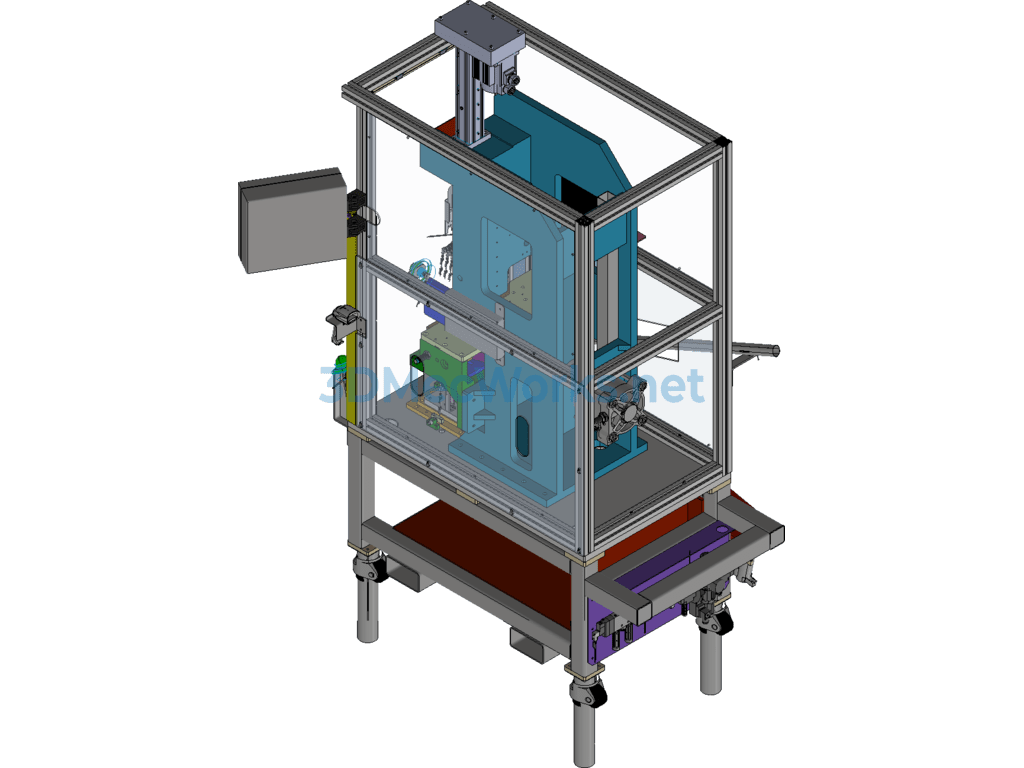

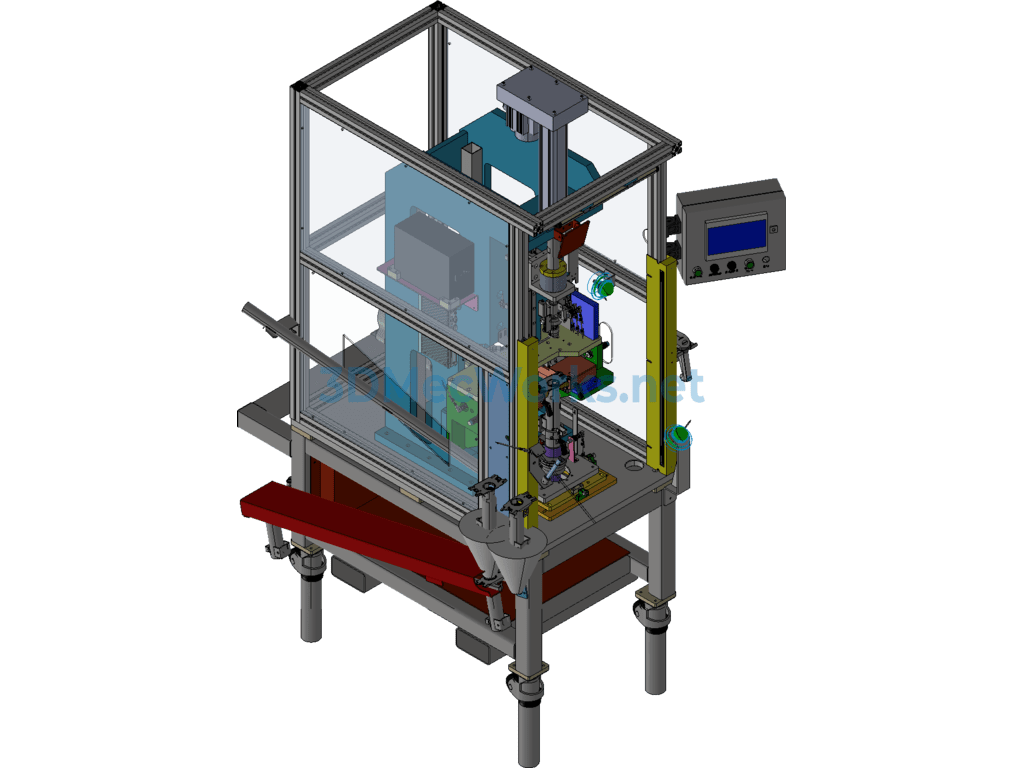

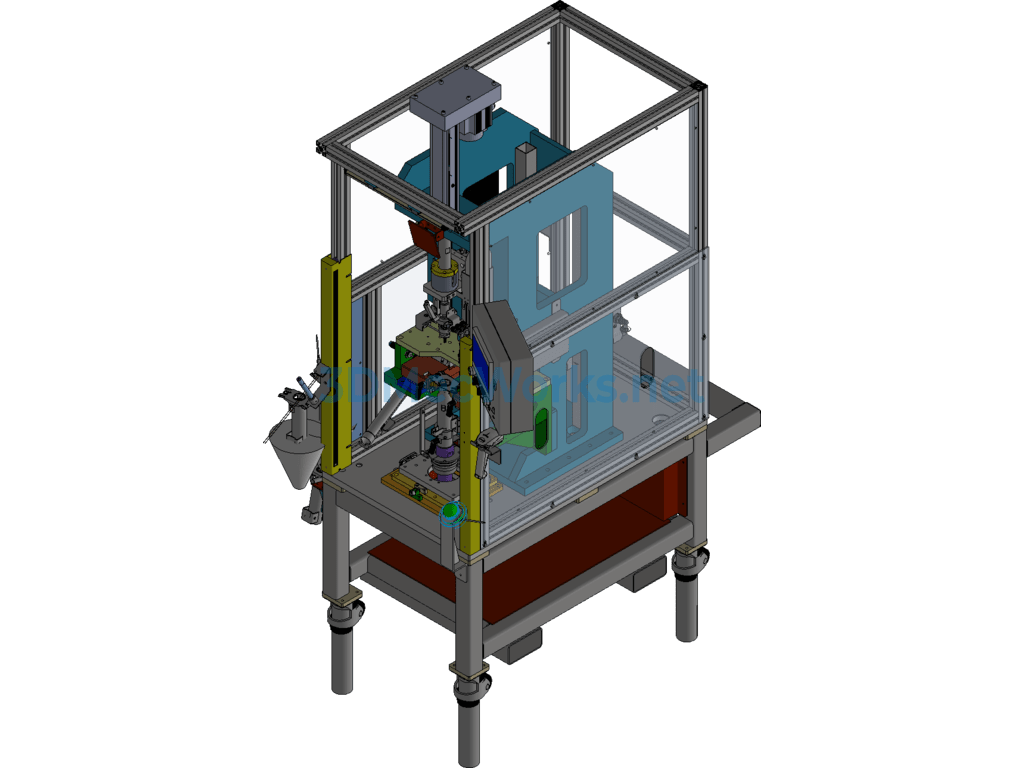

OP180B Tube Column Bearing Pressing and Radial Riveting_x000D_
1. Purpose: To press the bearing into the upper tube column and perform multi-point radial riveting on the tube column cylinder;_x000D_
2. Equipment Operation Process (Riveting 4 Points)_x000D_
1) Take the upper tube column cylinder, visually inspect it for qualification, and then place it into the lower positioning fixture. Sensor senses in position (4s)_x000D_
2) Take the bearing, visually inspect it for qualification, and then place it into the upper press head. Sensor senses in position (3s)_x000D_
3) Press the start button (1s)_x000D_
4) The servo press drives the bearing downward, pressing the bearing into the tube column (7s)_x000D_
5) Pressing completed, the riveting cylinder extends, driving the riveting fixture to extend and rivet 2 points (3s)_x000D_
6) Riveting qualified, riveting head retracts, servo press retracts (2s)_x000D_
7) Rotate the motor by 90 degrees (rotation angle can be set) (1s)_x000D_
8) Riveting cylinder extends, driving the riveting fixture to extend and rivet the other 2 points (3s)_x000D_
9) Reset all components (2s)_x000D_
10) Manually remove the completed part, bearing rotates flexibly without jamming, transfer to temporary storage position (in case of disqualification, manually remove the disqualified part, place it in NG box, trigger NG photoelectric, and reset the system) (2s)_x000D_
Production cycle: ≤28s_x000D_
3. Compatible product: JLFC3C
