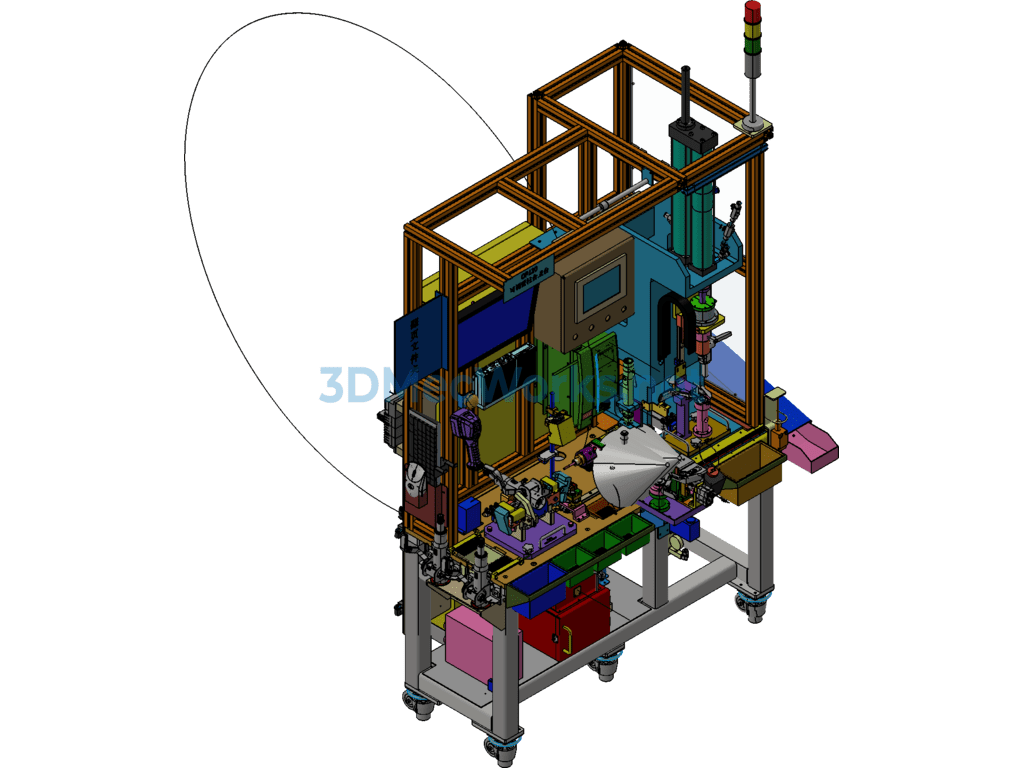

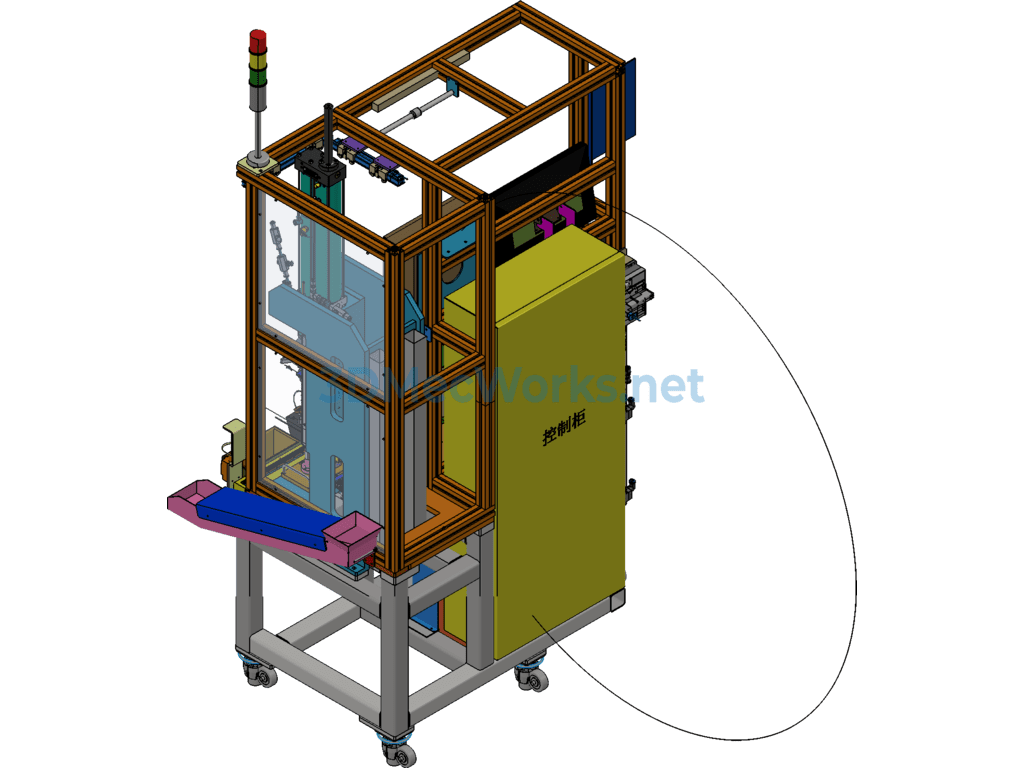

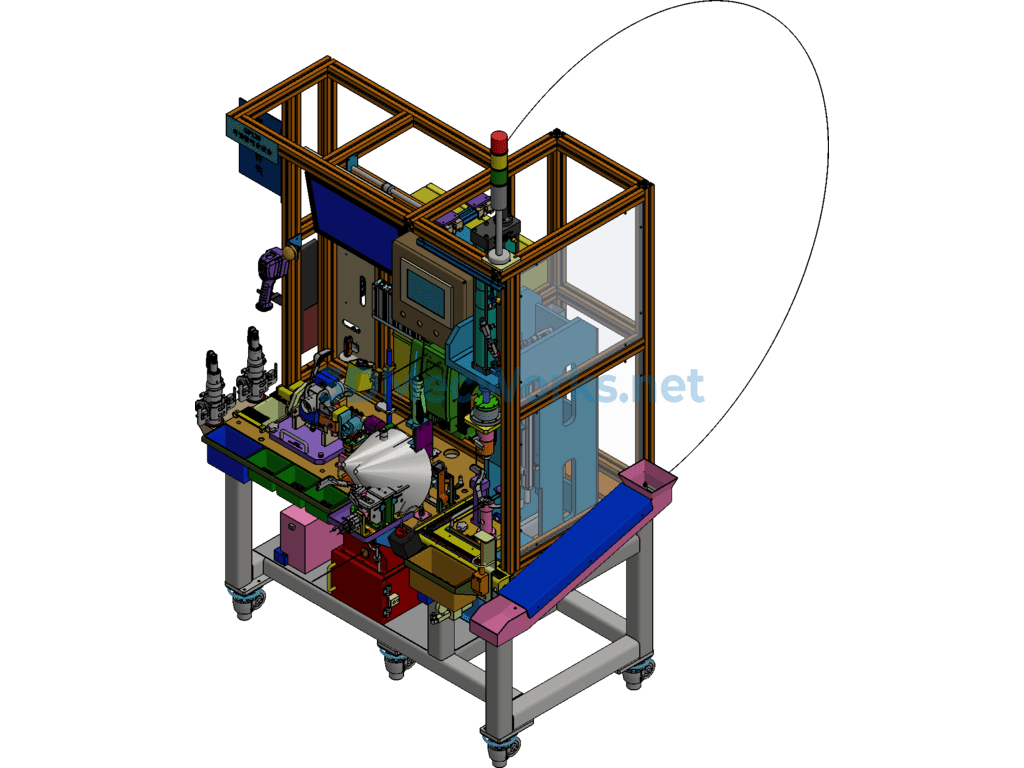

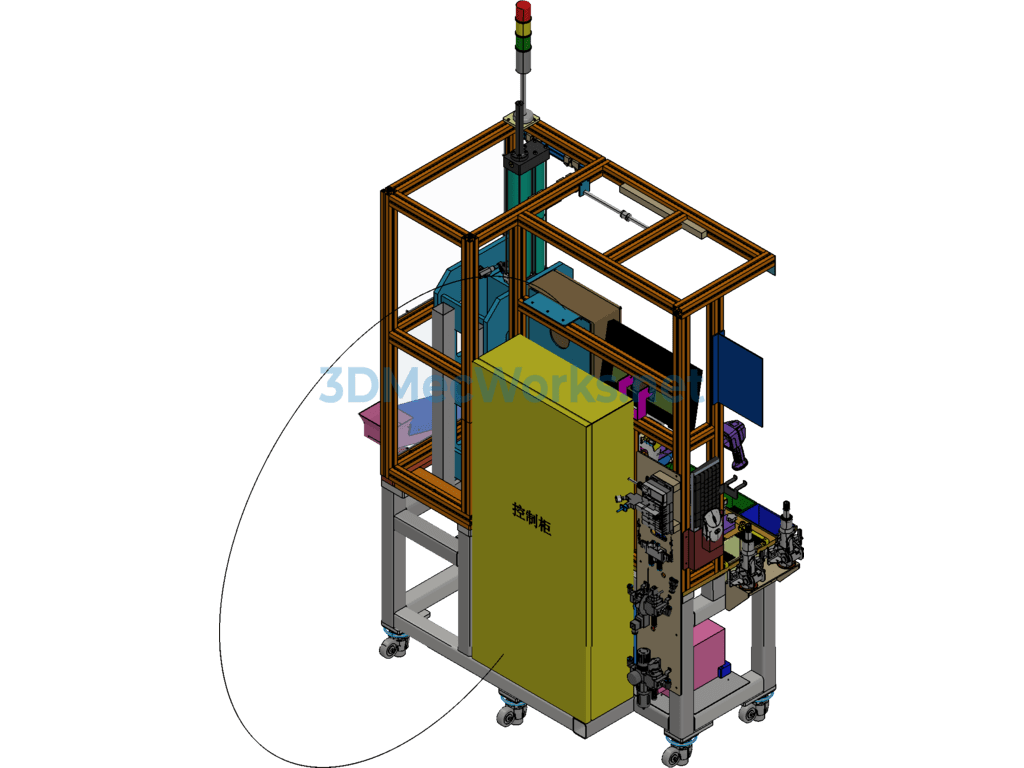

OP120 Adjustable Pipe Column Synthesis Station:_x000D_
1. Handle assembly press fit;_x000D_
2. Lock nut for handle assembly and pipe column assembly;_x000D_
3. Compatible products: D592120, D576300, D576400

Specification: OP120 Adjustable Pipe Column Synthesis Platform - Inventor - Free Download

Design Software	Inventor
Editable	Editable, With parameters
File Formats	step(stp)~\|~ipj~\|~ipt~\|~iam
Industry Application	Mechanical Equipment
Sharing Level	Diamond
Version	2016
