Online Product Automatic Assembly Appearance Inspection Equipment

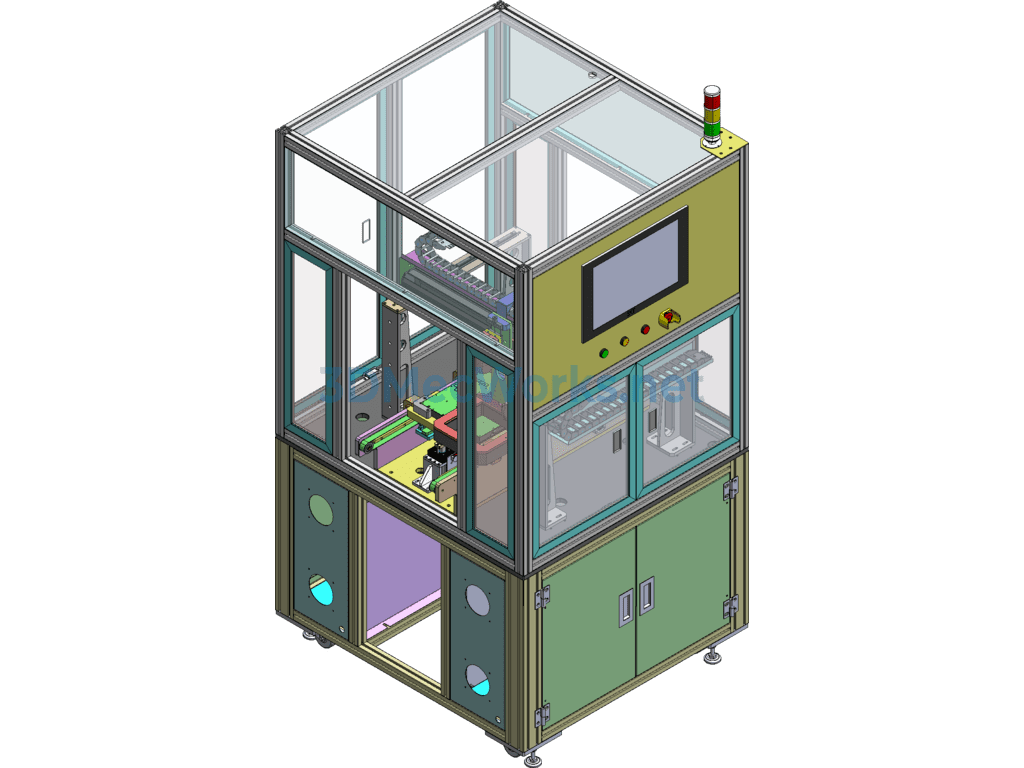

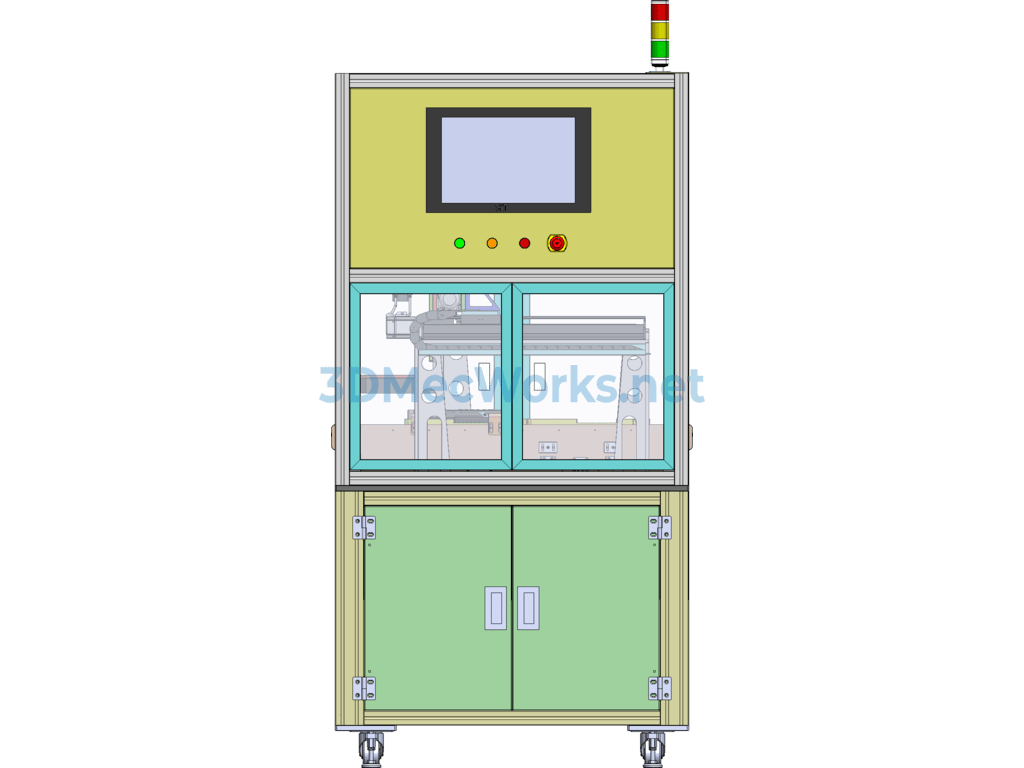

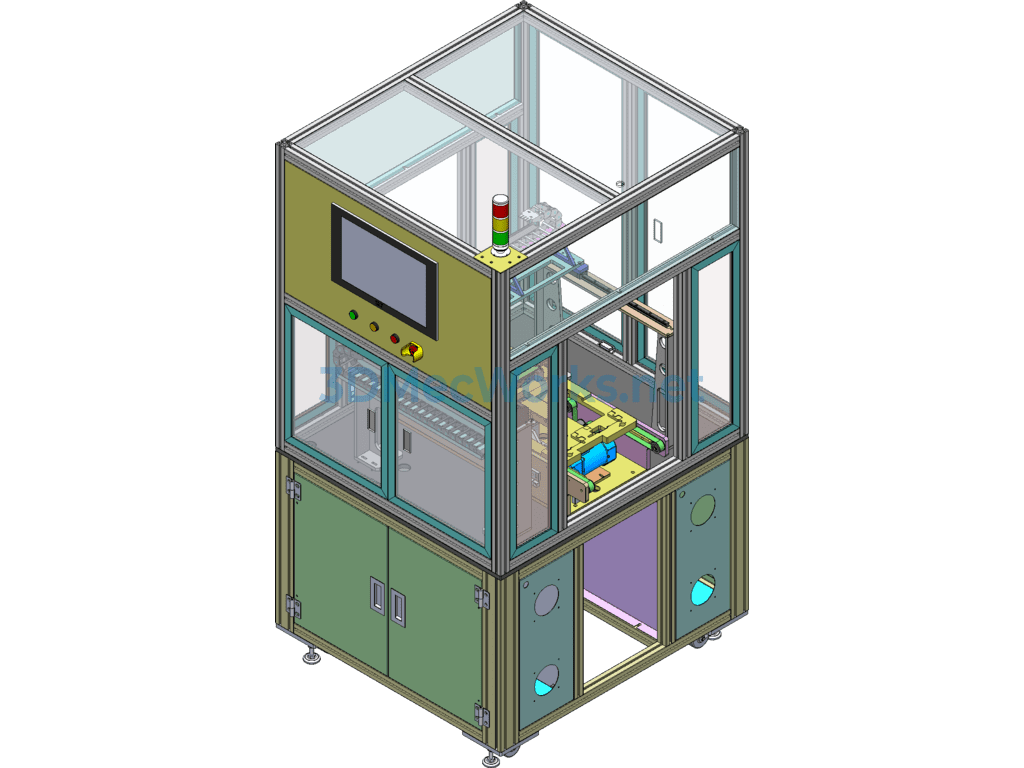

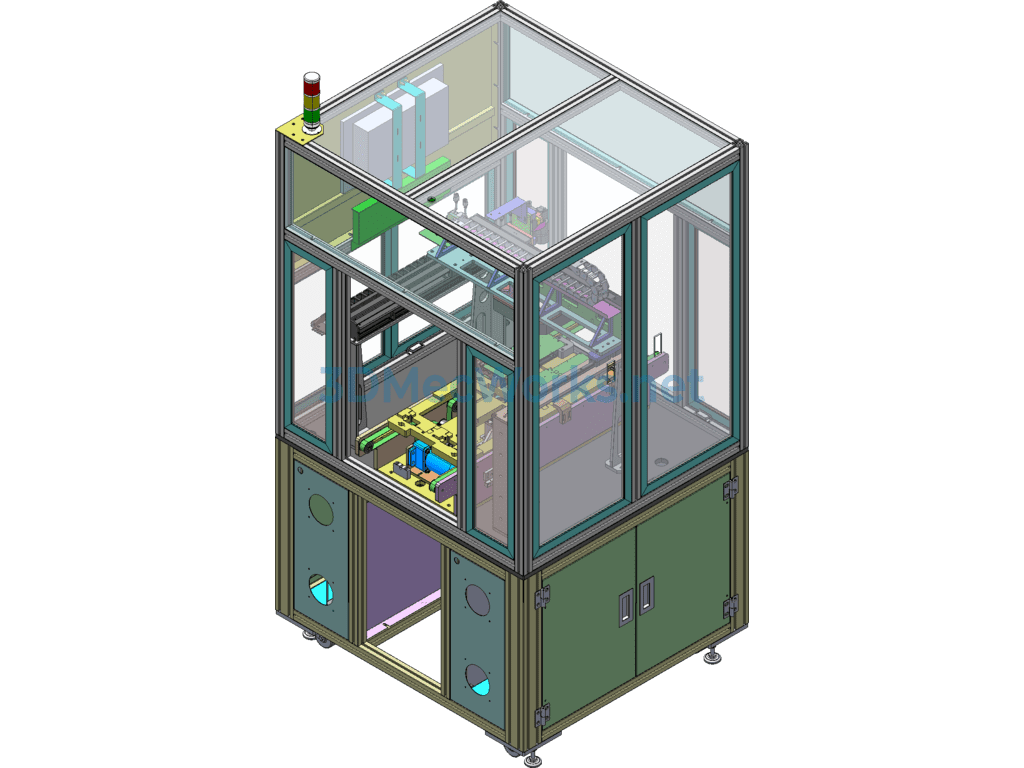

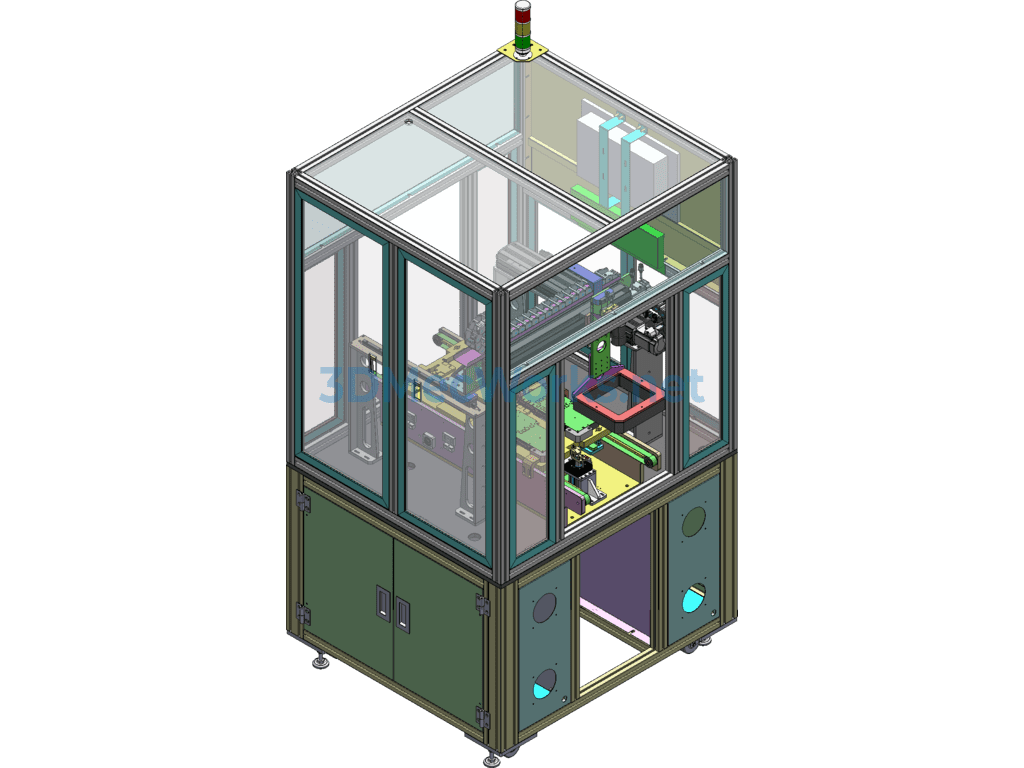

Online product automatic assembly appearance inspection equipment 3D model, model appearance inspection equipment SKTB1M15 is used for online checking for missing or incorrectly installed parts after product assembly. This equipment relies on a CCD vision inspection machine and is considered non-standard automation equipment. The outer frame is made of aluminum alloy profiles, which is very aesthetically pleasing. The design structure of this appearance inspection machine is detailed and provides good reference value, and peers are welcome to refer to it. The general assembly drawing is: SKTB1M15-00-000V01 appearance inspection equipment general assembly.SLDASM, please use version SW2015 or above to open. Of course, there is also a STEP file that most 3D software can open.
