Online Dual-Station Pcb Screw Machine (online)

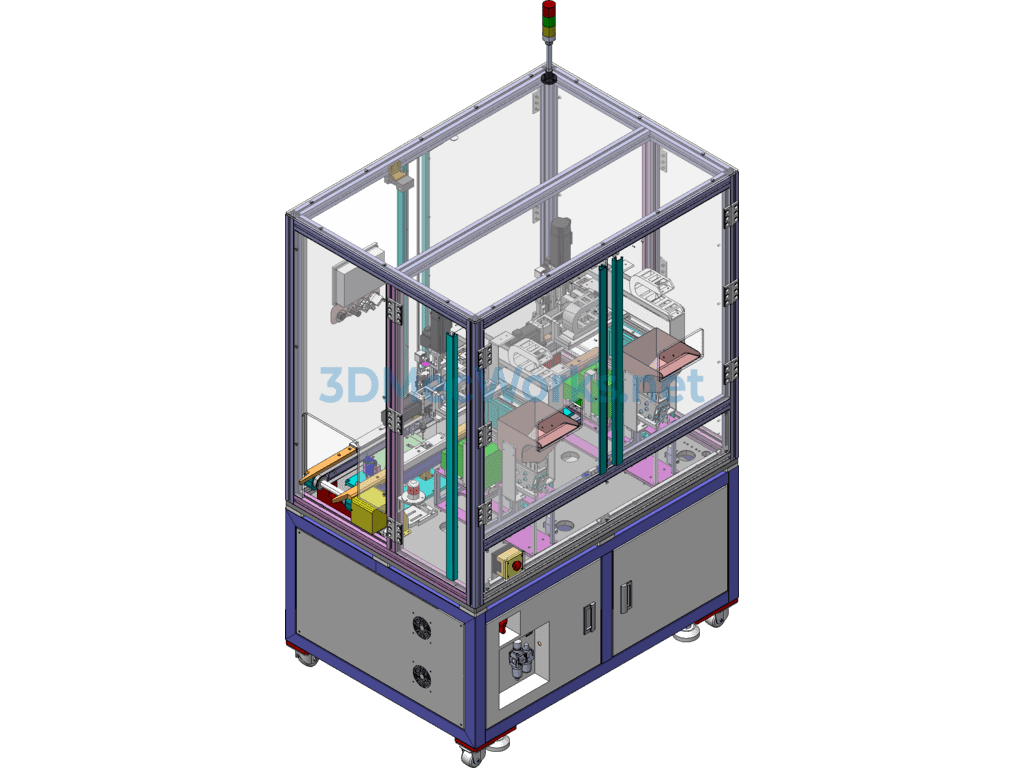

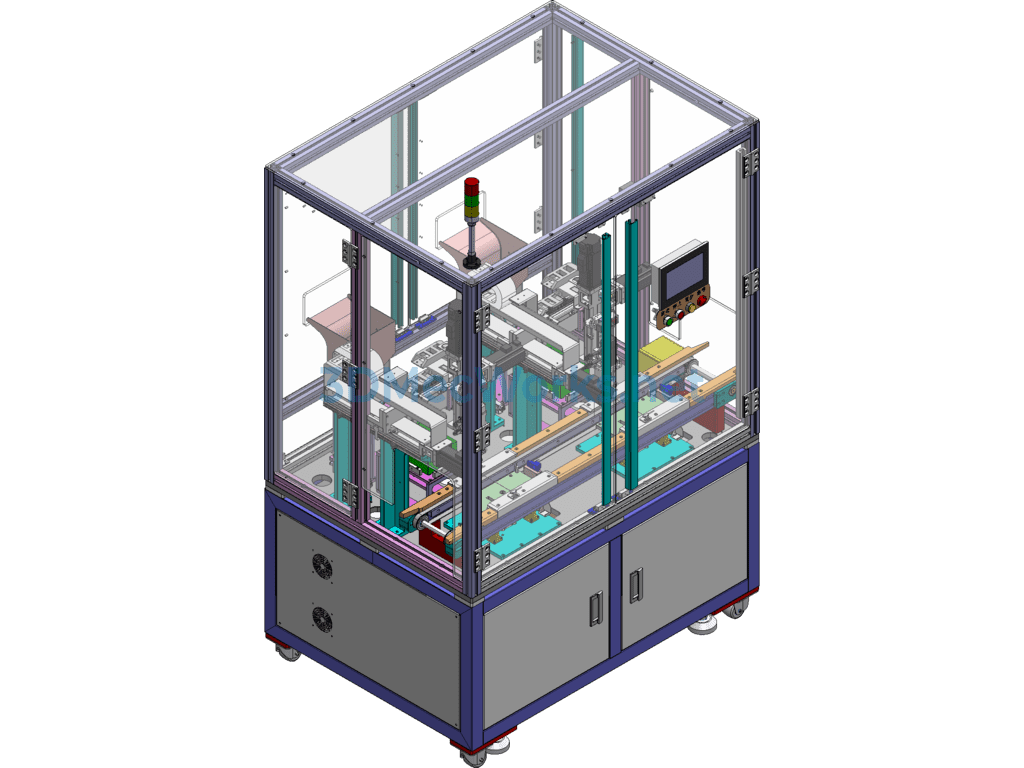

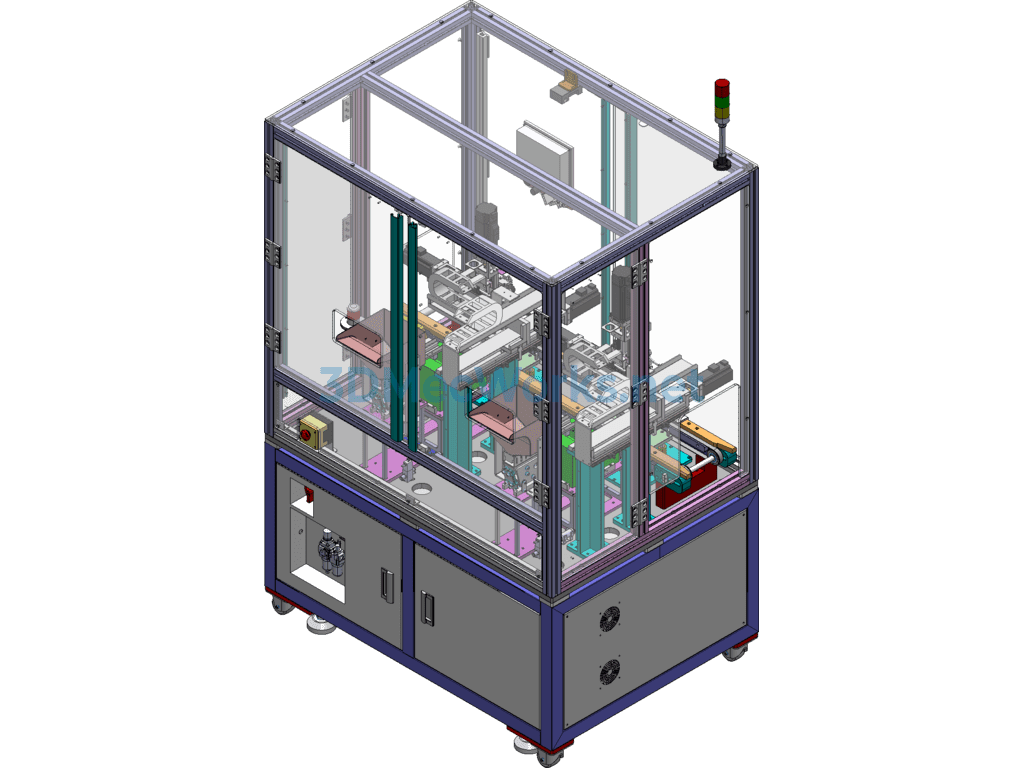

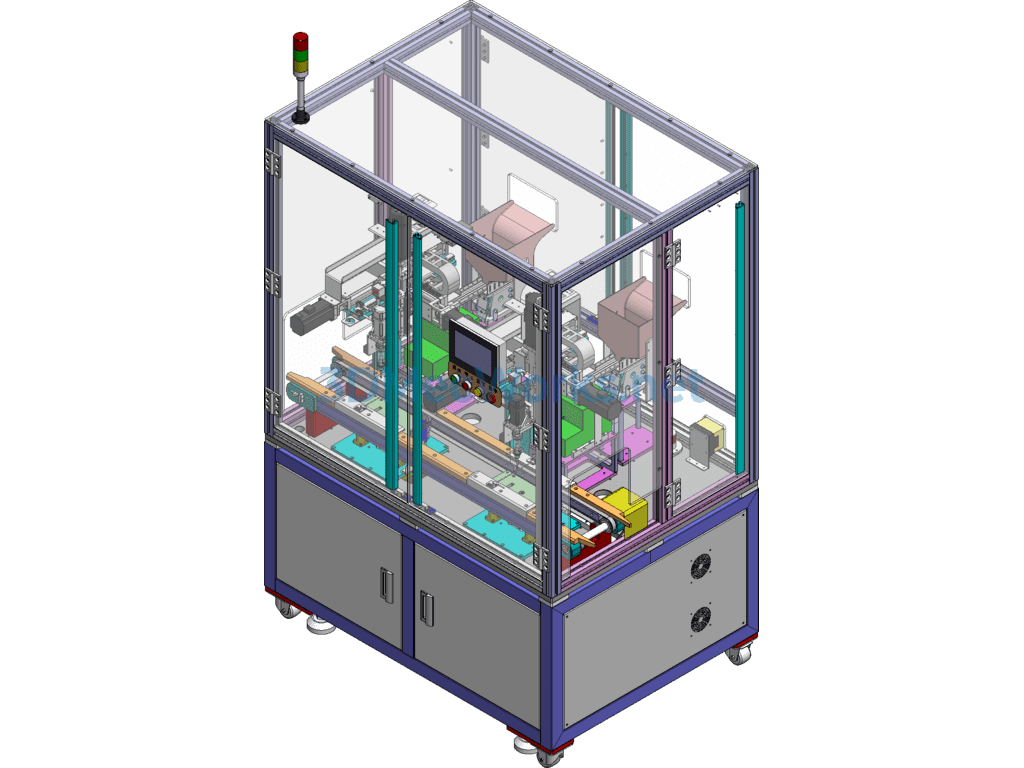

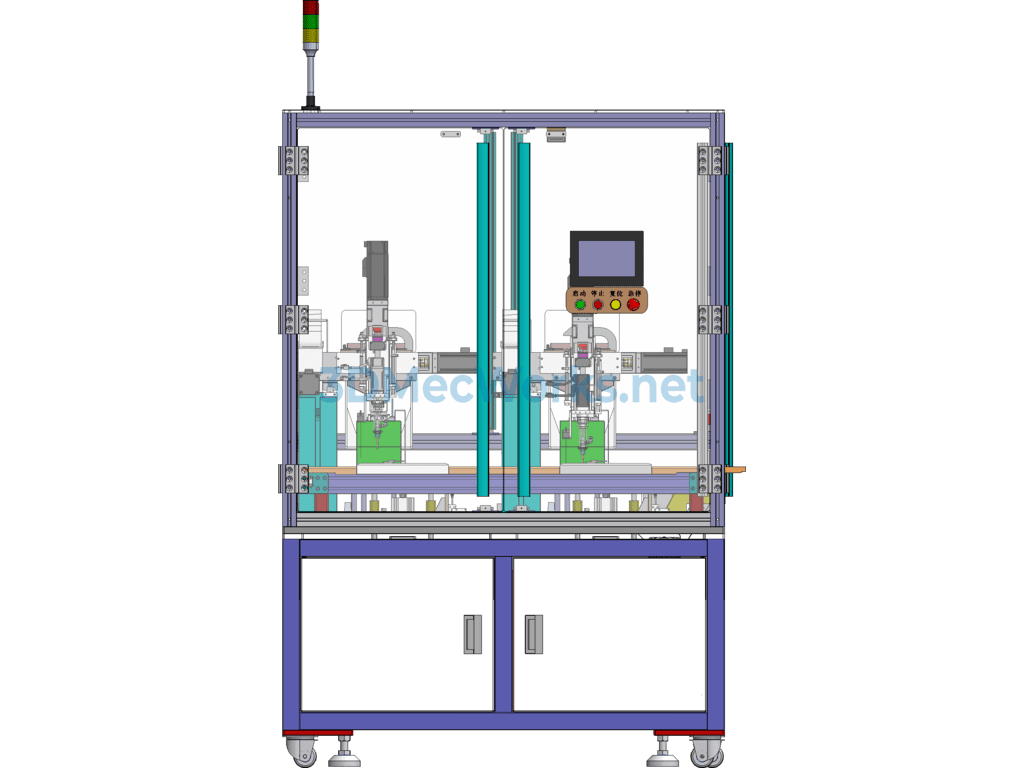

The PCB board locking and adsorbing machine model. This set of drawings is for the in-line servo automatic screw locking equipment for product carriers. The original drawings include the classic synchronous belt conveyor line and the material stopping and positioning cylinder, the servo 4-axis screw locking module mechanism, servo electric screwdriver heads, screw feeding device, achieving functions like automatic material feeding at the previous station, automatic screw locking, and automatic carrier ejection.
