Online Automatic Spraying Production Line (conformal Coating Machine for Pcb)

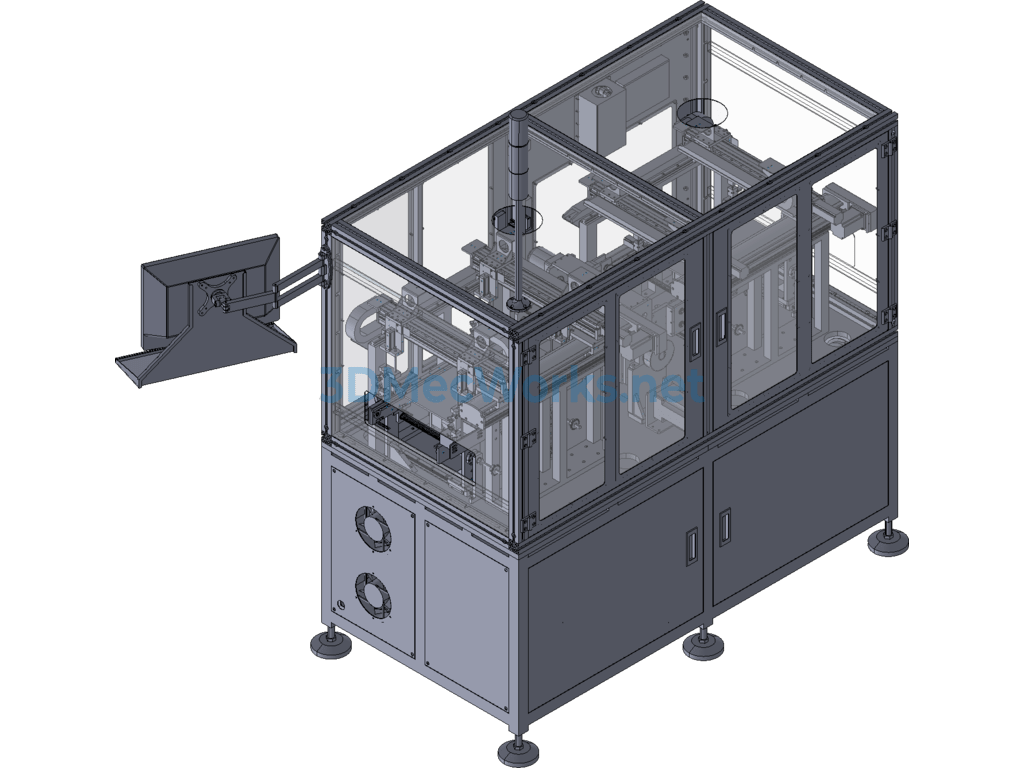

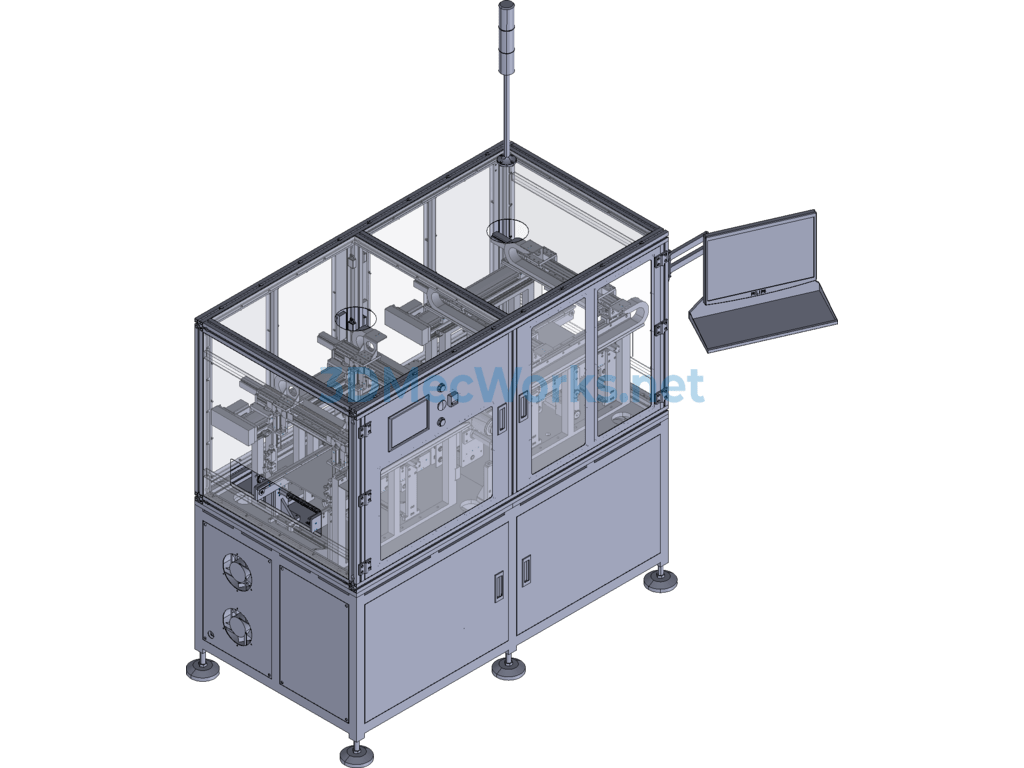

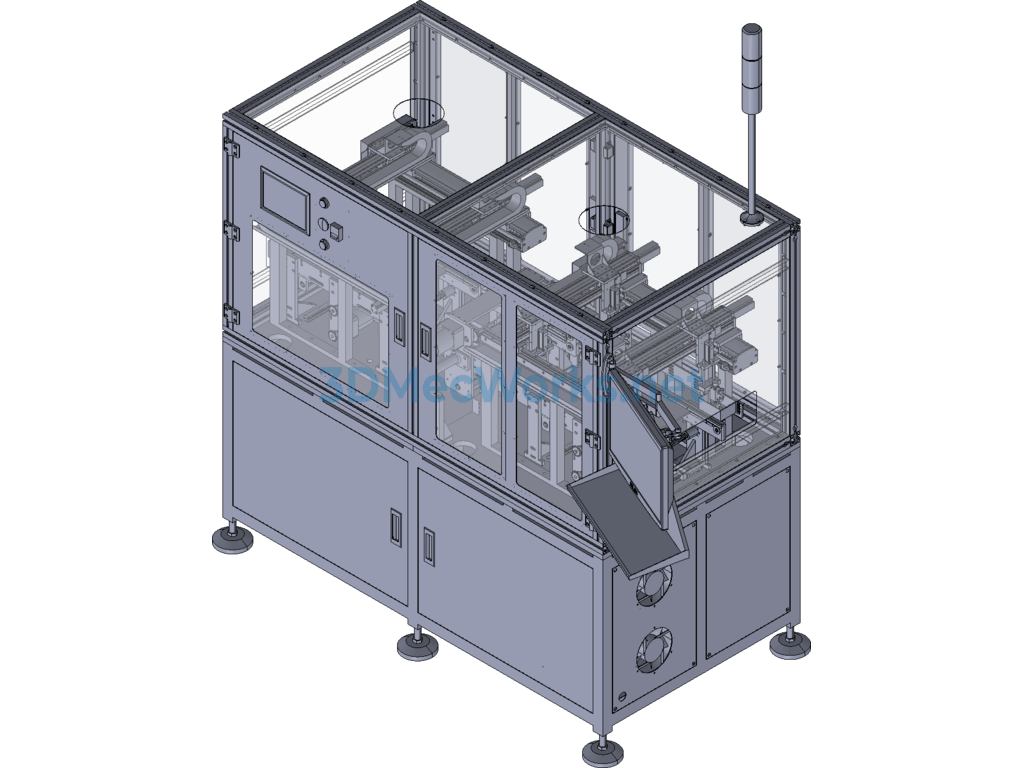

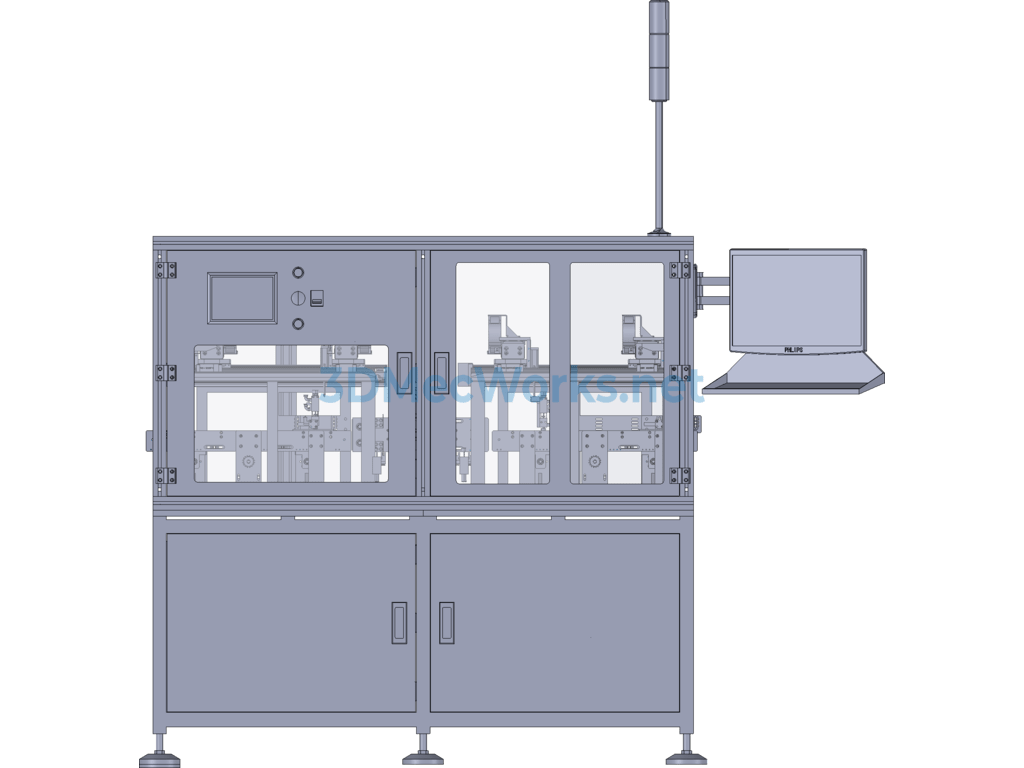

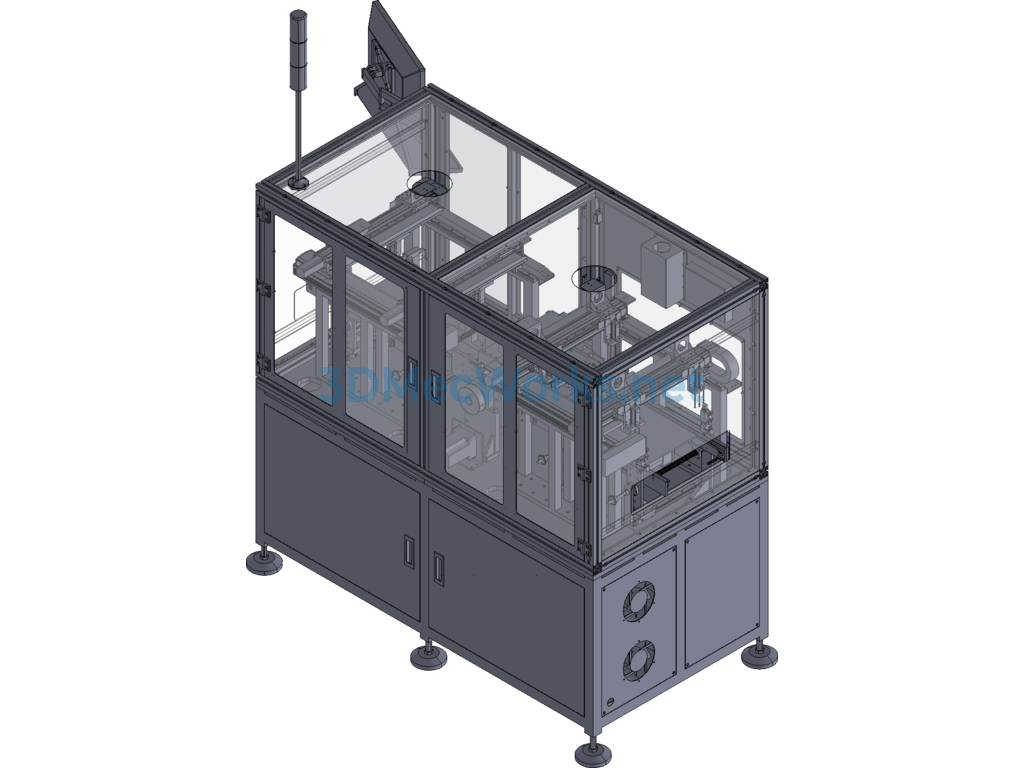

3D model of an online automatic coating machine designed with PROE5.0, complete drawings, and PROE source files including assembly/part drawings are available, along with the provision of STP documents. This online fully automatic coating machine is designed for PCBs that require coating. It primarily applies conformal coating to the PCB surface using a spray valve, extending the lifespan of the PCB motherboard. Currently, many electronics factories still manually apply conformal coating. Those engaged in manufacturing electronic factory equipment can download and study it for industrial purposes. The drawings are complete with assembly and part diagrams, so please feel free to download. There are more designs available in my profile which you are welcome to browse and explore.
