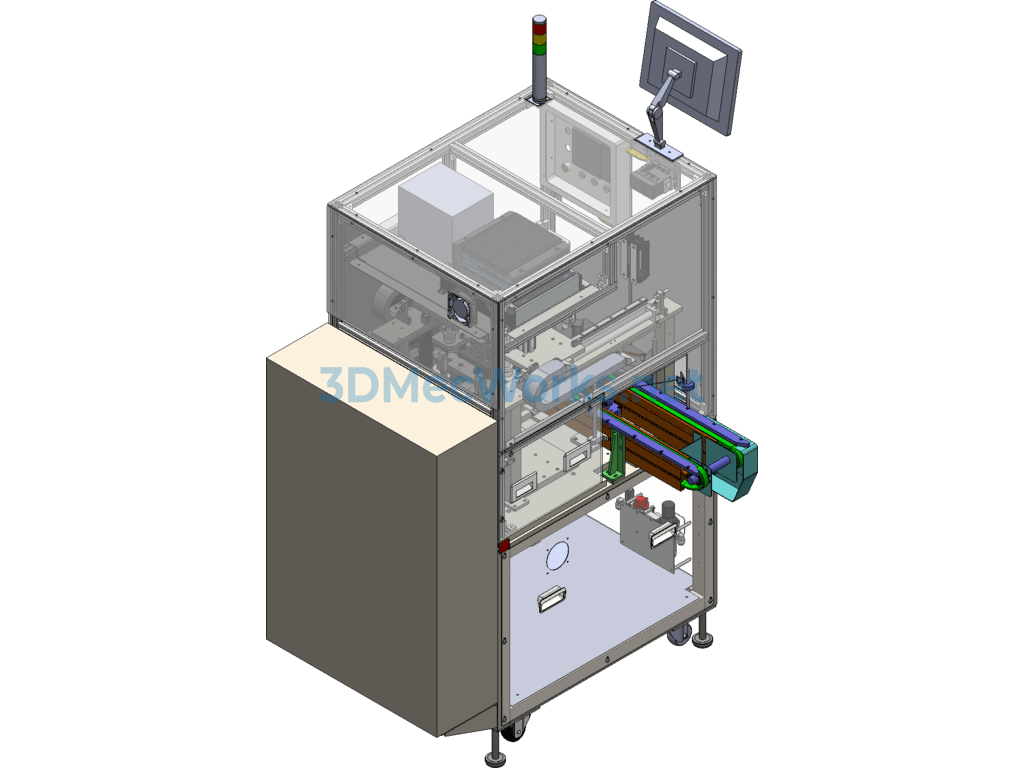

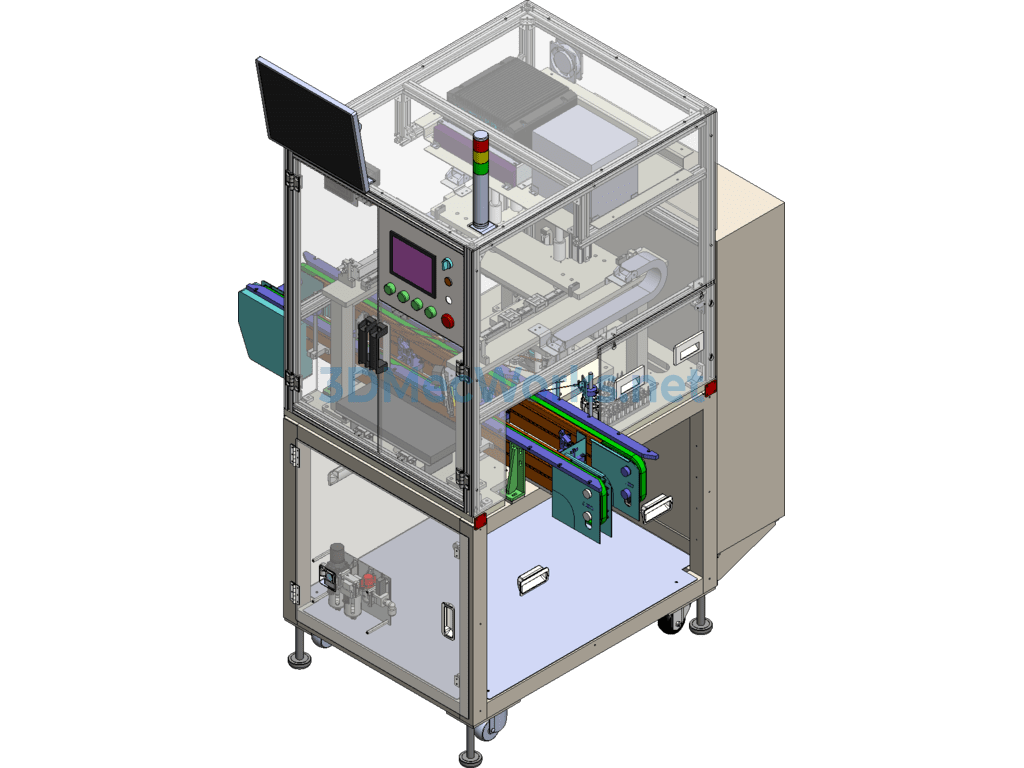

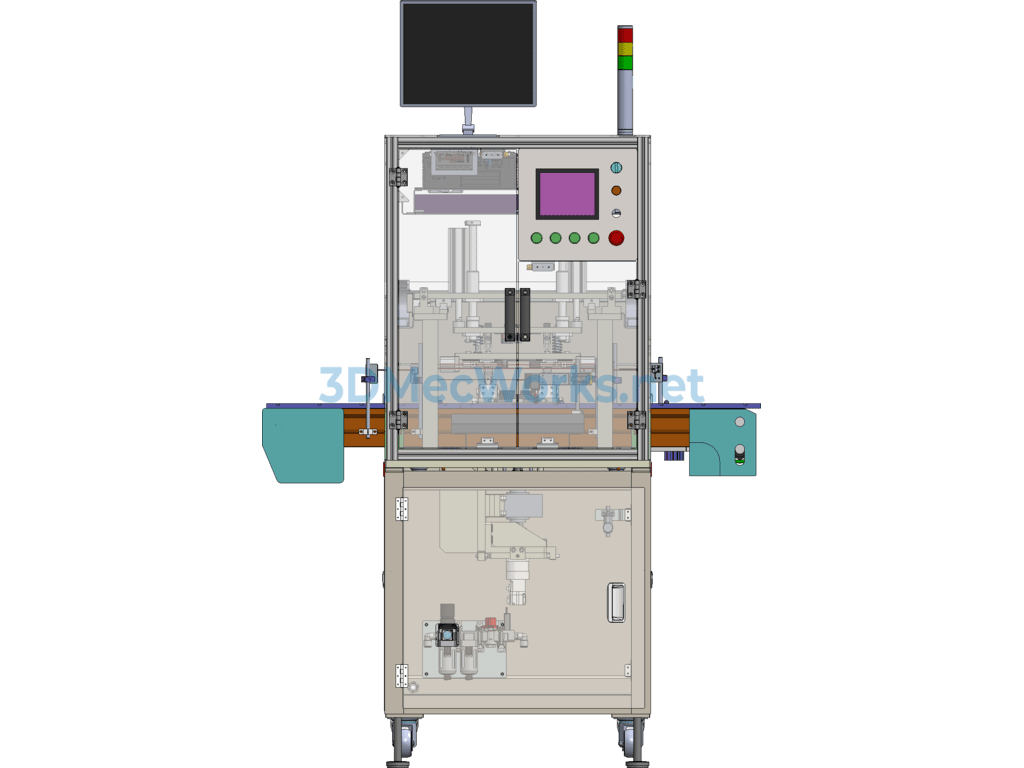

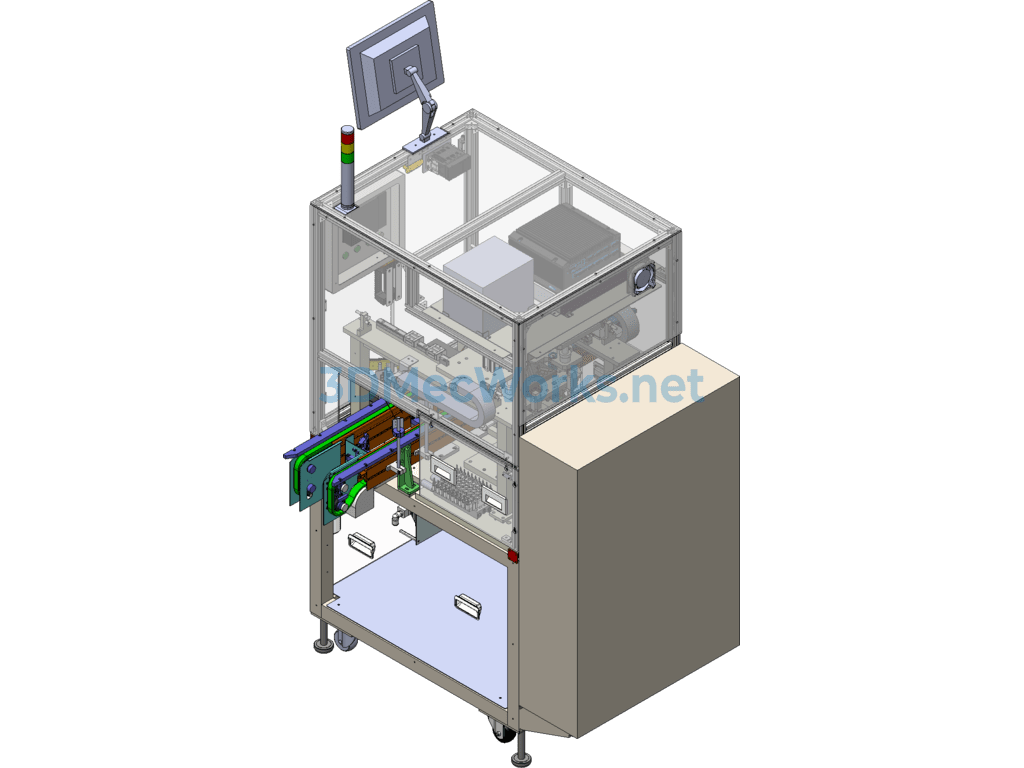

3D Model of On-Board Motor Front-End Gear Inspection Equipment SW design provides sldasm and sldprt files. The document is very large, over 210M when compressed, and is best opened on a high-performance computer. The on-board motor front-end gear inspection machine is used in the automotive motor industry. After the motor assembly is completed, there will be a corresponding inspection program. This equipment performs the inspection of the front-end gear of the motor. This equipment is one of the stations on the automotive motor production line. As the entire production line reaches this station, it performs positioning, grasping, and transfers to this equipment. It is placed in the positioning fixture for positioning operations. Then the below inspection unit rises, engages with the motor front-end gear, and performs rotational count measurement, detecting the accuracy, friction, and other coefficients of the gear to determine if it is qualified.
