Oil Pump Front Housing Op10 Fixture Drawing

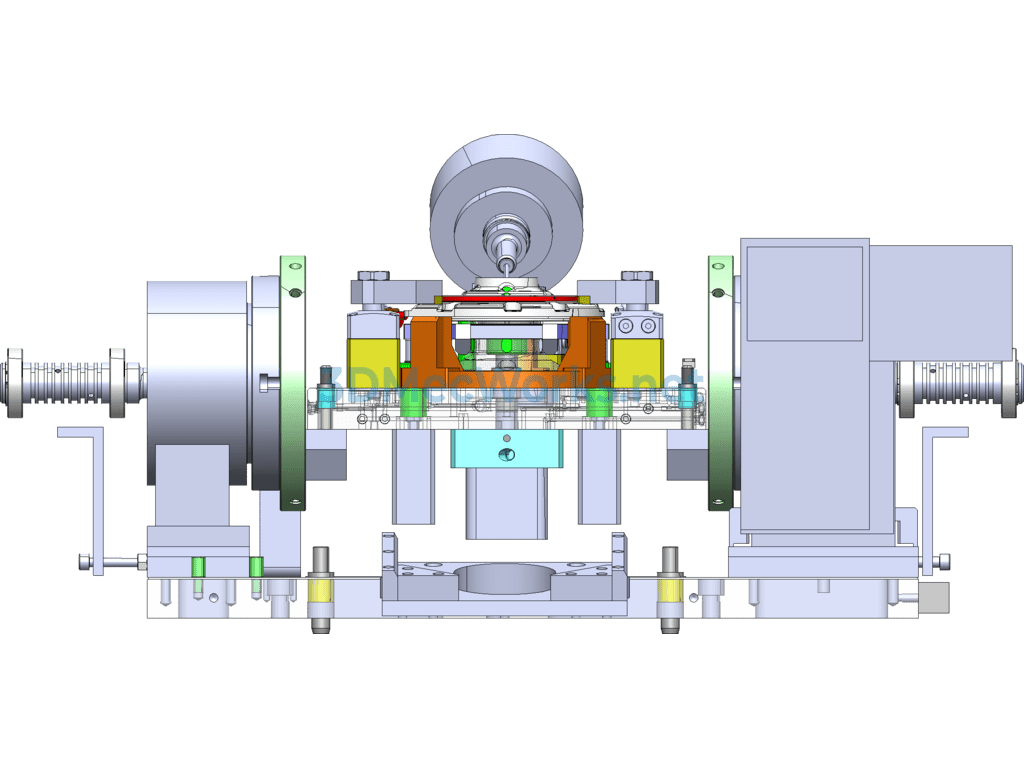

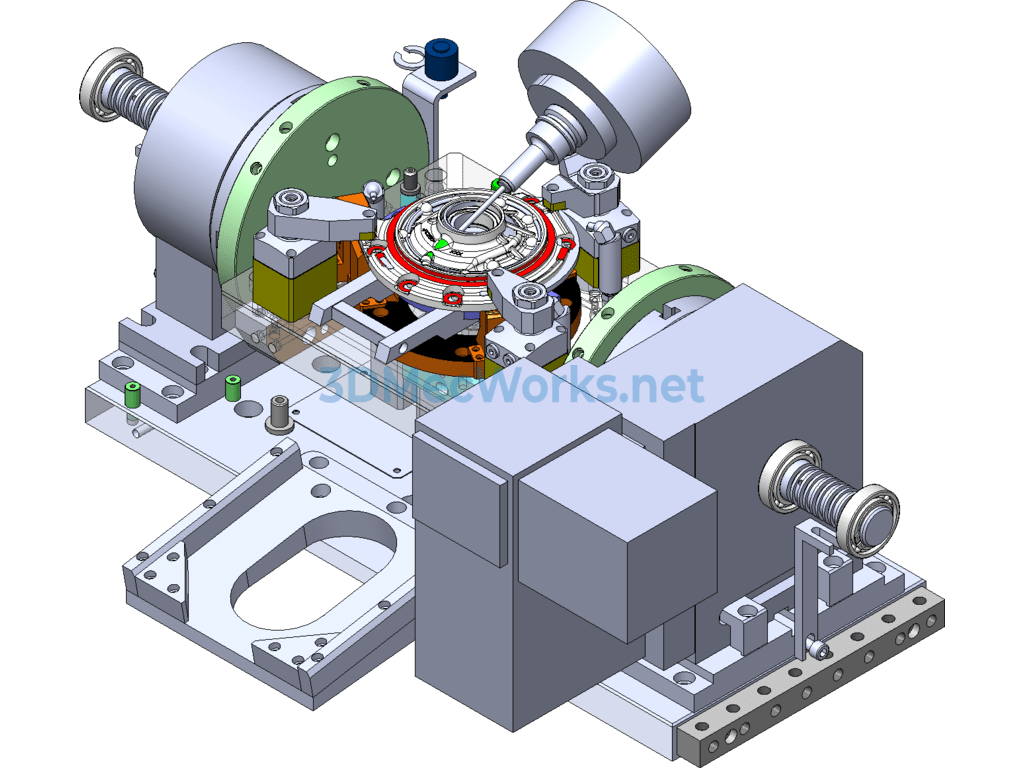

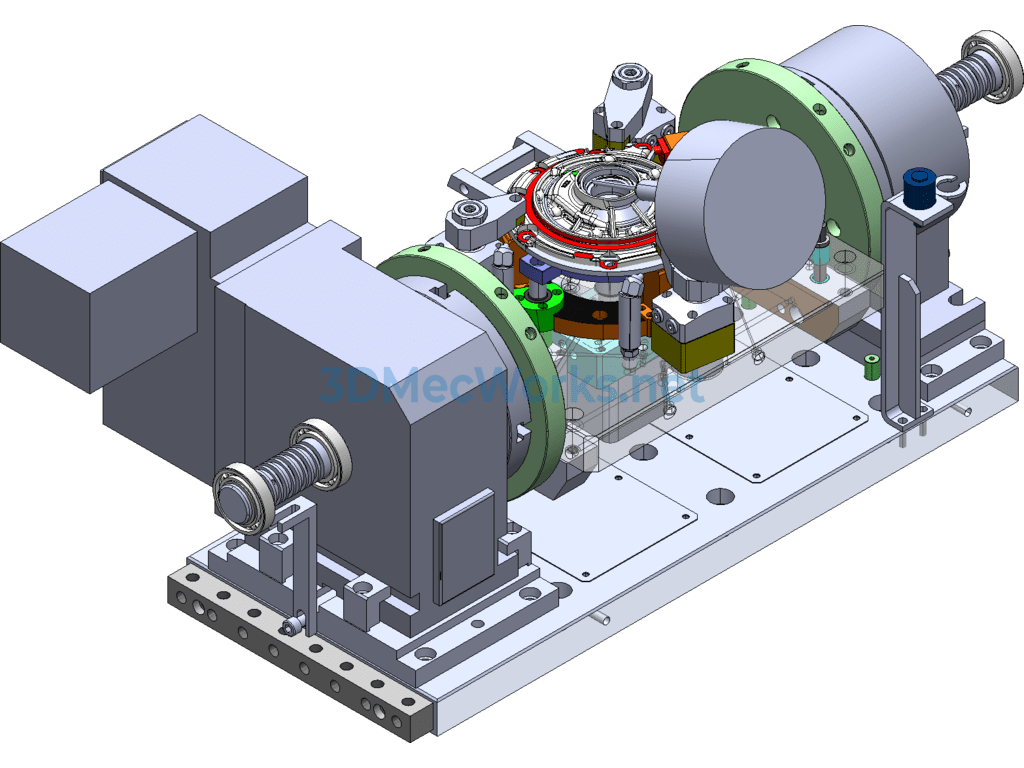

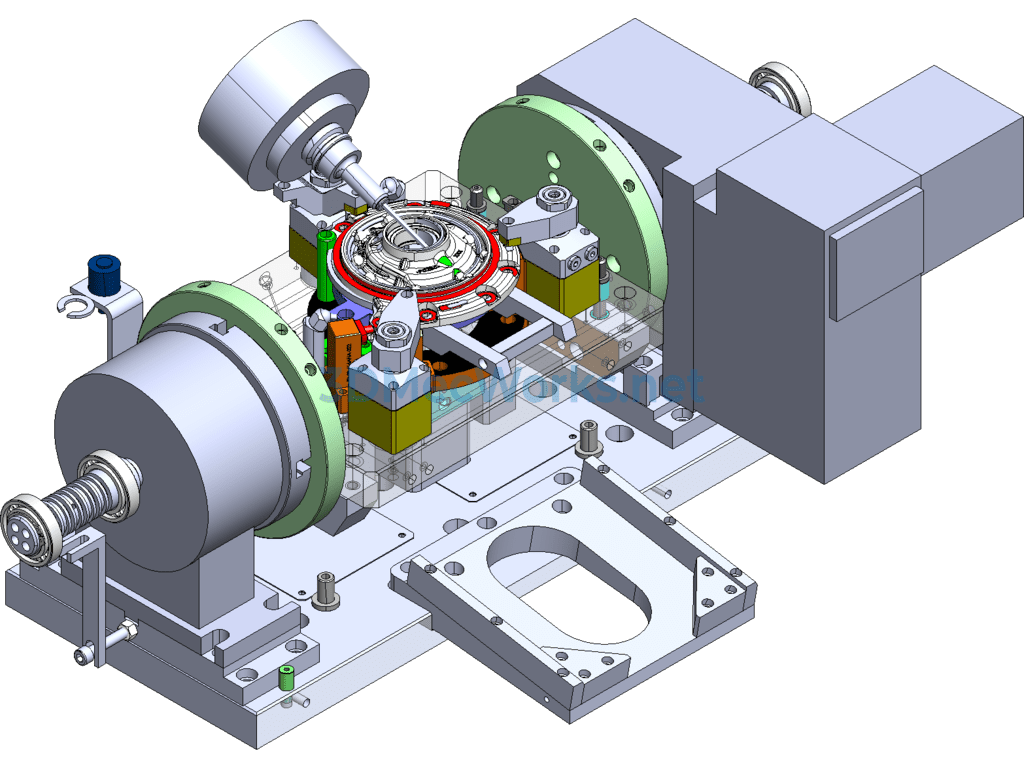

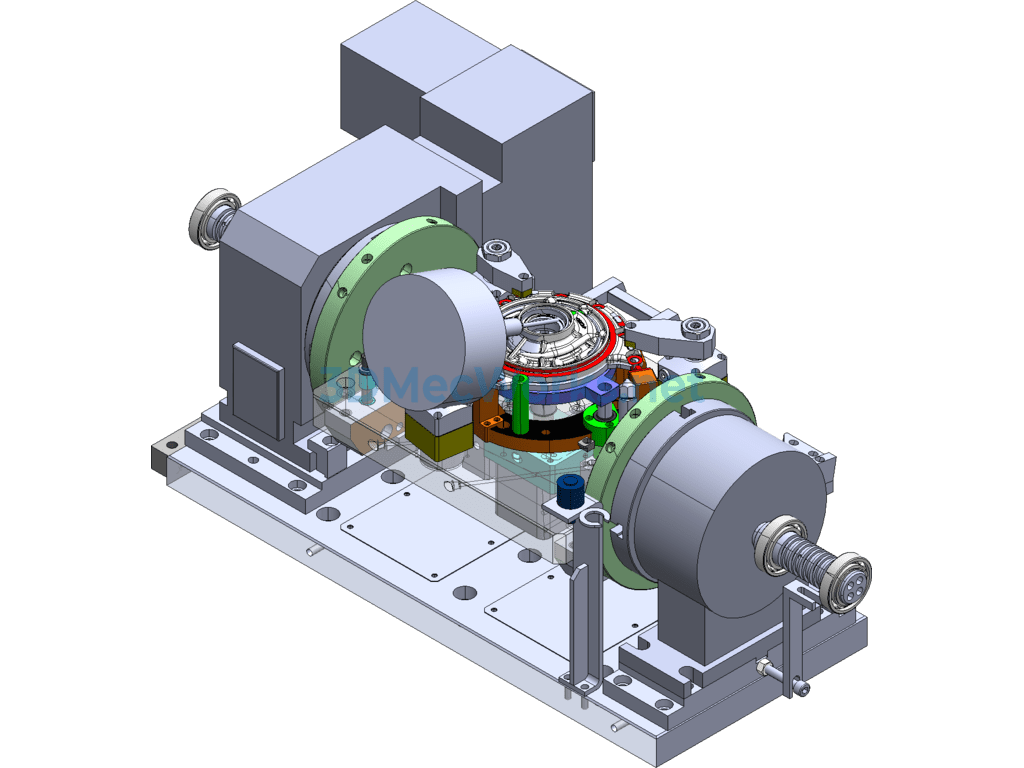

This diagram is the OP10 hydraulic fixture diagram for the front housing of a car oil pump, coordinated with the machine tool CMV-510, with a worktable size of 600X360; this fixture uses a collet for centering and a base for angular orientation; the weight of the fixture is approximately 250KG;
Specification: Oil Pump Front Housing Op10 Fixture Drawing
|
