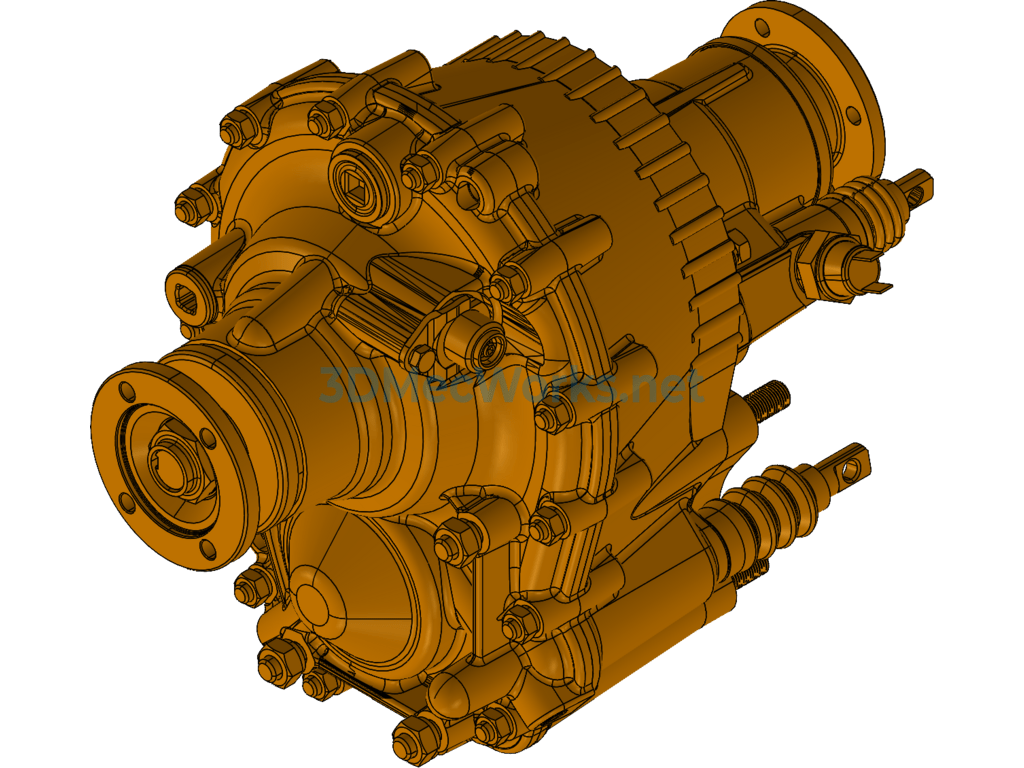

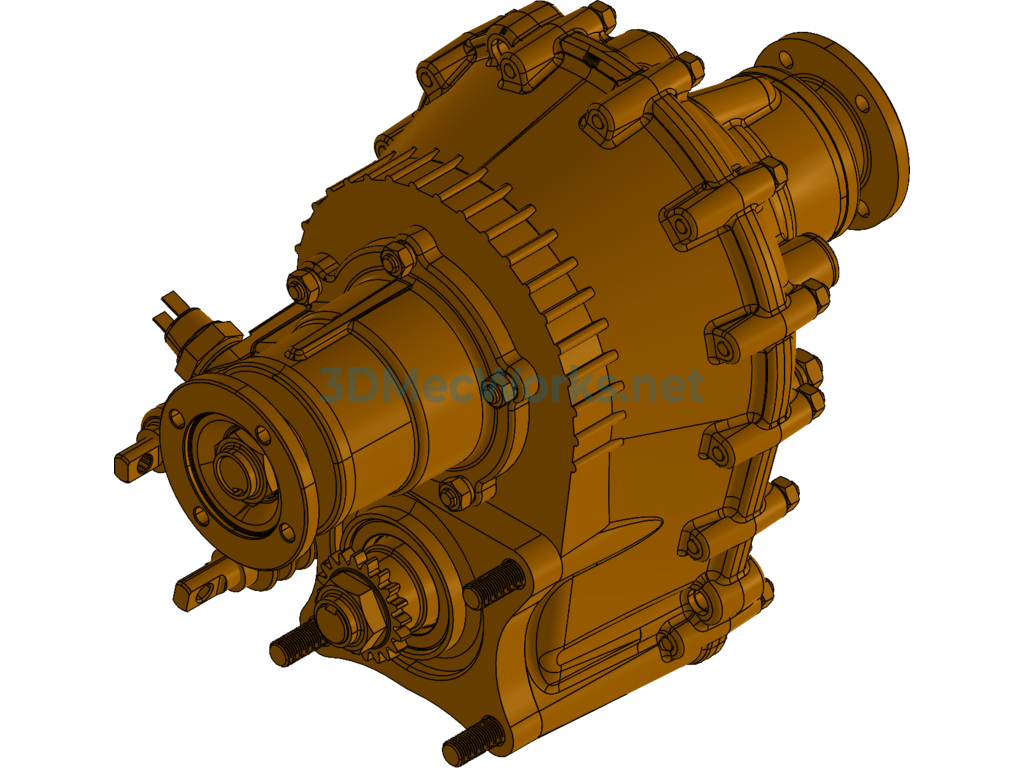

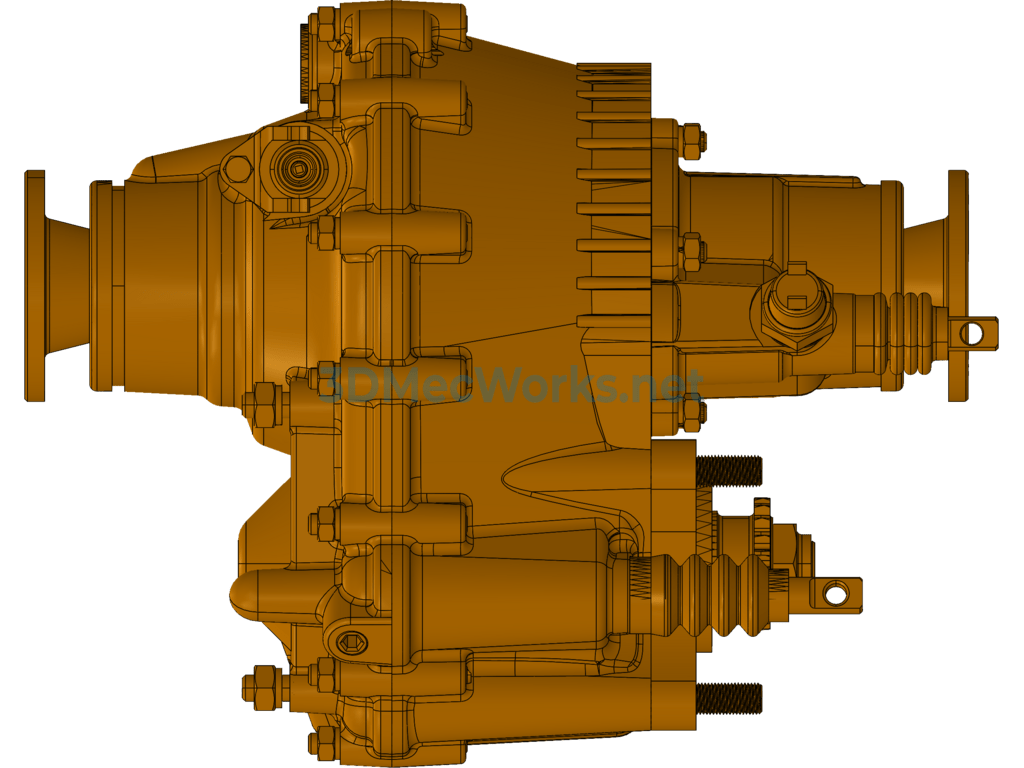

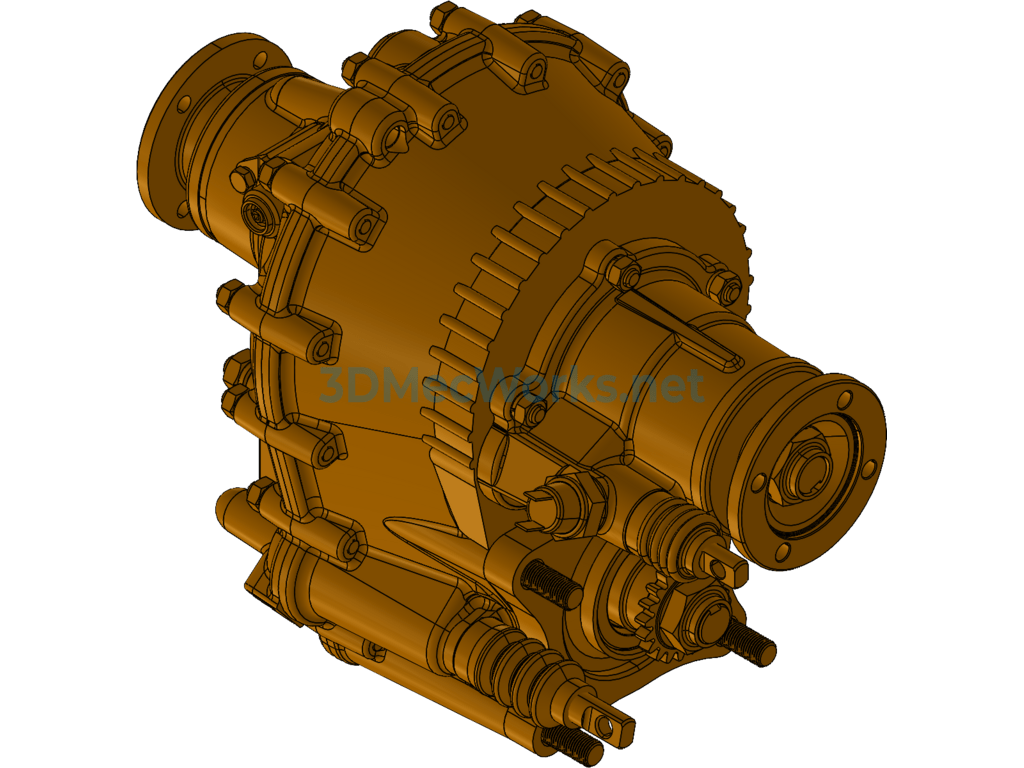

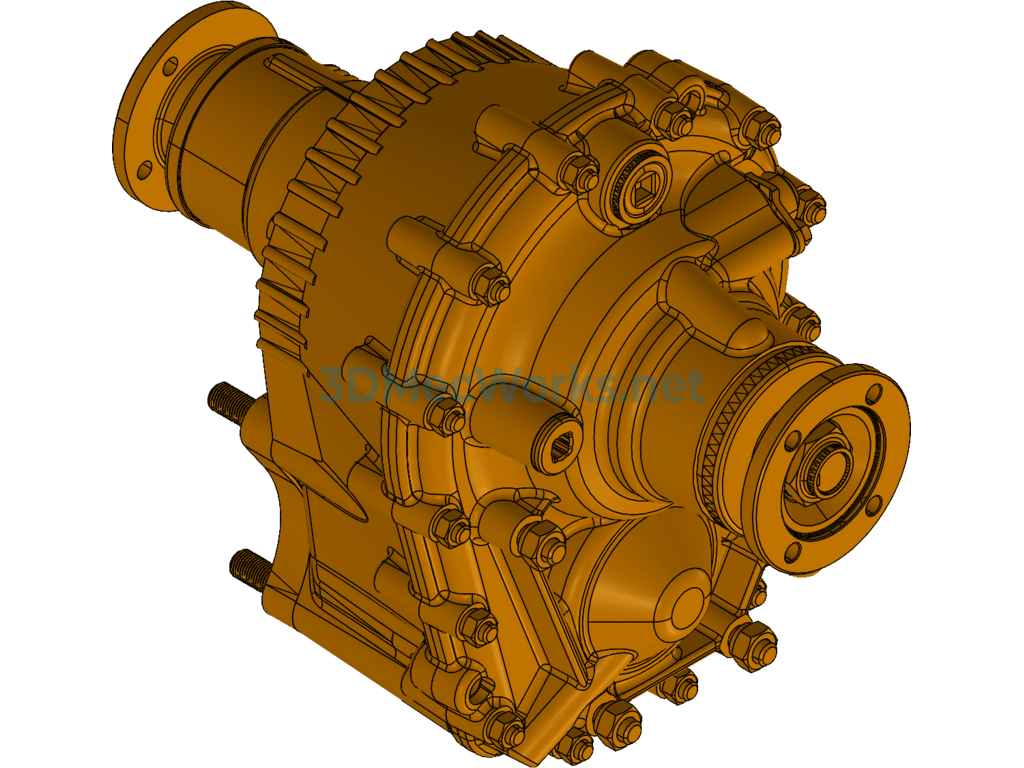

Off-Road Vehicle Transmission

0
Sold by
MrBlue
@ MrBlue
[mecworks-btn]
SKU: B012501005618 Category: Tags: , , ,

Off-road vehicle transmission, which uses gear transmission and features several fixed gear ratios. Depending on the type of gear system used, there are two types: fixed-axis transmission (conventional transmission) and rotating-axis transmission (planetary gear transmission). The transmission ratios for passenger cars and light to medium trucks usually have 3-5 forward gears and one reverse gear. In the combined transmissions used in heavy-duty trucks, there are more gear levels. The term “number of gears in a transmission” refers to the number of forward gears it has.

Specification: Off-Road Vehicle Transmission

Design Software

Editable

,

File Formats

, , , , , , ,

Industry Application

Sharing Level

Version

User Reviews

0.0 out of 5
0
0
0
0
0
Write a review

There are no reviews yet.

Be the first to review “Off-Road Vehicle Transmission”
