Odf Distribution Frame

An Optical Distribution Frame (ODF) is a fiber optic distribution equipment specifically designed for optical fiber communication rooms, featuring fiber cable fixation and protection functions, cable termination functions, routing functions, and the protection of fiber cores and pigtails. It can be independently assembled into a fiber distribution frame, or integrated with digital distribution units and audio distribution units in a single cabinet/rack, forming a comprehensive distribution frame. This equipment is flexible in configuration, simple to install and use, easy to maintain, and convenient to manage. It is an essential device for fiber optic communication cable network terminals or relay points to achieve fiber routing, fiber cable splicing, and access.

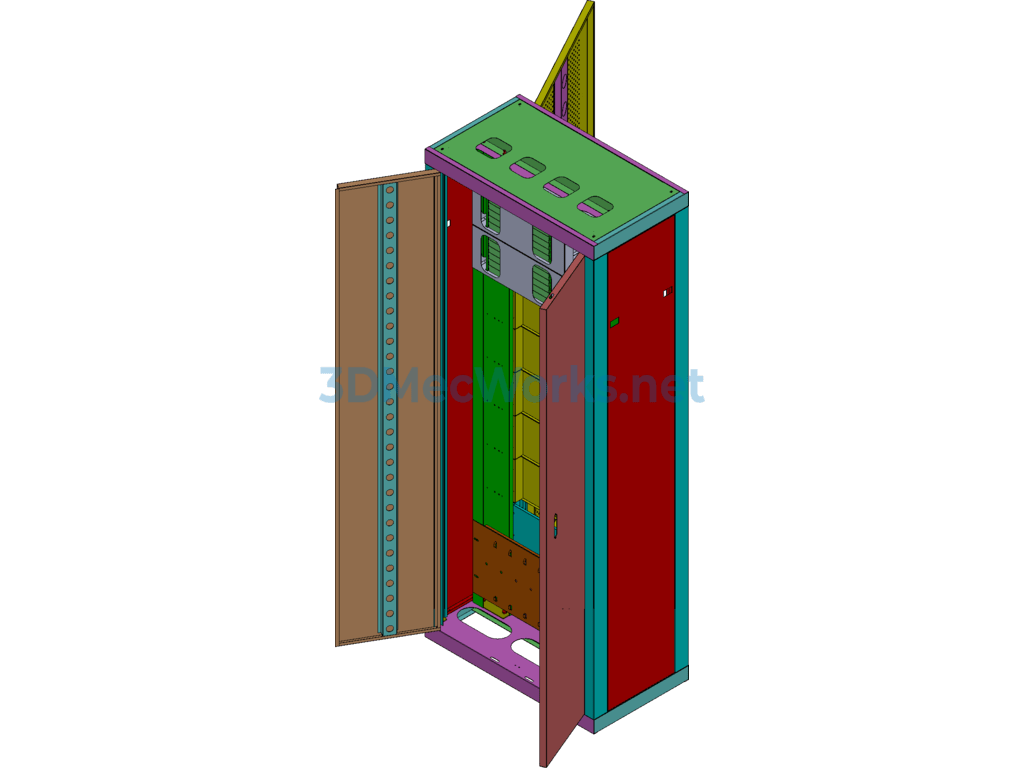

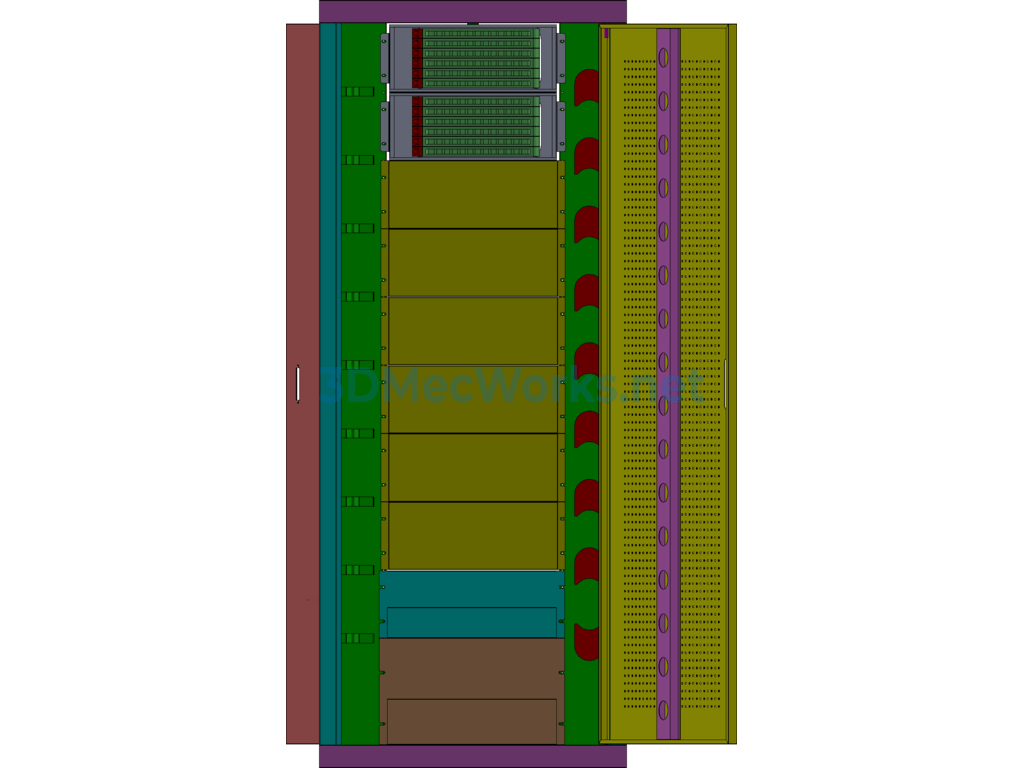

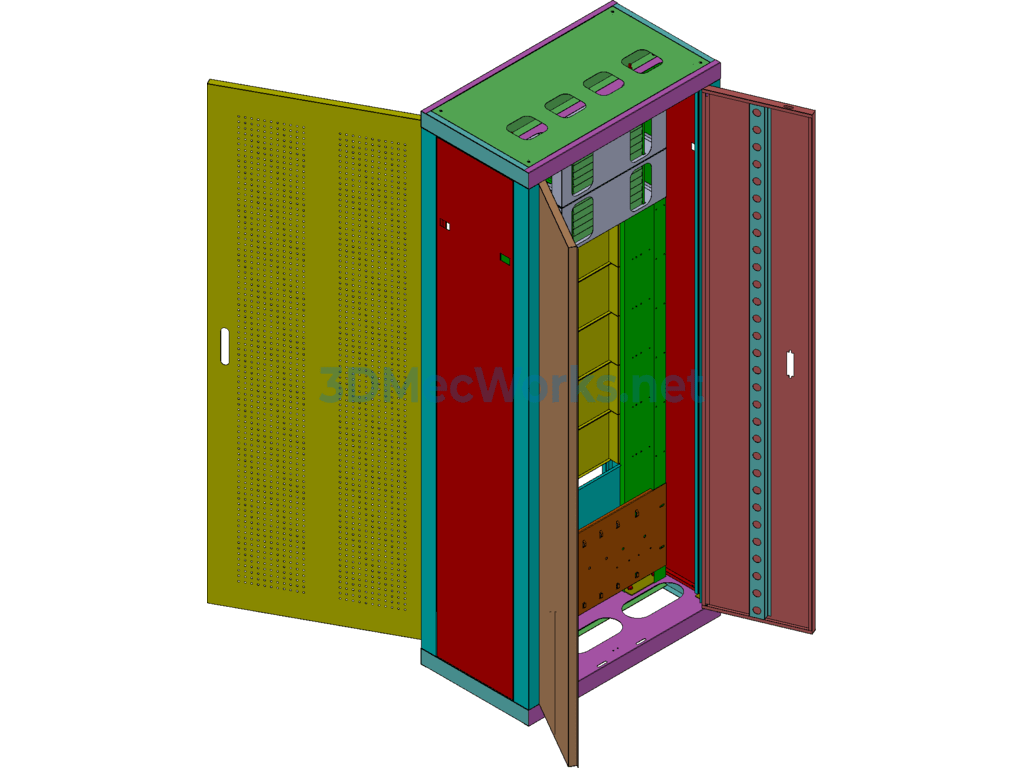

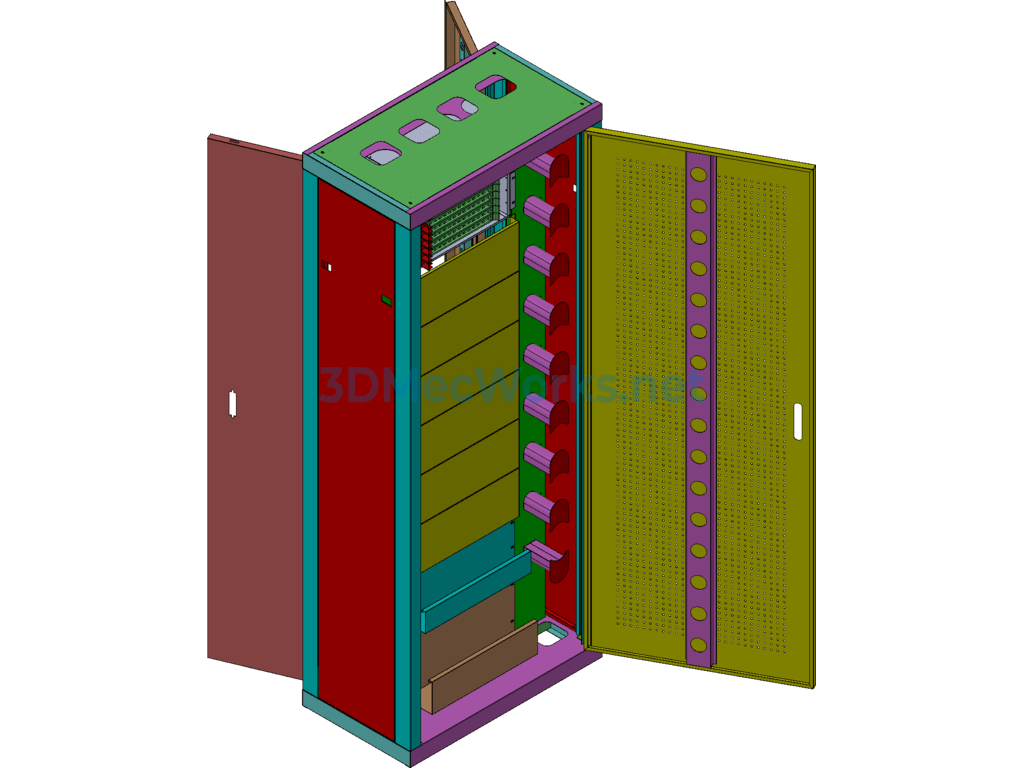

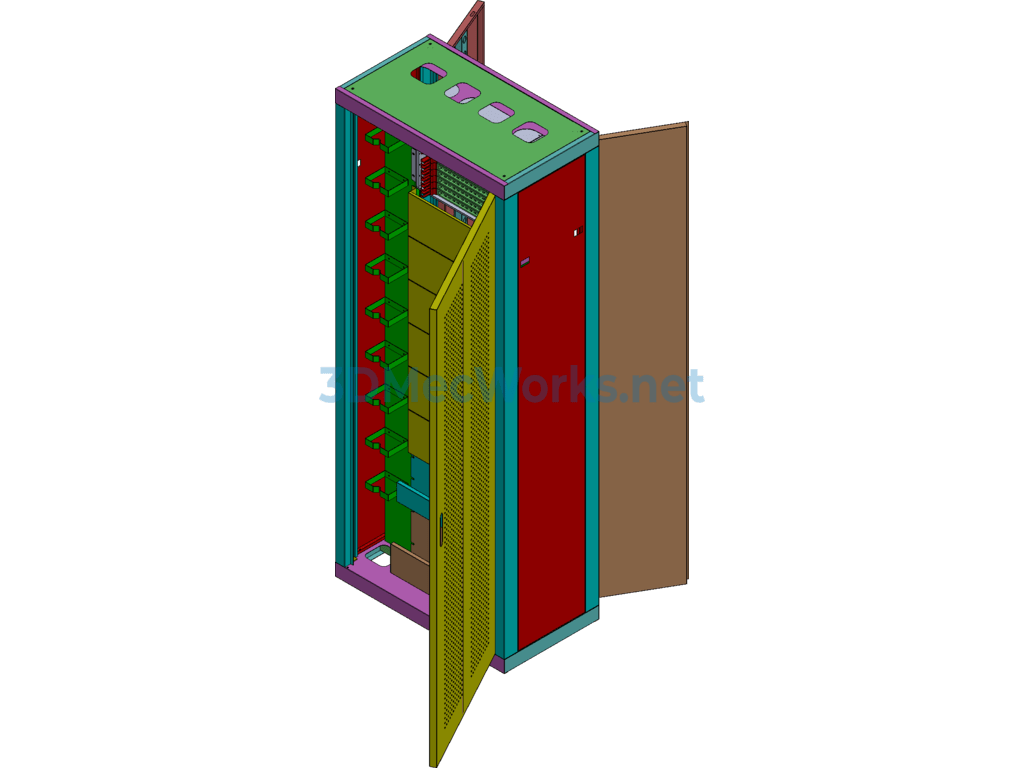

The model is built using SW2012, and all parameters within the model can be edited and modified.
