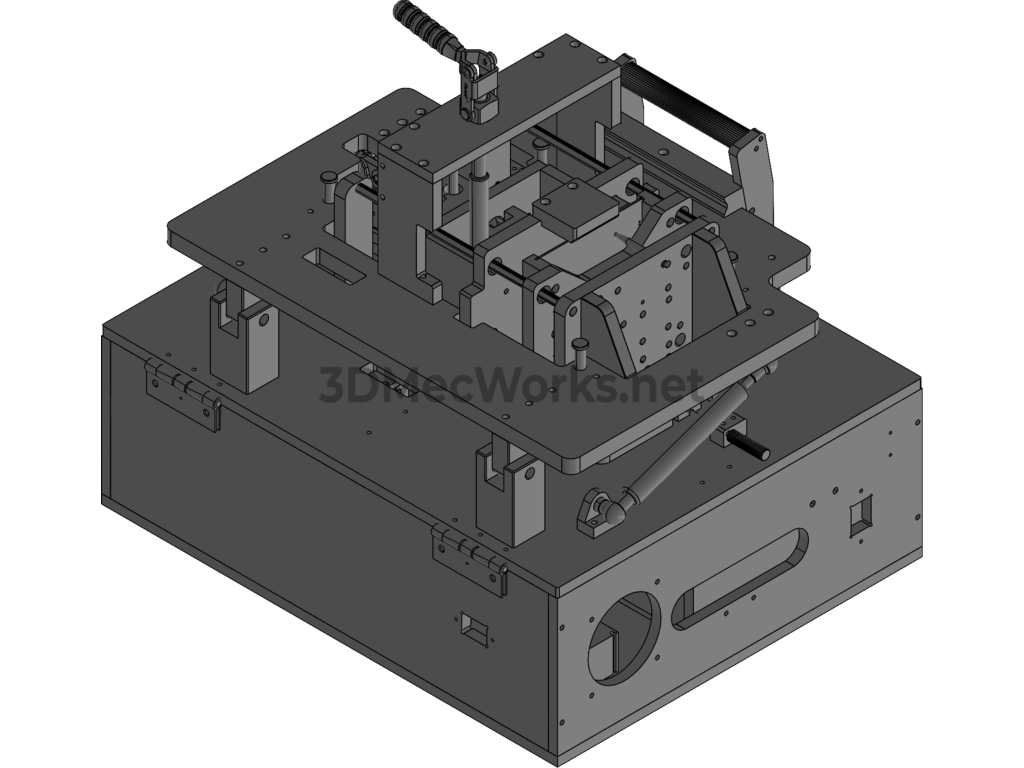

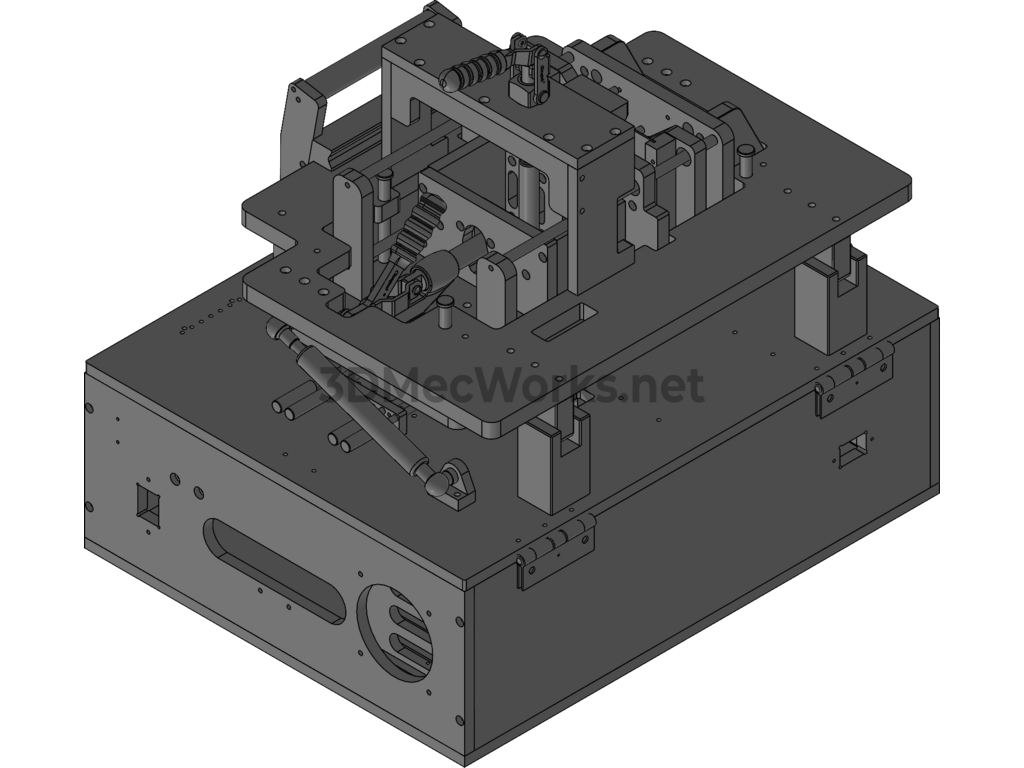

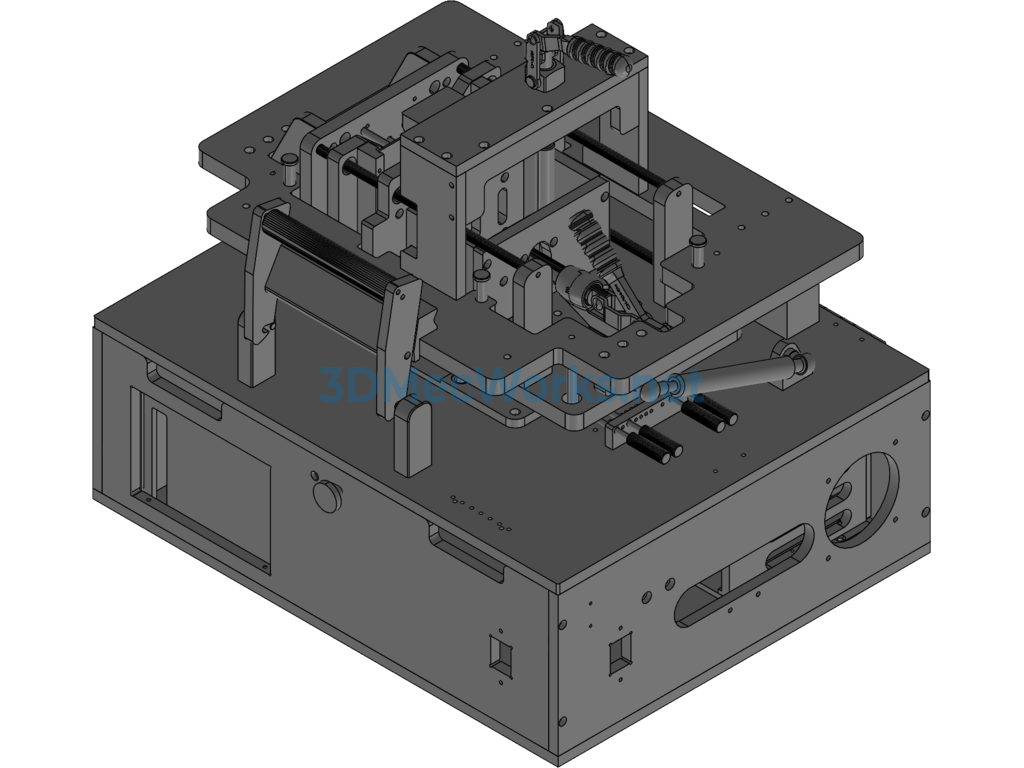

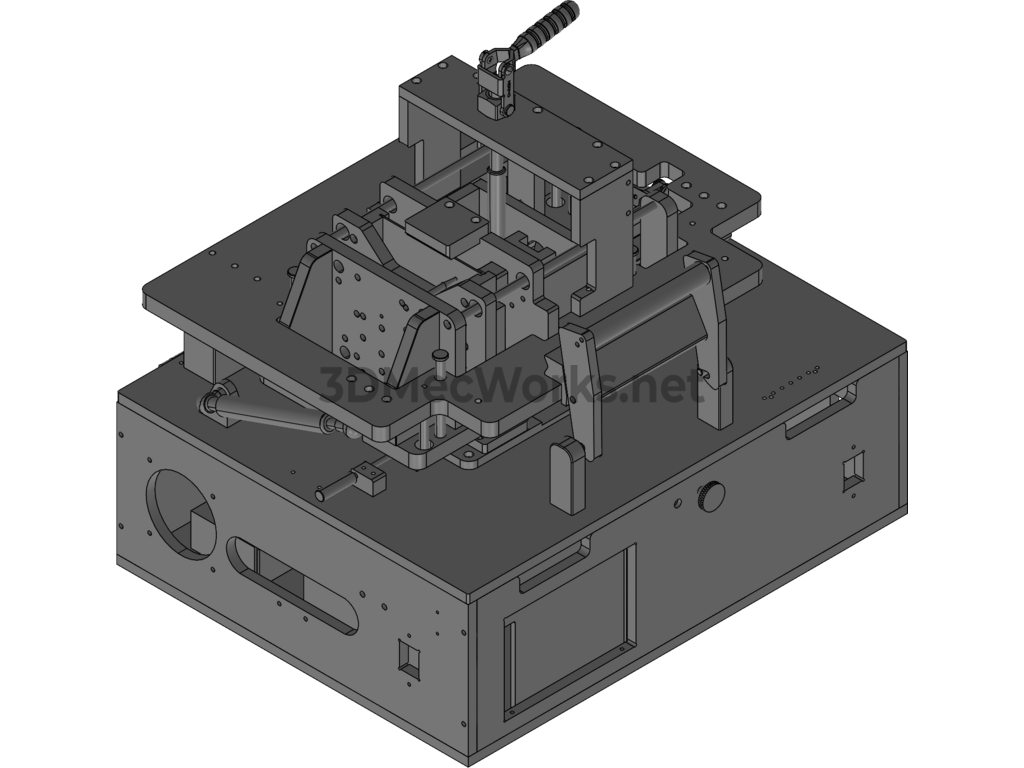

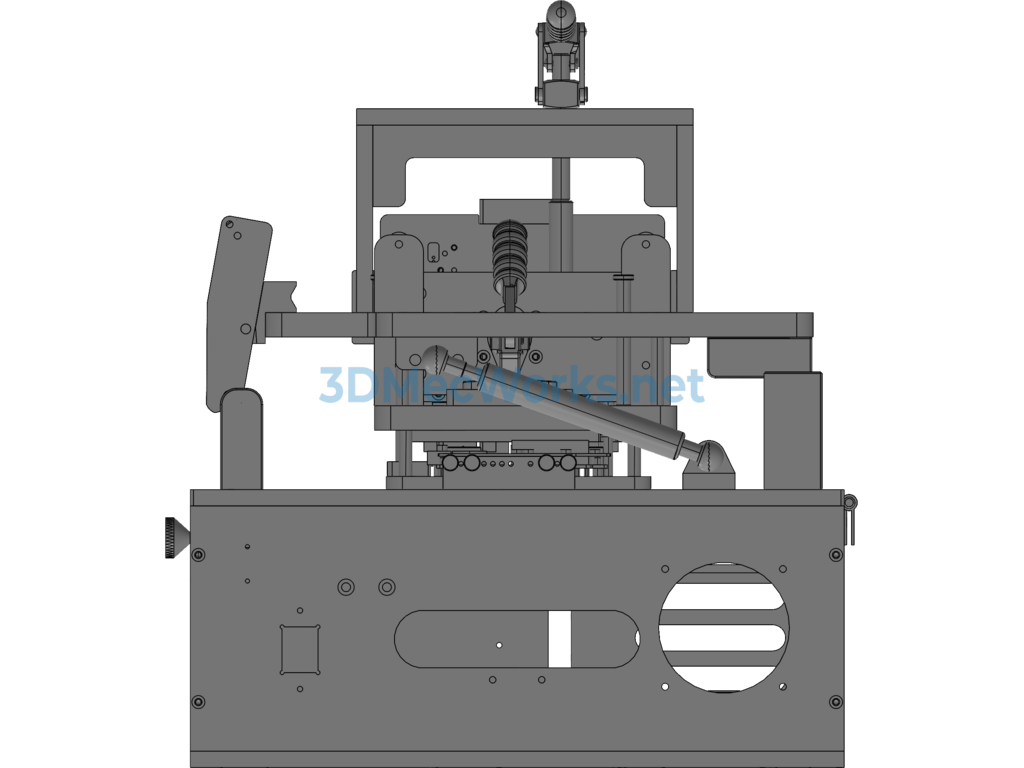

Notebook Motherboard Function Test Fixture

Mainly used for testing interfaces such as the motherboard’s USB ports, network ports, and audio ports. It adopts a semi-automatic operation mode, with manual loading and unloading. The motherboard is placed into a fixture, and after pressing down the clamp, the test pins make contact with the product, the test points connect to the corresponding connectors. Once powered on, the corresponding program runs to evaluate the product’s performance through the process. The fixture secures various external connections of the motherboard, connecting via probes to save insertion time.
