Notebook Internal Impurity Detection Equipment (aoi)

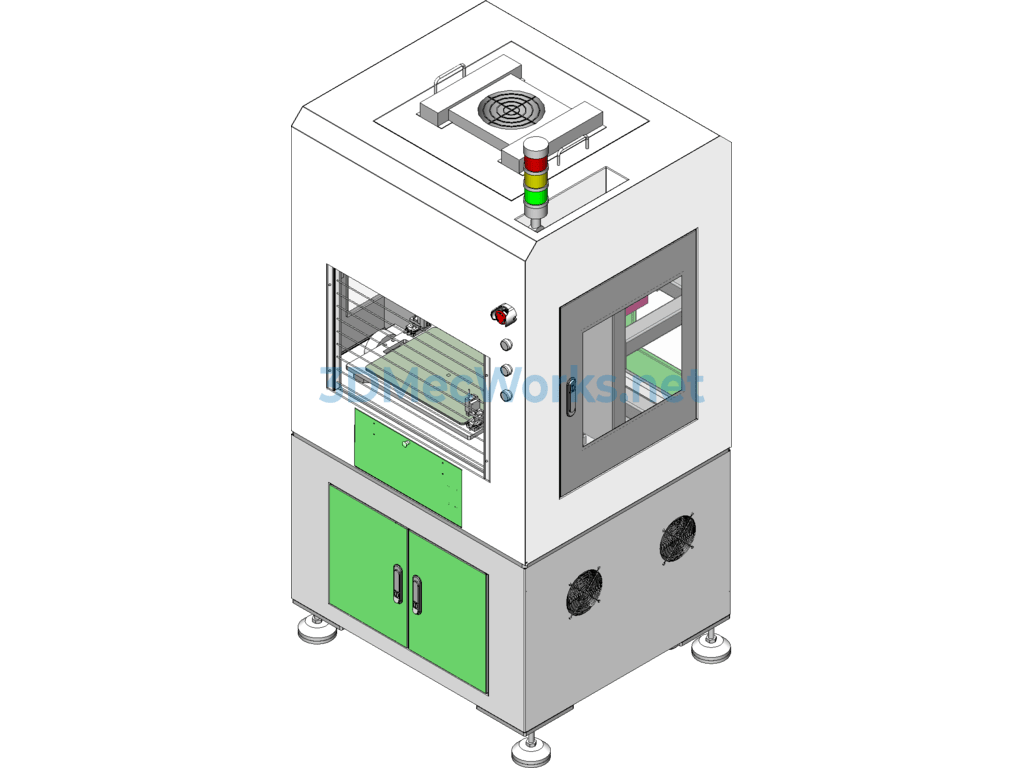

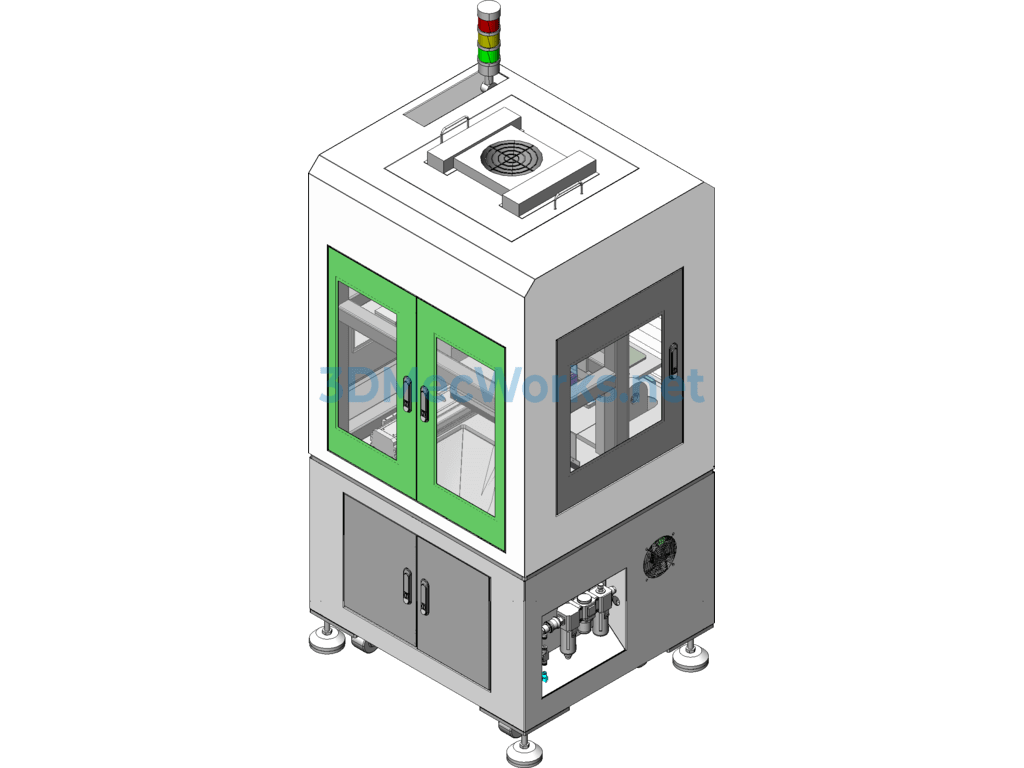

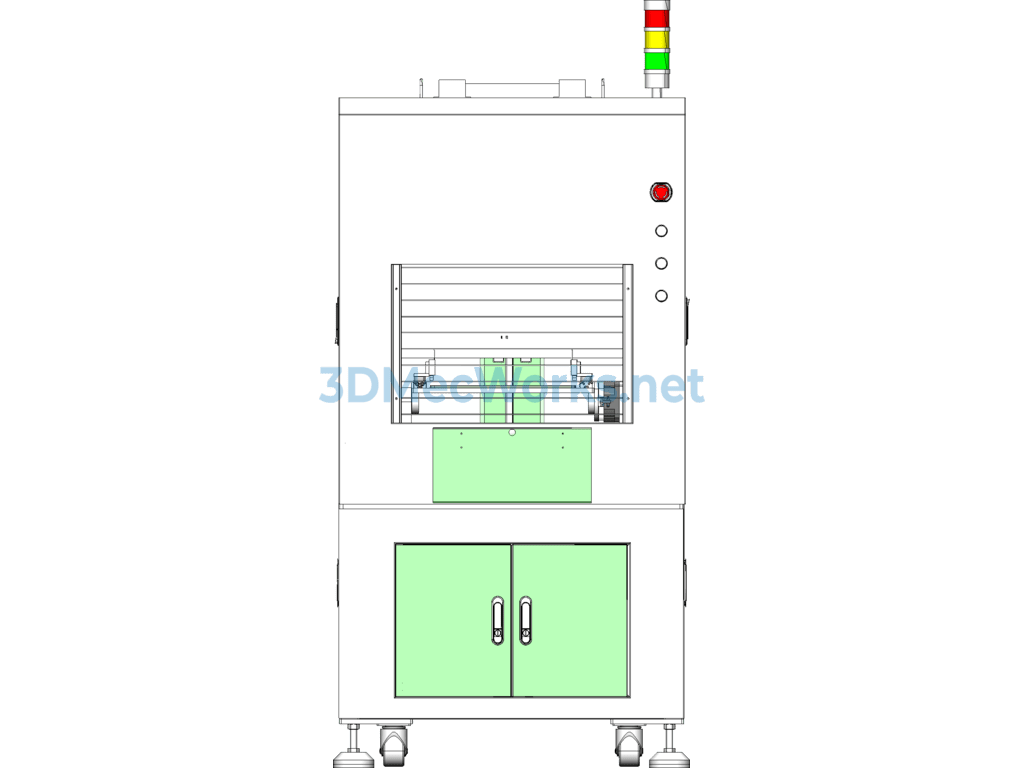

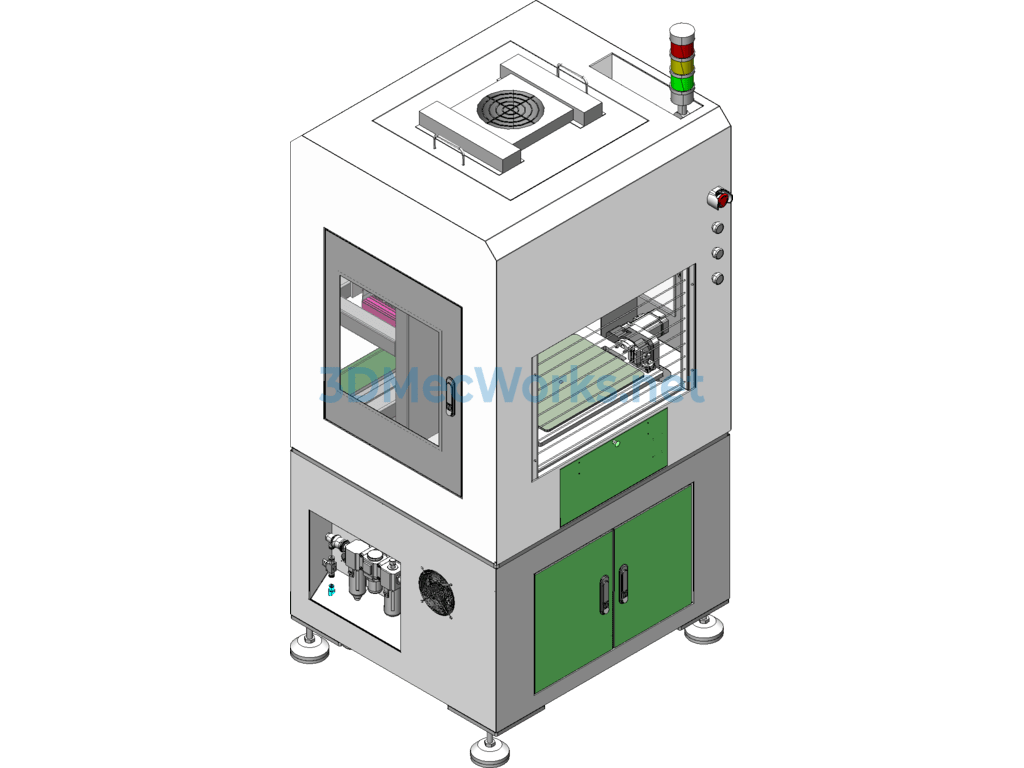

Equipment for Internal Impurity Detection of Notebook (AOI), 3D detailed. SolidWorks, step. The operation of this equipment is as follows: 1. The operator places the product, 2. The fixture clamping cylinder clamps the product, 3. The Y-axis linear module moves to the detection position, 4. The rotary platform rotates once to use gravity to clear debris, 5. The clamping cylinder resets, releasing the product, 6. The inspection camera takes a photo for detection, 7. The Y-axis module returns to the initial position, and the operator removes the product.
