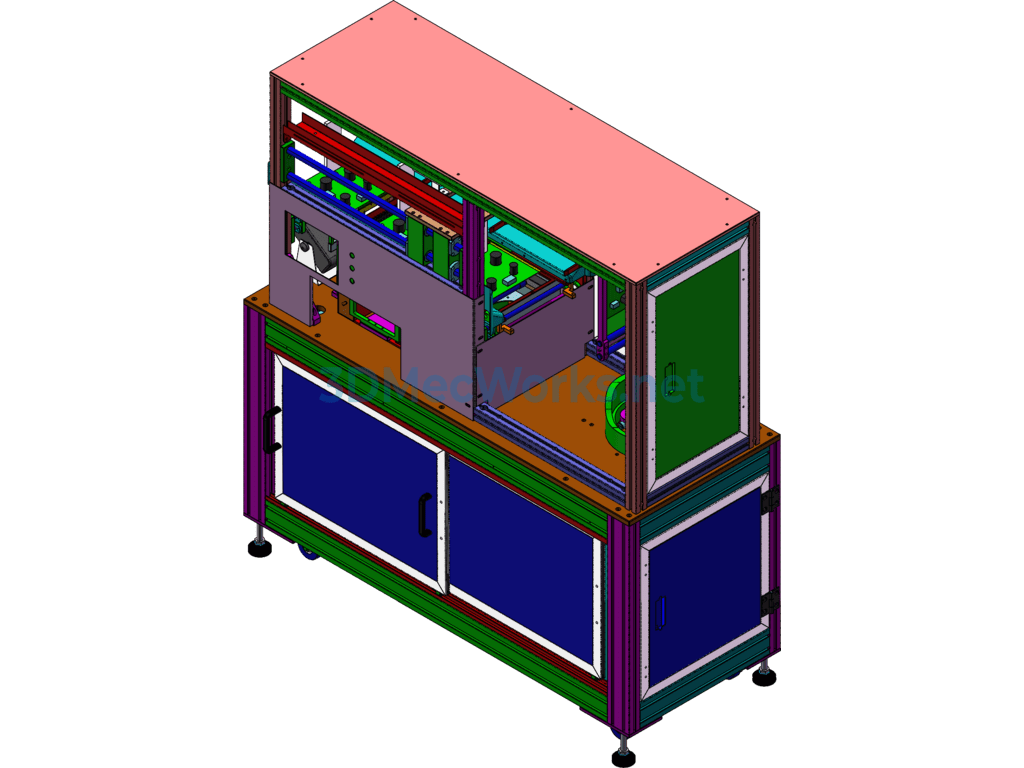

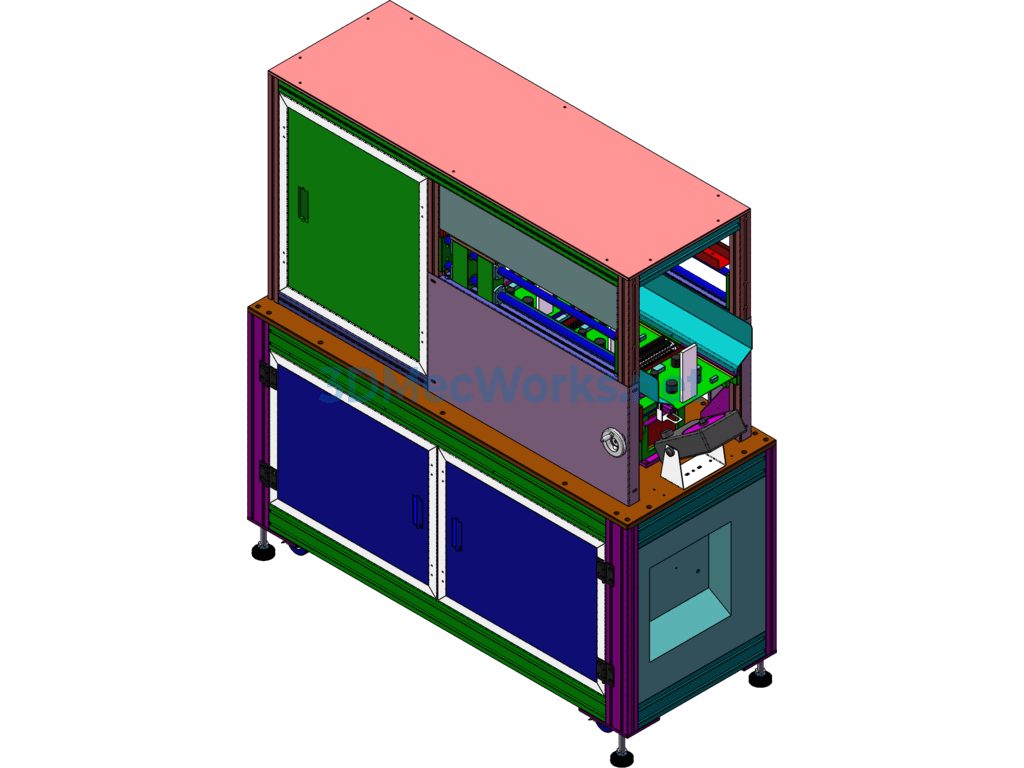

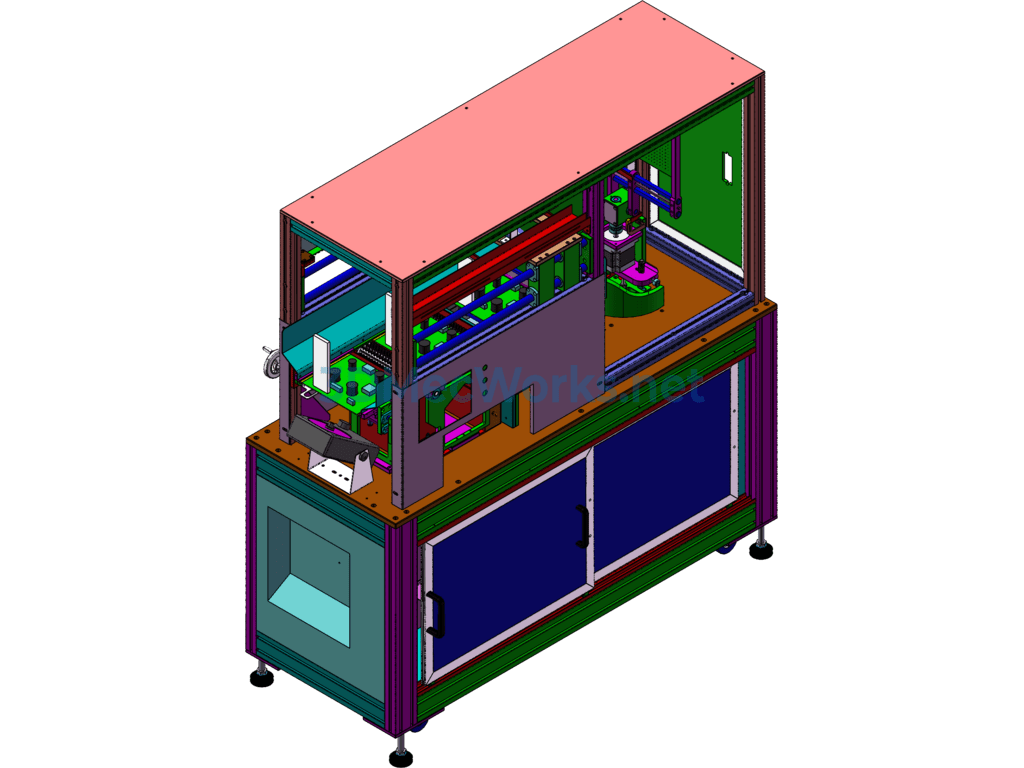

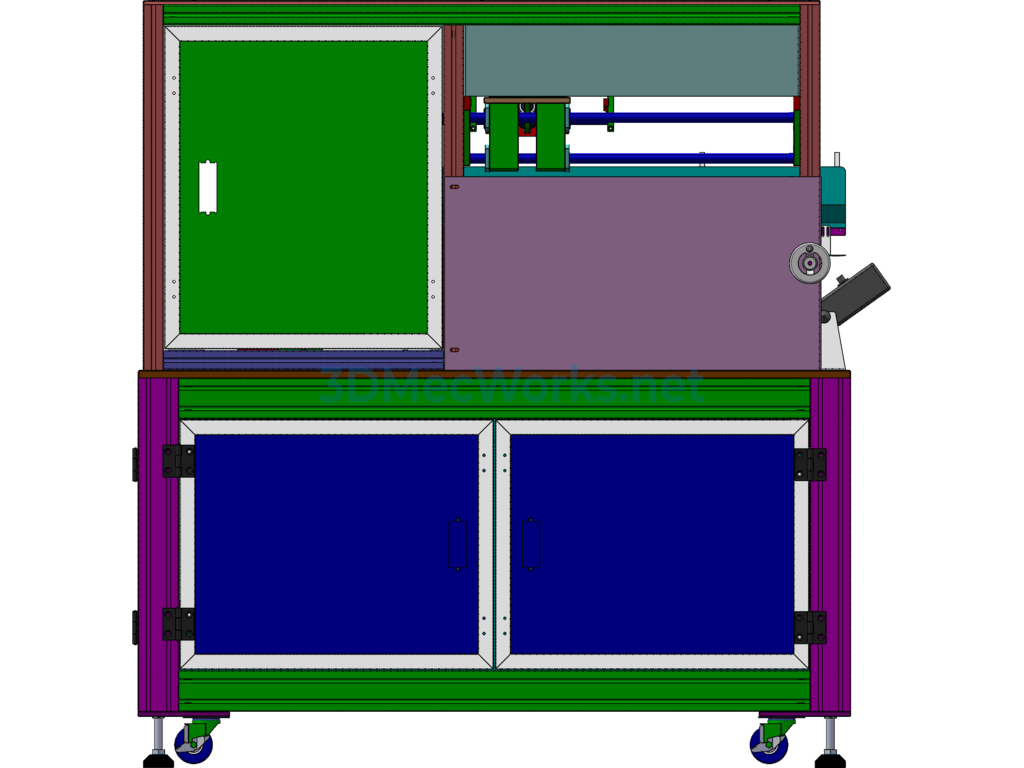

Non-Standard Pcb Brushing Machine Ict Testing and Inspection Machine

This set of non-standard PCB brushing machine ICT test inspection machine is an [original] excellent drawing with SW design source files shared. It is editable with parameters and available for download!
The non-standard PCB board brushing machine is mainly used in the SMD industry, where many motherboards need brushing before inserting some SMD electronic components onto the board. This set of drawings is primarily used for the front-end brushing. The board feeding method is completed by SMD special assembly line and synchronous pulley belt for feeding and brushing process. Inside, there are several stepper motors and rotating up and down structures. Interested friends, please download more.
