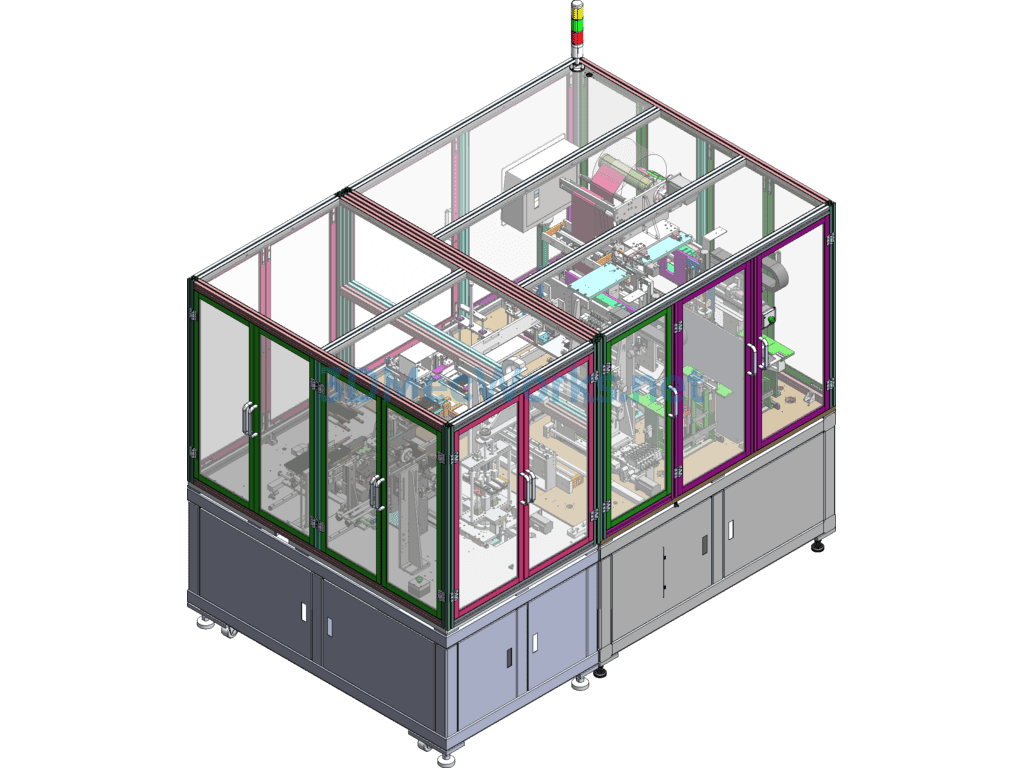

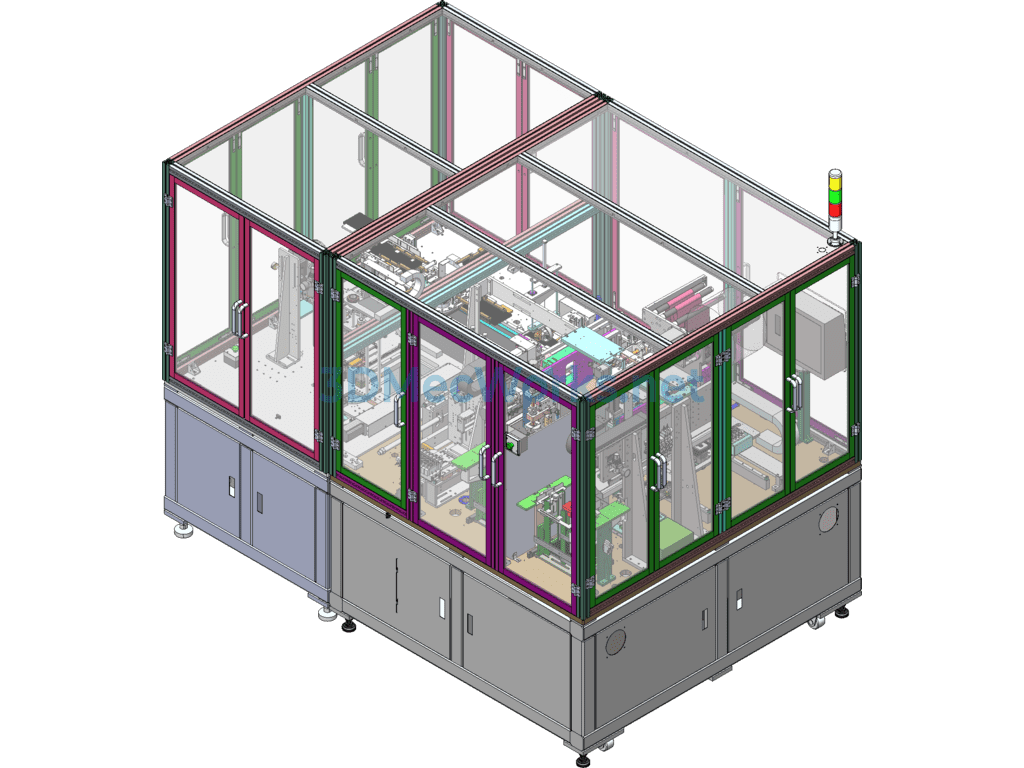

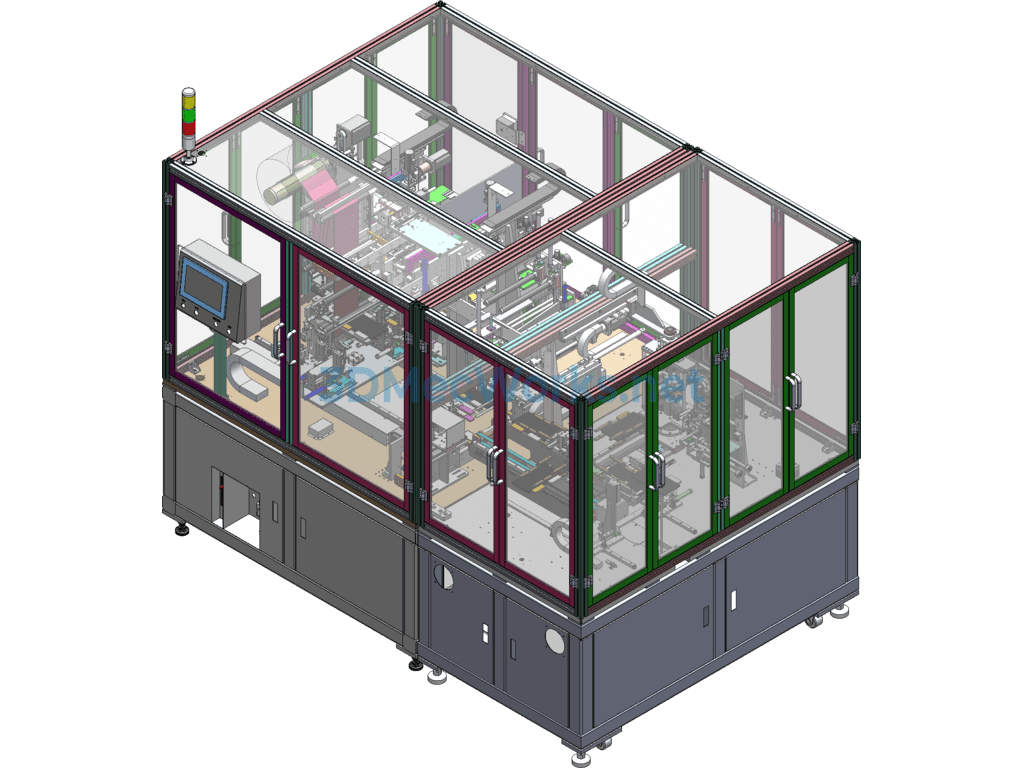

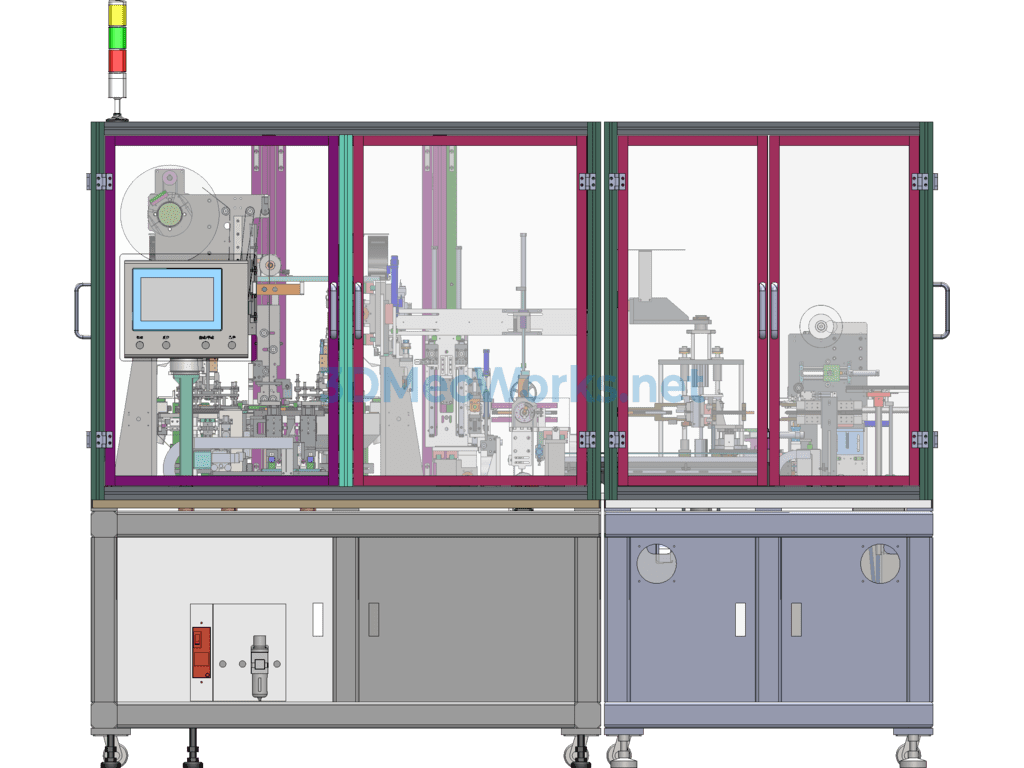

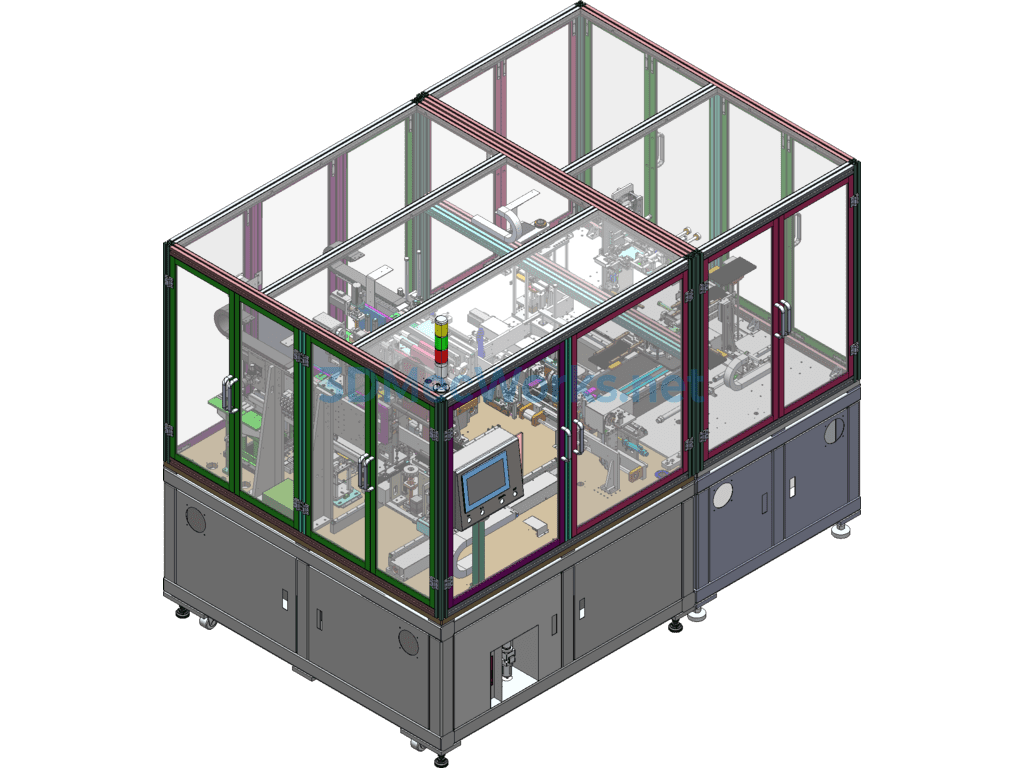

Non-standard fully automatic power lithium battery stacking machine 3D drawings, designed in SolidWorks2014 source files shared. This equipment is a power battery stacking machine used to produce automotive lithium batteries, an important piece of equipment for power batteries. The device can achieve automatic Z-fold stacking, automatic film wrapping, side sticking and unloading of rectangular pole piece sheets with tabs of specified dimensions, among a series of actions. This model features a diaphragm hot cutting tape reel acceleration mechanism. The equipment is stable and mature, with thousands of units already mass-produced. To date, it has developed multiple functions and styles, achieving high-speed full automation, which represents a quite high level in the lithium battery equipment industry. The data is very comprehensive, containing thousands of parts, hundreds of drawings, equipment pictures, equipment operation videos, and a complete set of BOM tables, everything you need. Not only does it have high reference value, but it also provides source files that can be modified and edited, making it possible to directly produce from the drawings if there are customer orders. Many mechanisms are ingeniously designed and operate stably. In short, it is a mature and valuable mass-production equipment.
