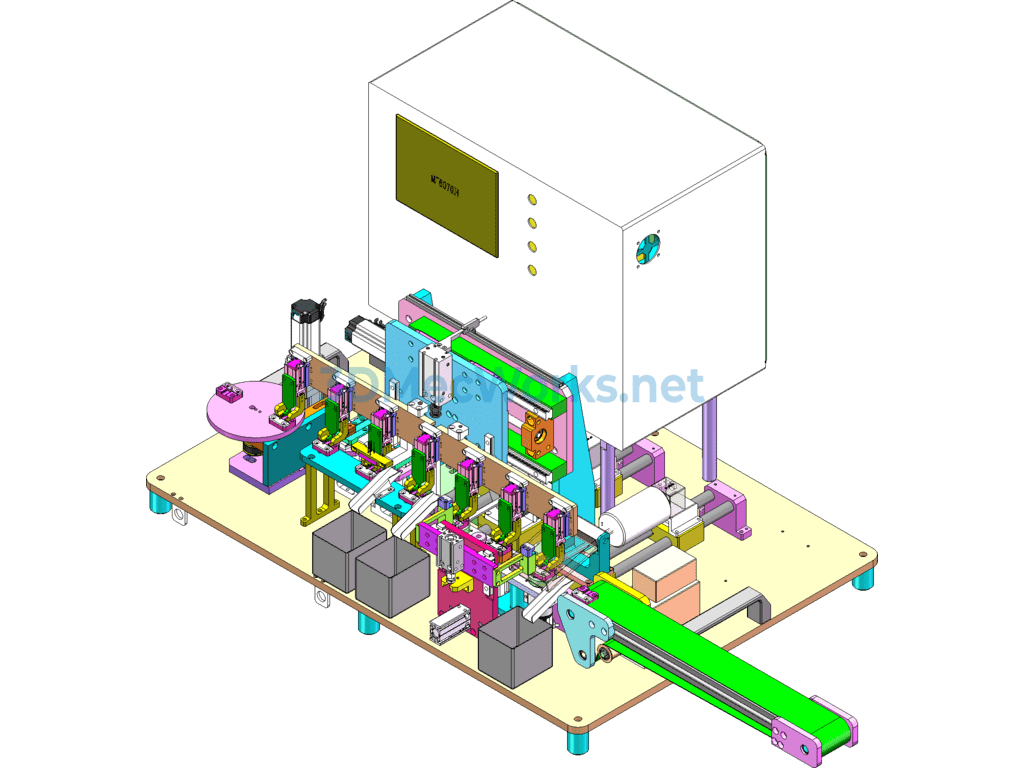

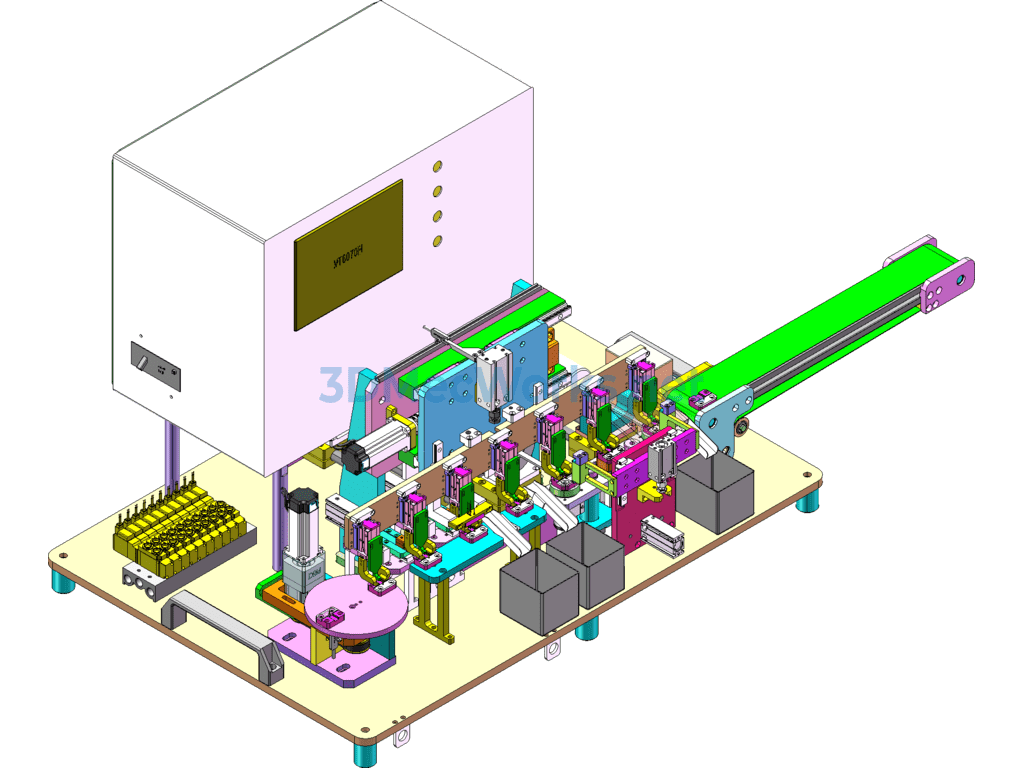

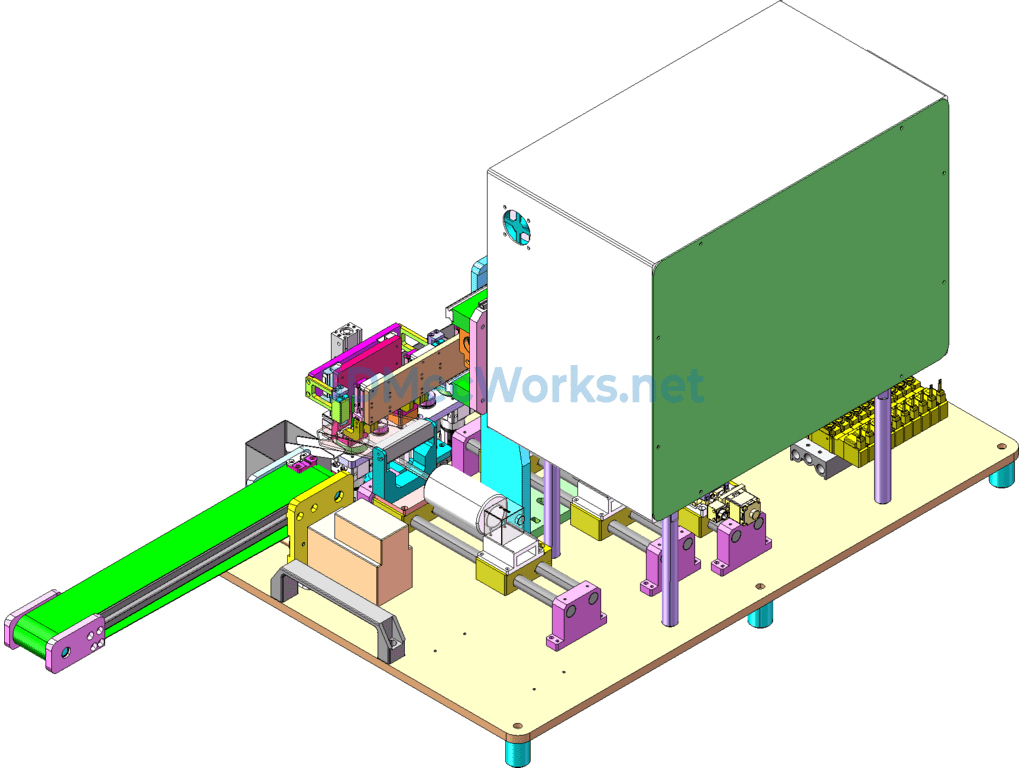

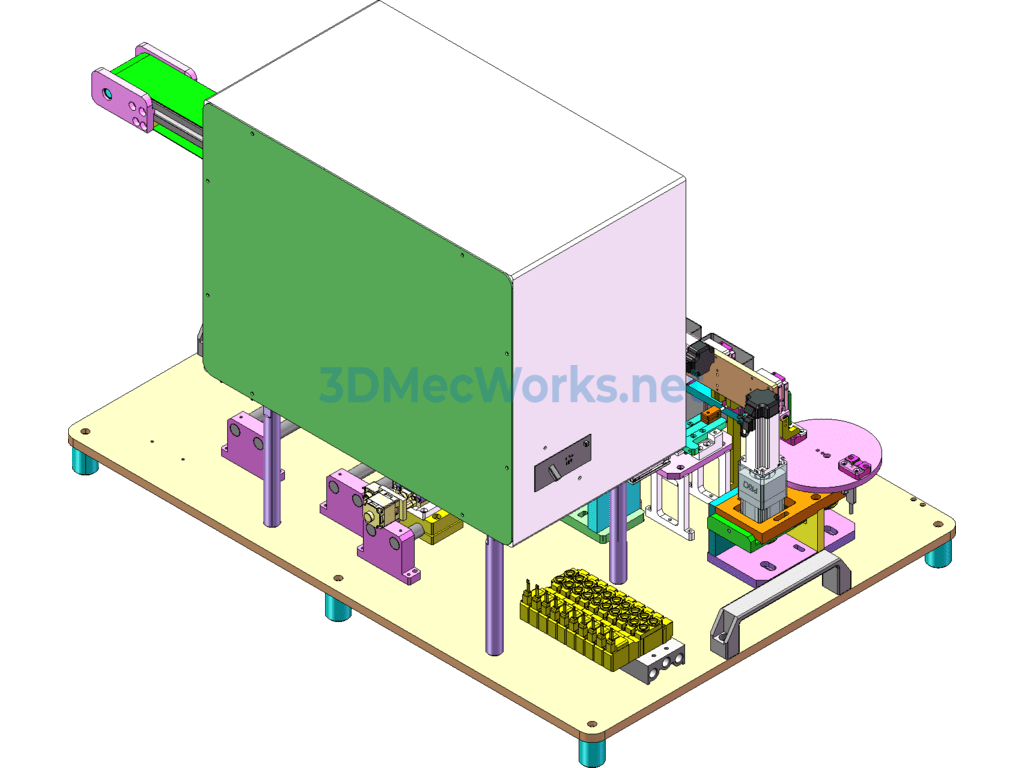

Non-Standard Electrification Testing Machine Ccd Inspection of Pin Appearance Dimensions (including Dfm, Bom)

Device Operation Flow Brief:
1. Manually place the product into the feeding rotary table, rotate the feeding to the air claw grabbing position;
2. Air claw grabs to the testing station, audio communication test, reading test, CCD appearance dimension detection, missing assembly detection, pin detection, OK/NG sorting.
3. The Z-axis for grabbing is driven by a cylinder, and the X-axis moves using a servo screw method.
CCD Inspection Pin Appearance Dimension Power-On Tester (including DFM, BOM)
