Non-Standard Conveyor Belt, 2.4-Meter High-Altitude Lift Elevator, Conveyor Belt Machine

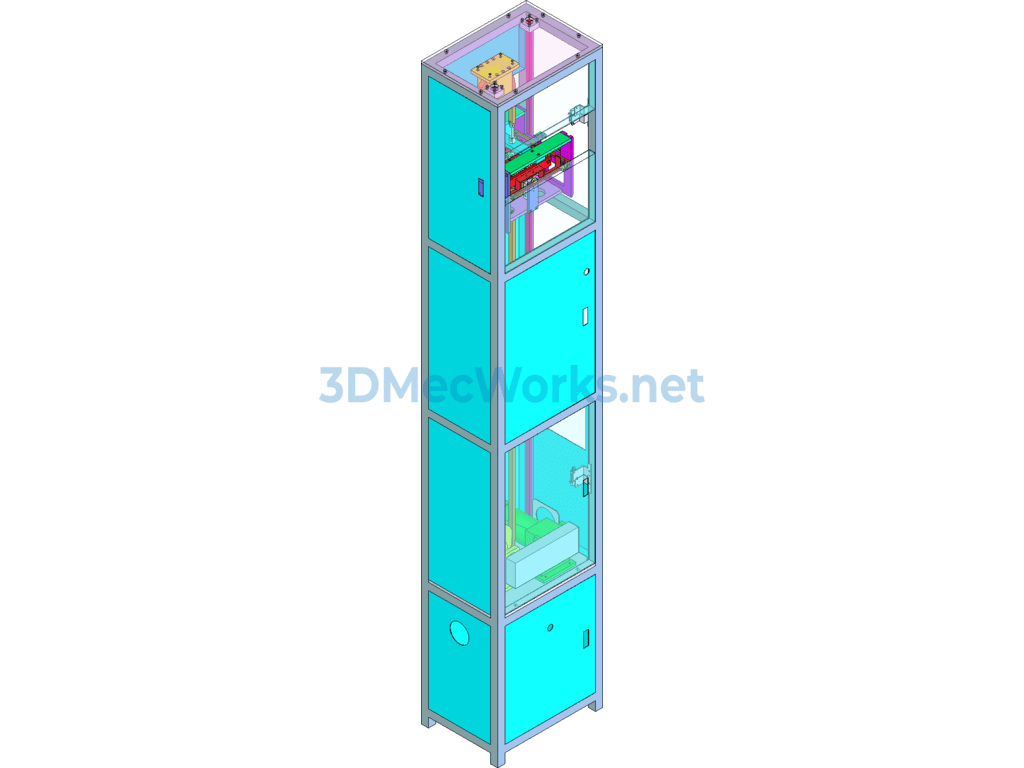

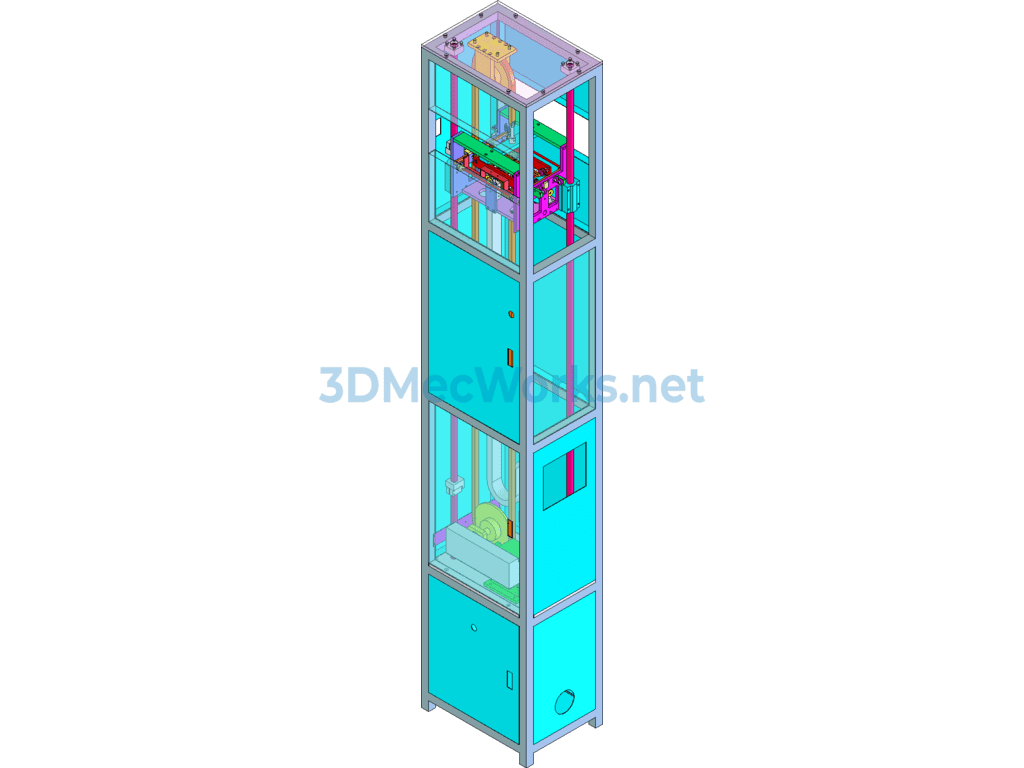

Non-standard conveyor belt 2.4-meter high elevator lift conveyor belt machine design drawing. This drawing is a set of high-altitude lifting and lowering machines with a lifting height of 2.4 meters. It can operate in conjunction with lifting and 90-degree conveying. The elevator is driven by a high-power motor at the base, with two large sprockets used for transmission at the top and bottom to ensure stable operation during lifting and lowering. Additionally, the direction of material entry and exit is blocked by a loading blocking cylinder at different 90-degree positions. When the sensor detects that the carrier needs to be transported to the next station, the blocking cylinder retracts, and the conveyor belt runs. There are two sets of conveyor belts in this elevator. One set is for feeding and is driven by a cylinder for small space lifting. The other conveyor belt is for discharging, responsible for transporting carriers, fixtures, and other tooling boards to another line body or station. From the image, it can be seen that the structure of the conveyor belt is relatively complex. Friends who are interested are welcome to download and learn. There are many more such conveyor lift design drawings on the homepage. Welcome to browse or download more conveyor belt and elevator drawings.
