Non-Standard Battery Loading, Magazine Loading Assembly

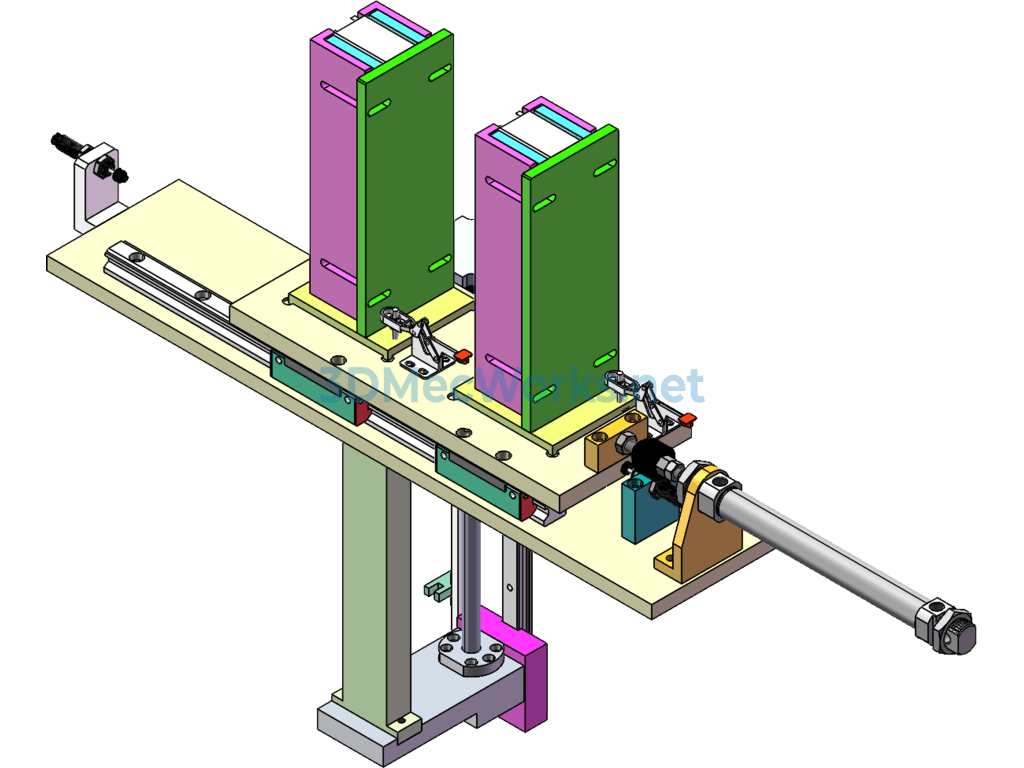

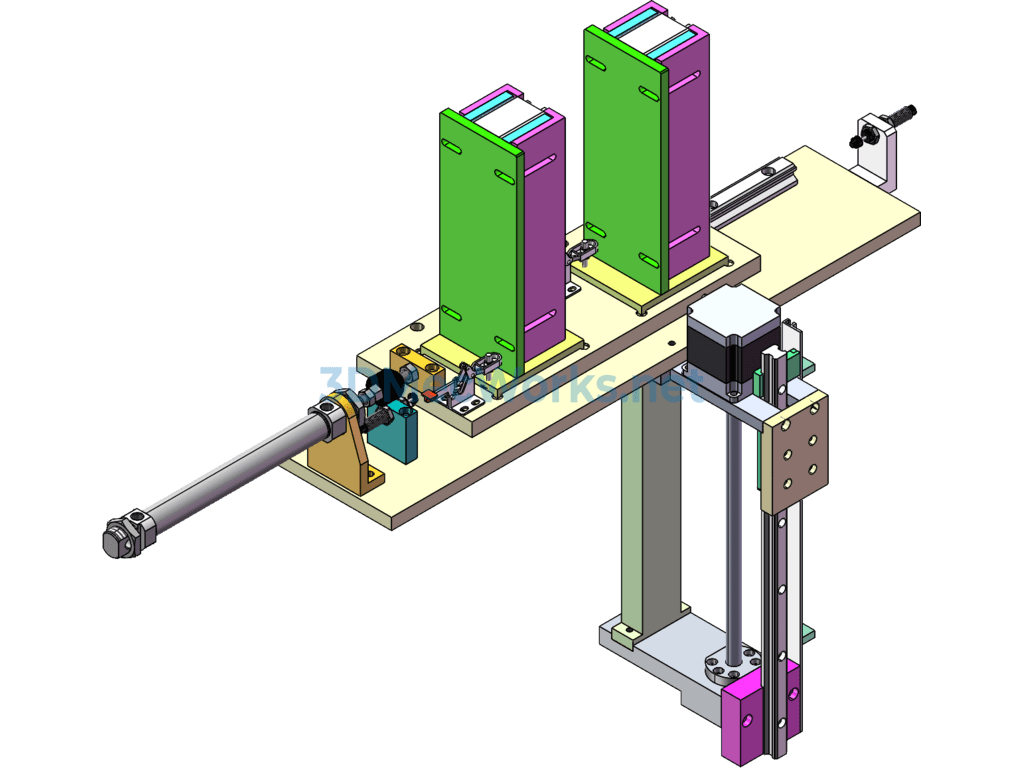

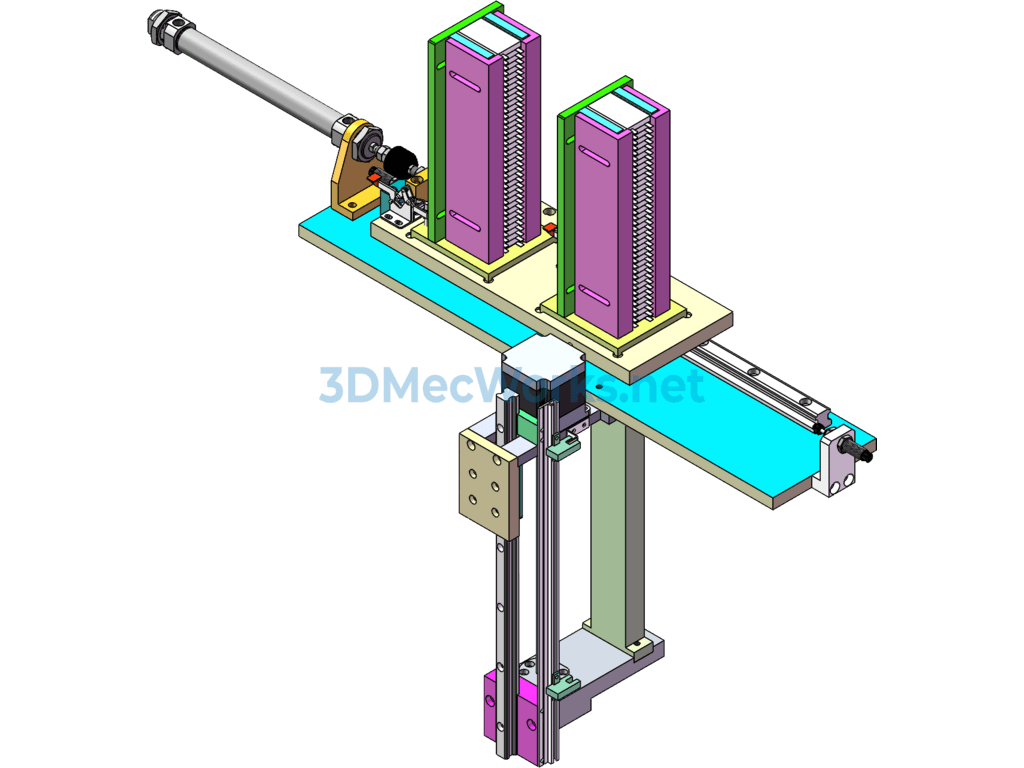

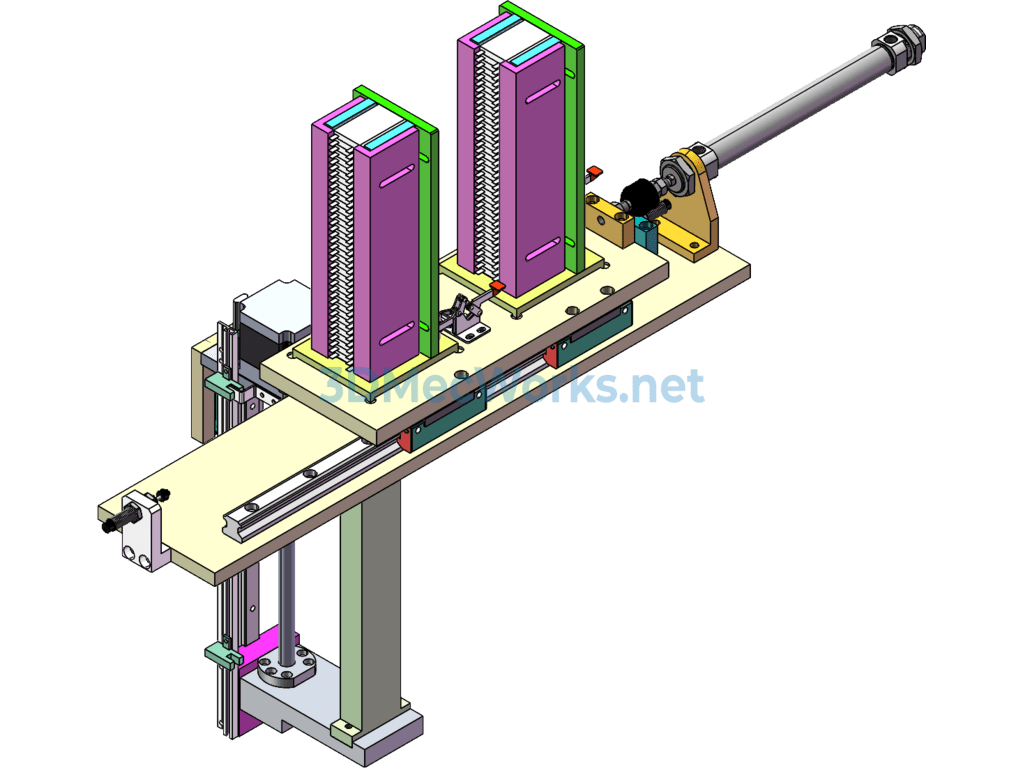

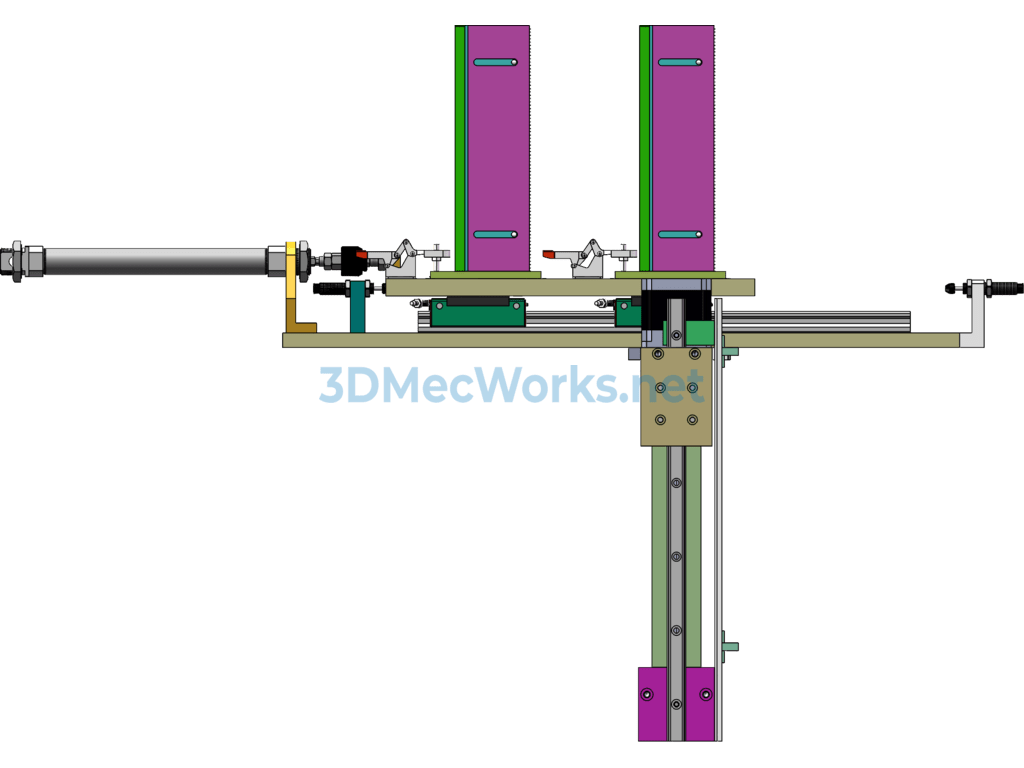

This model is a custom battery feeding design. When the robot arm removes a battery, the stepper motor moves upward by one battery position until all batteries in the fixture are removed. Then, the cylinder moves forward to take the second fixture’s batteries, and the first fixture is removed. Today, I am sharing this with everyone. The model is in SOLIDWORKS 2018 format, and you are welcome to download it.
Specification: Non-Standard Battery Loading, Magazine Loading Assembly
|
