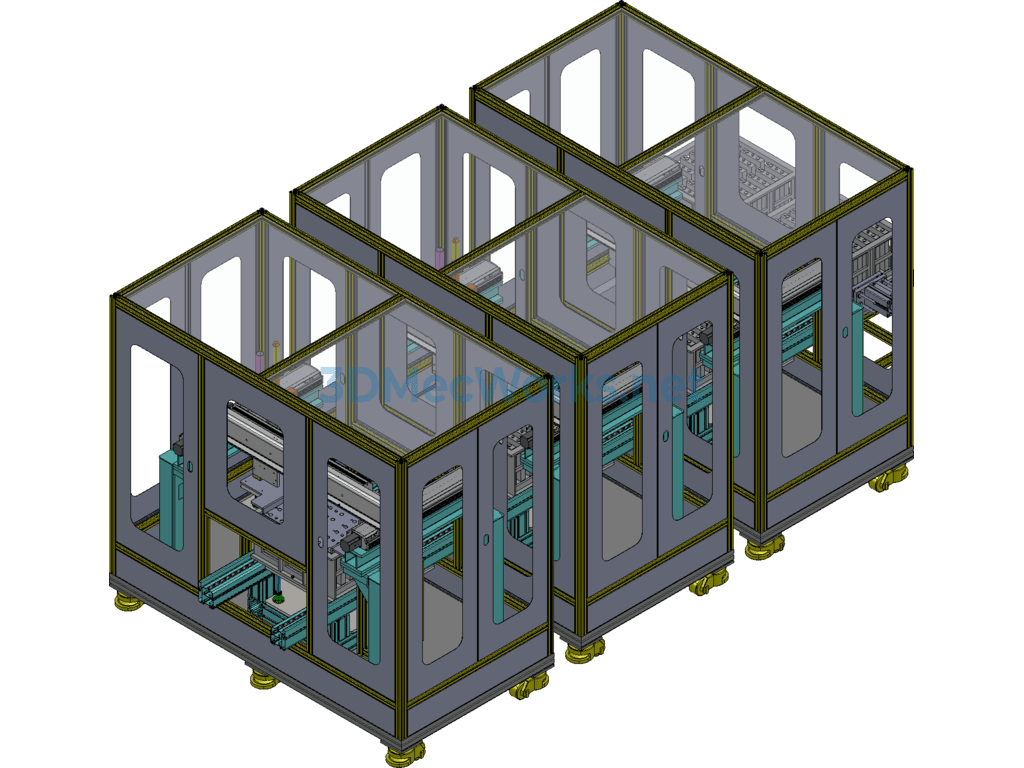

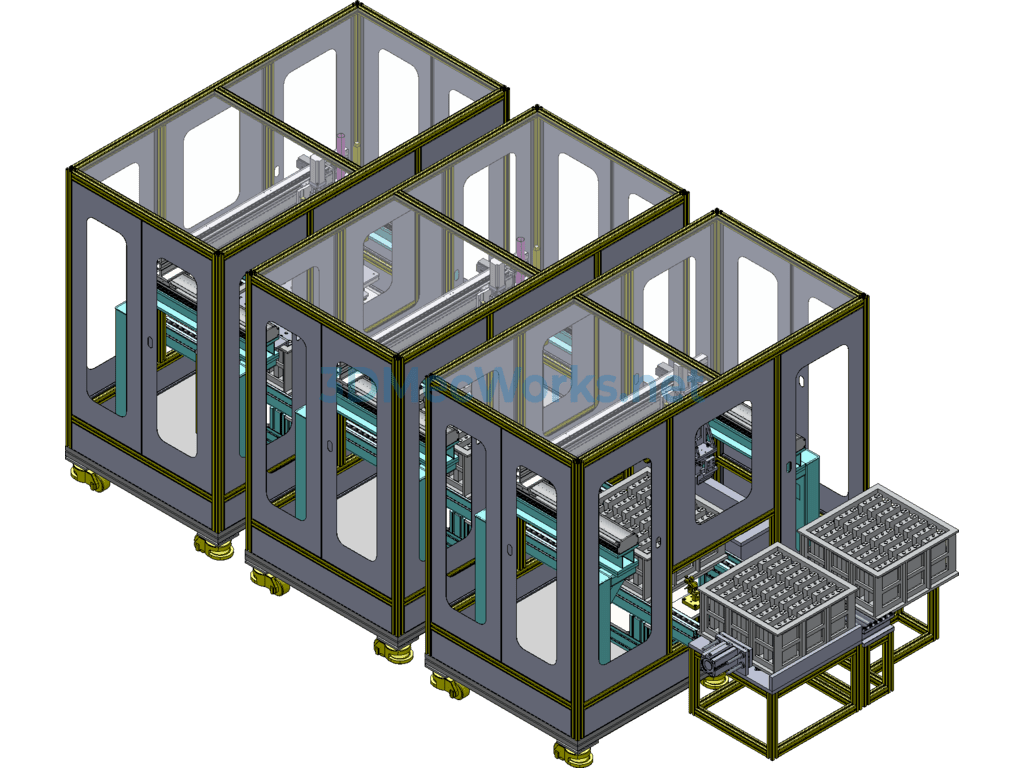

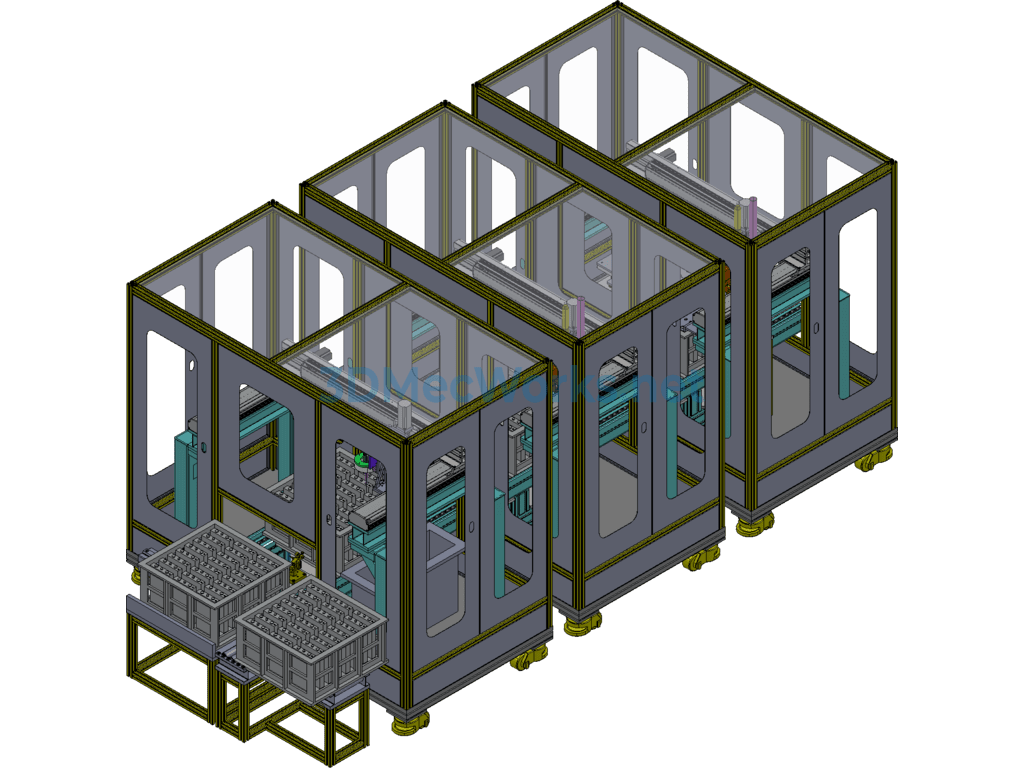

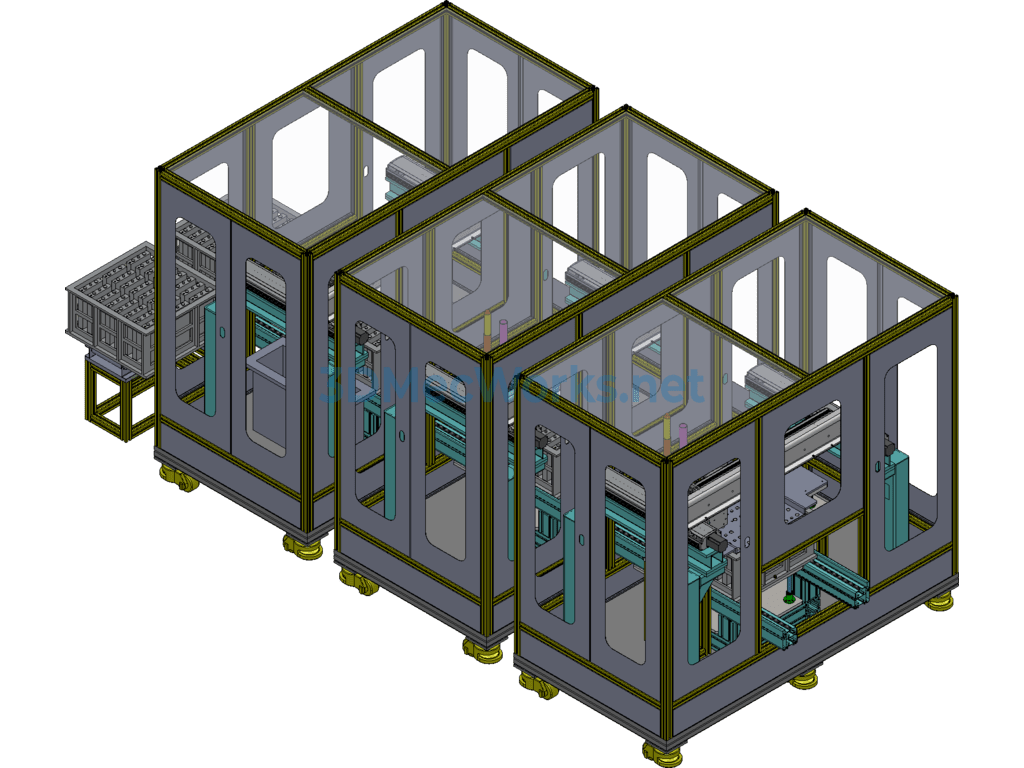

Non-standard automation equipment: 3D drawings of lithium battery sealing welding machine. Fiber transmission laser: 600W. Gas used: compressed air. Rated pressure: 0.6MPa. Electrical requirements: rated output voltage: 380VAC. This equipment is specifically used for the laser automatic spot welding of sealing nails for lithium battery liquid injection holes, automatic continuous welding, automatic detection of welding quality, and automatic removal of NG products using a mechanical arm. The equipment is mainly composed of a conveyor trough, XYZ three-axis numerical control axis, welding laser, laser welding head, CCD visual positioning system, height detection sensor, fixed positioning mechanism, and exhaust dust removal mechanism. The equipment is divided into a press-fix automatic spot welding section, automatic continuous welding section, automatic removal section of NG products after welding detection, and finished product loading area after welding detection. Voltage frequency: 50Hz. Stability of three-phase voltage: +5%. Adjustment rate of output voltage: <2%. Overall machine dimensions: length 4.16mm, width 1.95m, height 1.8m. Maximum power consumption of the machine: 43KW (including two lasers). Total weight of the machine: 400Kg/m2. 3D drawings of lithium battery liquid injection hole laser automatic sealing machine G976 mechanical design reference materials design materials work is a mature product, can only be used for learning and communication, not for commercial use, thank you for cooperation, designed with SolidWorks, with assembly drawings and part drawings.
