Non-Standard Automatic Soldering Machine (automatic Soldering of Pins)

A non-standard fully automatic soldering machine 3D model SW design source file is provided. Soldering technology is a basic skill that radio enthusiasts must master, requiring a lot of practice to achieve proficiency.

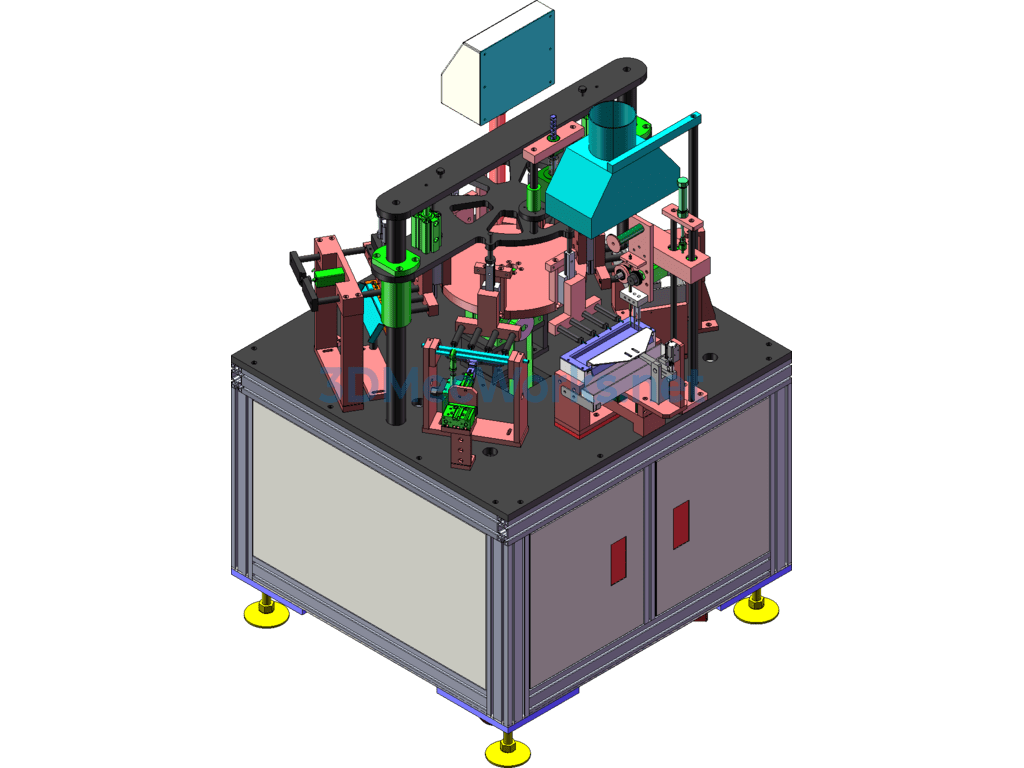

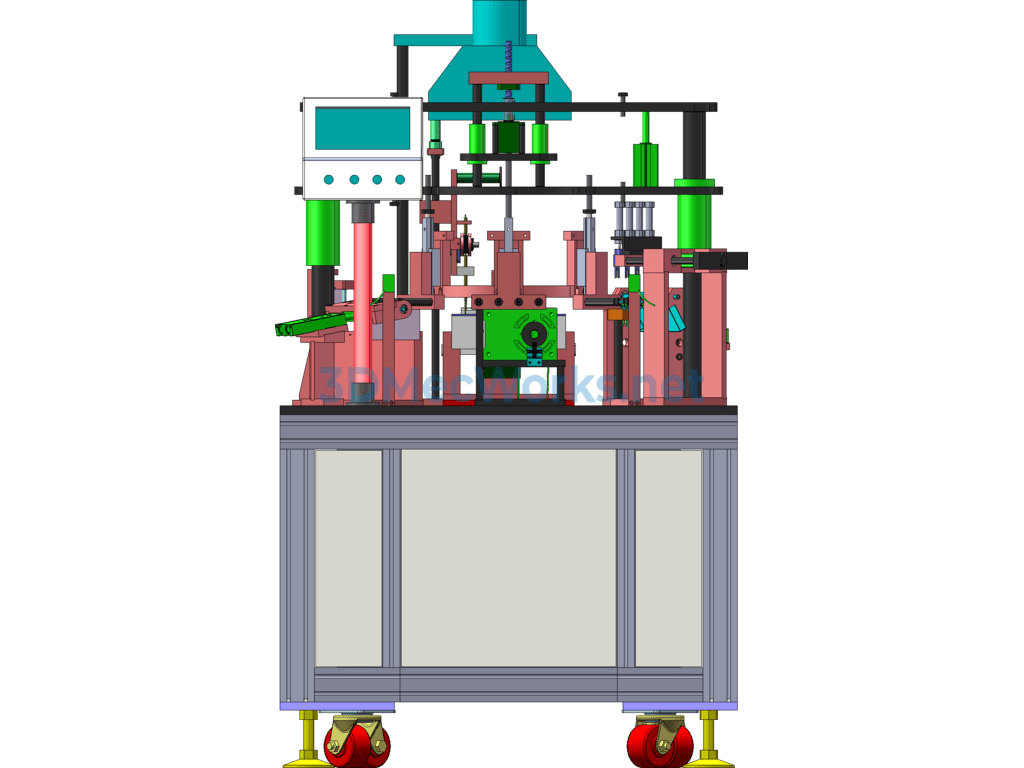

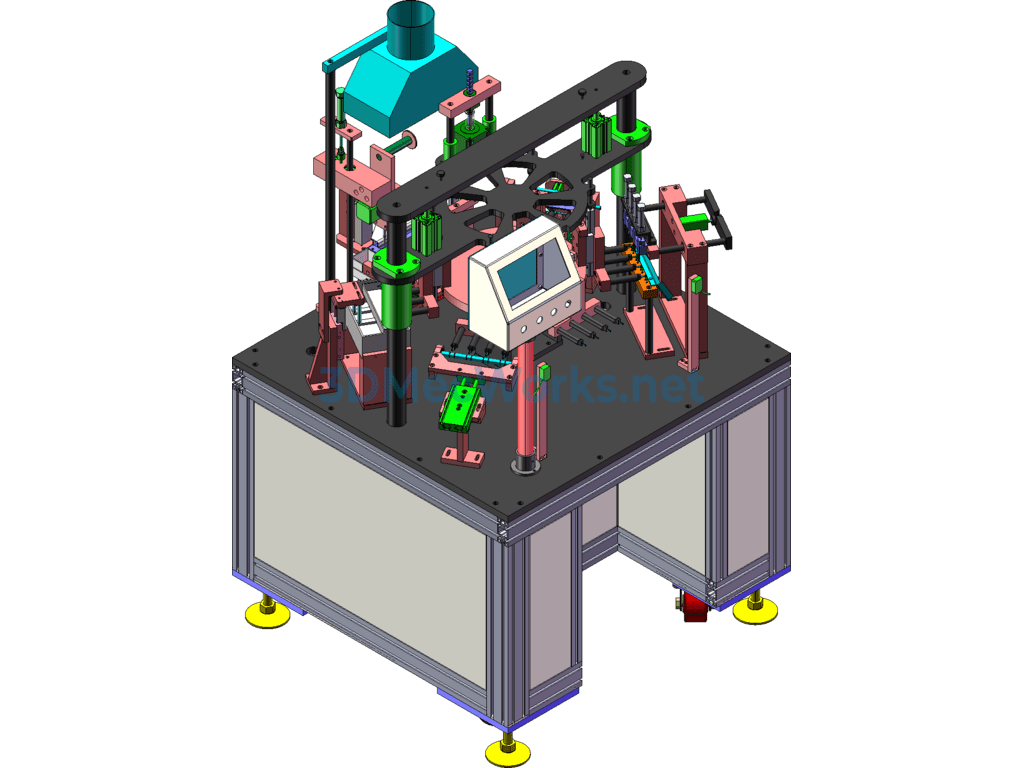

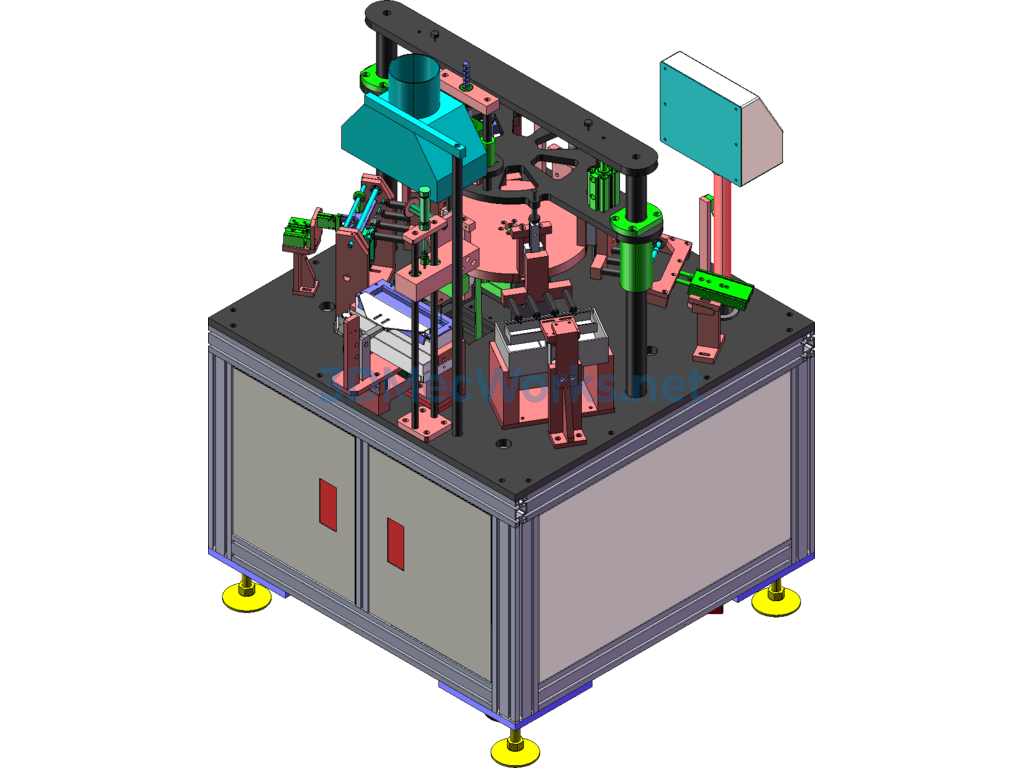

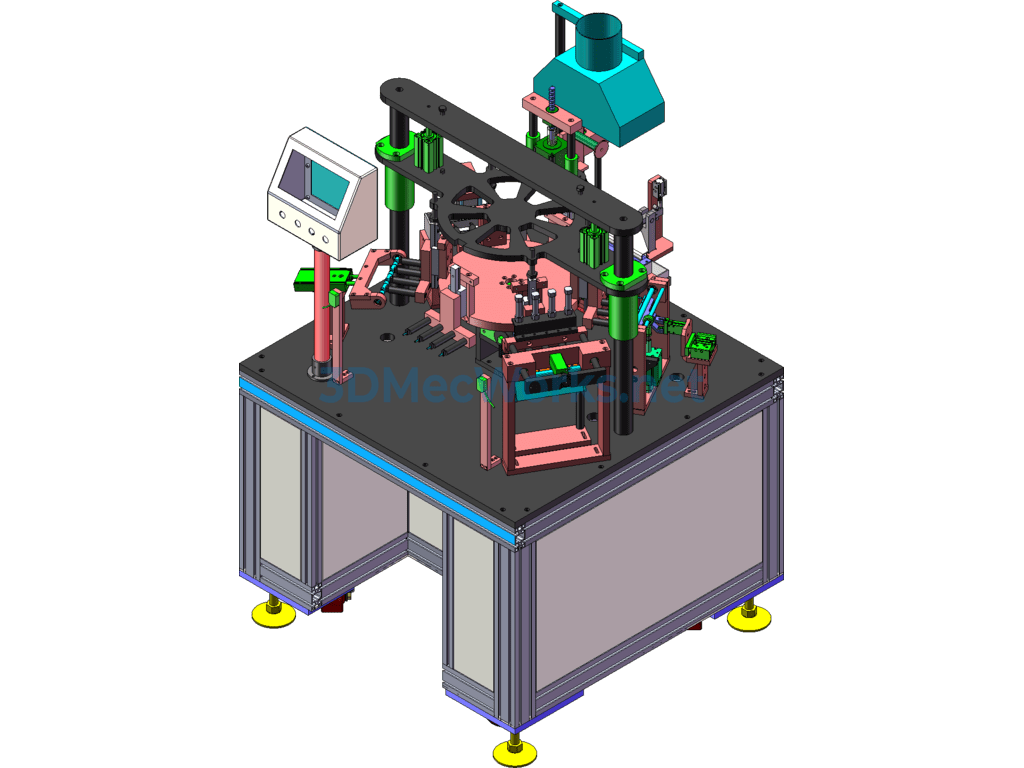

This fully automatic soldering machine equipment comes with parameters and is an original device. The design is very standard, with cooperation relationships and modeling processes. This equipment is used for automatic soldering of electronic component pins, automatic feeding, driven by a divider, with a turret structure. The robot arm grabs the parts delivered from the previous process equipment and places them on the turntable fixture. After positioning and correction, the turntable rotates to the next station to trim and bend the pins, achieving a 90-degree angle. The subsequent station corrects the bent angle, followed by soldering operations. Finally, the roller is used for re-soldering and stabilization, completing the entire soldering process. The equipment has a beautiful exterior design and a compact structure. The Z-axis downward pressure uses dual cylinders, which is stable and reliable. The frame is made of aluminum profiles, ensuring sturdiness without compromising aesthetics. This equipment operates stably and is a mature device in the soldering industry.
