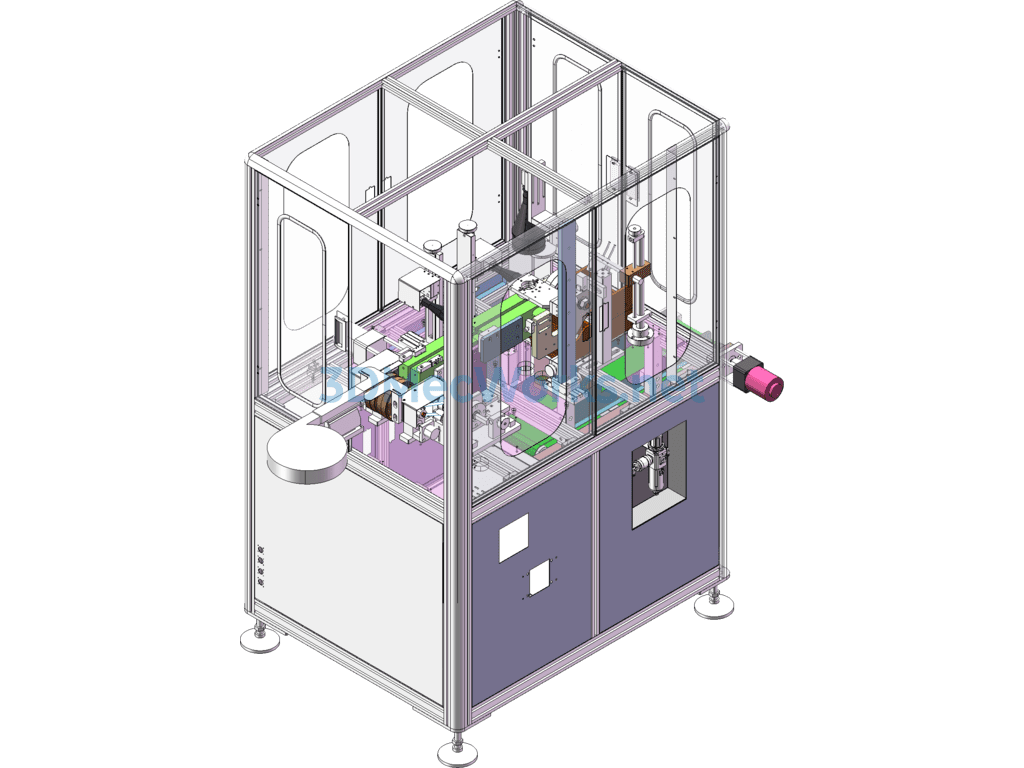

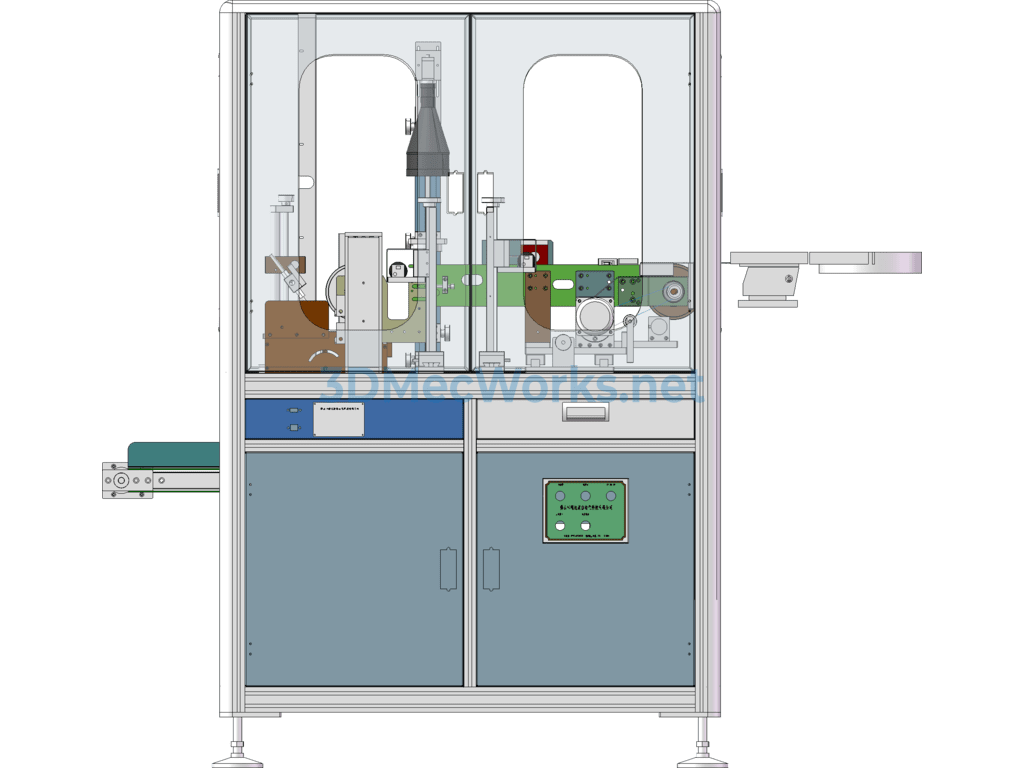

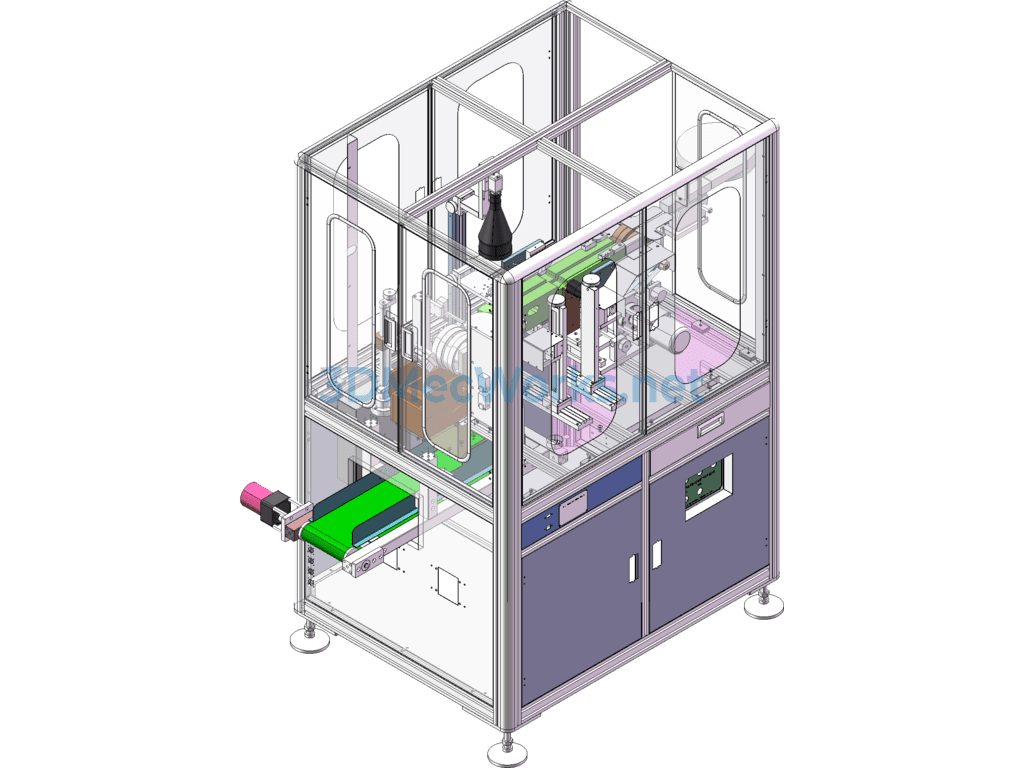

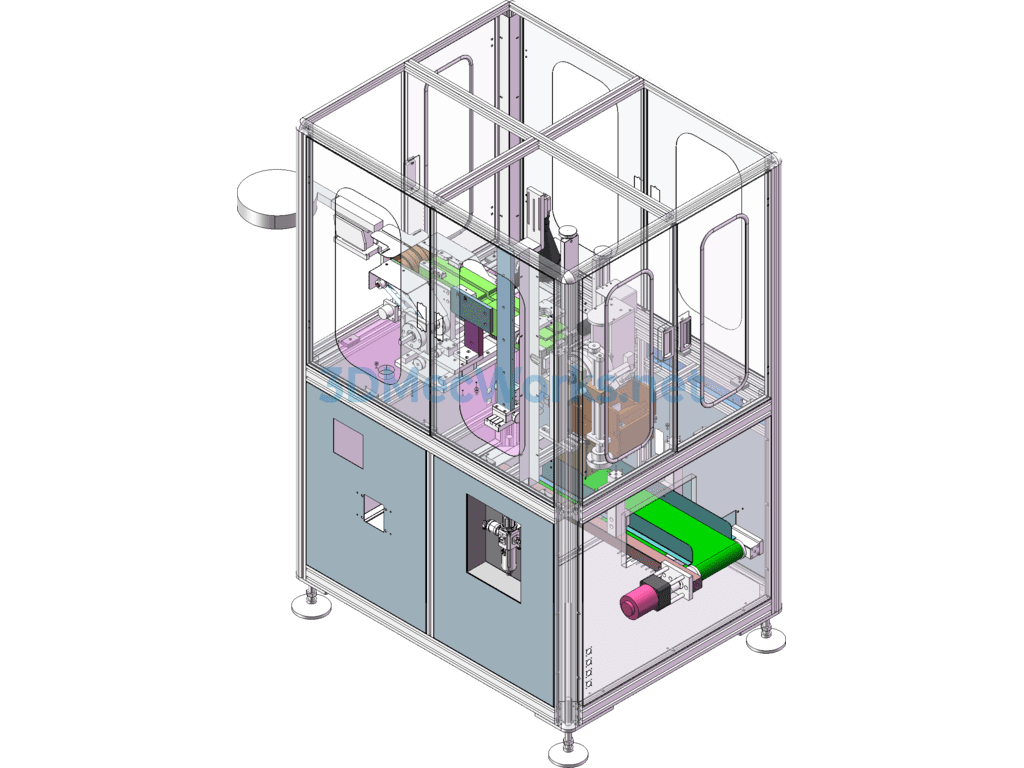

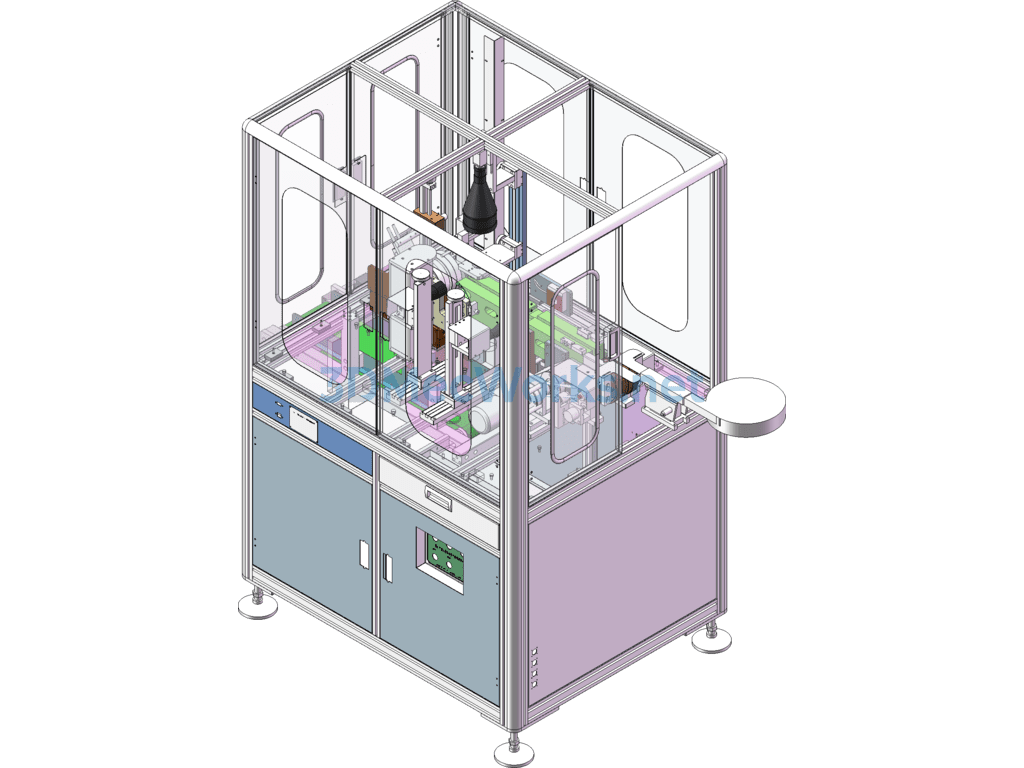

Non-Standard Automated Steel Strip Screw Vision Inspection Machine Full Set of 3d Model Drawings

Non-standard automatic steel belt screw visual inspection machine Complete set of 3D model drawings SolidWorks2014 design source files with parameters shared The current steel belt machine uses automatic bundling. Depending on the different needs for steel belts, steel belts and plastic belts are selected for bundling. At the same time, the bracket assembly is used to displace for different positions to complete the action. Main components description: 1) CCD camera: German brand BASLER; 2) Sensor: OMRON; 3) PLC: Japanese Mitsubishi high-speed series; 4) Solenoid valve: Original American brand; 5) Control system: Independently developed. 4. Human-machine interface, software automatically comes with a toolbox, specially developed for ordinary employees, convenient Microsoft Windows operating system; 5. Detection data output system: This screening machine has data communication function, with data output and storage function, and the data exported by the software can be printed on paper through a local area network connected printer.
