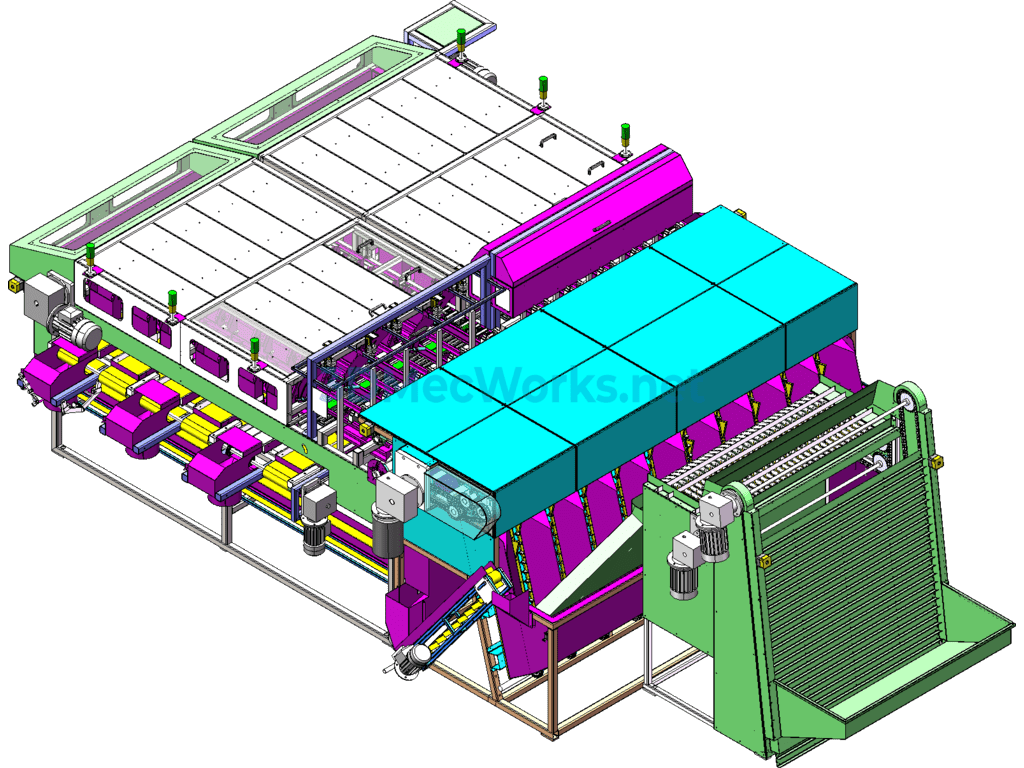

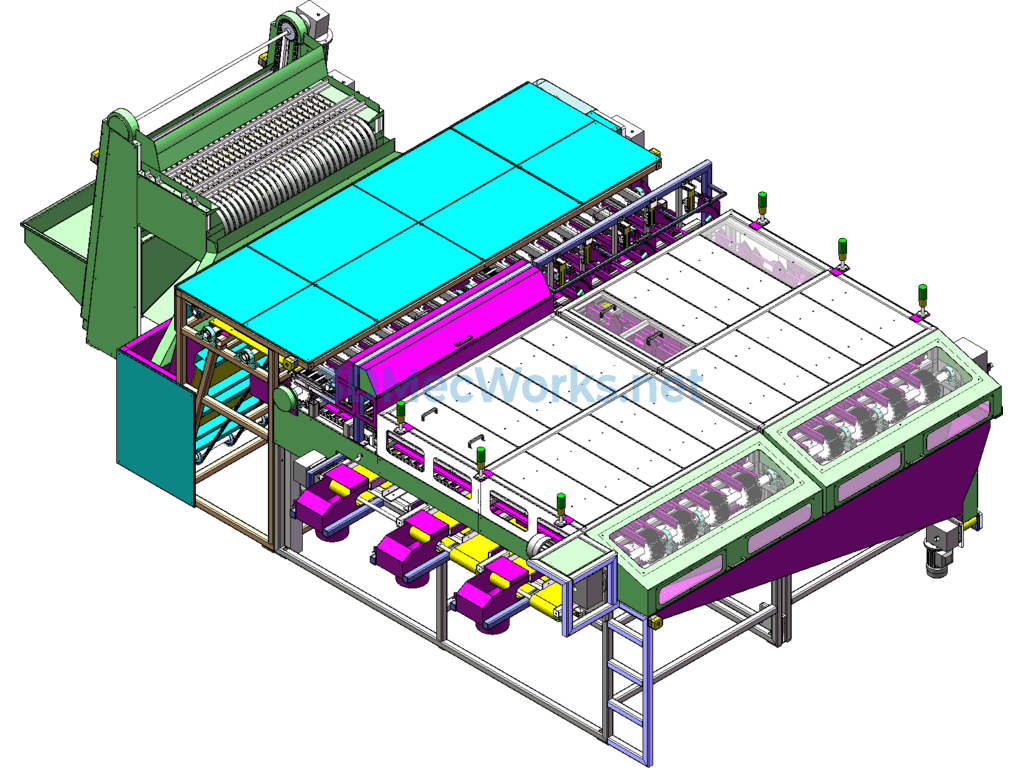

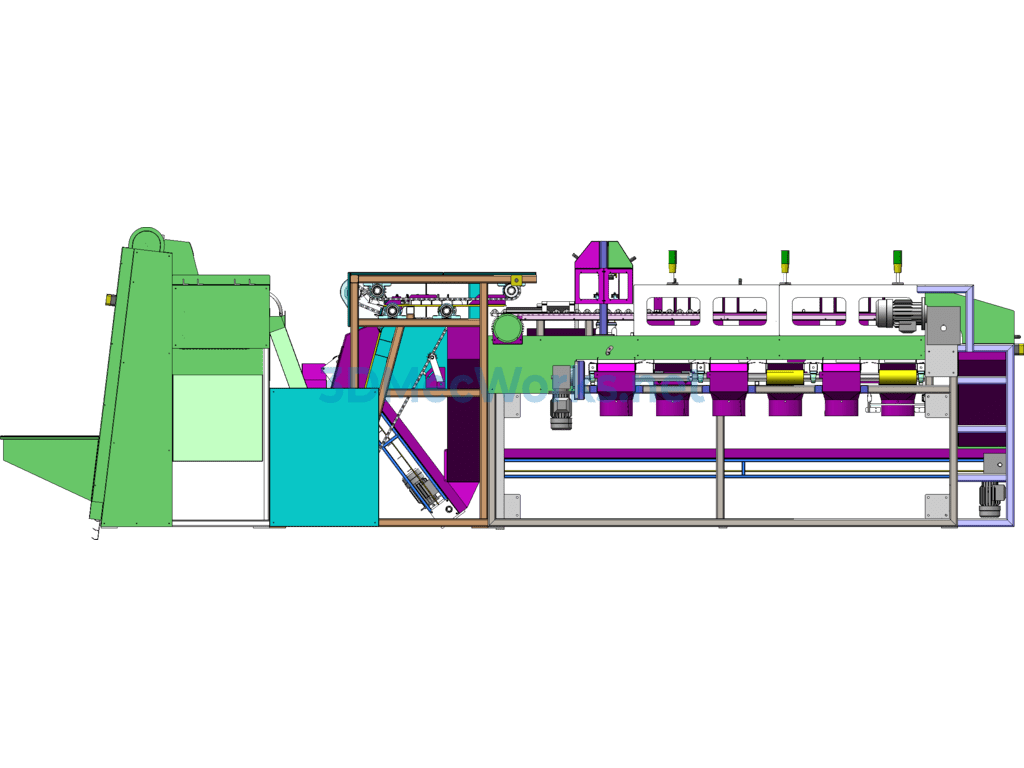

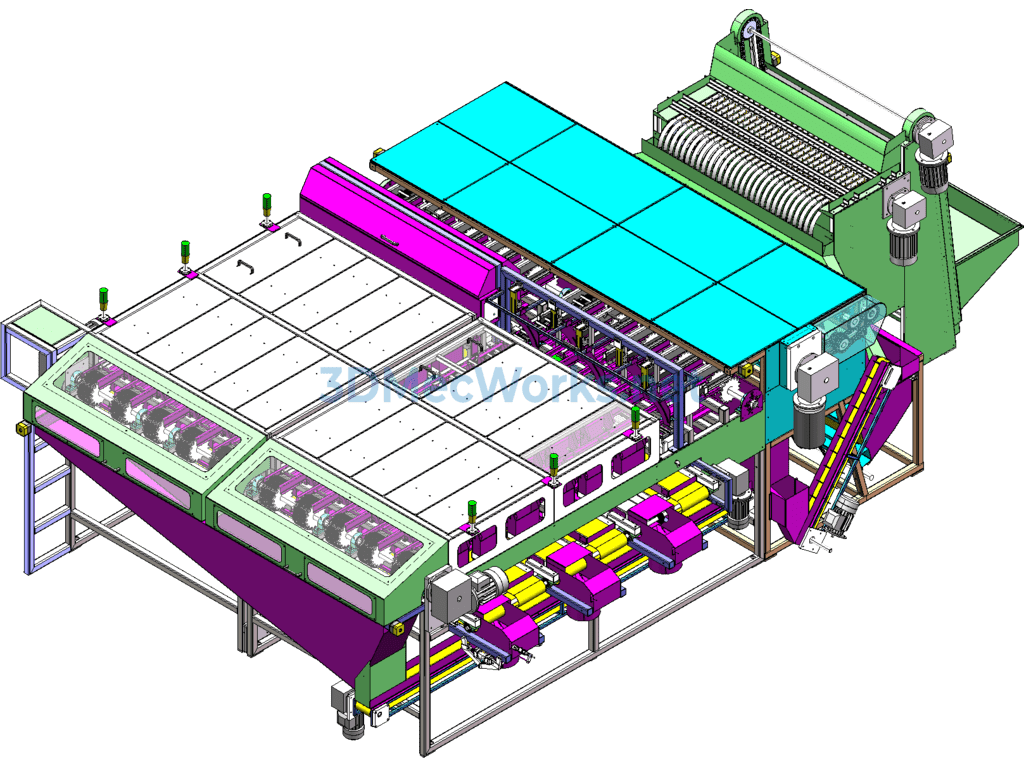

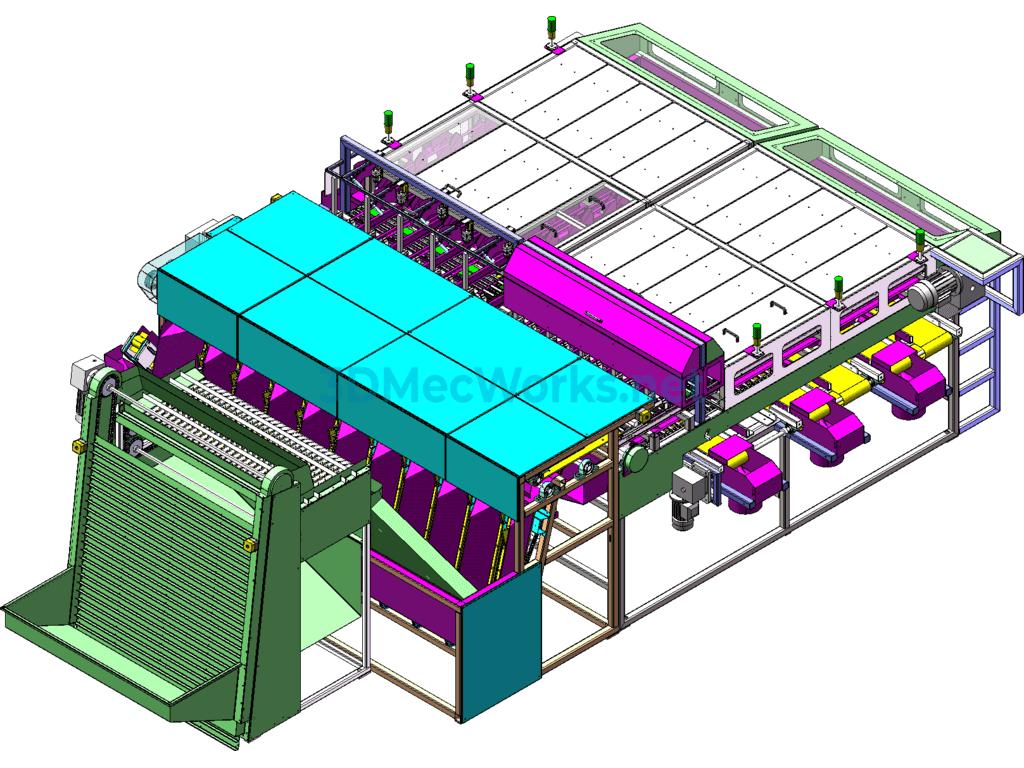

A complete betel nut production line complete machine assembly design model includes main structures like head and filter machine, head assembly, body assembly, filter machine, distribution conveyor belt assembly, upper wire support chain module, and diverged belt splicing.
1. Mixing device: Increase the outer dimensions of the digestion tube, reduce the overall height, increase the distance of the magnetic stirrer to enhance stirring effect and solve the uneven stratification problem during stirring.
2. Heating device: Determine the shape of the heating plate, add PTFE insulation posts at the bottom, improve the installation position of the temperature sensor and the safety protection of the heating power line, also consider the distance between the magnetic stirrer and the bottom of the digestion tube to prevent weak magnetism from affecting stirring.
3. Cooling fan: First consider upper and lower cooling separation, using separate air curtain or blower for the lower part, and air curtain or four large axial flow fans for the upper part. If the effect is not satisfactory, electronic cooling can be considered.
4. Condensing box: Re-manufacture the sheet metal according to the size of the new cooling fan and condensing tube. Also consider the weight that the condensing box docking manipulator can bear.
5. Condensing tube: Use jacketed circulating water cooling or add storage water jacket device at the upper end of the condensing tube for cooling.
6. Dosing device: Determine whether to use high-precision peristaltic pump or ordinary peristaltic pump based on the dosing accuracy, or verify whether to use a plunger pump or other dosing methods.
7. Determine the routing method for all liquid pipelines and electrical circuits of the machine;
8. Determine the electrical installation and routing layout inside the control box, and conduct related testing and configuration determination for hardware such as industrial control machines and monitors.
