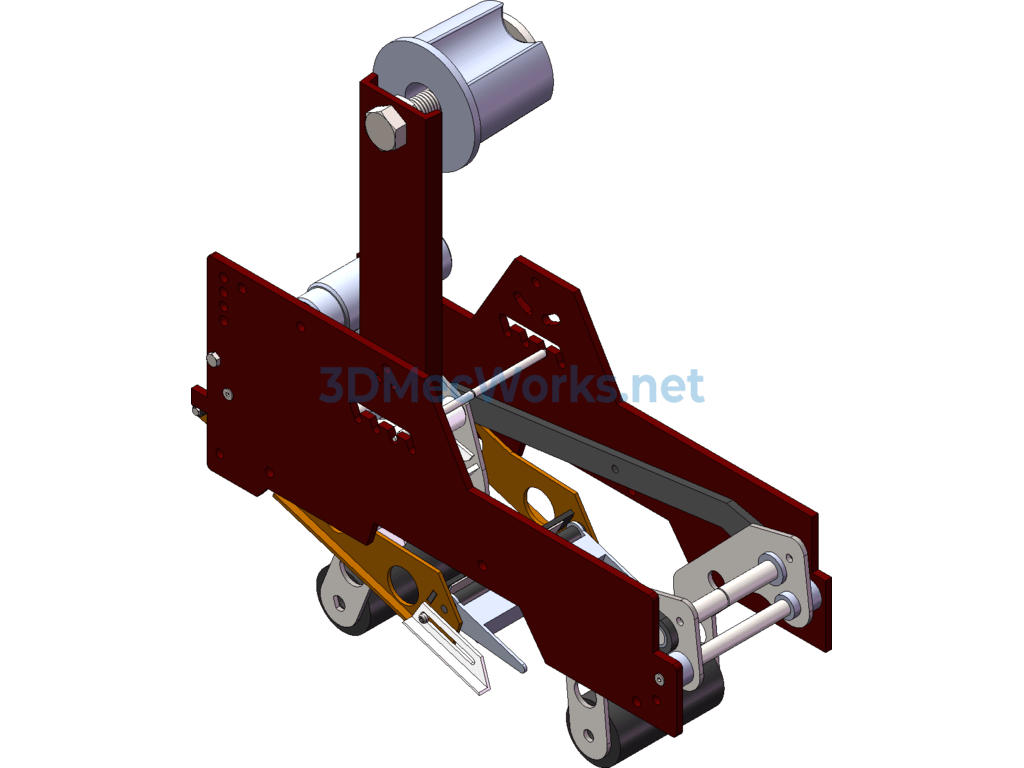

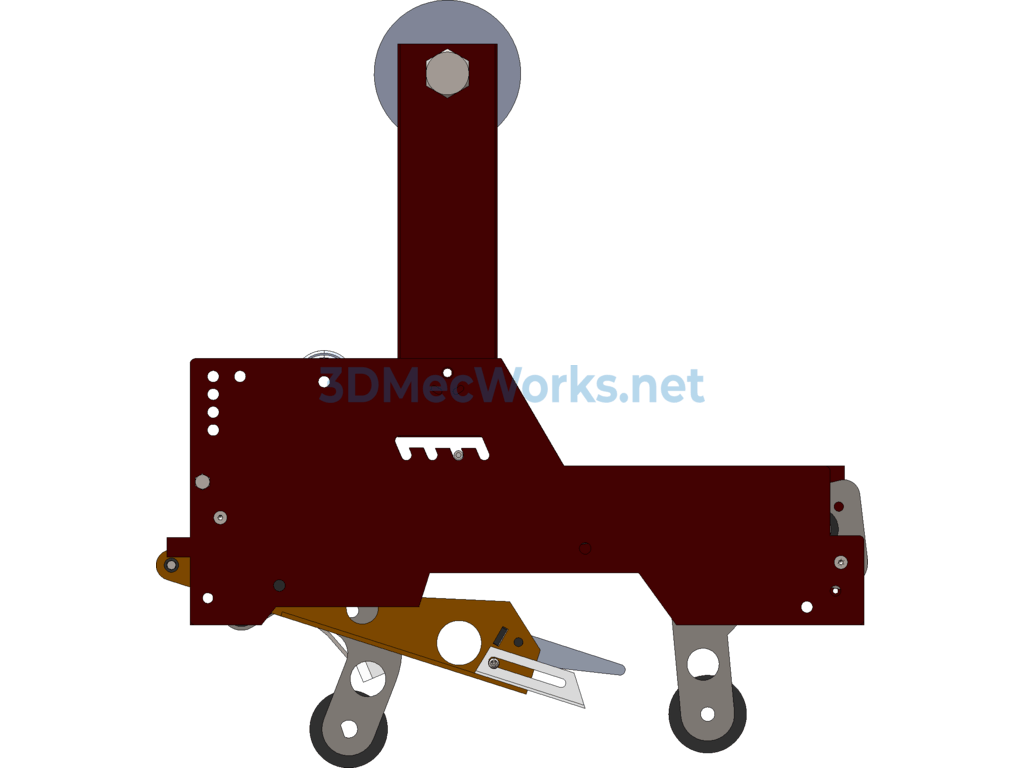

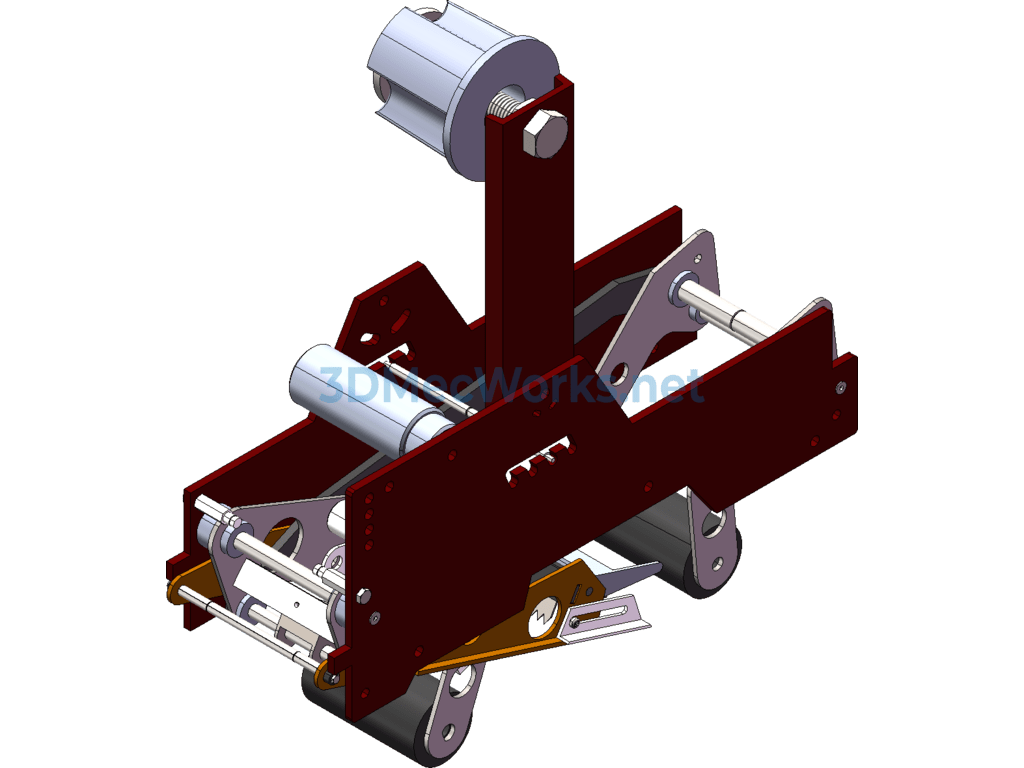

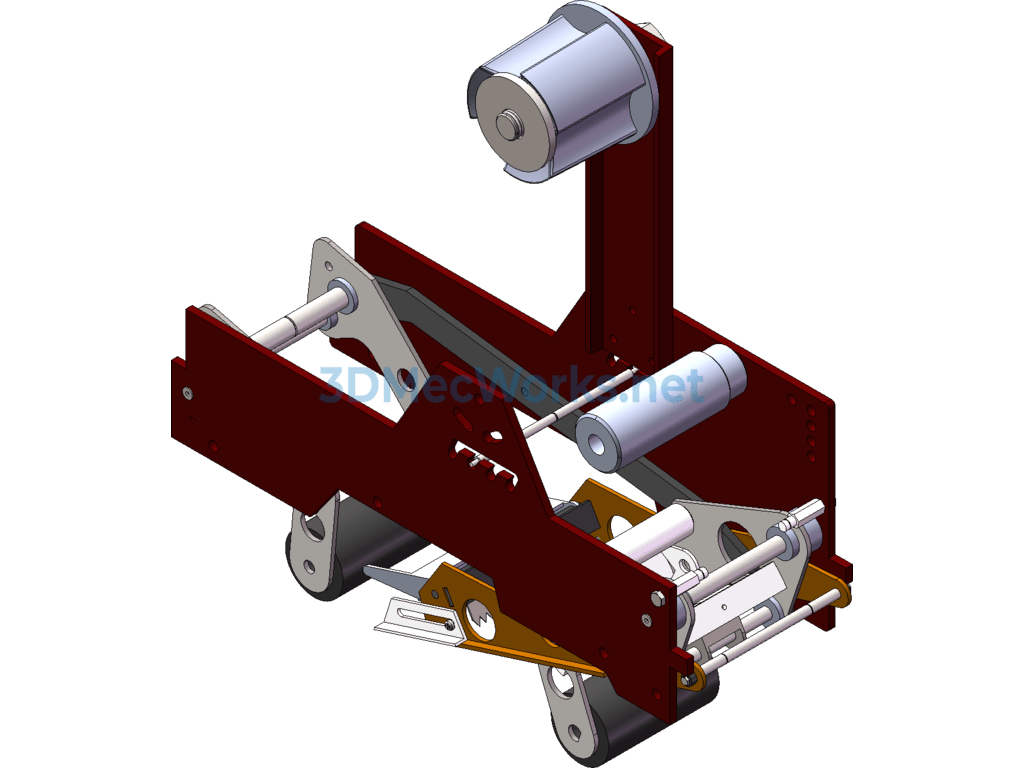

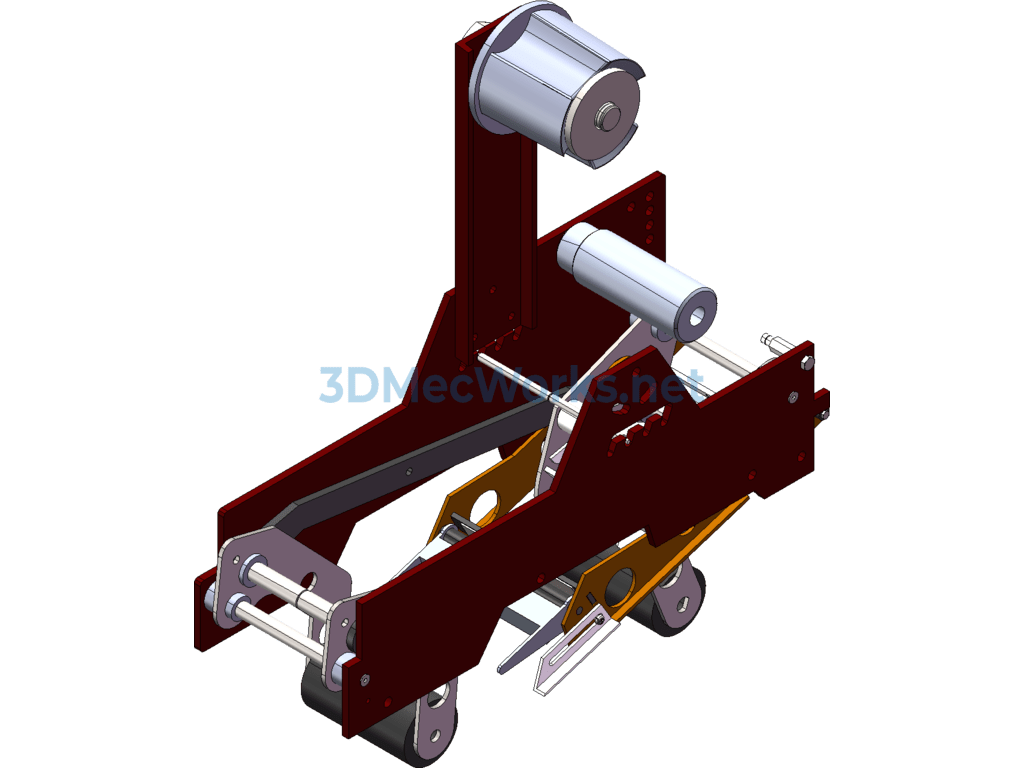

New Universal Carton Sealing Machine

Carton Sealing Machine Parameters:
Packaging Speed: >15 boxes/min
Carton Size Range: Min: 150x150x150mm, Max: 550x500x480mm
Sealing Tape Width: 48mm, 60mm
Tape Type Used: OPP Tape
Sealing Workbench Height: 500-600mm
Adjustment Time Between Different Carton Sizes: <30s
Due to the relatively small force applied when attaching the tape to the carton and the low precision requirement for transmission, sliding rails are used as transmission components. According to the design requirements of the sealing machine, there are three main functions: lid folding, tape application, and tape cutting.
Design and operation manual included
