New Standard S-Type Unloader/smt Chip Mounter Back-End Conveyor Unloader

SMT New Standard S-type Unloader Conveyor Direction from Right to Left

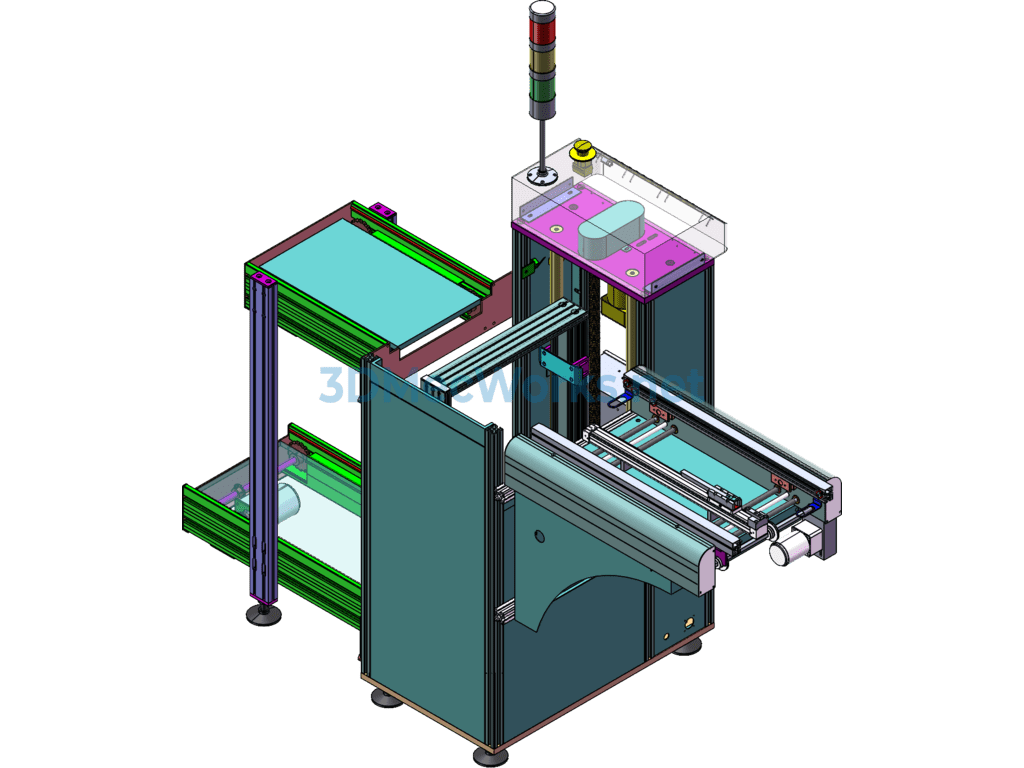

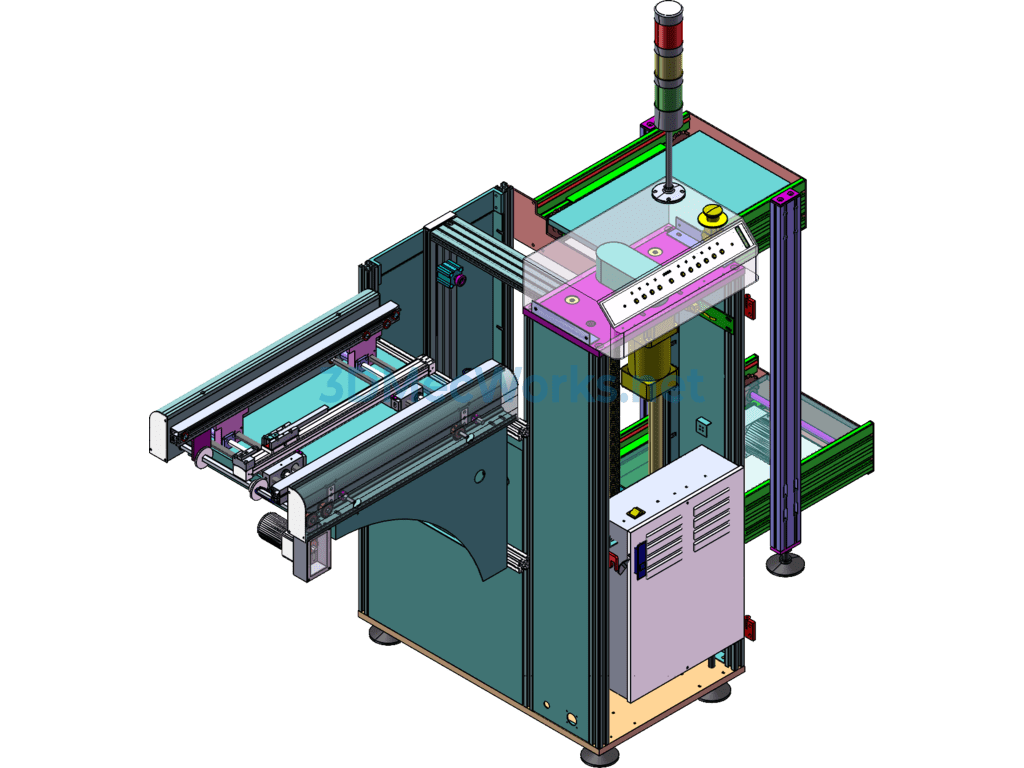

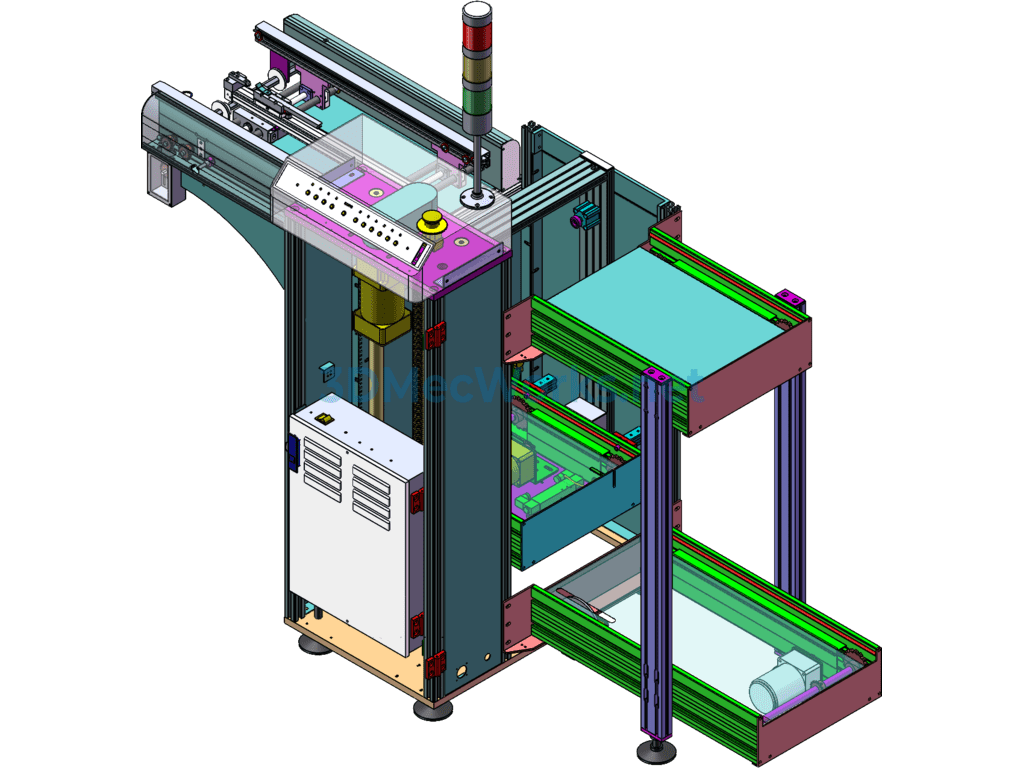

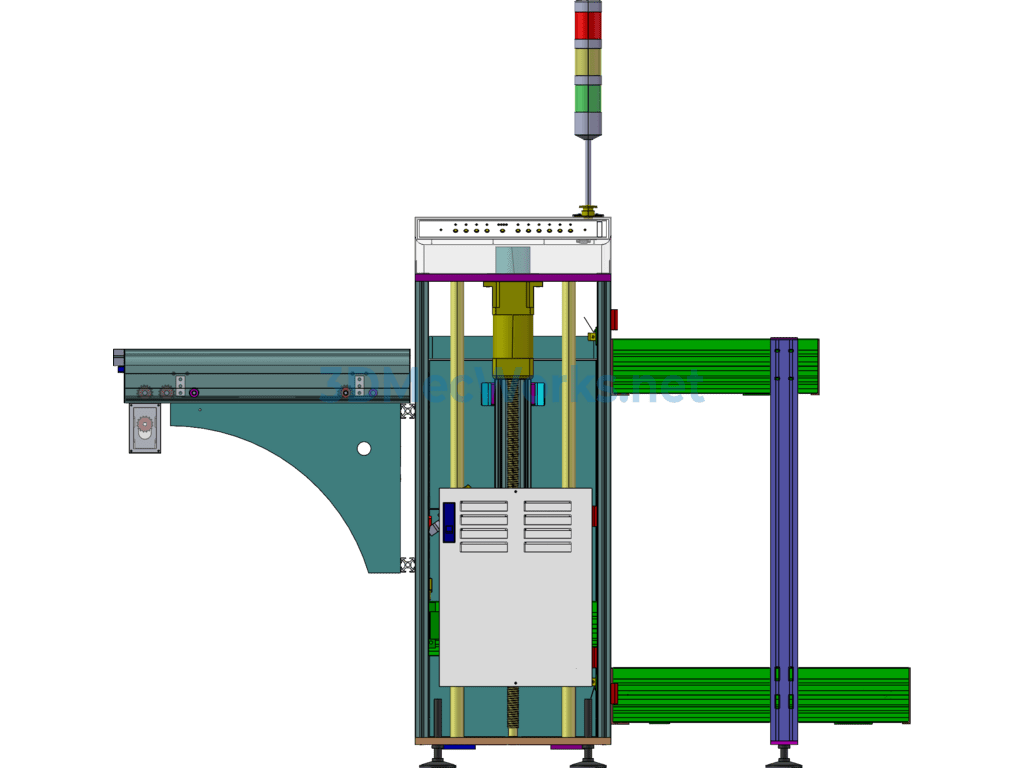

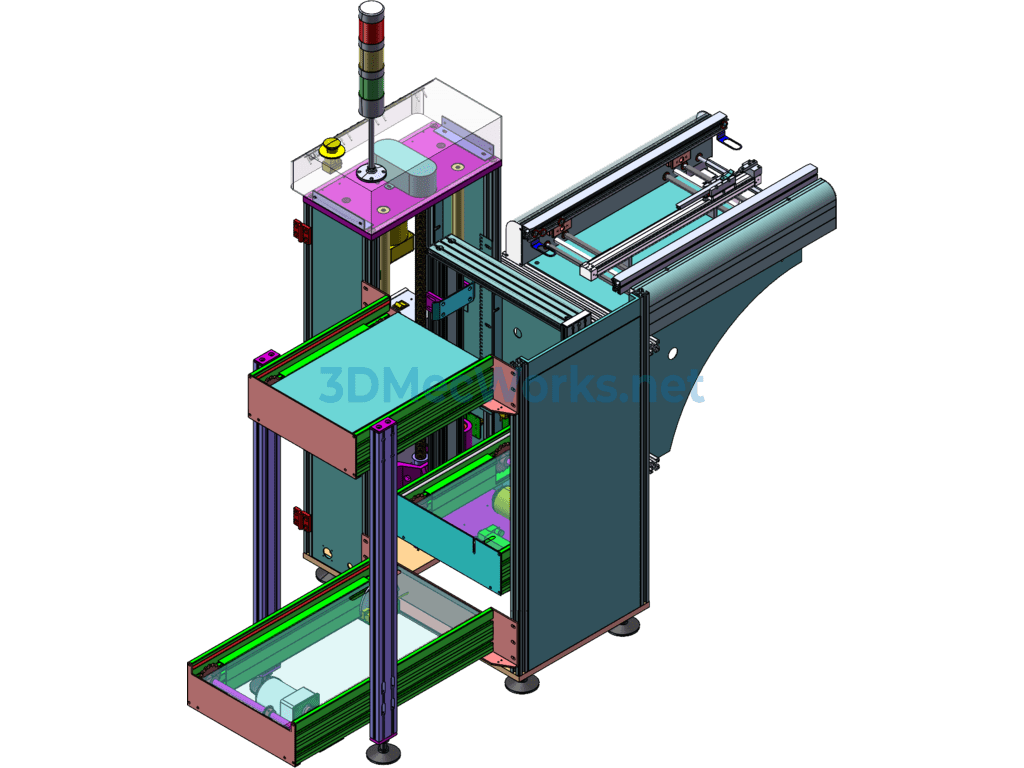

SMT New Standard S-type Unloader, Left to Right PCB Board Unloader. A complete set of conveyor unloader drawings used for the back end of the SMT pick-and-place machine is now uploaded for everyone to download and study. Here, you can learn about and download all equipment related to SMT conveying. This is a relatively smaller model of S-type unloader, which features a lifting structure and a conveyor board structure in the middle. The upgrade part of the SMT-PCB board loader connection table uses a screw lifting method for more stable elevation.

Those in need are welcome to download the Solidworks 2012 source files for editing, including parameters.
