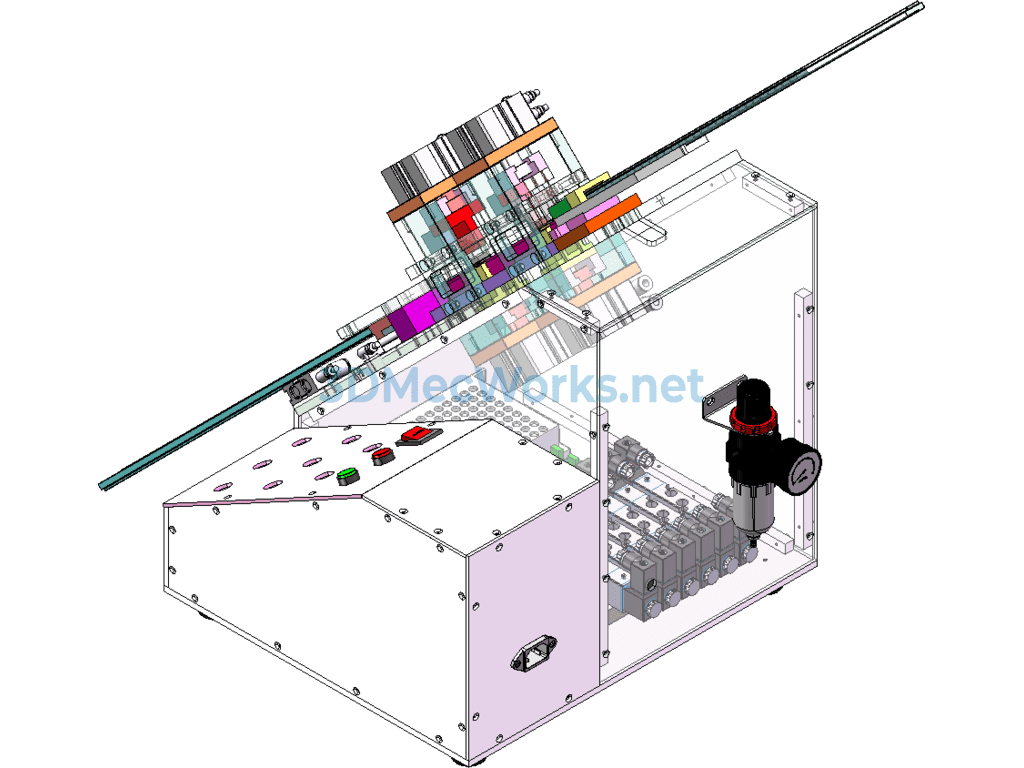

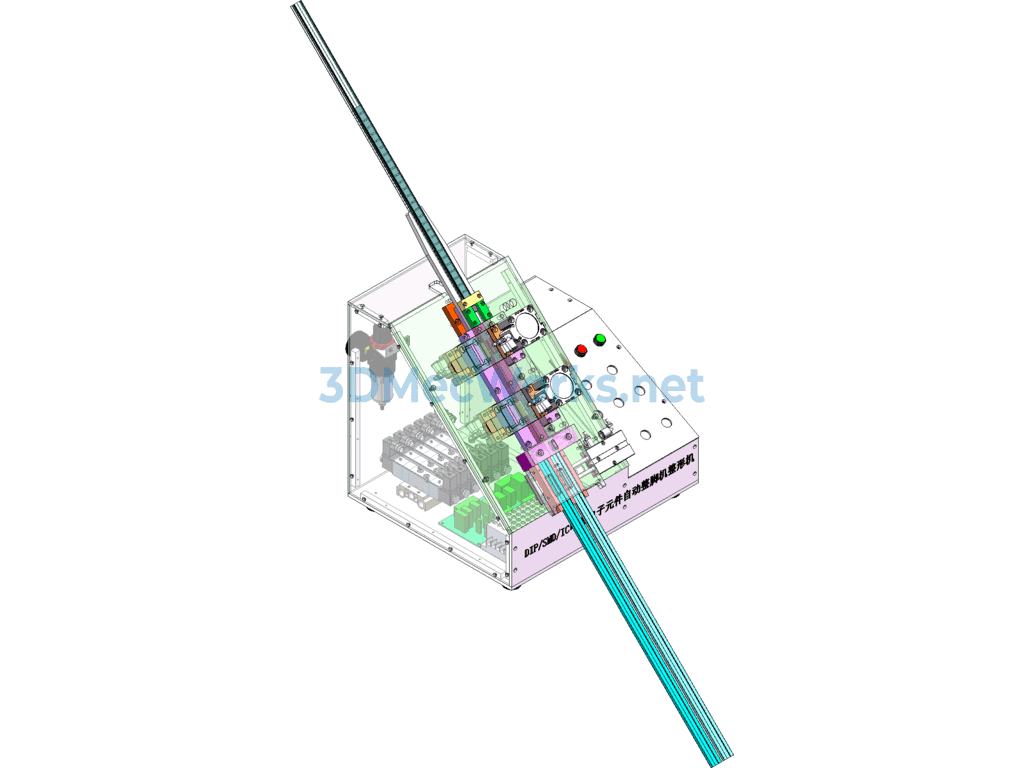

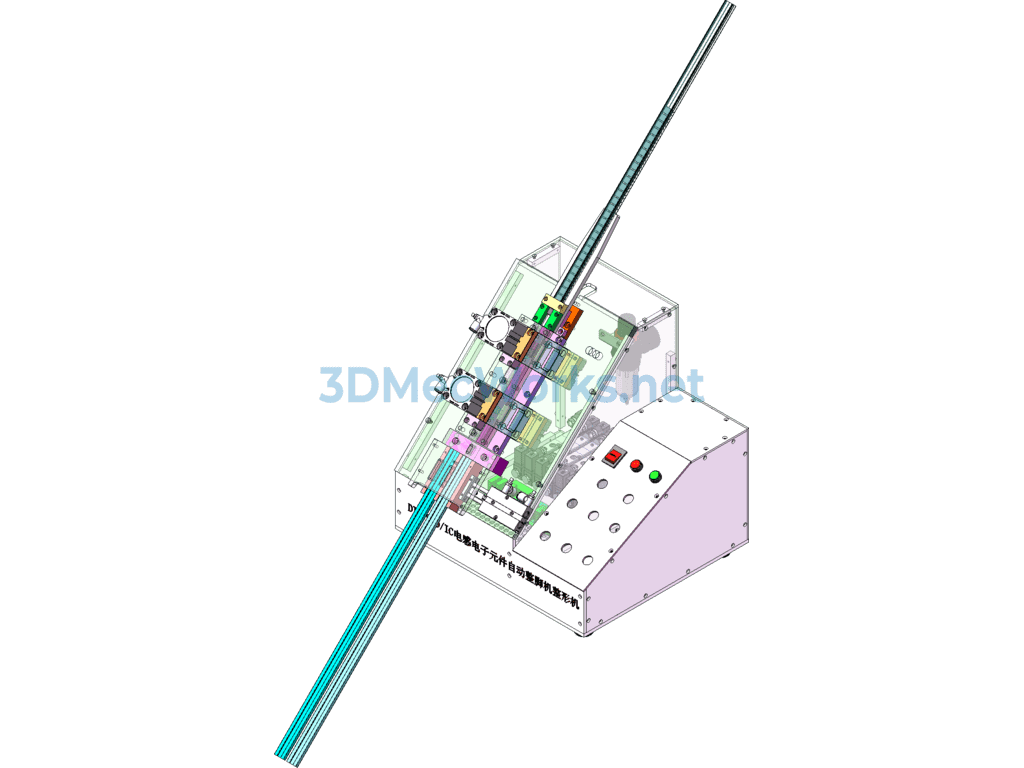

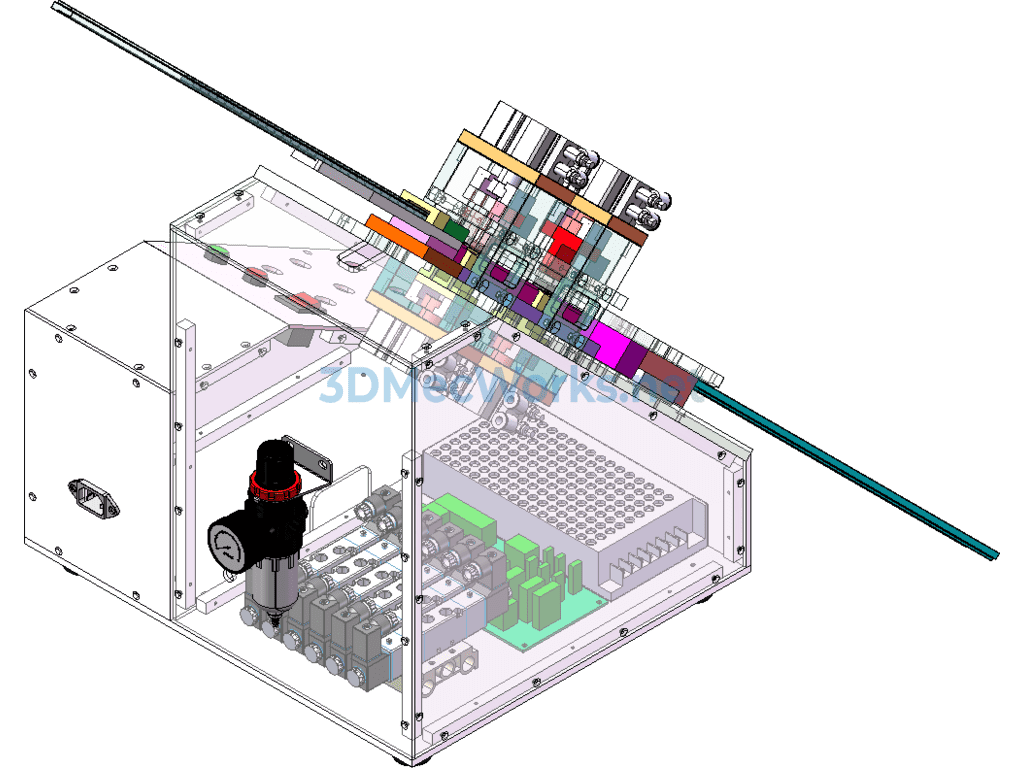

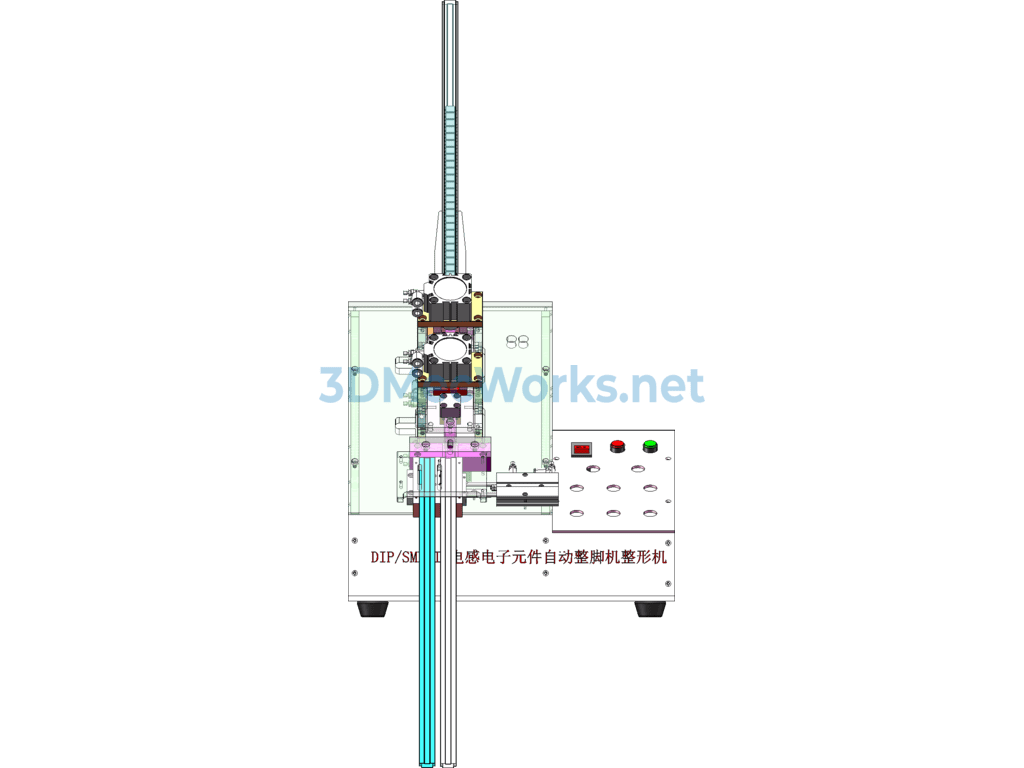

Network filter device lead trimmer machine blueprint, a complete set of lead trimmer machine 3D model. This equipment is indispensable in the shaping of PIN lead parts, and it can also complete similar functions. The DIP filter electronic component lead trimmer machine, inductance series fully compatible lead shaping machine is designed for semiconductor packaging and testing factories of various sizes in China and Taiwan. It is highly practical and very easy to operate! The component feeding is manual insertion, pipe-in pipe-out, single pipe feed, with two sets of cylinders simultaneously trimming and leveling deformed pins. The upper cylinder and trimming block are responsible for leveling the pins, with speeds up to 2000, wide applicability. The small semi-automatic DIP-SMD-IC electronic component lead trimming and shaping equipment is suitable for various types of lead trimming of electronic packaging components like DIP-SMD-SOP inductors. Not to be used for commercial purposes.
In different companies and places, this equipment is called differently, and it can be summarized as follows: PIN lead trimmer machine, IC shaping machine, electronic component lead trimmer, electrical component correction machine, etc. This equipment’s 3D model contains very detailed content: 3D model, DIP lead trimmer machine pictures, ZTK drawings, tube feeding part, chassis 2D, loaded box 2D, etc. The reference value is significant, and you are welcome to download and refer.
