Multiple Synchronous Transfer Robot

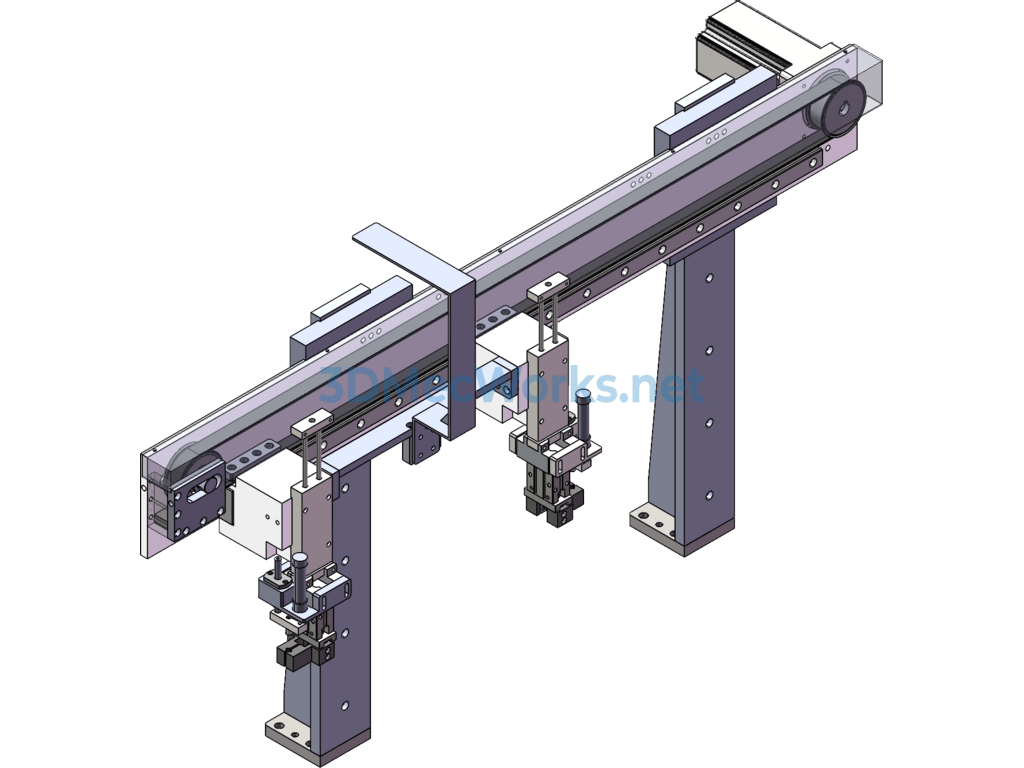

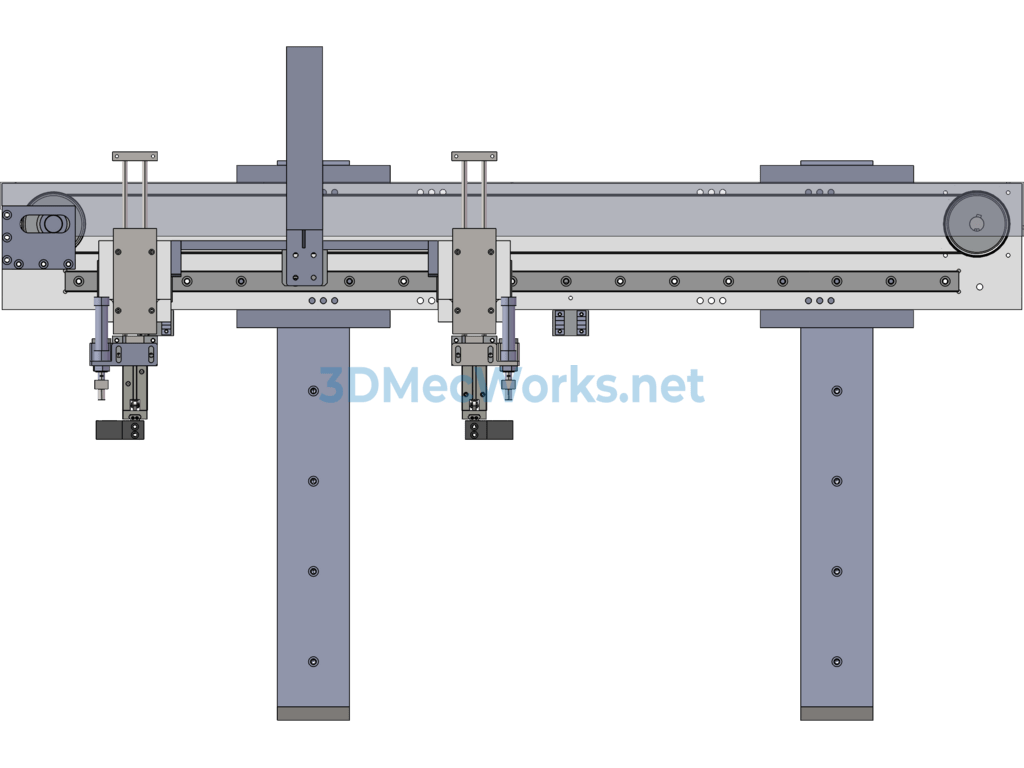

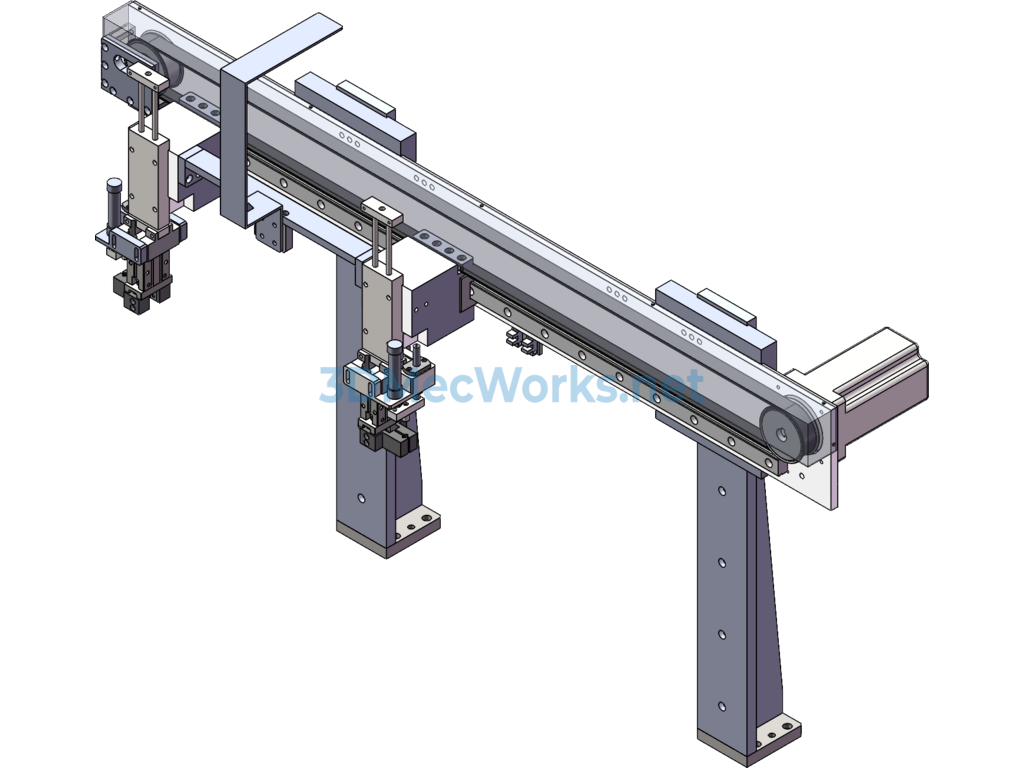

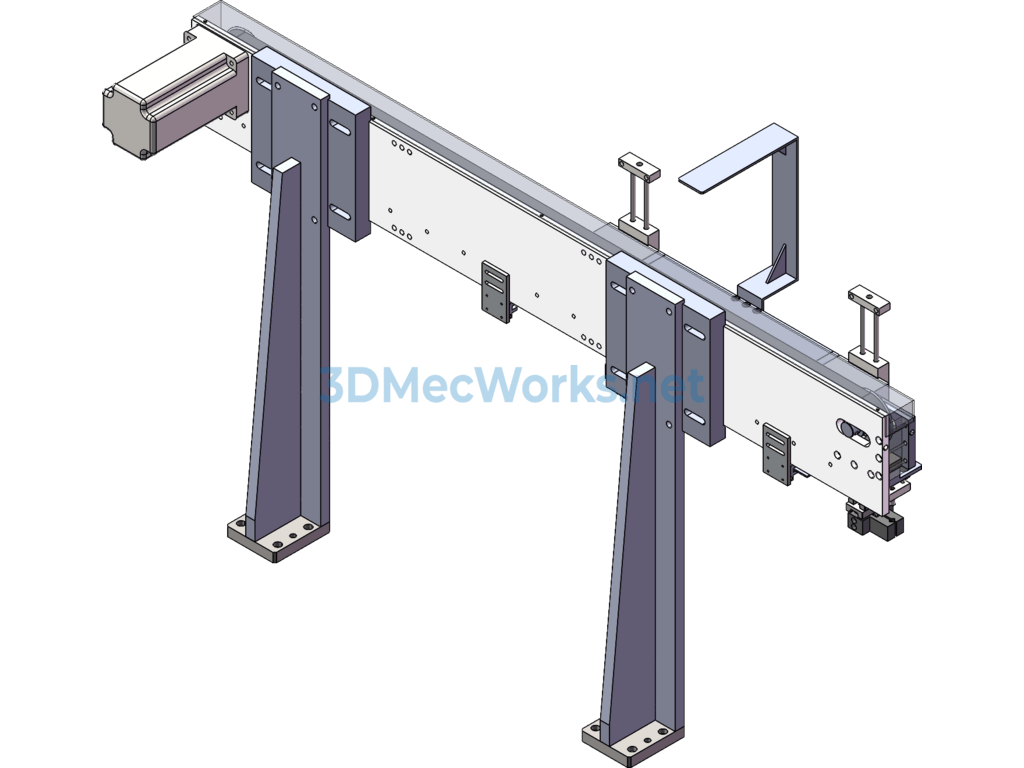

The “multiple synchronized transfer robot structure” is a type of mechanical structure frequently used in non-standard automation equipment. This transport mechanism, along with loading and unloading structures, can save designers a significant amount of time. I am uploading it now in hopes it will be helpful to everyone. With this model, you can directly insert it into assembly drawings. The drawings are complete and safe to download. SolidWorks 2011 design source files are shared.
