Multi-Head Multi-Station Pressing Fixture

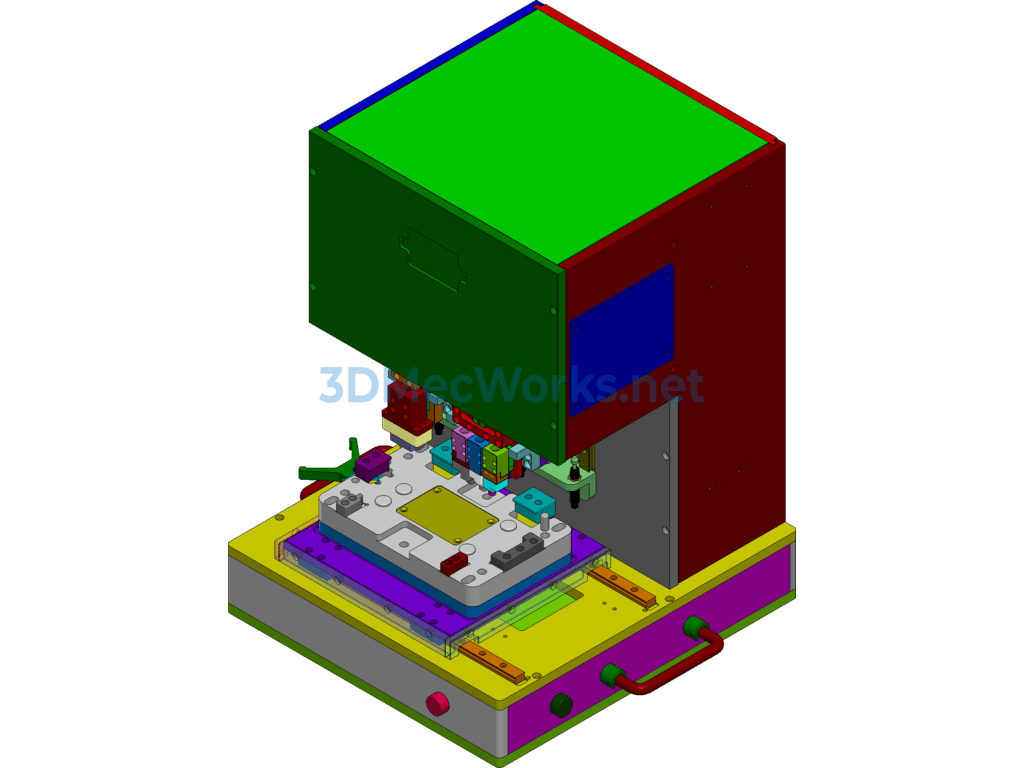

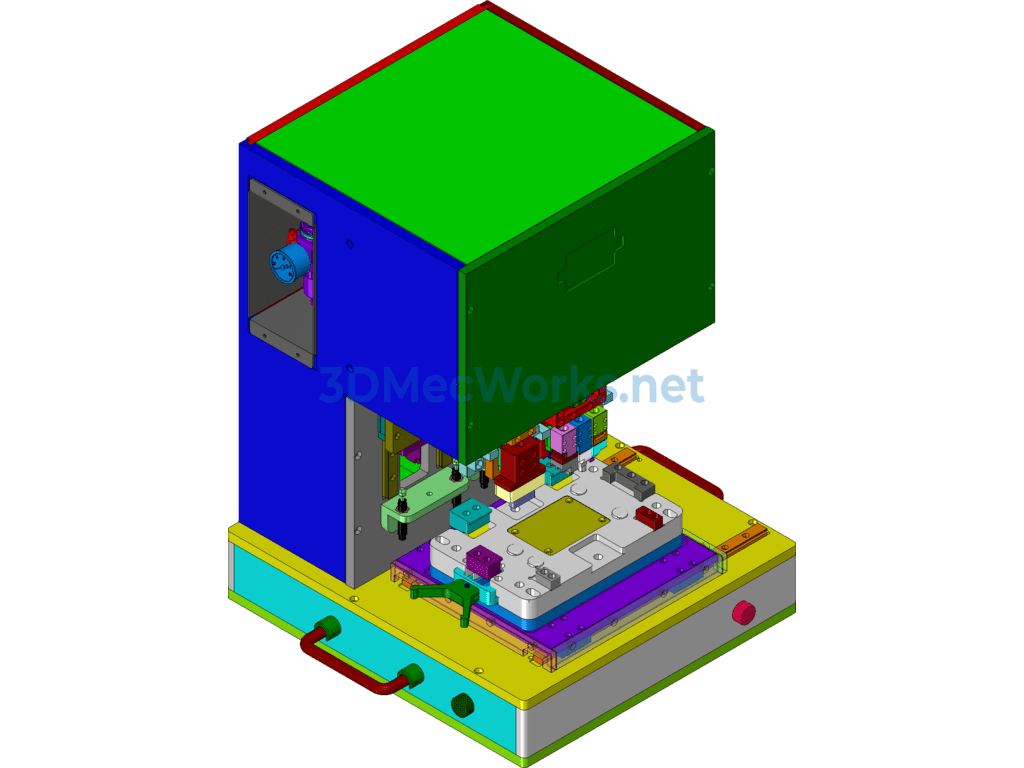

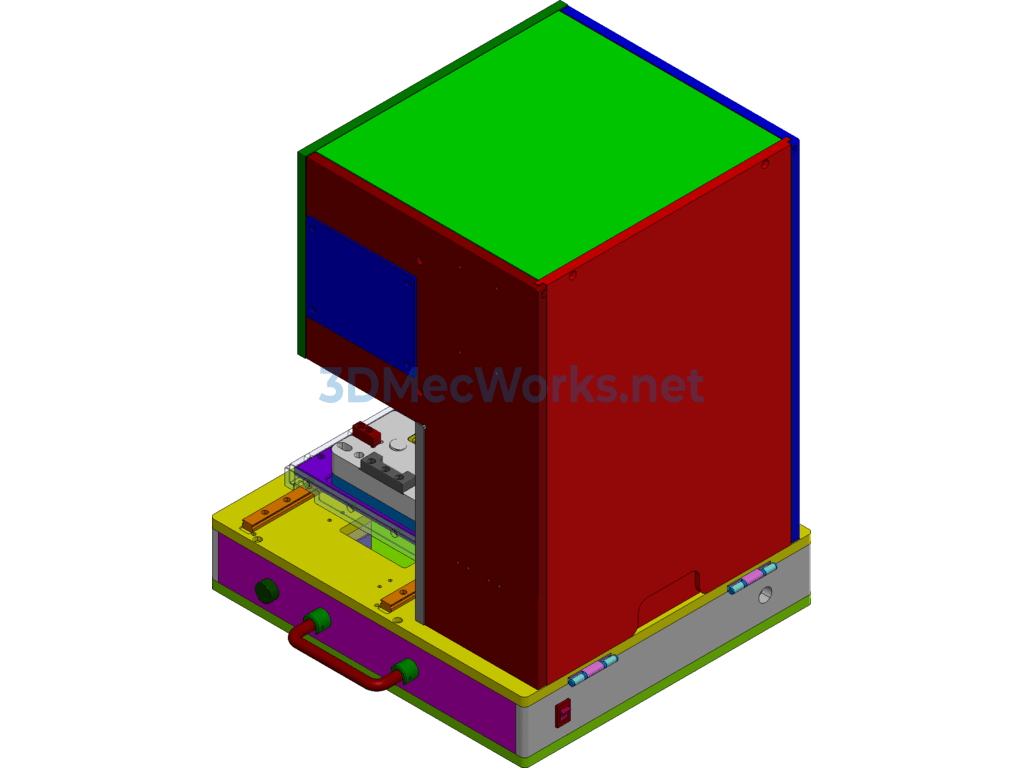

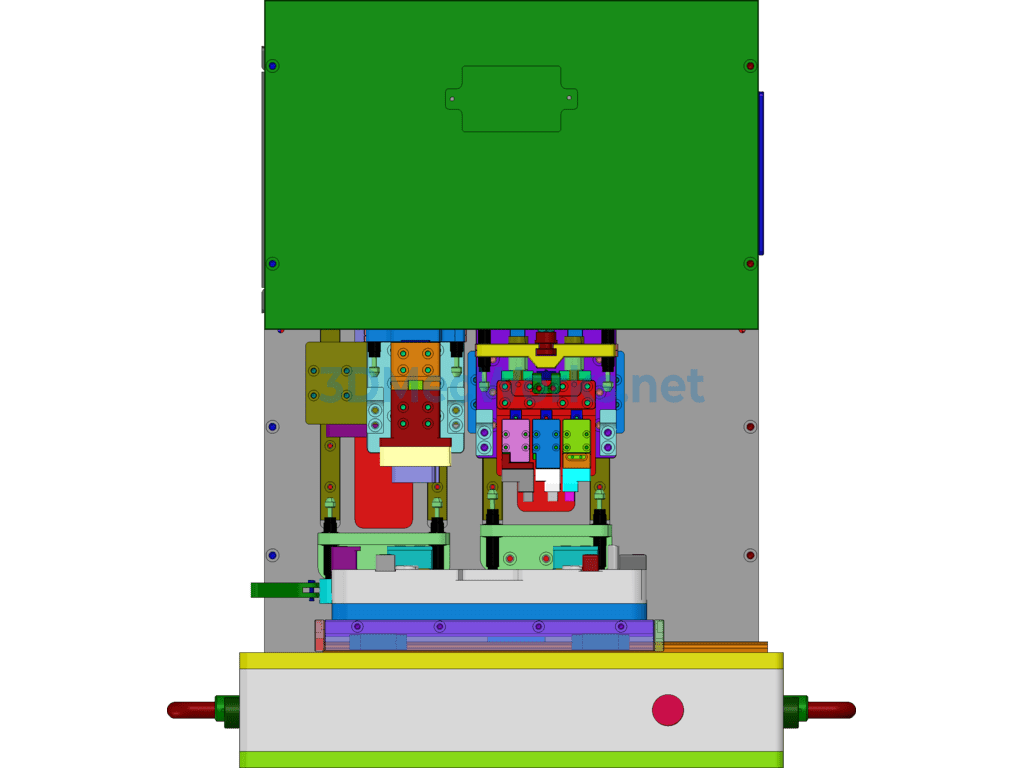

This equipment is primarily used in electronic device processing equipment for secondary bending and assembly of products. It is a desktop semi-automatic fixture, which uses a Y-axis fixed fixture to secure the product, then a cylinder pushes it into the pressing station. The Z-axis uses a double-cylinder to complete the pressing down. The project includes files in XT general format 3D drawings, and mechanical designers are welcome to download, study, and discuss the project for learning.
