Multi-Blade PCB Separator - SolidWorks - Free Download

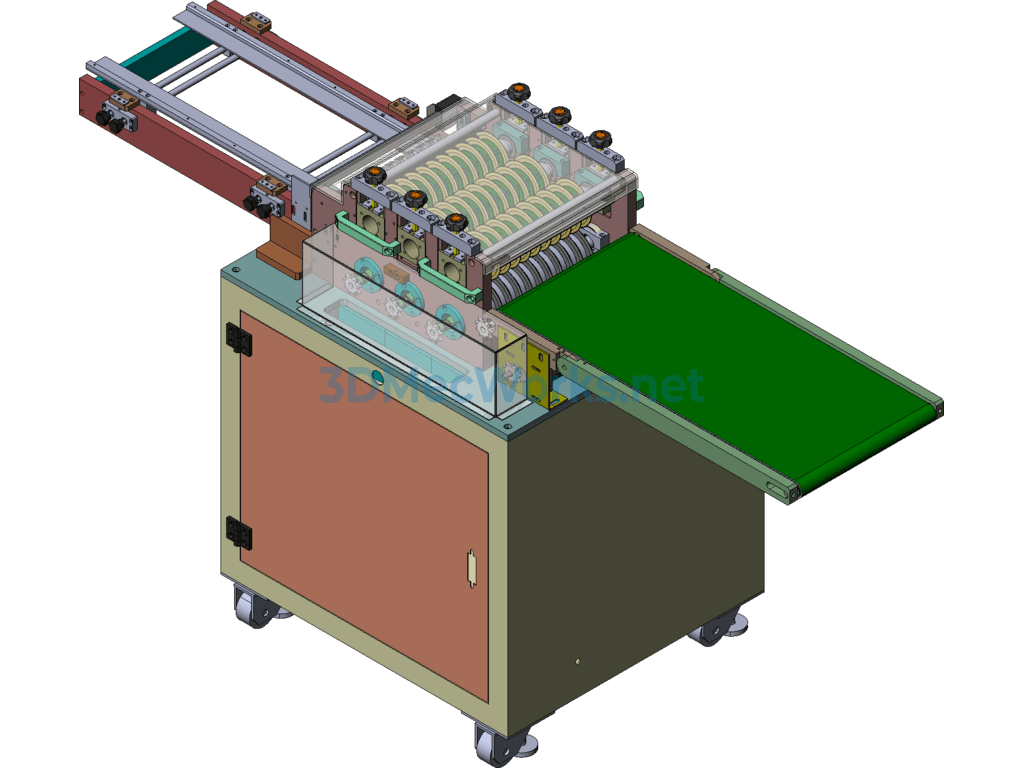

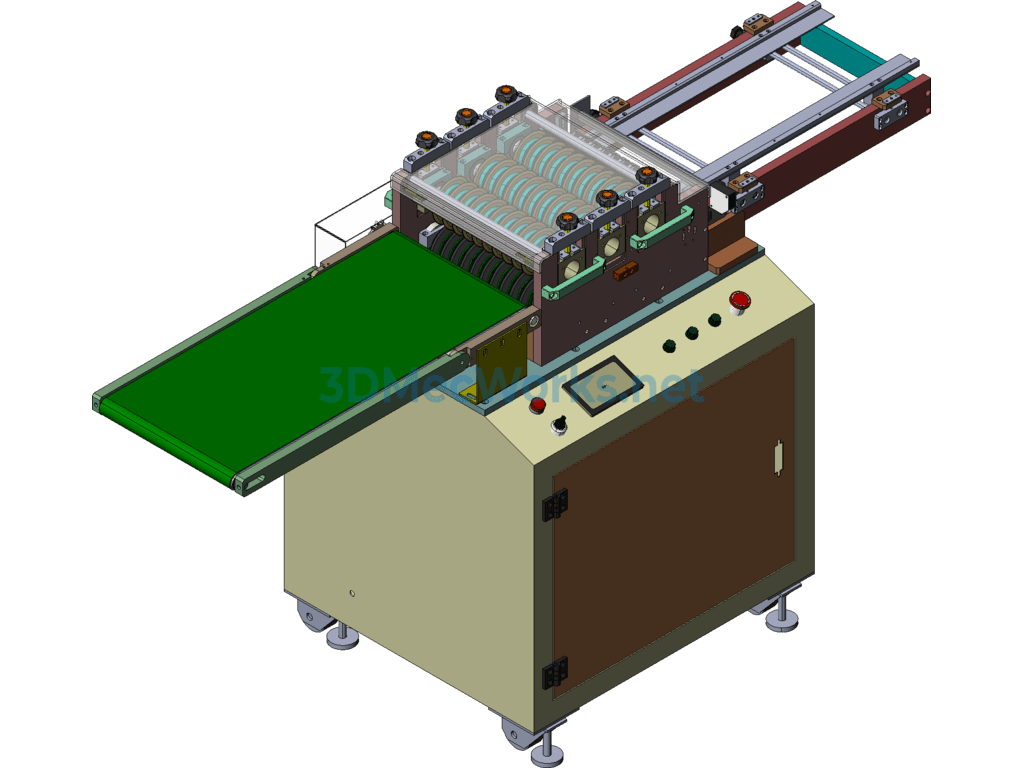

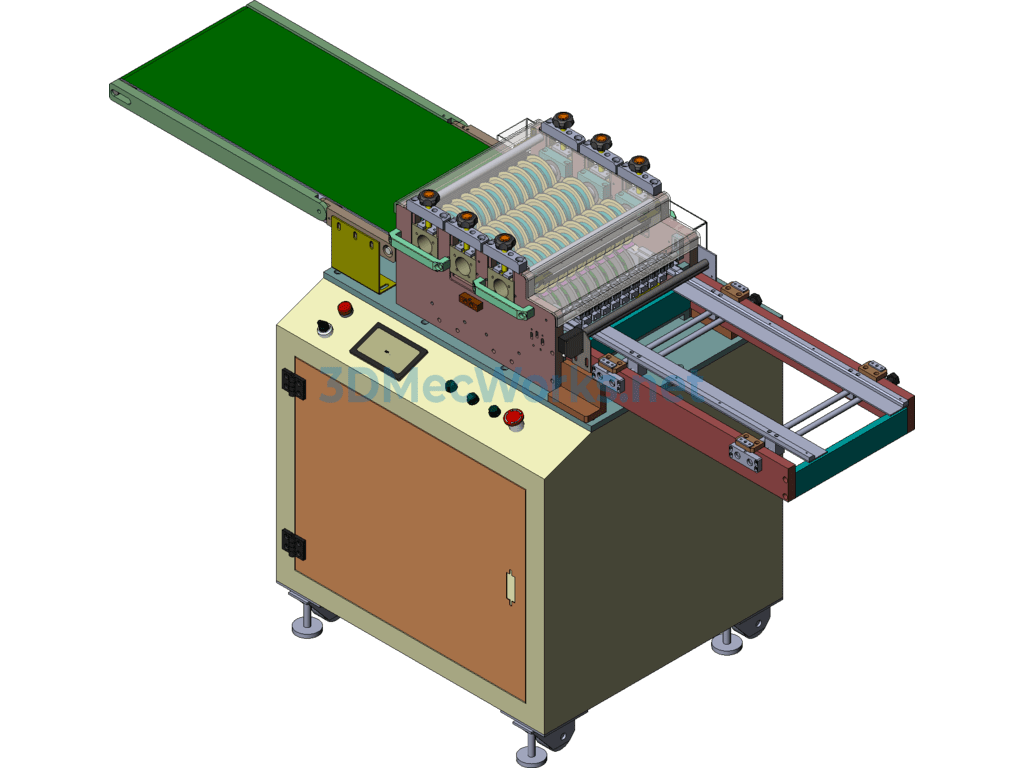

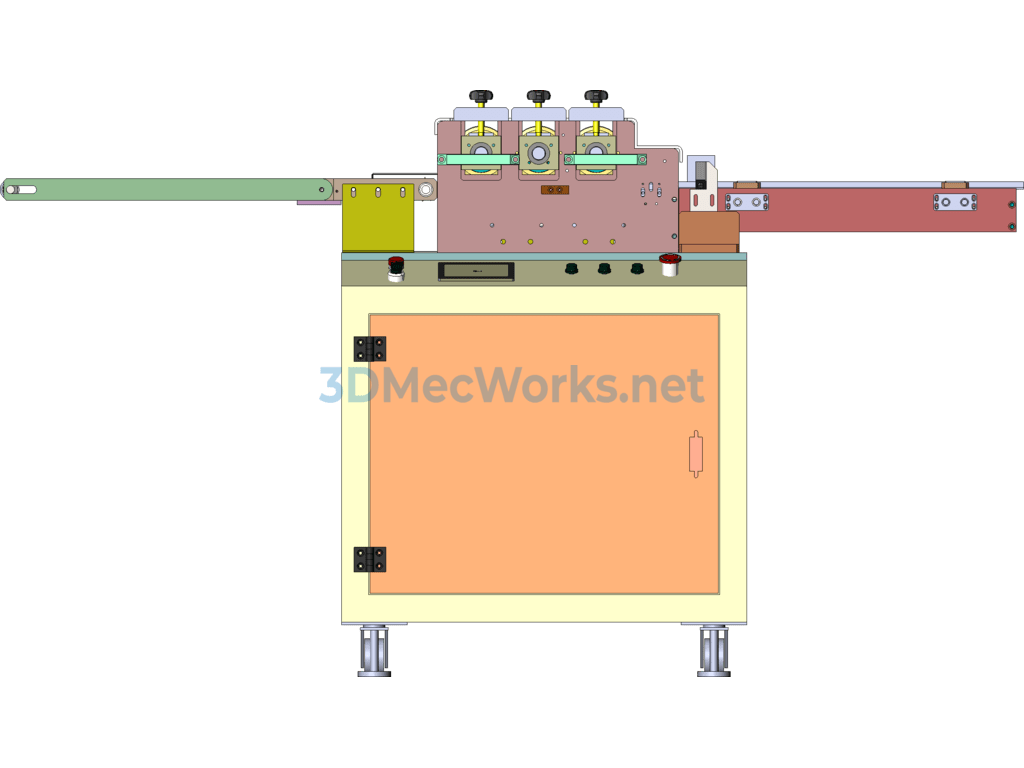

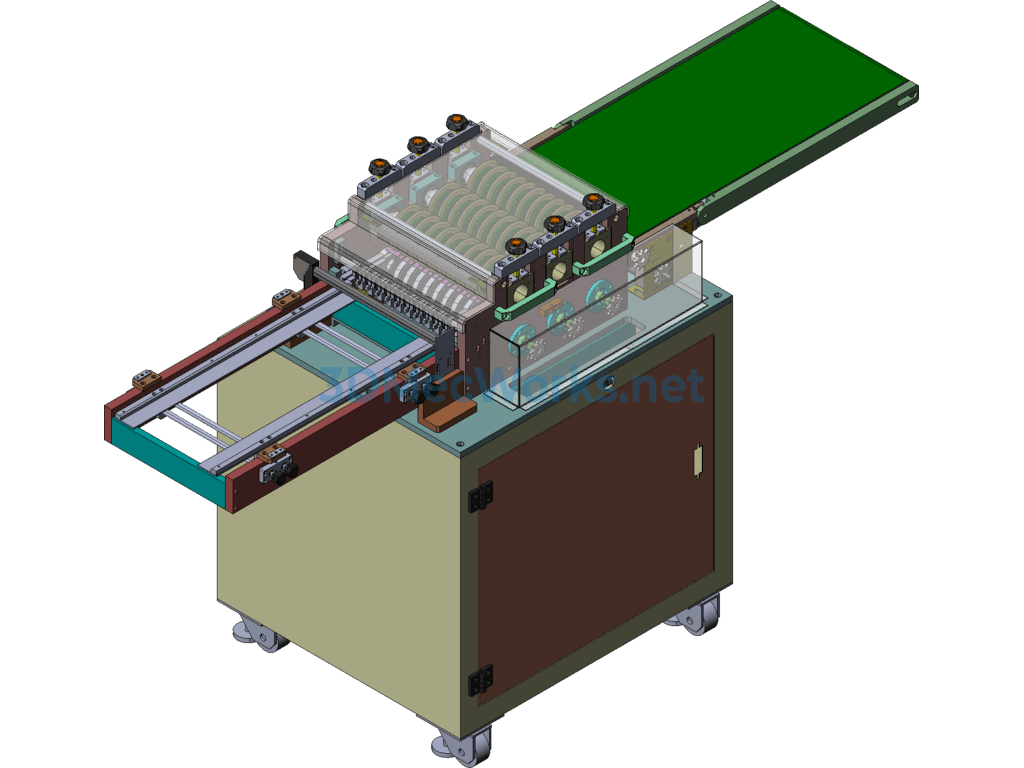

Multi-Cutter Depaneling Machine General Assembly Drawing: General Assembly – Depaneling Machine B.SLDASM_x000D_
1. Equipment Dimensions: 1847*660*1070_x000D_
(L*W*H)_x000D_
_x000D_
2. The equipment uses PLC + touch screen control, convenient and quick; it employs three sets of blades for depaneling, effectively reducing stress generated during depaneling. After depaneling, the individual strip boards do not warp or deform._x000D_
_x000D_
3. Depaneling Speed: 50-120mm/s (adjustable)_x000D_
