Mouse Image Automatic Calibration Test Machine

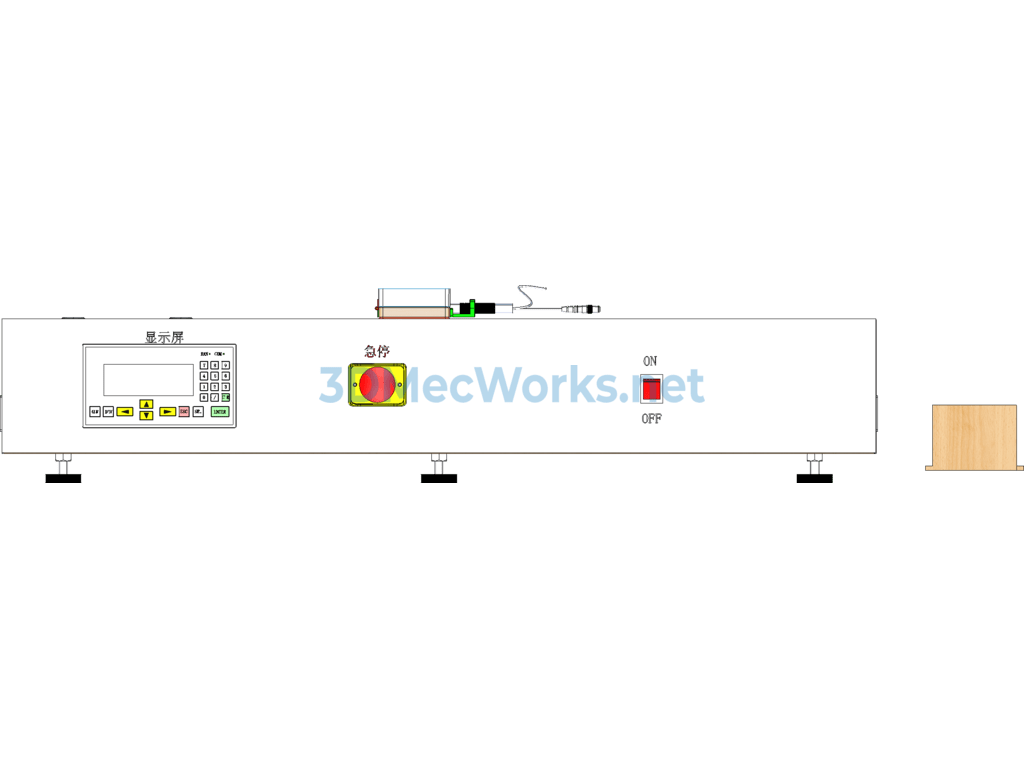

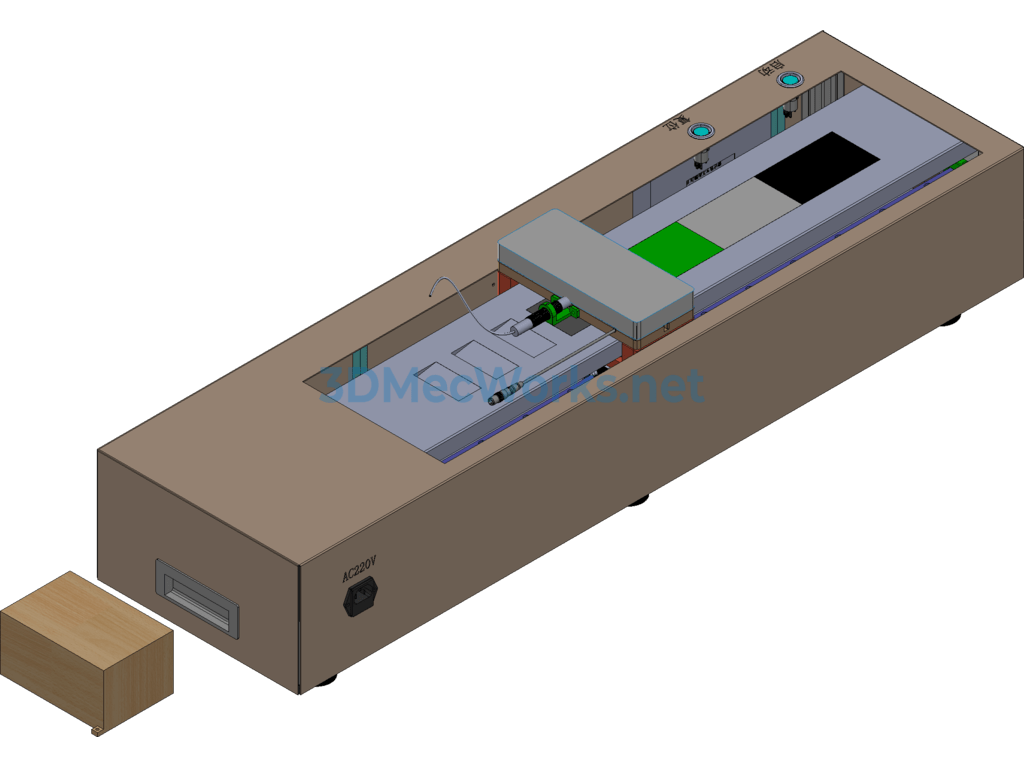

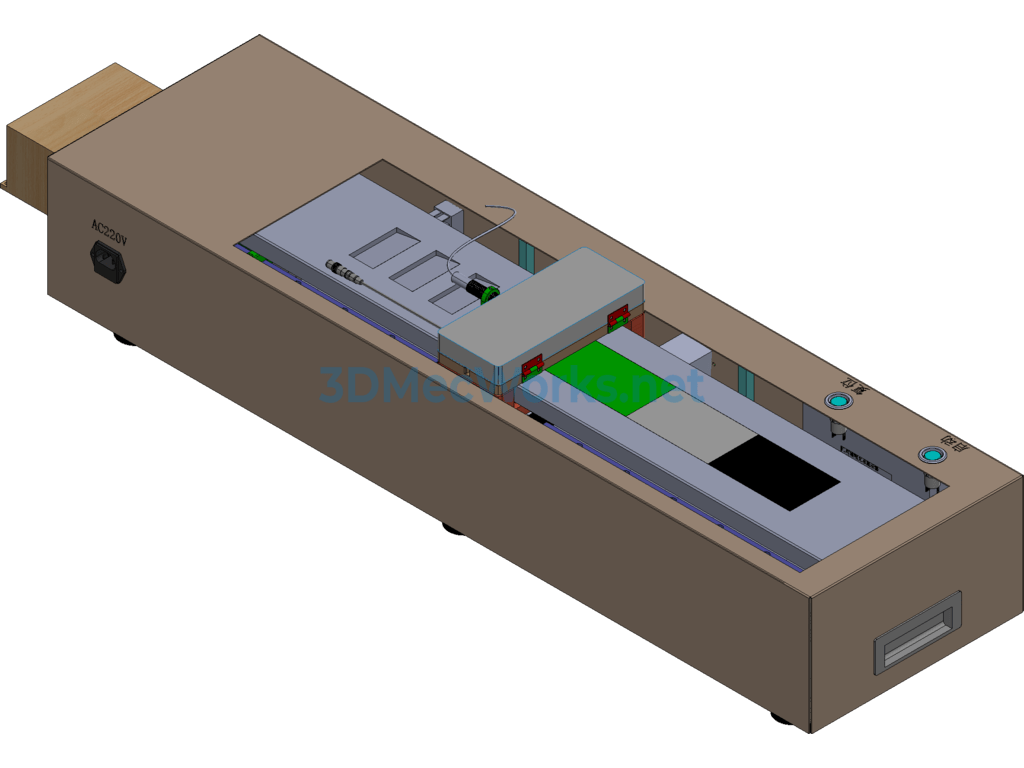

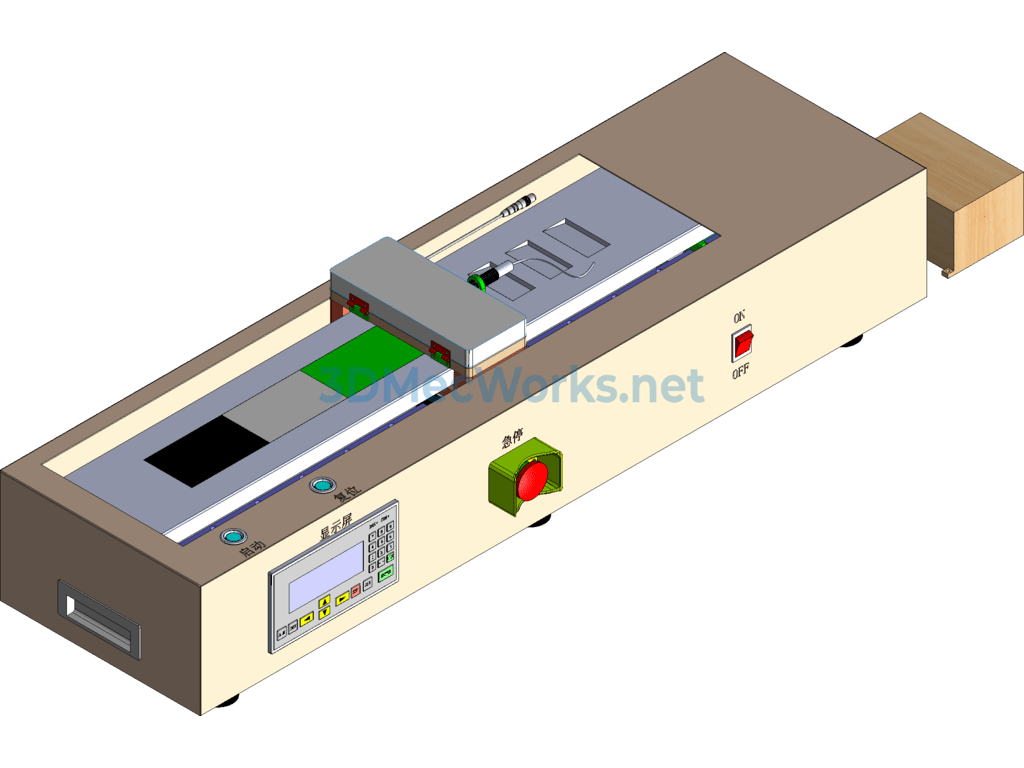

Mouse Image Automatic Calibration Testing Machine 3D Model
Contains internal structure, source files with editable parameters, welcome to download.
1. This is a specially developed and designed machine for automatically calibrating the image of the mouse to be scanned, and users are very satisfied with its performance, leading to additional units being ordered.
2. The device can be started with a single key, making operation simple.
3. The structure uses a servo control system, PLC control, allowing free control. The display interface uses a large screen with high-brightness text display.
4. Very suitable for beginner designers to study and reference.
5. This device is absolutely original. Assembly file: Image Calibration Jig.SLDASM.
6. The drawings are detailed, including engineering drawings, a bill of materials, and a Solidworks 3D model.
