【Original】A complete set of automatic assembly machine 3D model drawings for motor shell, clips, screws, and nuts, sharing all SW design source files, with a complete structure and reasonable design.

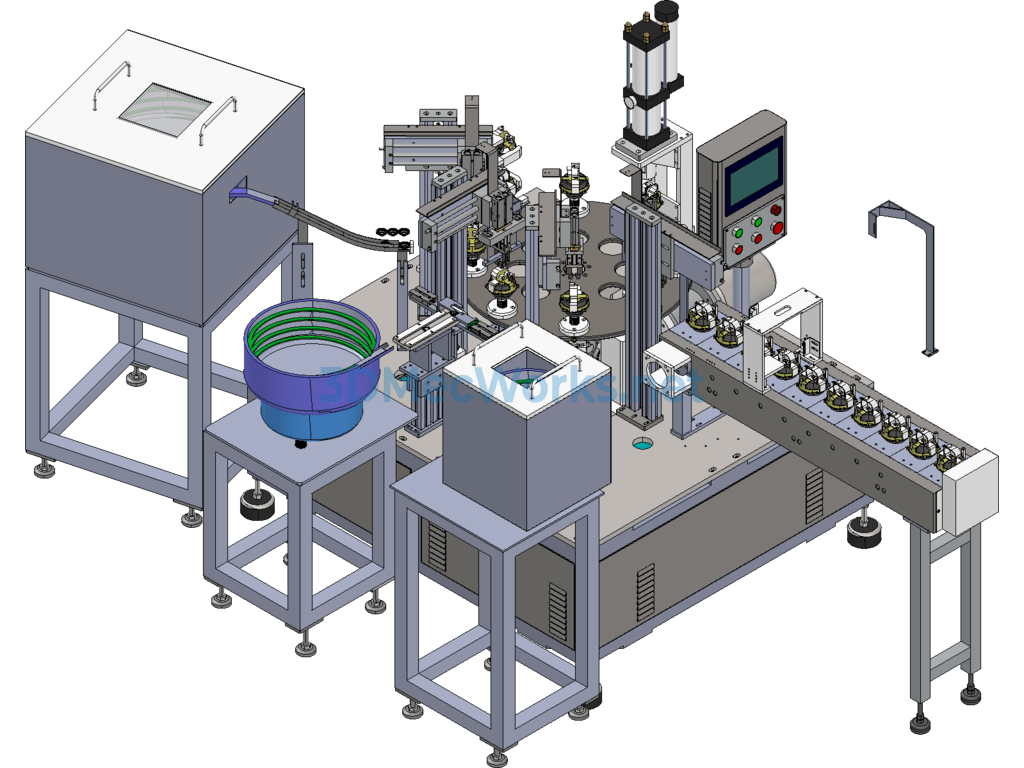

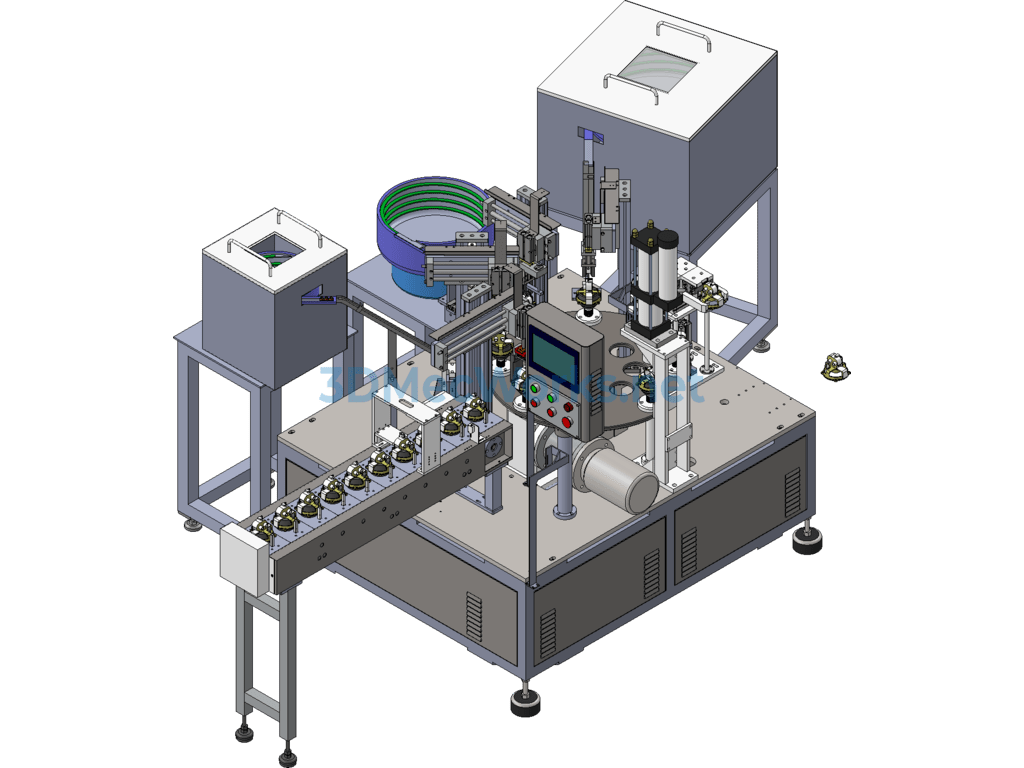

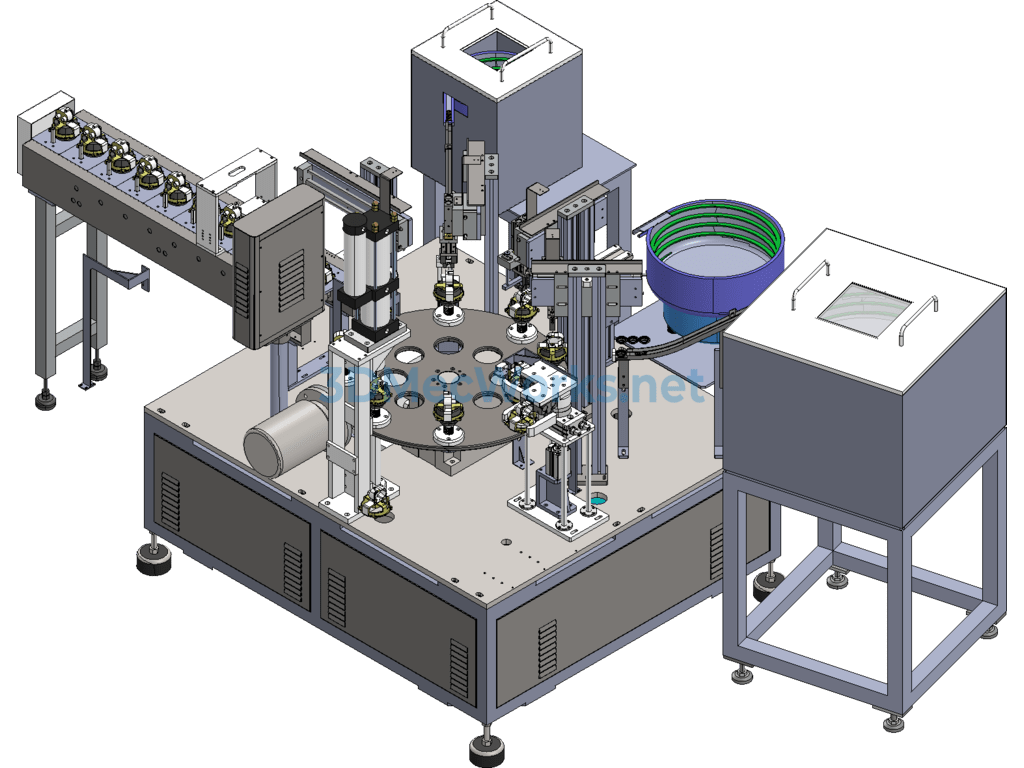

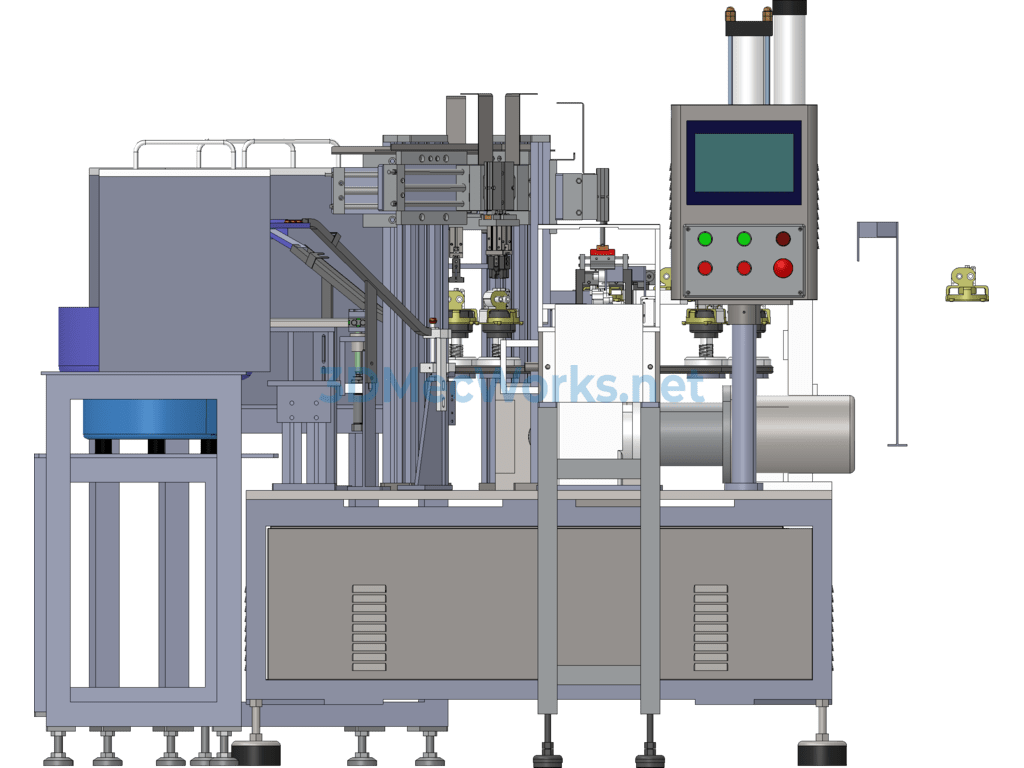

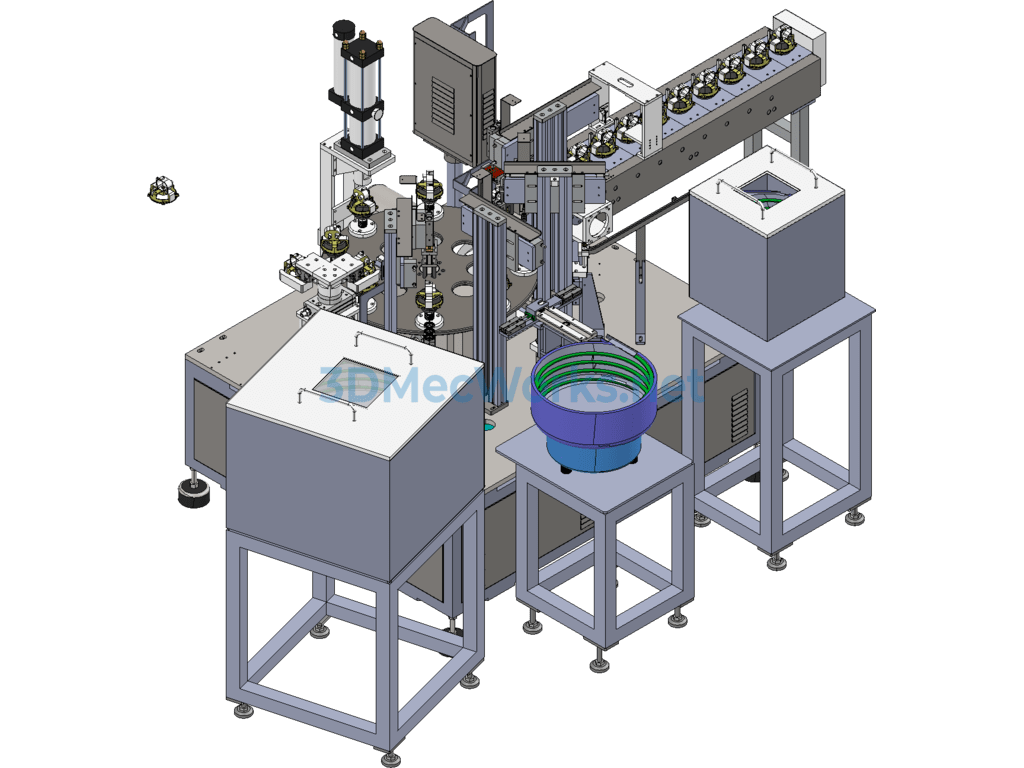

A set of complex motor shell and screws and nuts automatic assembly equipment. This comprehensive non-standard equipment drawing, which includes the motor shell screws and nuts automatic assembly machine combined with the copper clip press machine, is absolutely a hundred percent original drawing designed using SolidWorks 201. Its main function is to assemble aluminum shell castings of the motor and various parts like screws, nuts, and ball bearings inside the motor shell. The design is divided into several major parts including: material feeding, clamping, assembly, turntable, and unloading. The material feeding part adopts a method of belt conveyor with a fixture board, where you only need to place the product on the fixture and use the conveyor belt to convey the product. Then, a clamping manipulator conducts the clamping and assembly for one part, and other components are assembled in the same manner. After completing one work station, the turntable will rotate to the next station, assembling different parts at each station. Finally, it comes to the unloading station to take out the assembled semi-finished product. This set of motor ball screw and nut automatic assembly machine’s structure is very complex and quite valuable for learning. I hope everyone can support me and support original creation, thank you.
