Motor Stator Dispensing Equipment / Non-Standard Dispenser (complete 3d Model + Engineering Drawings)

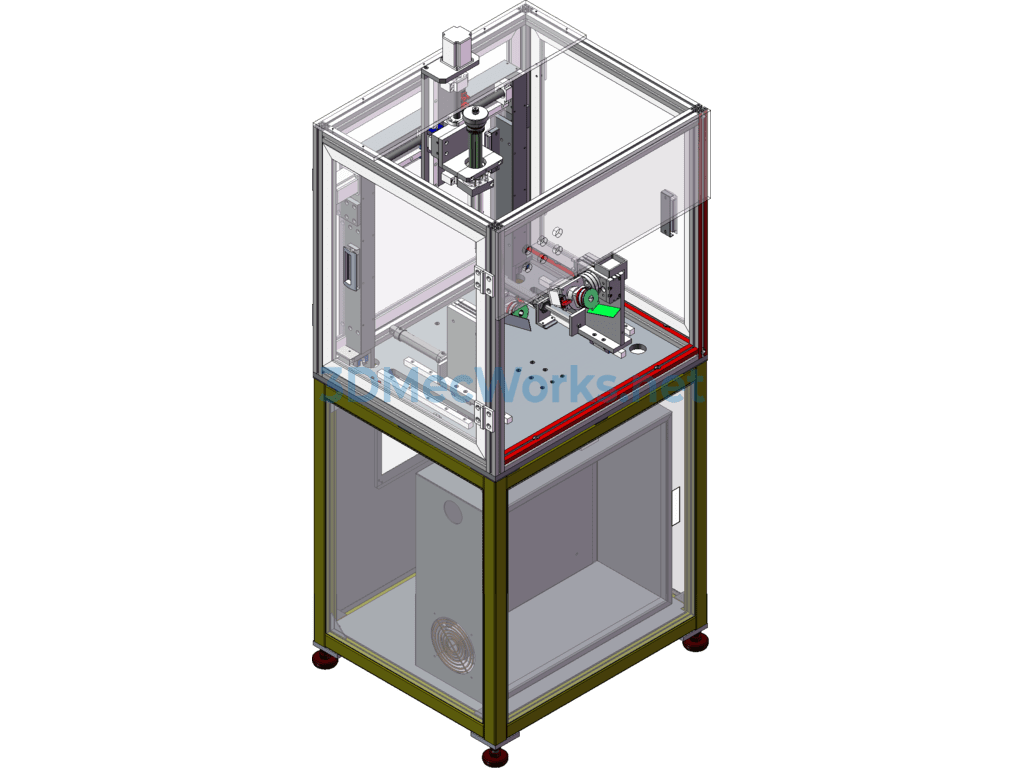

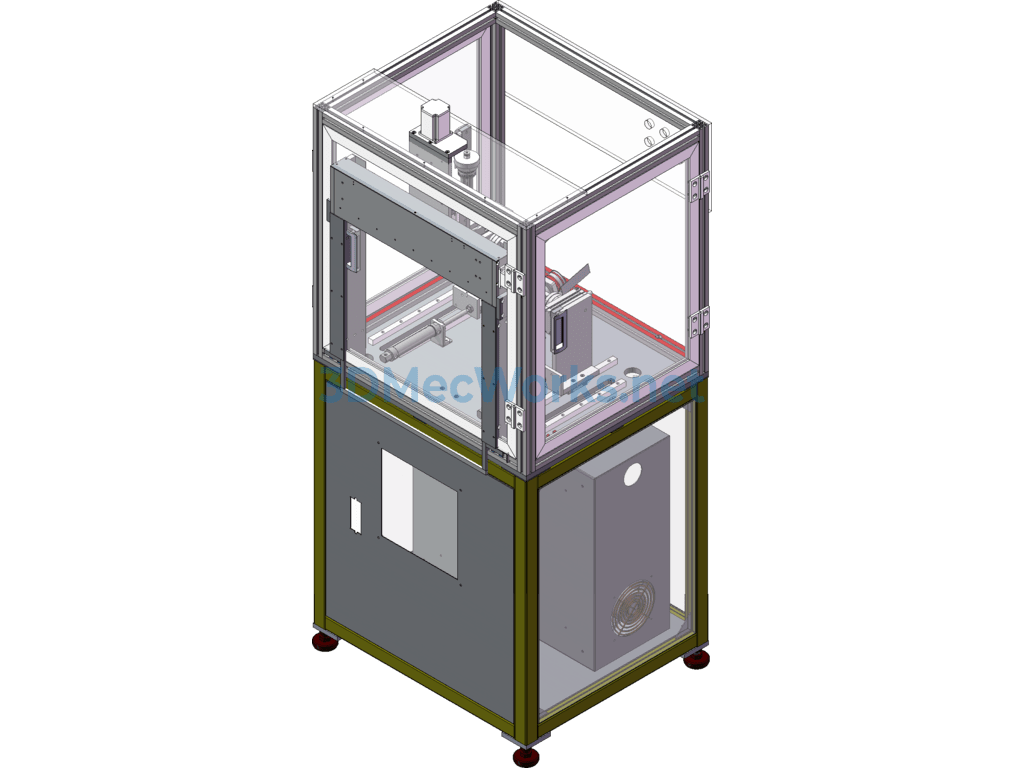

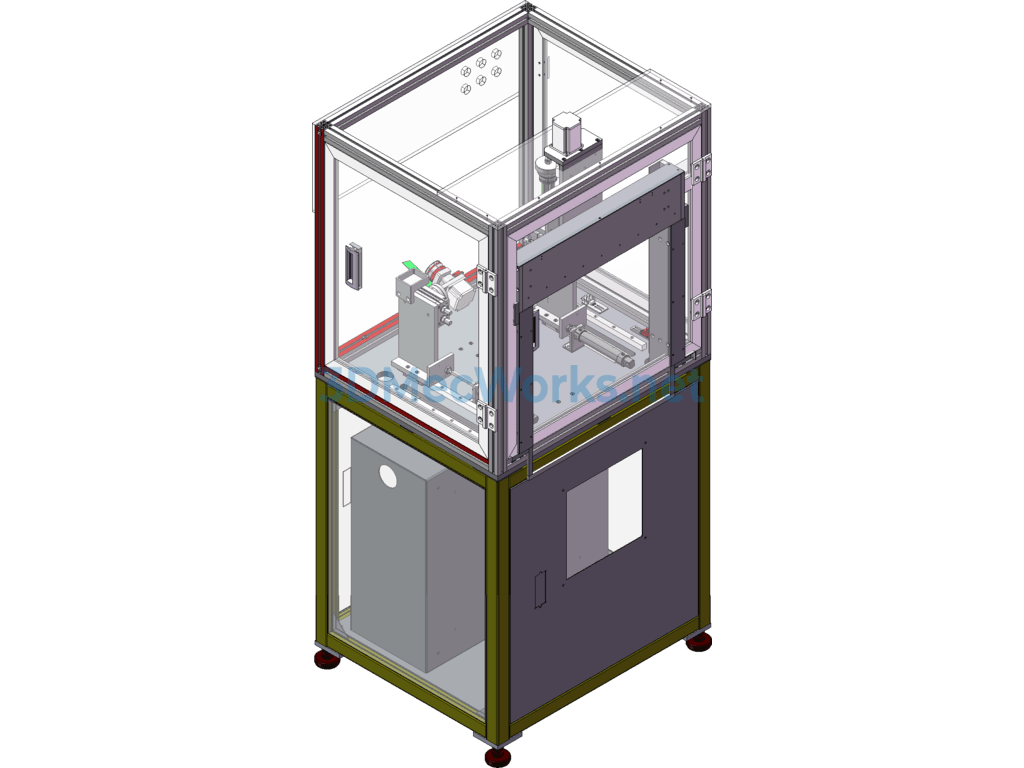

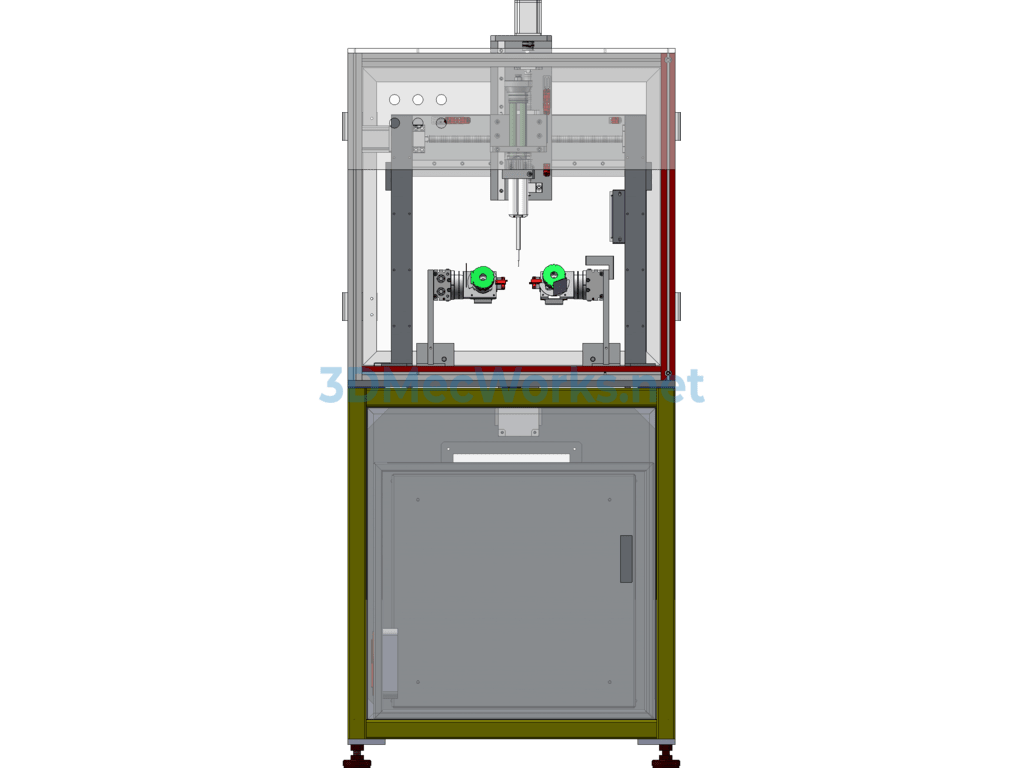

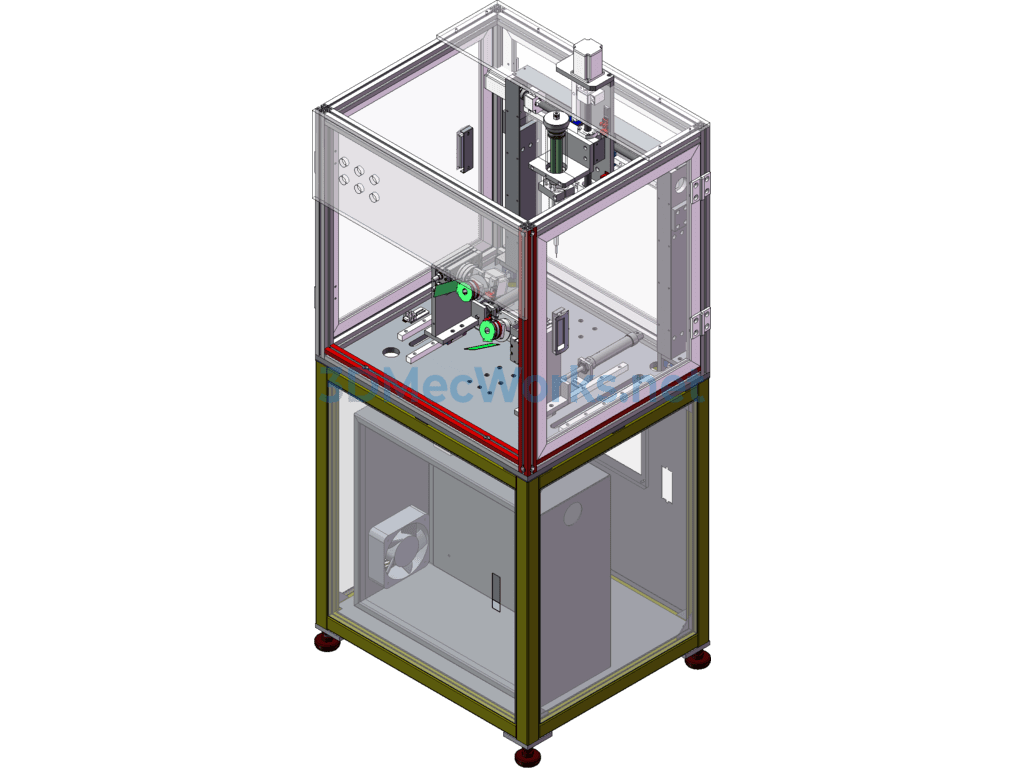

TTI Motor Stator Dispensing Equipment Includes Complete Set of Engineering Drawings – Original Drawings for Non-standard Dispensing Machine. The motor stator dispensing equipment consists of a screw module structure plus a dispensing control system aimed at dispensing around the motor stator with no dead angles achievable from any rotation. This set of drawings includes a complete set of engineering drawings. The dual sliding table allows for more efficient dispensing switch operations. Attached is the BOM list in the ‘Motor Stator Dispensing Equipment Drawings and Release BOM List.xls’. Dispensing barrels can be changed according to dispensing needs: suitable for AB glue, silicone, UV glue, white glue, etc. The equipment is simple and safe to operate. Now, the complete design drawings, including the full set of projects, are uploaded for everyone to learn from. Misuse for commercial purposes is prohibited.
