Motor Rotor Polishing Machine (midea Micro Motor Rotor Polishing Equipment)

This motor rotor polishing machine is a micro motor rotor polishing device from Midea. SW design source files provide a 3D model along with engineering drawings and a parts BOM list: Rotor Polishing Machine BOM List.xls. This equipment is an automatic polishing machine for micro motor rotors used by Midea, featuring high polishing efficiency, stable performance, and mature structural design. Feel free to download, the drawings include a complete set of engineering drawings and a parts list, showcasing all part materials, machining tolerances, and required quantities. To better understand the functions of this equipment, an explanation of the operating principle is provided with every picture. A dust extraction vacuum cleaner is installed at the bottom of the polishing station, making the equipment suitable for domestic micro motor manufacturers.

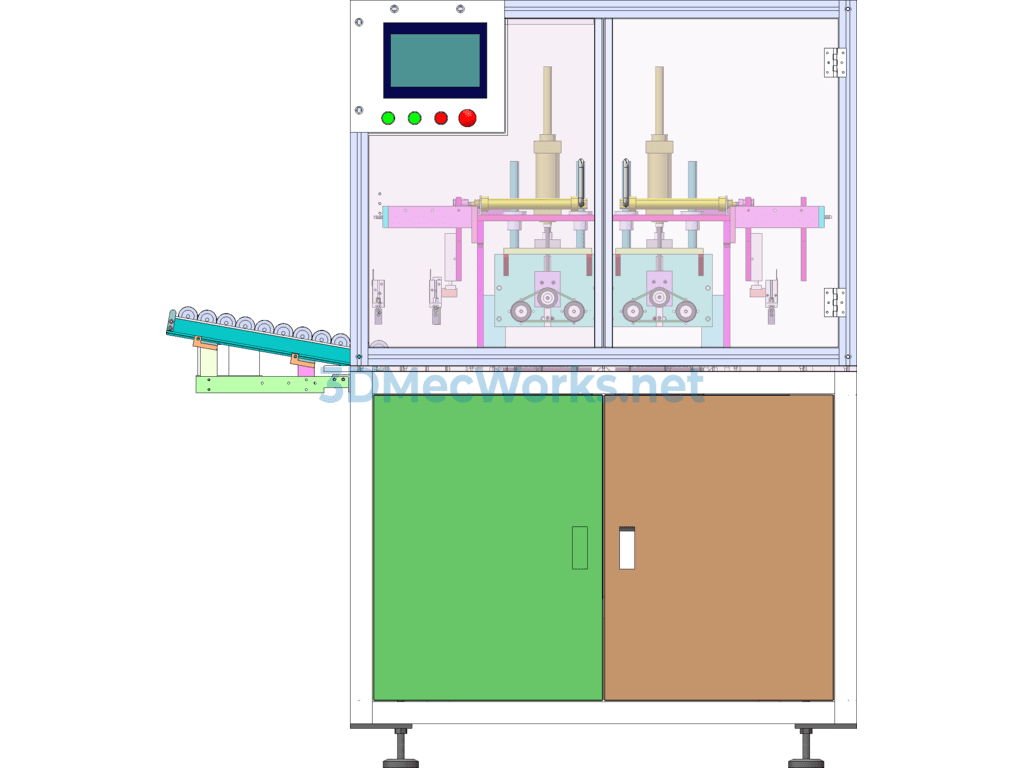

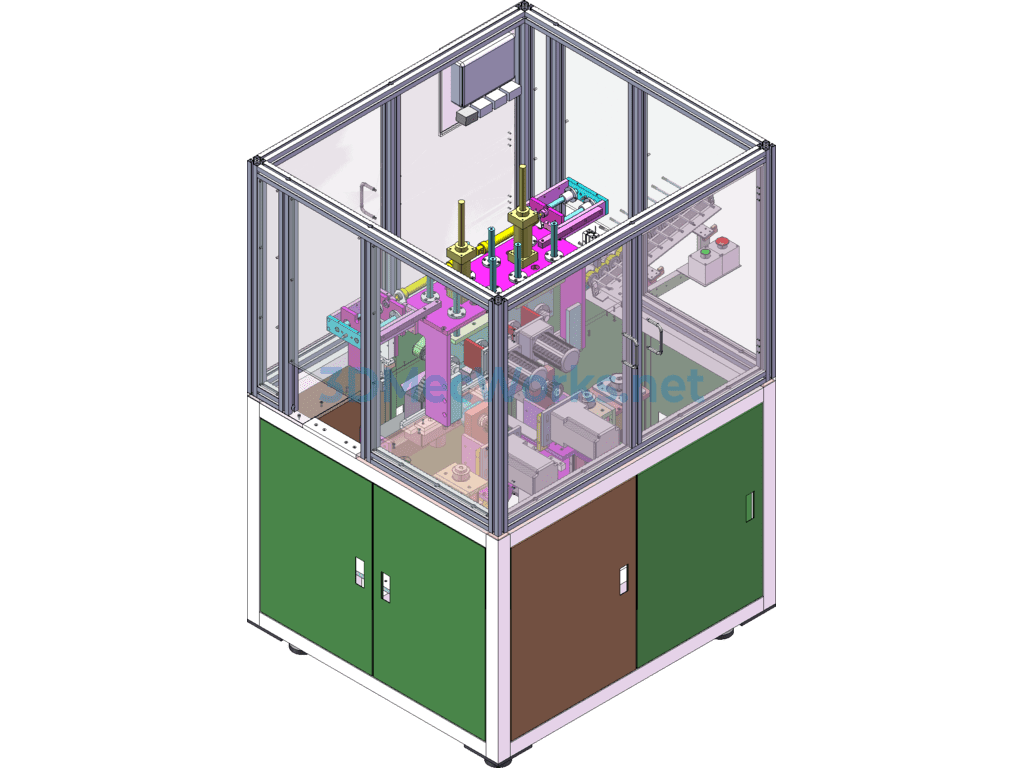

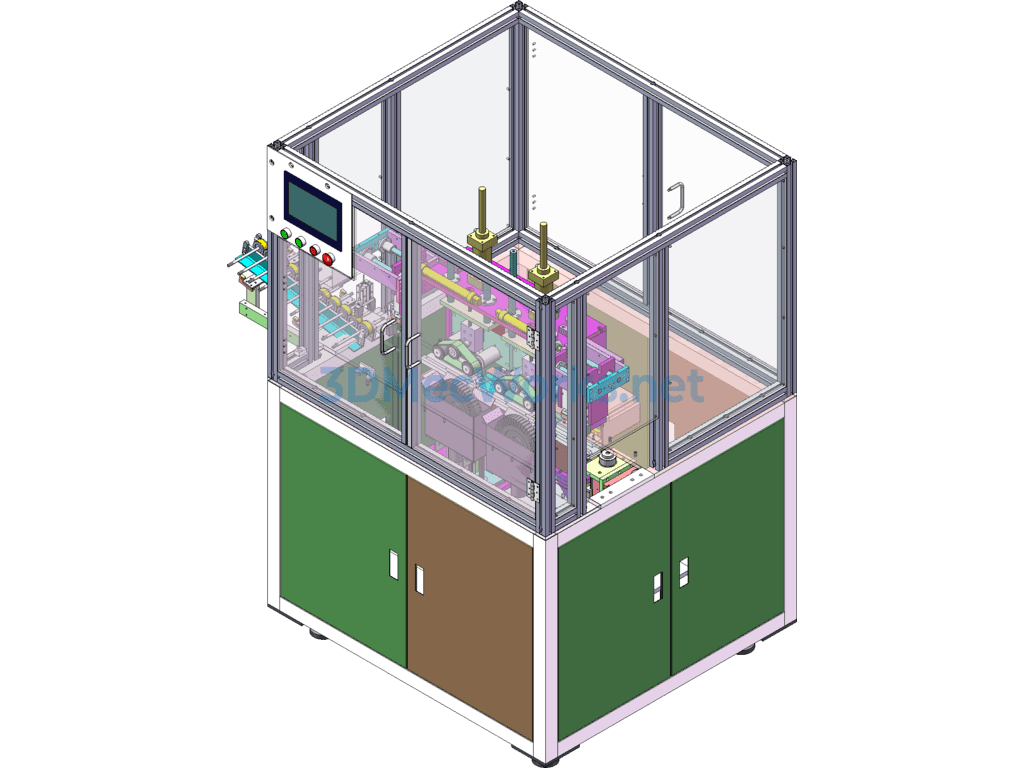

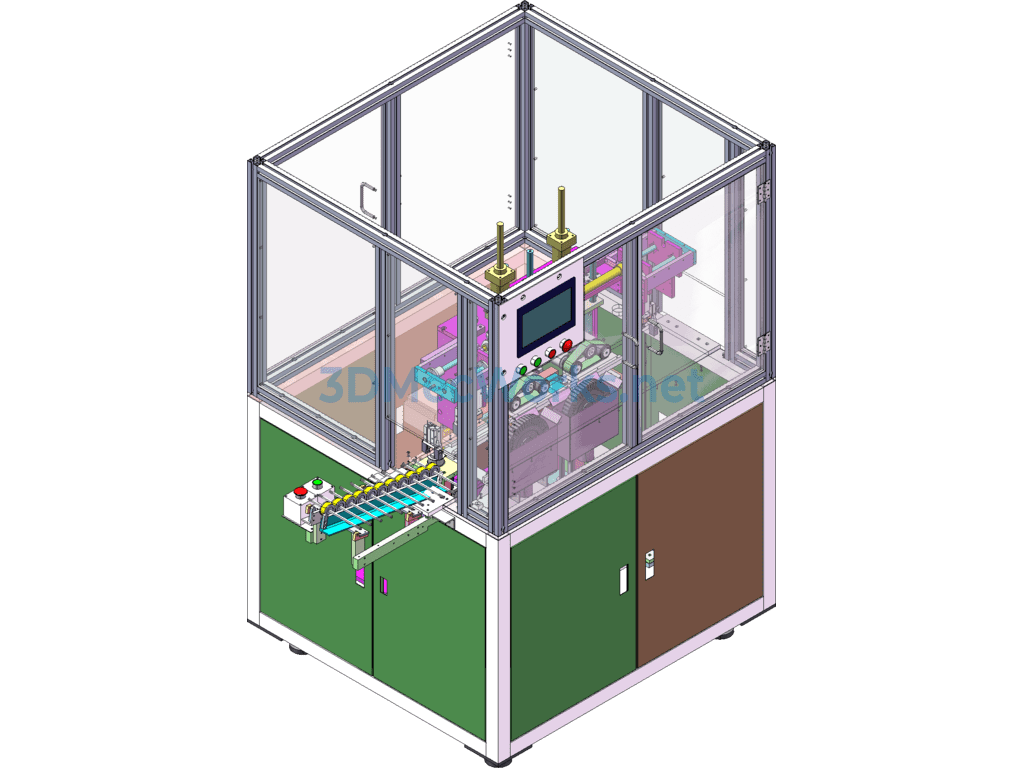

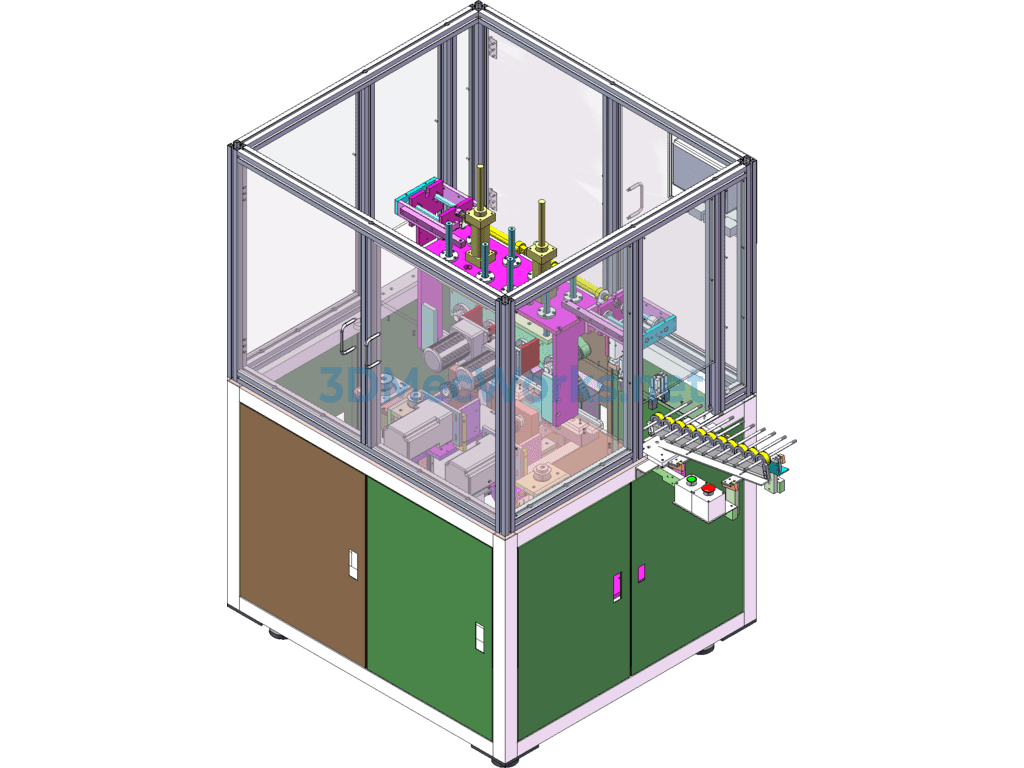

[This is a set of motor rotor polishing equipment, the drawings include a complete set of engineering drawings and a parts list], showing all part materials, machining tolerances, and required quantities. To better understand the functions of the equipment, an explanation of the operating principle is provided with every picture. The motor rotor is transported to the polishing position via carriers on a circulating chain, each rotor is polished by a polishing belt, and loading and unloading are handled by front and rear loading and unloading cylinders. A dust extraction vacuum cleaner is installed at the bottom of the polishing station. The overall appearance of the equipment is very attractive with an aluminum profile shield. The UPH speed of this equipment can reach over 2000 per hour. Now, the complete design drawings are uploaded for learning, do not use for commercial purposes. For more drawings, please visit my homepage to download. Thank you. Equipment Specification Parameters Category . Specification Parameters Overall Dimensions: 1200*1000*1800 Input Voltage: AC 220V 50Hz Maximum Power: 1.8KW 7A Weight: ≈400kg Input Air Pressure: 0.5-0.7 Mpa Air Consumption: ≈20L/min Production Efficiency: (C/T) ≤2/PCS Equipment Utilization Rate: ≥95% (including loading, unloading, and adjustment) Processing Method: Automatic feeding, automatic polishing, automatic dust removal, automatic unloading Carrier Feeding Method: Carrier transported by circulating chain
