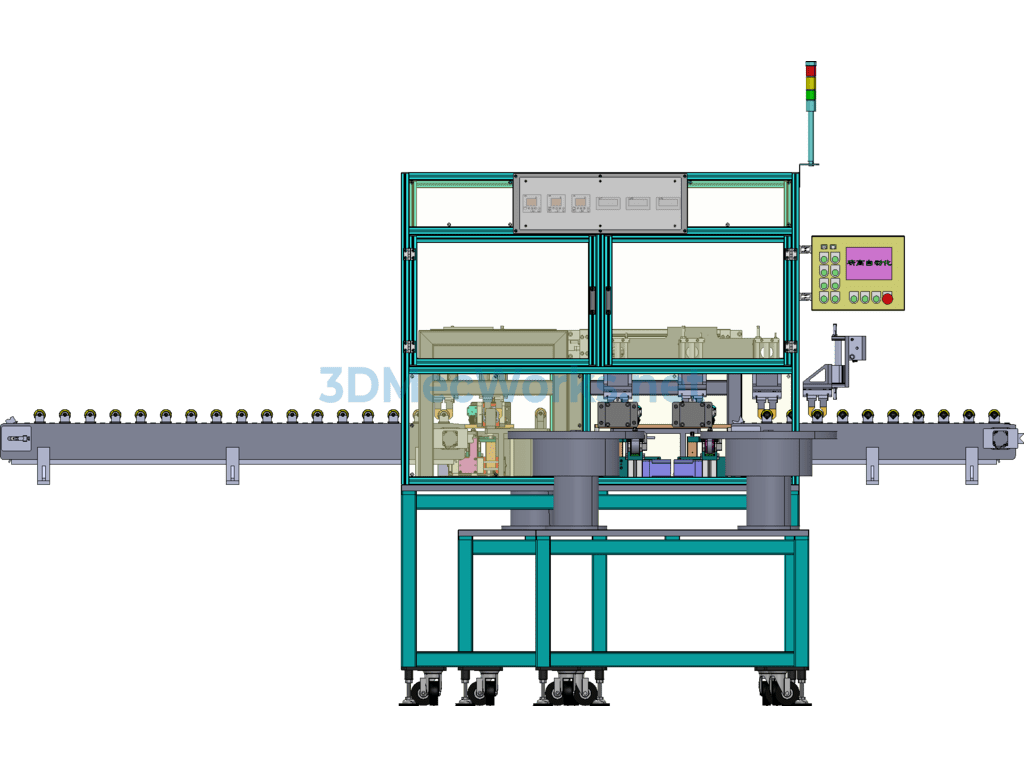

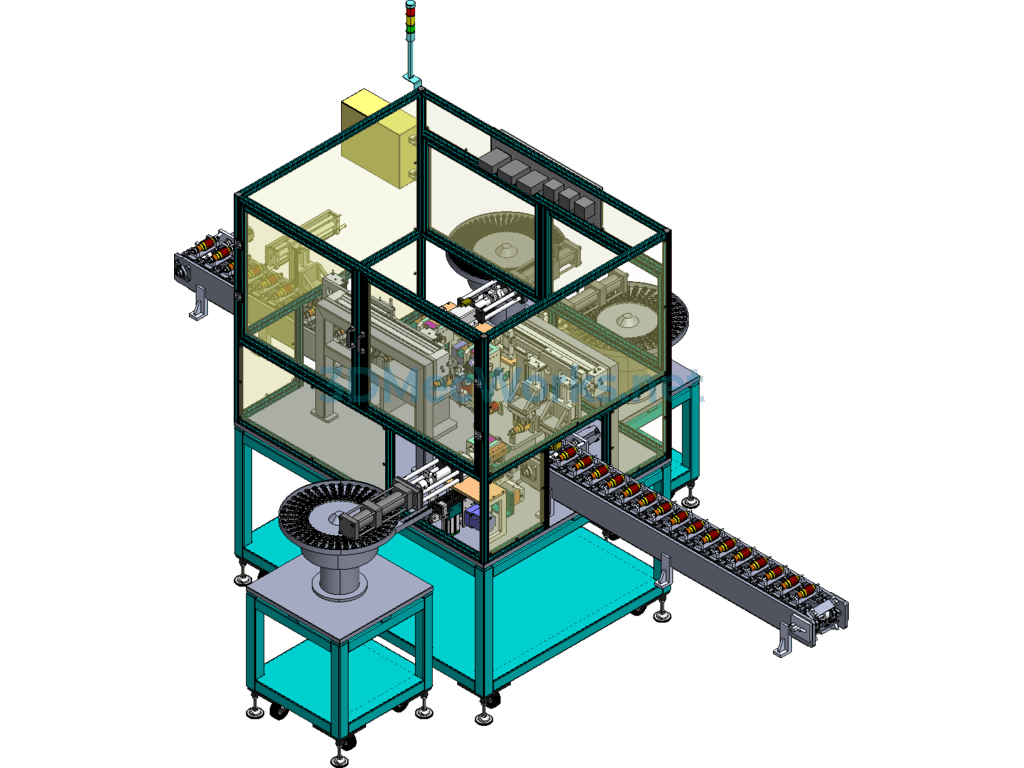

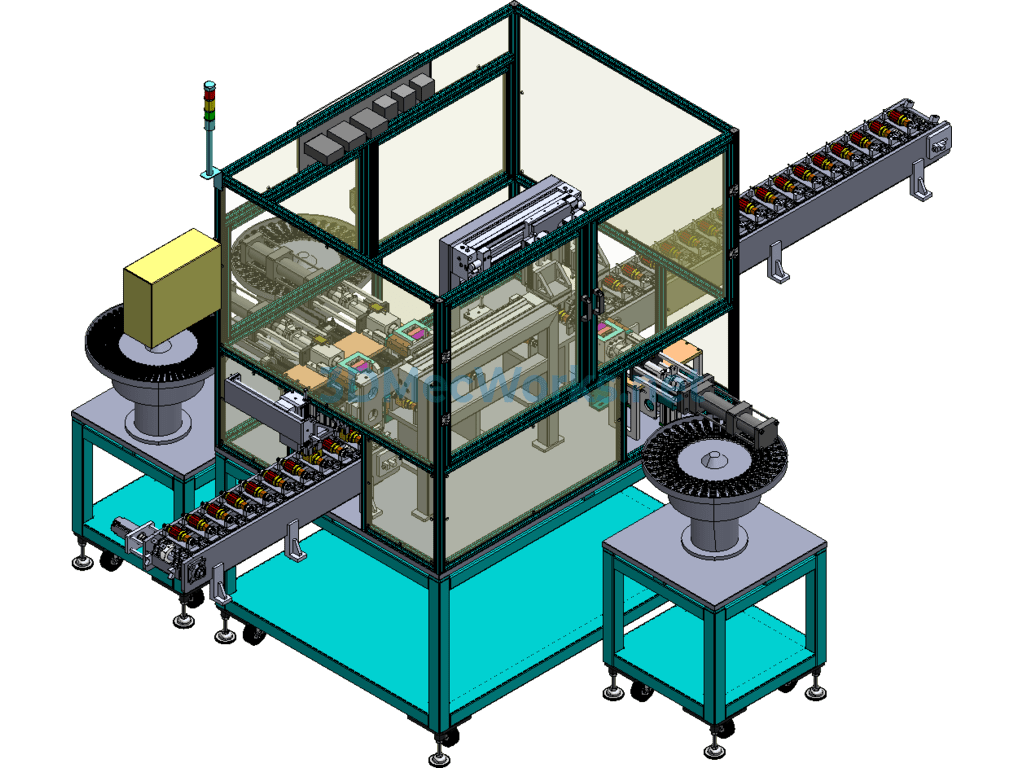

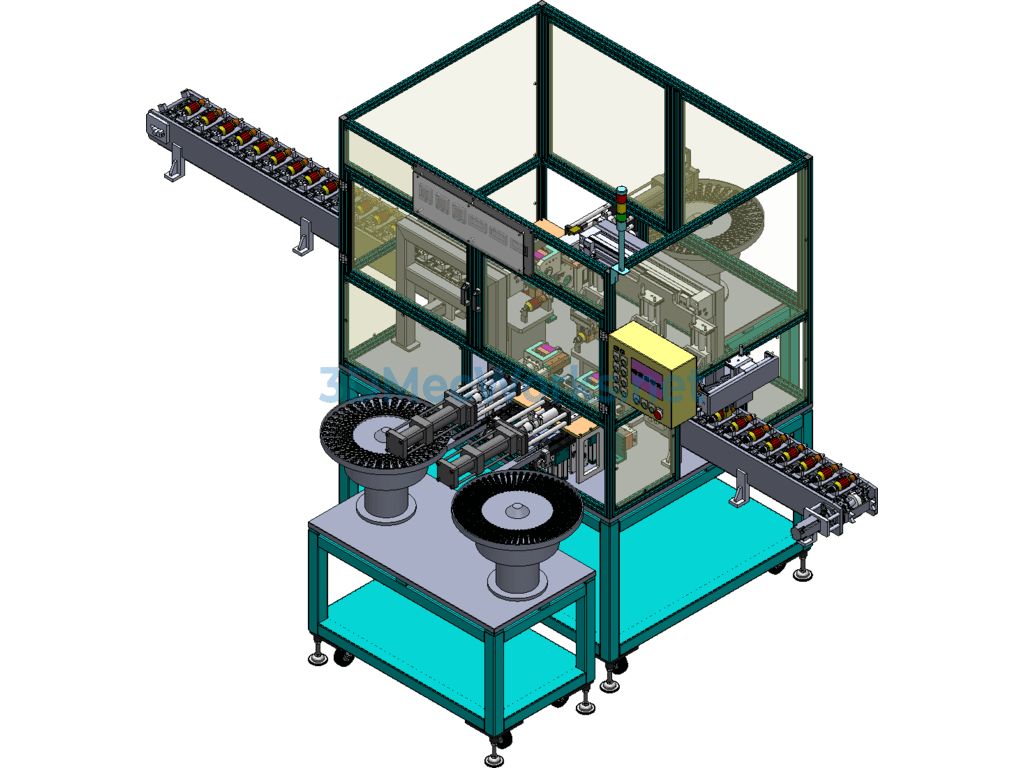

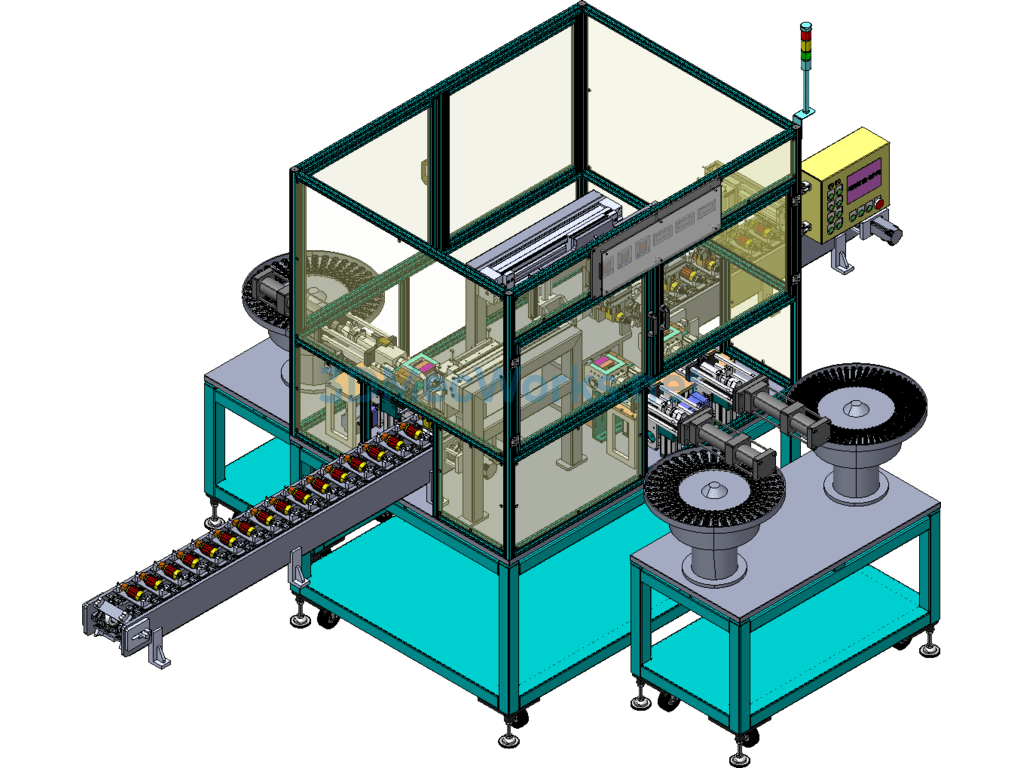

Rotor Bearing Press Gear Assembly Machine 3D Drawings F922 Non-Standard Automation Mechanical 3D Drawing Design Rotor Automatic Press-fit Bearings, Gears
This equipment is a piece of automatic assembly equipment used for pressing bearings and gears into the rotor of a micro-motor. It not only achieves the assembly of precision parts, but also makes manual operation simple and convenient. Each structural design is simplified, which can effectively ensure the accuracy and efficiency of product assembly! The feeding is done by a vibrating disk and linear vibration, and the clamping takes place with air cylinders and handling mechanical arms, all driven by servo motors. The entire set is completed in a production line fully automatically. This equipment mainly consists of the following components: ① Rotor feeding conveyor line part (provided by the customer); ② Rotor bearing press station one; ③ Bearing feeding part (bearing press station one); ④ Rotor bearing press fixture (bearing press station one); ⑤ Rotor transfer 1; ⑥ Bearing feeding part (bearing press station two); ⑦ Rotor bearing press station two; ⑧ Rotor gear press; ⑨ Gear feeding part; ⑩ Rotor bearing & gear press fixture; Transfer 2; Discharge conveyor line part; Through the above mechanisms, it realizes the automated production operation of rotor bearing pressing and gear pressing. The equipment structure is stable and has been mass-produced. Please feel free to download.
Motor Rotor Bearing Press/Gear Press Automatic Press-fit Machine, Precision Motor Bearing Gear Rotor Press-in Assembly Machine
