Motor Rotor Assembly Press-Fit Equipment

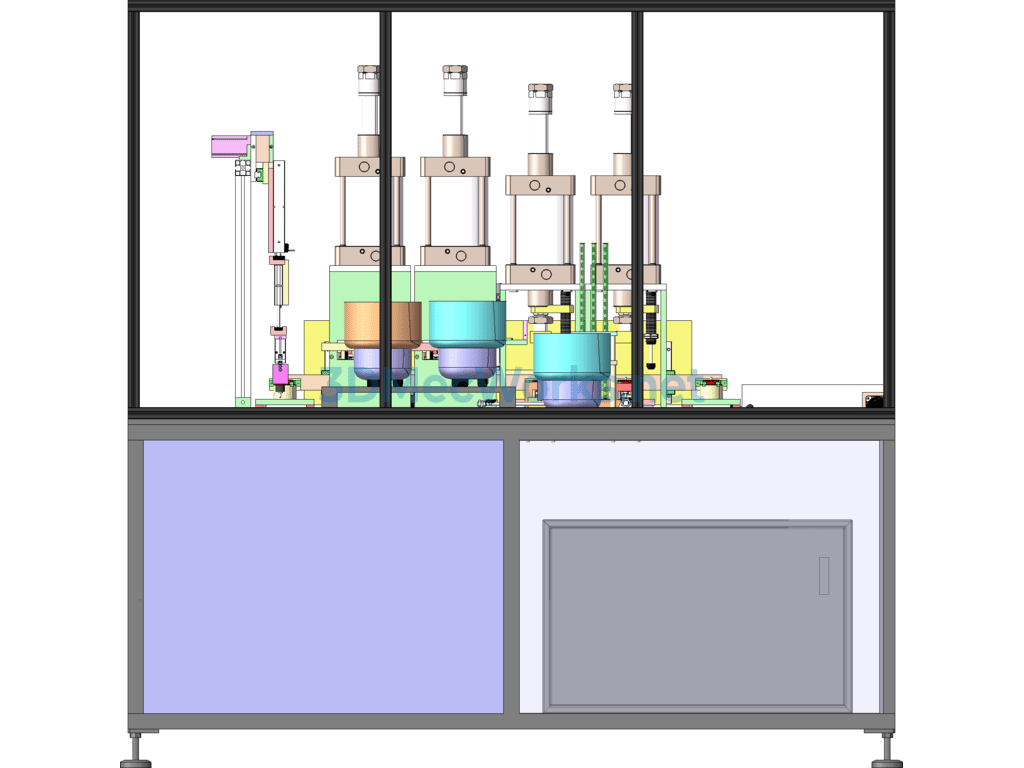

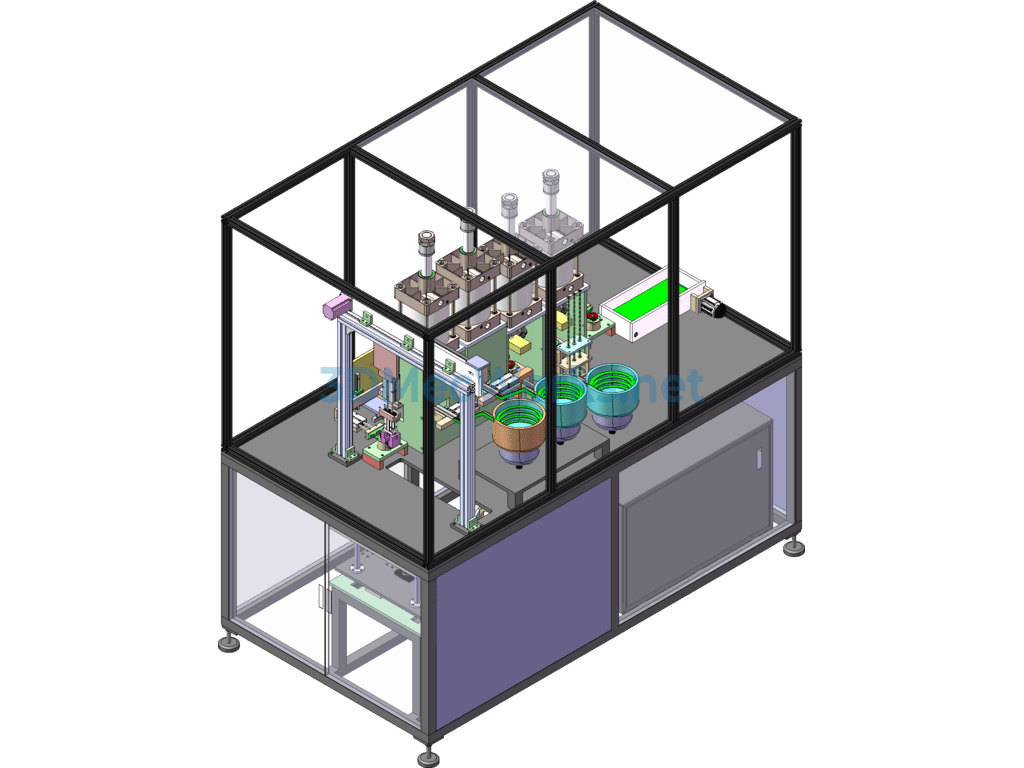

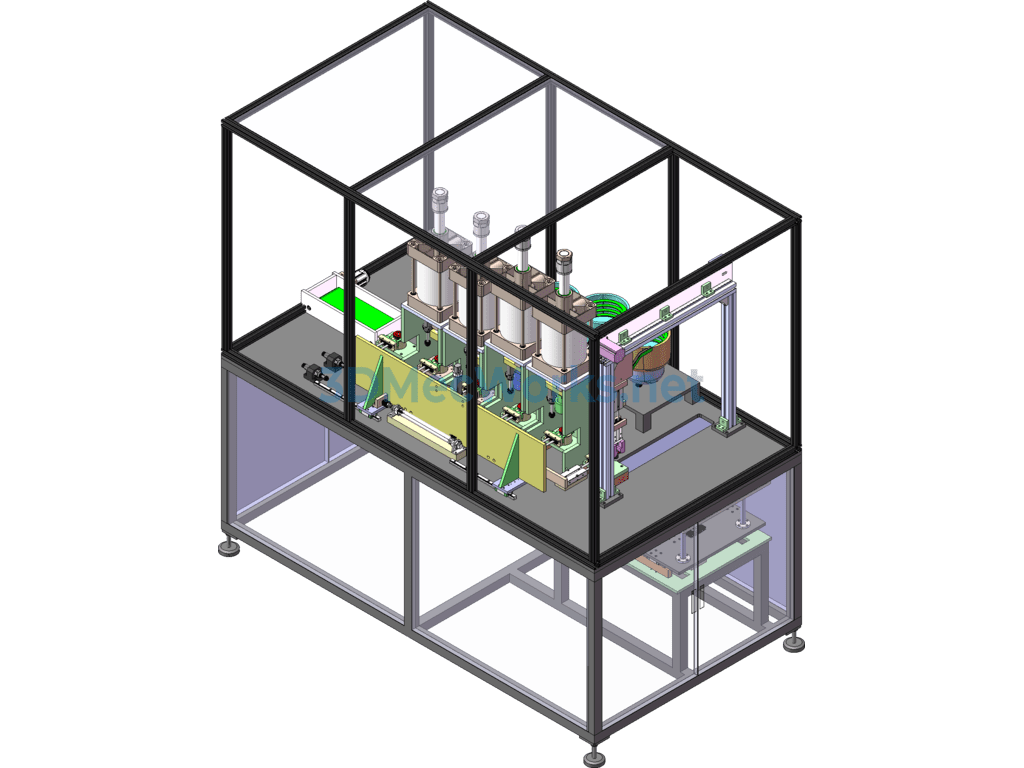

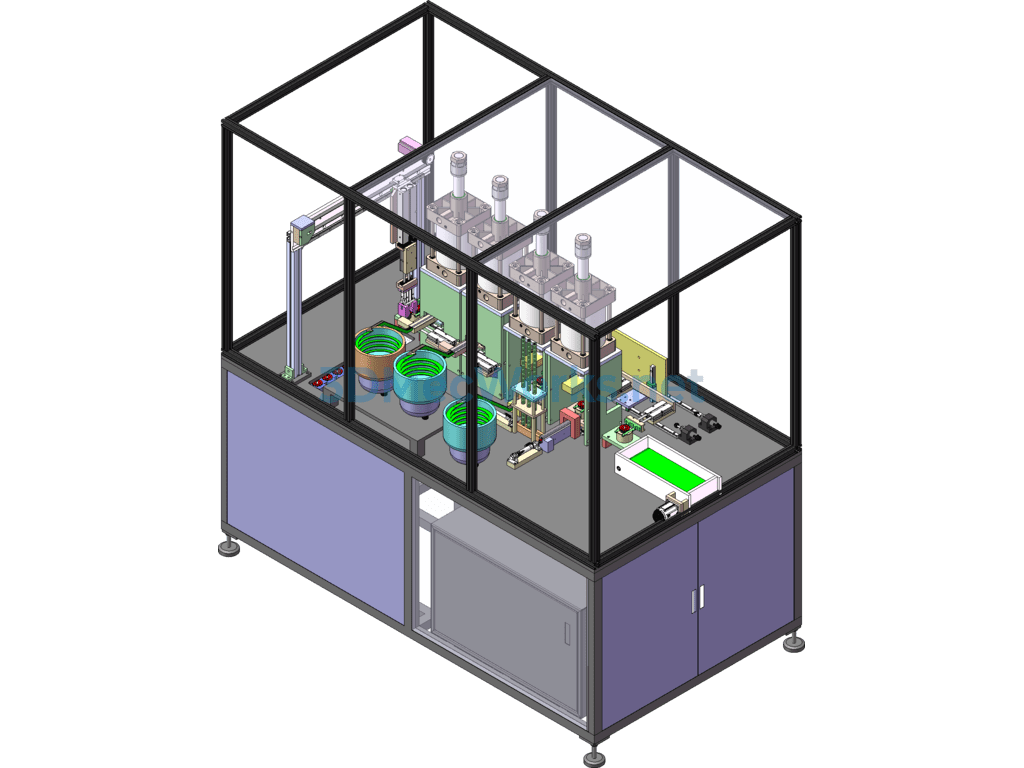

This is a set of motor rotor assembly pressing equipment used for automatic assembly machines in the motor industry. This equipment is also known as a rotor pressing machine, rotor pneumatic machine, motor rotor insertion machine, and so on. The 3D model of this rotor pressing machine is designed using SolidWorks 2013, providing source files that are parameterized and editable, and also offers STEP+IGS files. The model is very complete and highly reference-worthy.

1. Equipment Name: Motor Rotor Pressing Integrated Machine
2. Design Premise: Reduce the input of human resources and reduce labor intensity; lower product quality issues caused by human emotions; improve production efficiency.
3. Design Requirements: Manual material feeding, automatic material feeding, automatic assembly, and automatic unloading functions.
4. Action Process Description: The operator places the rotor tooling board on the XY table, manually loads the bearings and spacer sleeves into the material slots — combines the bearings, spacers, and upper bearings — sends the rotor to the assembly center — automatic riveting — automatic transfer — automatic tooth pressing — automatic unloading.
