Motor Pcb Board Automatic Soldering Machine

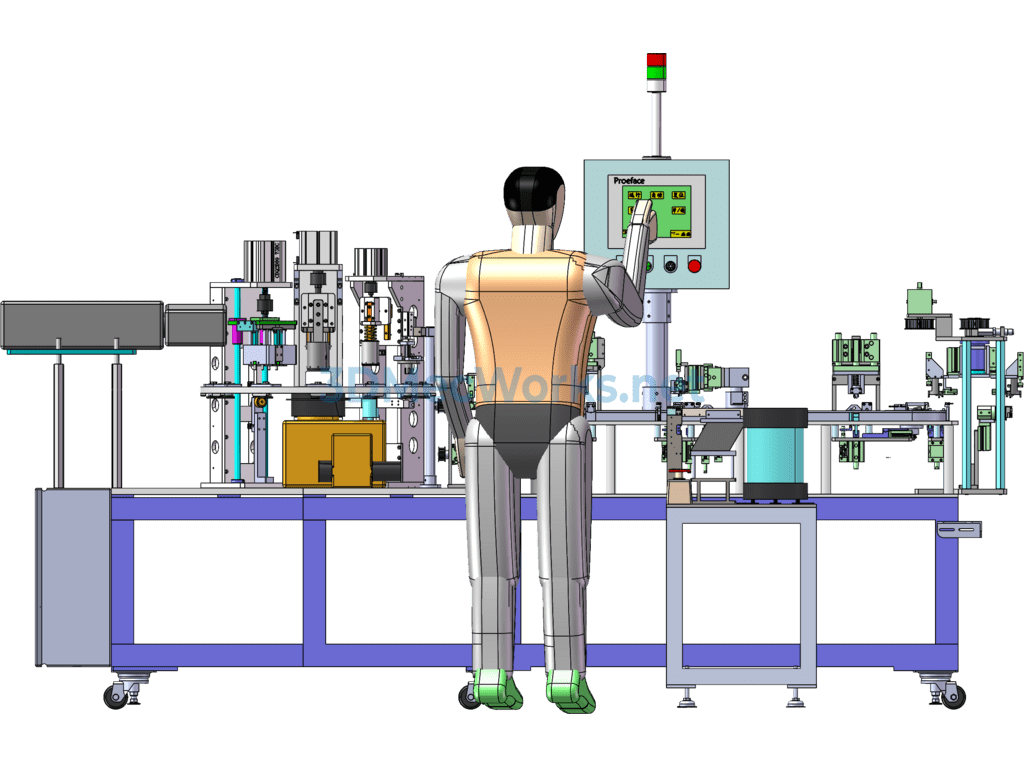

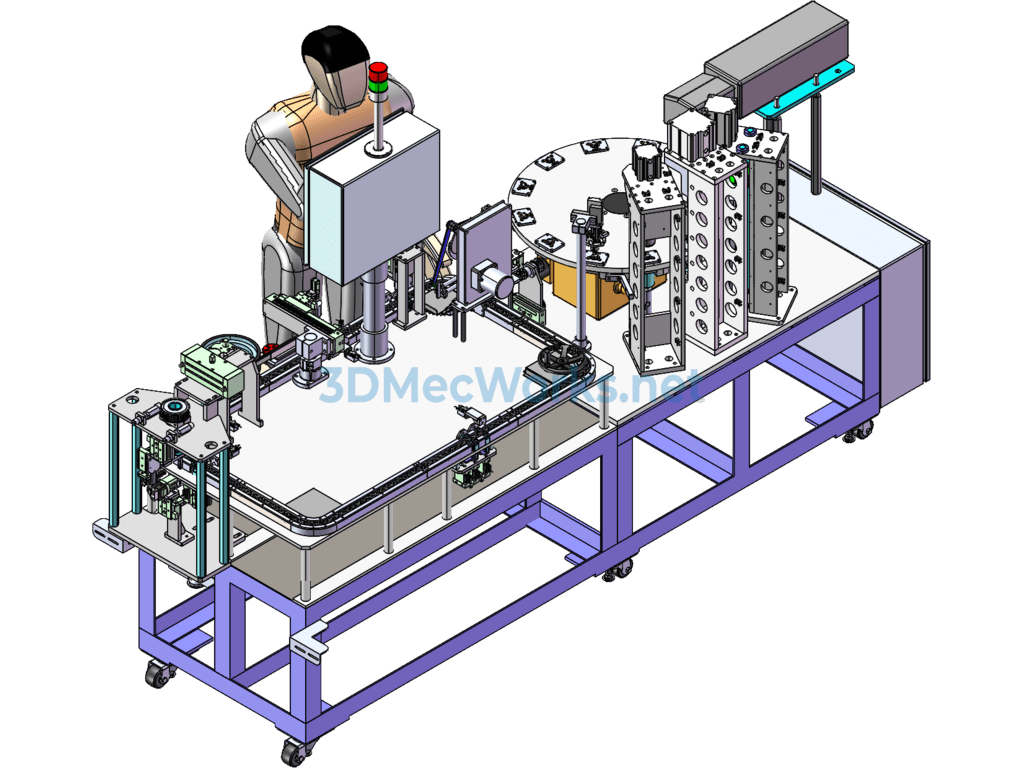

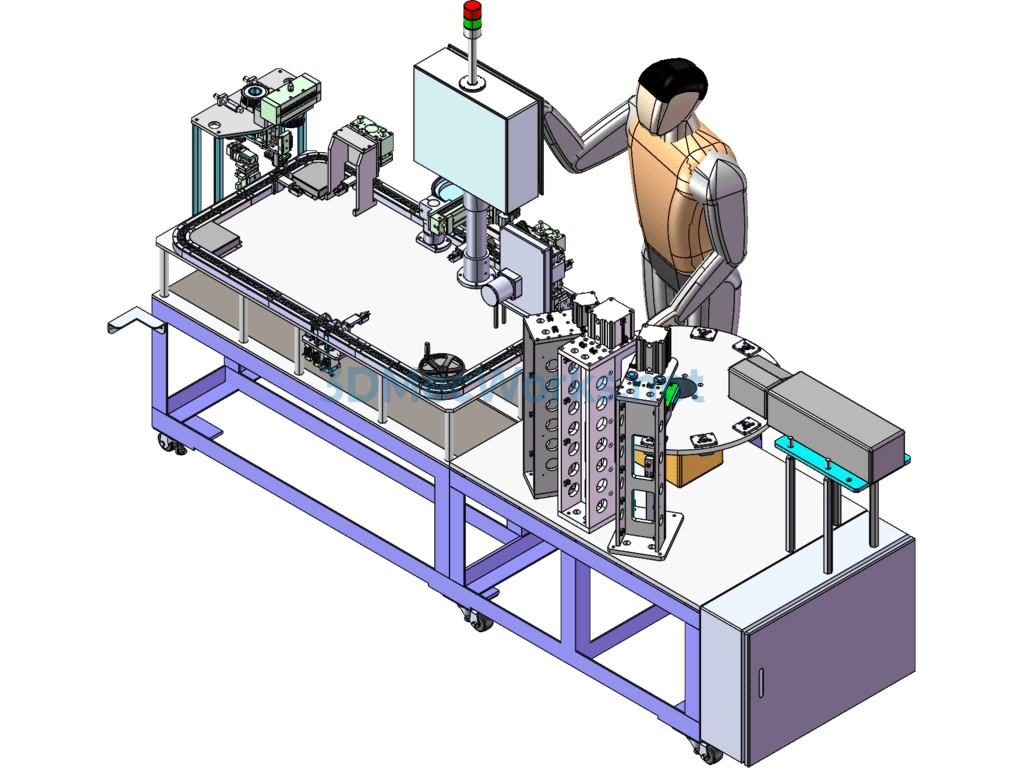

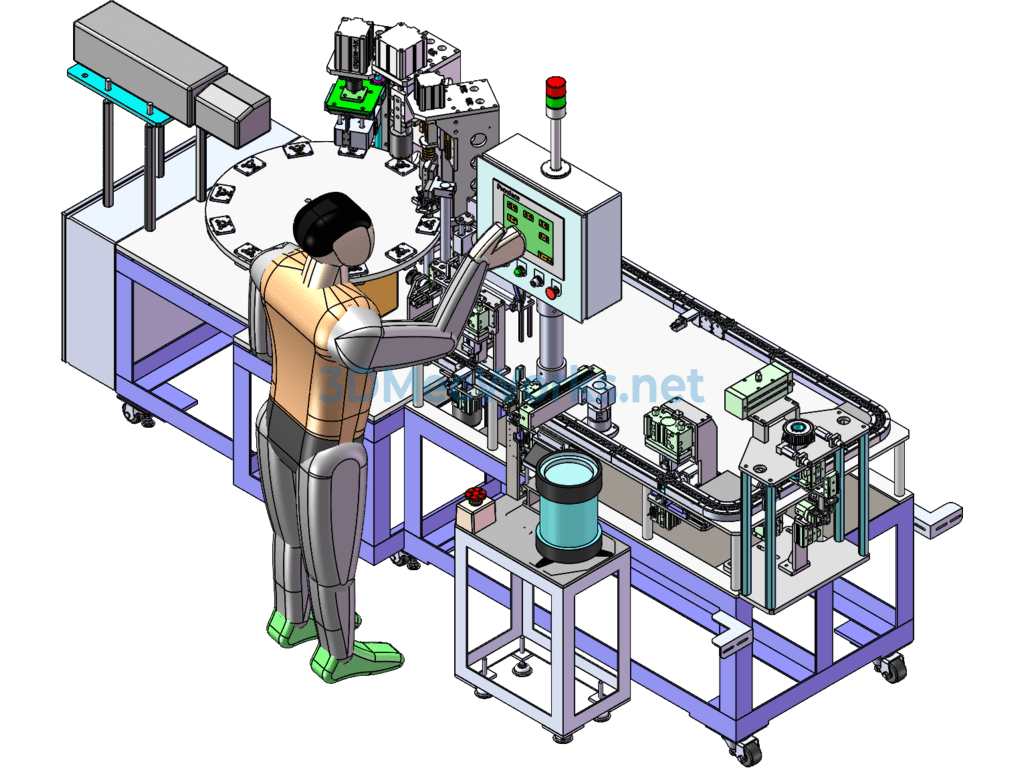

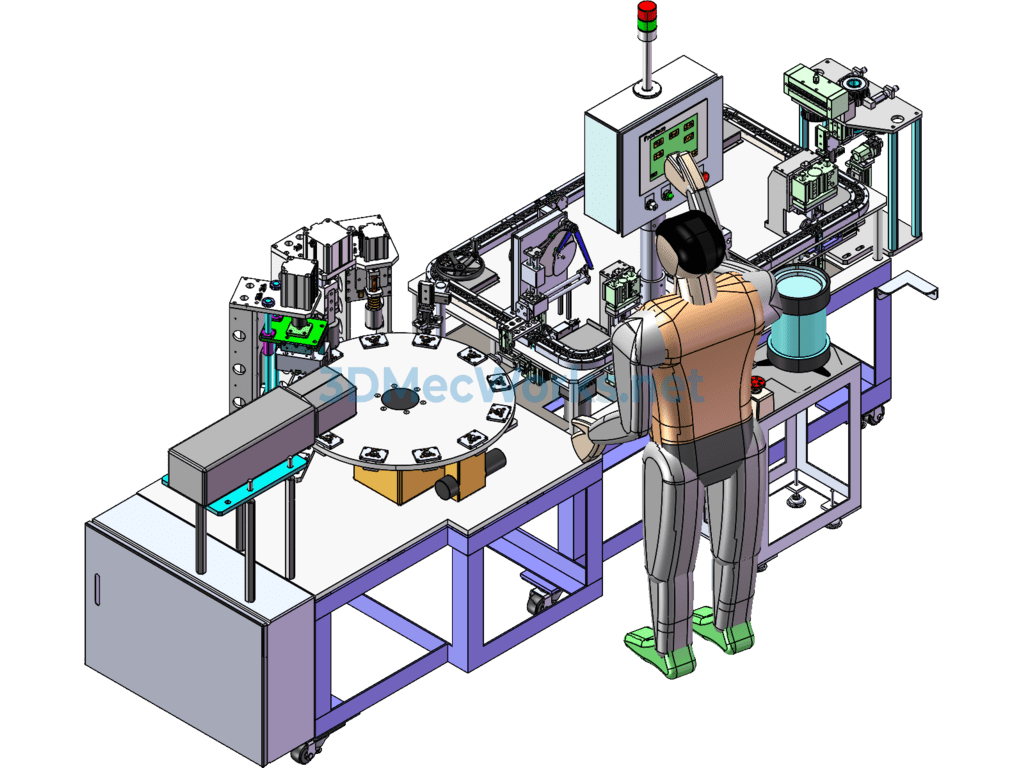

This is a 3D model of a soldering machine for a small motor PCB. The operating principle is a turntable operation with a total of 30 stations. Each time, only two points on a small board are soldered, using two soldering irons simultaneously. Once soldering is complete, the turntable rotates again. The rotation of the disk is driven by a cylinder, which keeps the cost low and ensures stability for this 30-station setup. This motor PCB automatic soldering machine is designed using SW design source files shared for download.
