Motor Magnetic Strip Assembling Machine

0
Sold by
MrBlue
@ MrBlue
[mecworks-btn]

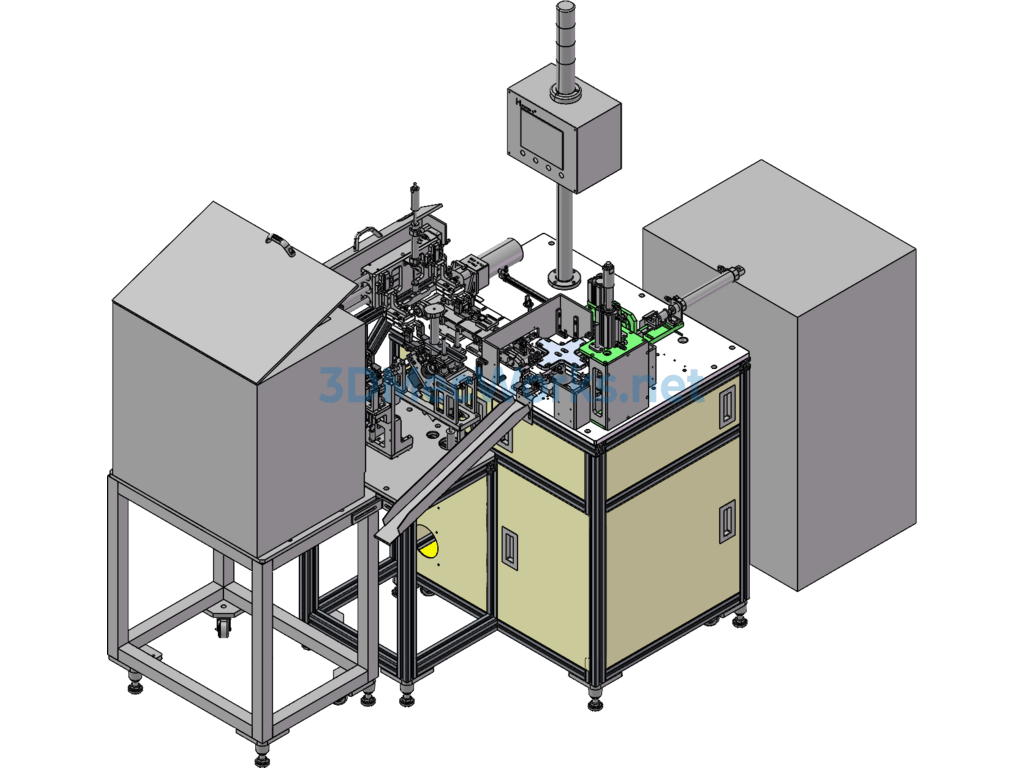

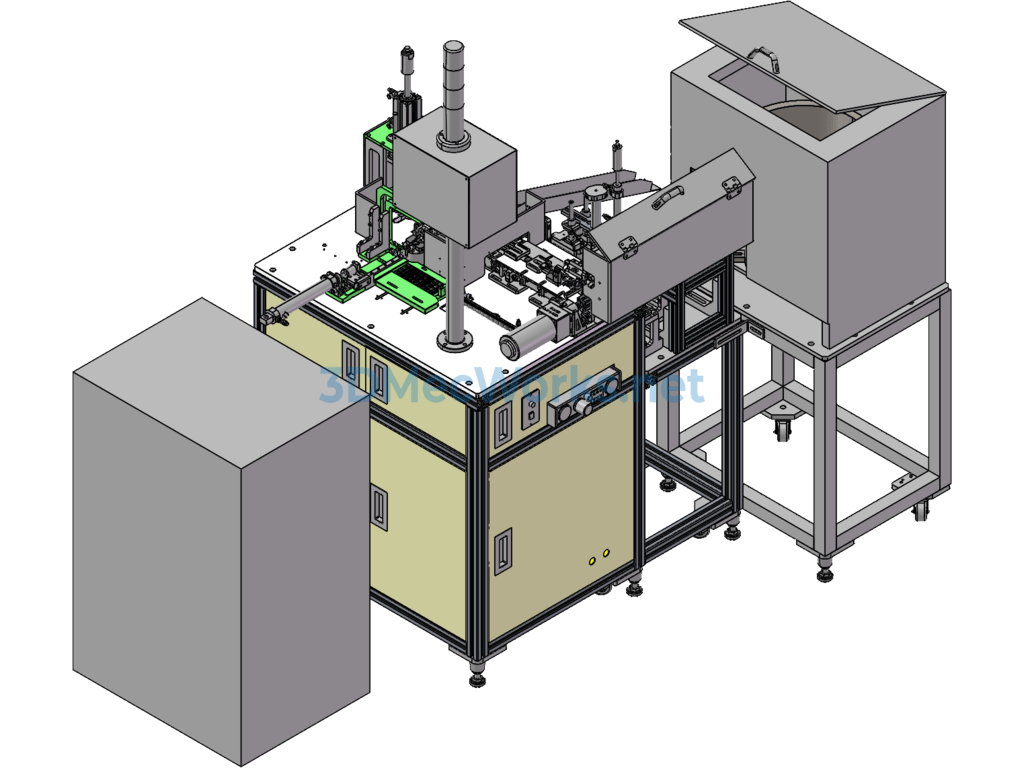

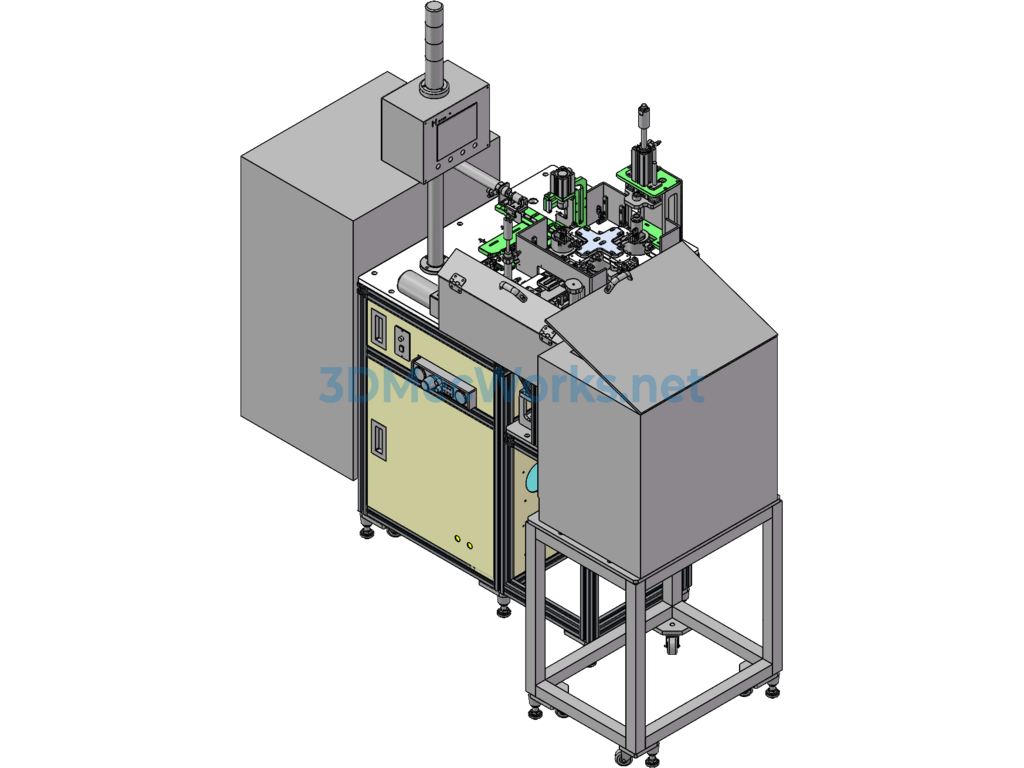

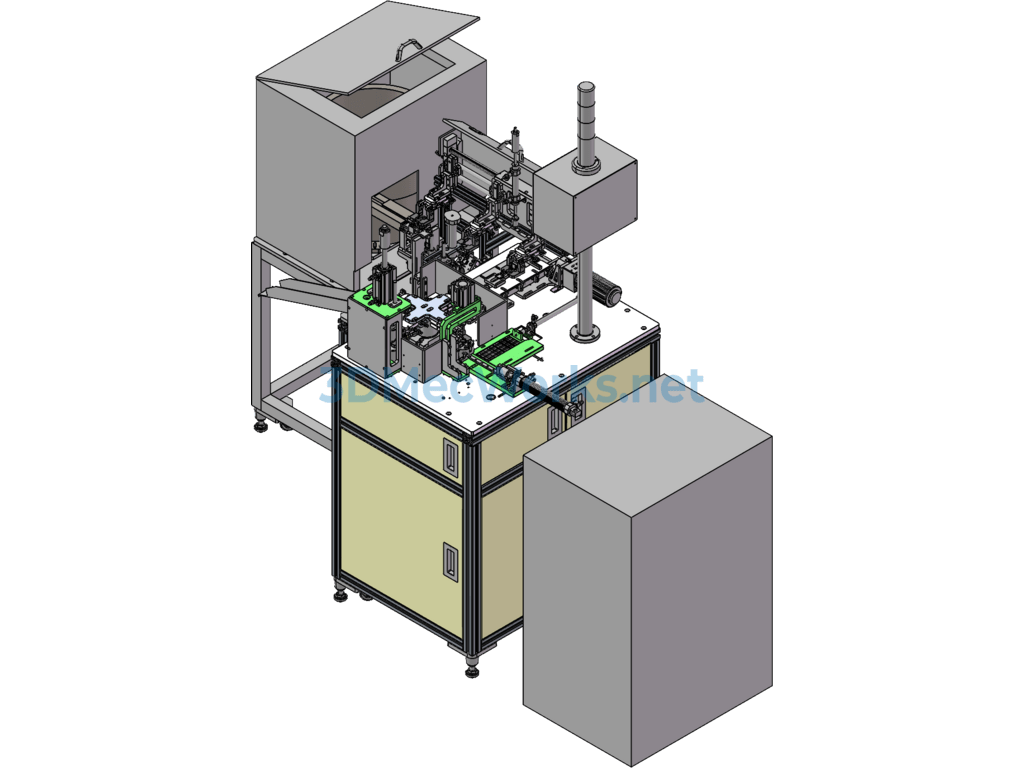

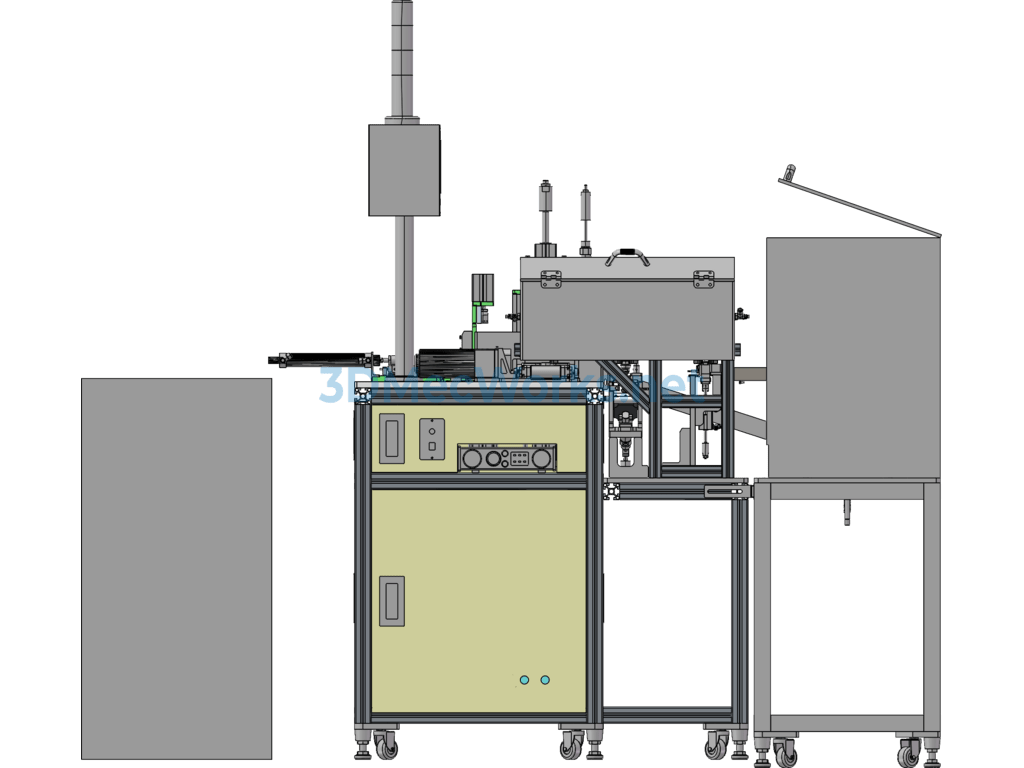

Motor Magnet Strip Assembly Machine SW Design sldasm and sldprt Source Files Provided

The motor magnet strip, as the name suggests, is the commonly used magnet strip inside equipment. It functions by generating a magnetic field. During assembly, this type of motor magnet strip assembly machine is used.

This device is an integrated machine for automatic assembly and dispensing cover sealing in the motor industry. Its structure is very complex, making it a great learning resource. The device has been successfully used in the production of many stable units. The overall device uses a vibrating plate for feeding, a robotic arm to grab and place products into the alignment mechanism, ensuring high precision in packaged assembly. The dispensing employs a four-station rotary table design, which improves production efficiency and stability.

This device is a classic motor shell magnet strip assembly machine, with high precision and very stable operation. It is a mature piece of equipment in the industry, offering great reference and learning value and serving as an excellent resource for engineers.

[Supplement STEP document later when available]

Specification: Motor Magnetic Strip Assembling Machine

Design Software

Editable

File Formats

,

Industry Application

Sharing Level

Version
