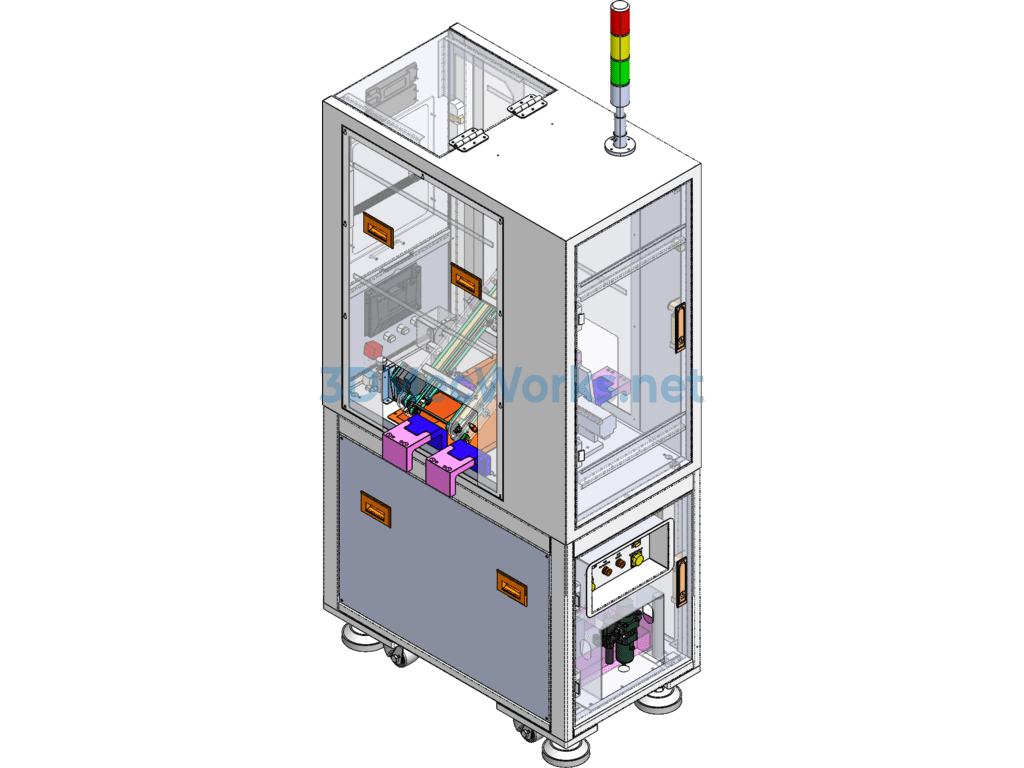

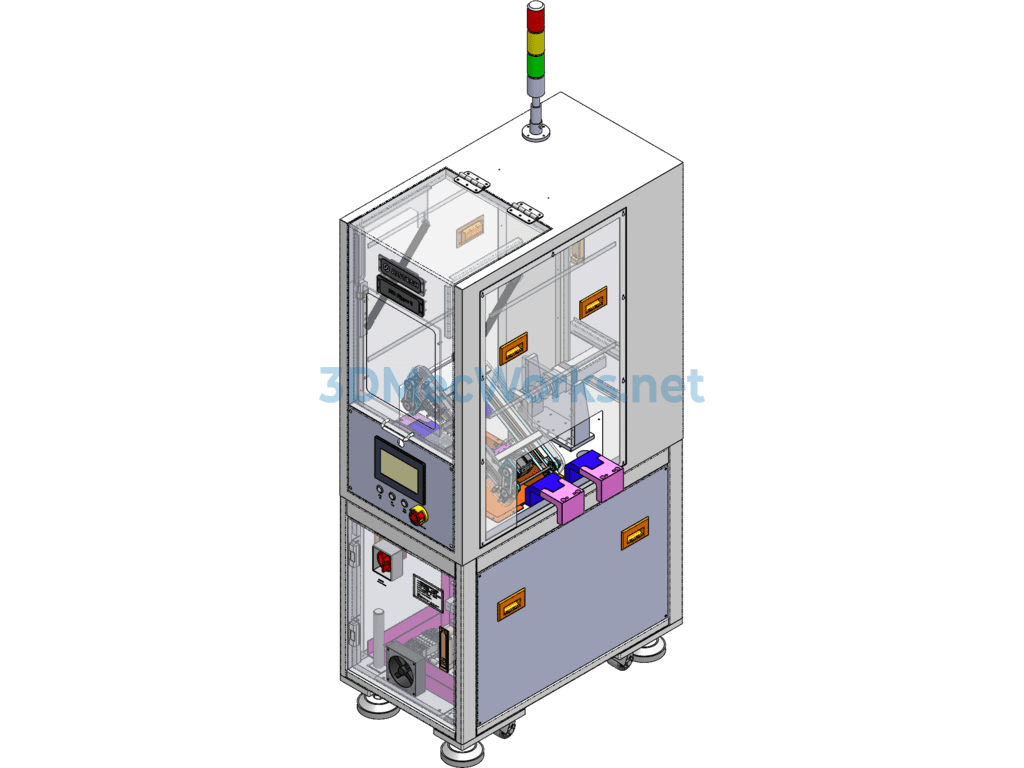

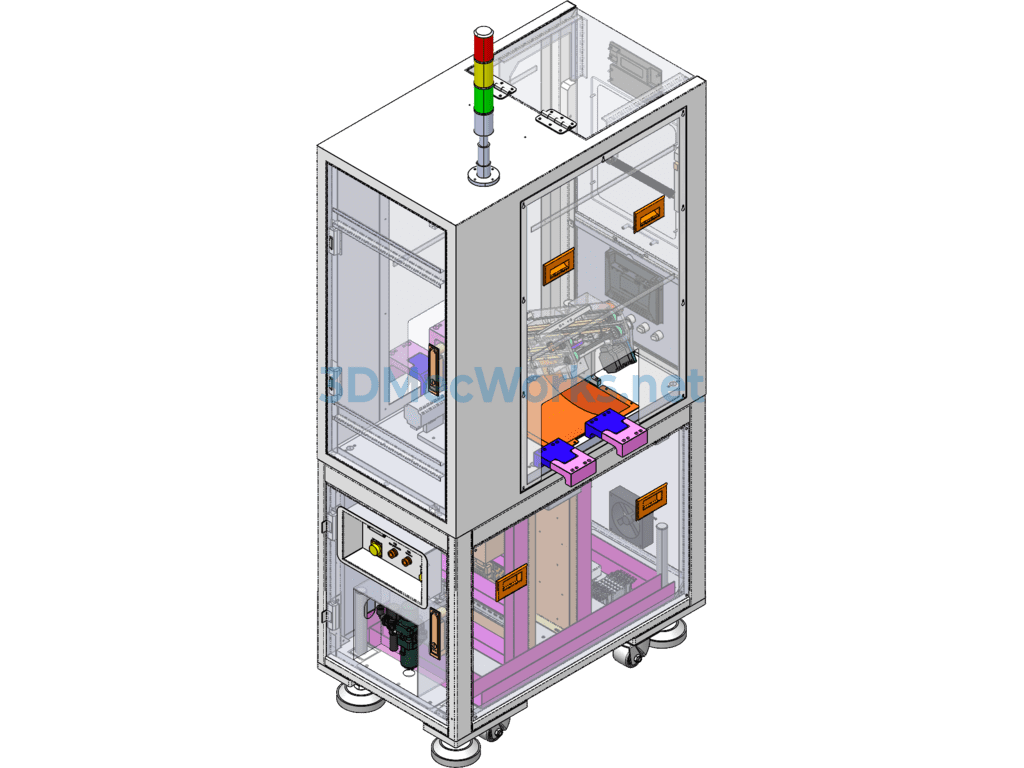

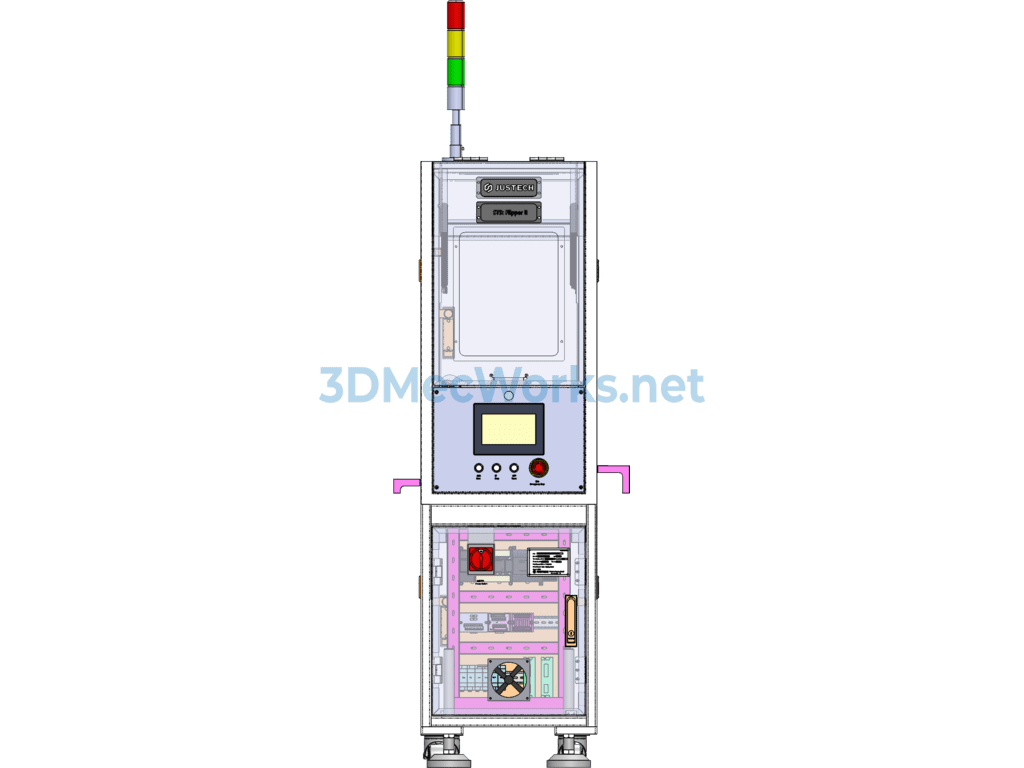

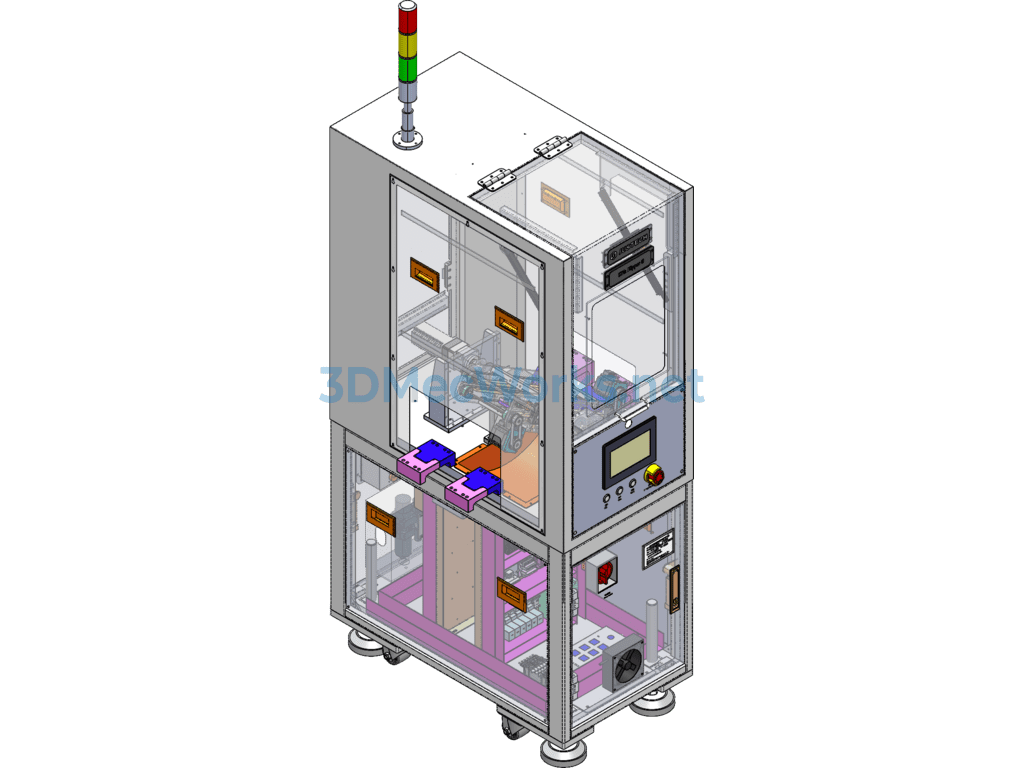

Motherboard Carrier/Fixture Flipping Machine

After the front side of the motherboard is processed, some gluing or soldering needs to be done on the reverse side. This structure is a flip conveyor, and the specifications of the carrier from different products can be adjusted by the width of the track to accommodate products of different sizes. The synchronous wheel for flipping also uses a 1:5 ratio to ensure the force and stability of the flip. This structure has been mass-produced and is very stable. Friends who are interested are welcome to download and learn. The attachment is also equipped with a complete BOM!
