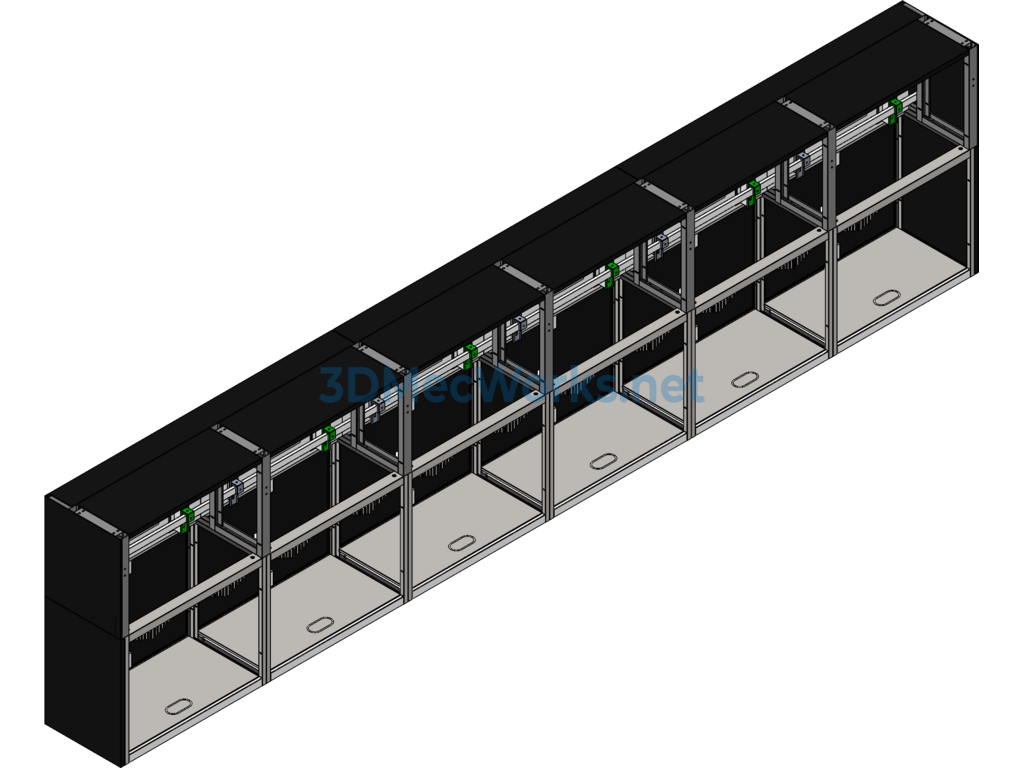

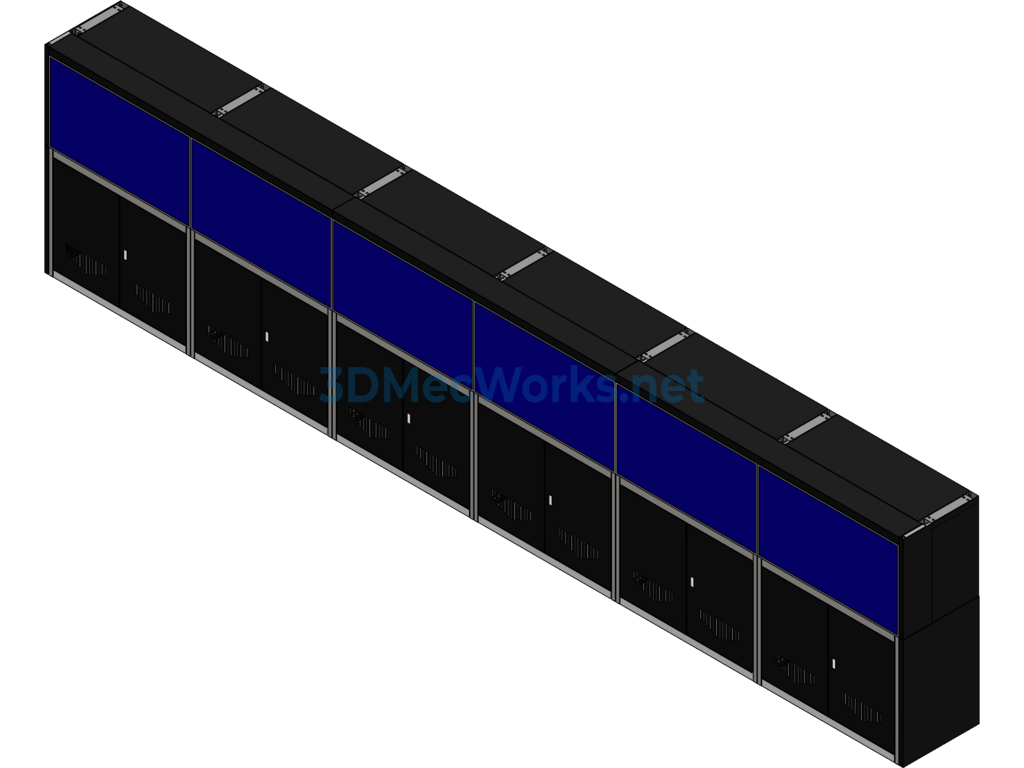

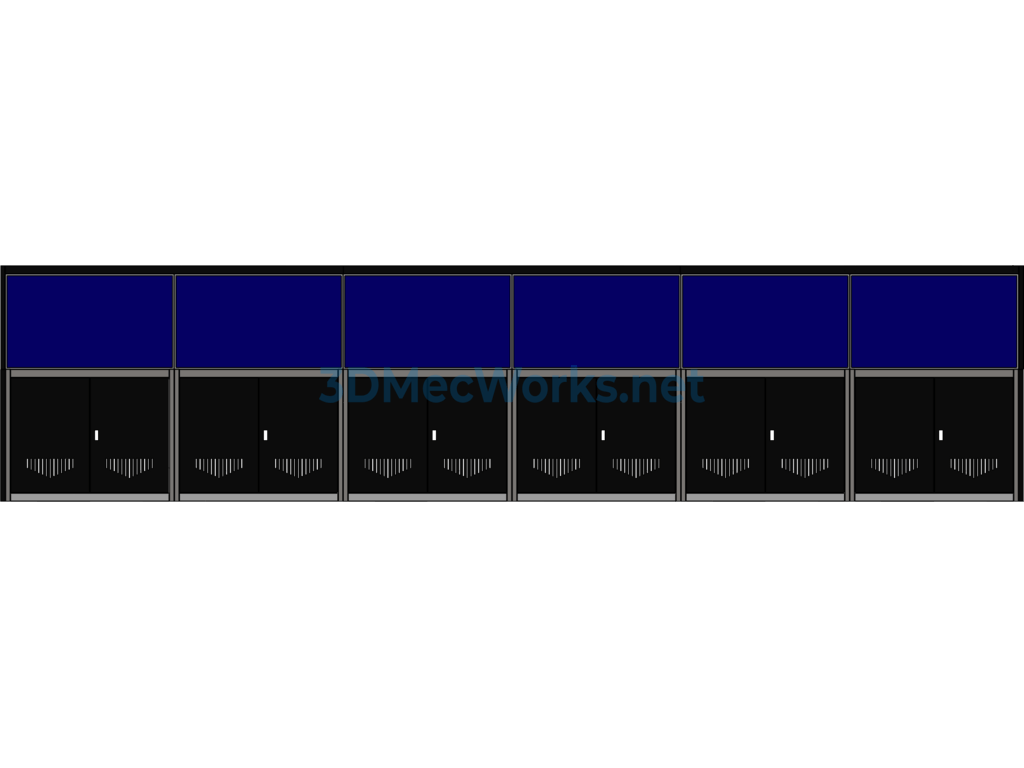

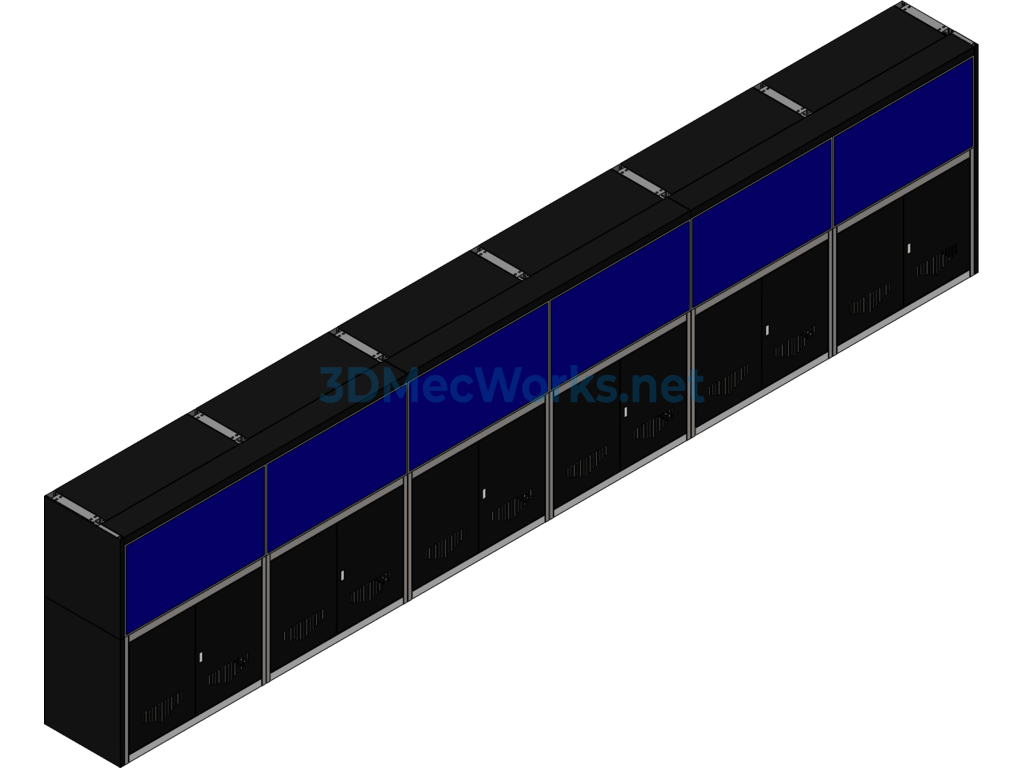

0425D Mask Display Splicing Frame, a sheet metal structure TV monitoring wall modeled in SolidWorks 2018.

Fully sheet metal structure.

Parts can be unfolded, sheet metal parameters can be modified.

The front door lock is AB403, which can be purchased on Taobao.

It is recommended to fix it with M10*150 expansion screws at the back.

Specification: Modular Electric Wall Frame

Design Software	SolidWorks
Editable	Editable, With parameters
File Formats	iges(igs), Sldasm, Sldprt, step(stp)
Industry Application	Creative Design, Mechanical Equipment
Sharing Level	Platinum
Version	2018
