A 3D blueprint of a mobile phone UTMC automated processing production line is available. Other websites sell it for 500 yuan, but it is shared on Kaiba Wang due to Kaiba Wang’s affordability and sincerity, with a one-time payment for permanent download. Hope Kaiba Wang https://3dmec.net/ continues to grow robustly. It is recommended to use Solidworks 2012 and above to open. Highly recommended! This is a fully automated unmanned production line for mobile phone processing.

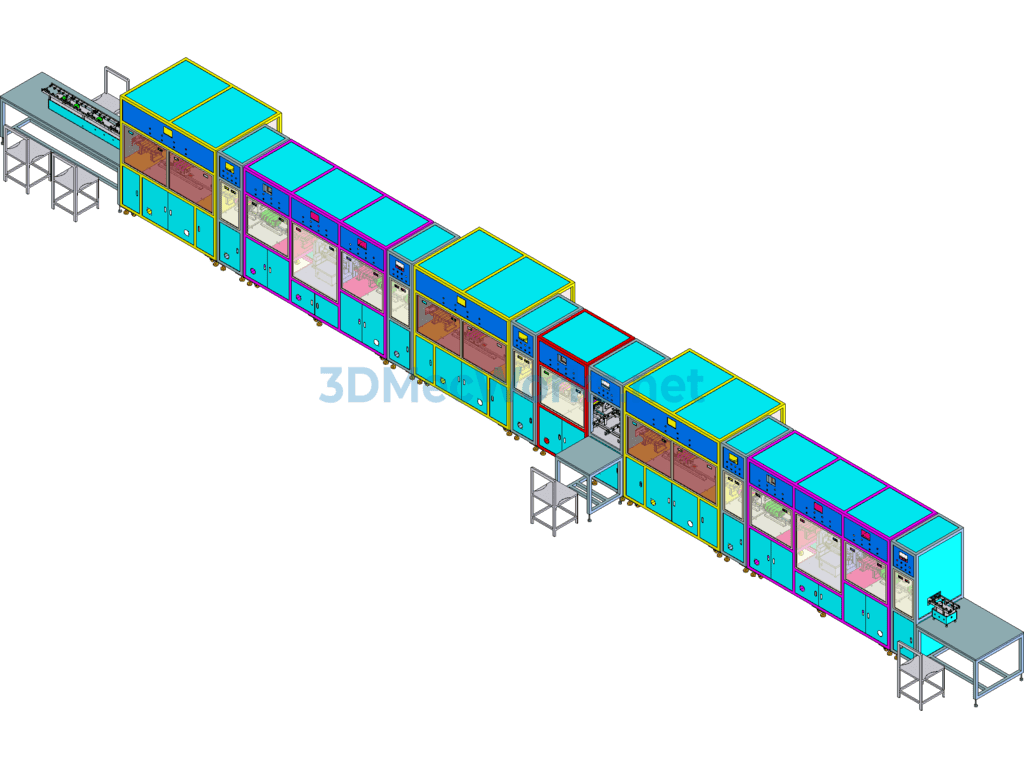

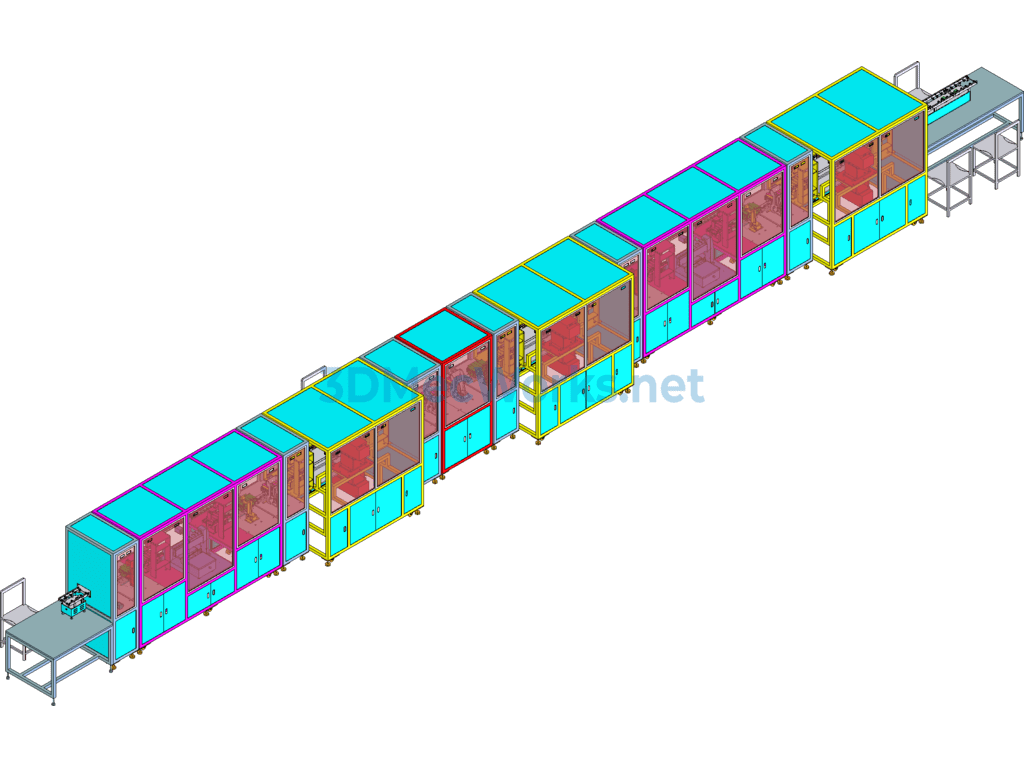

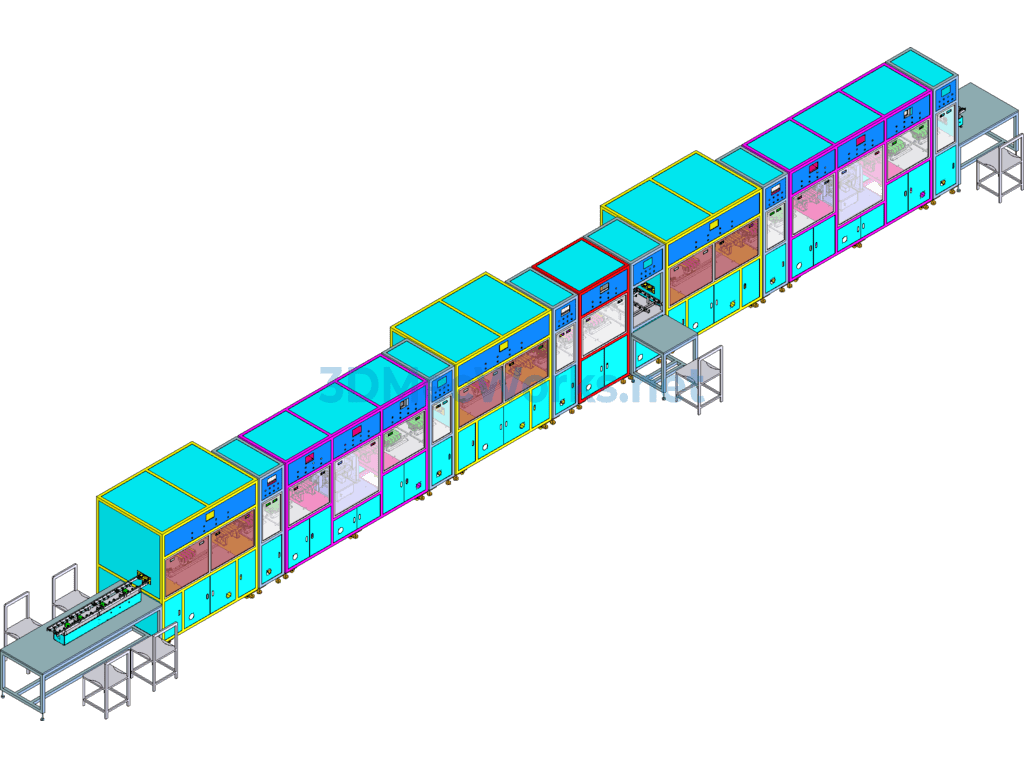

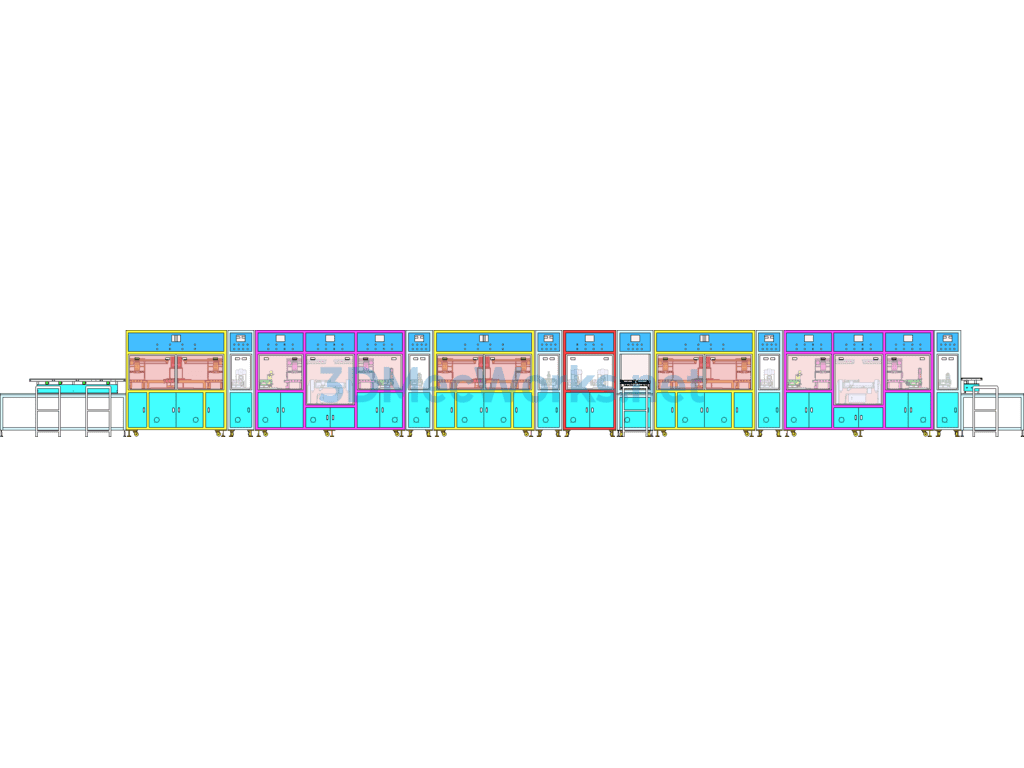

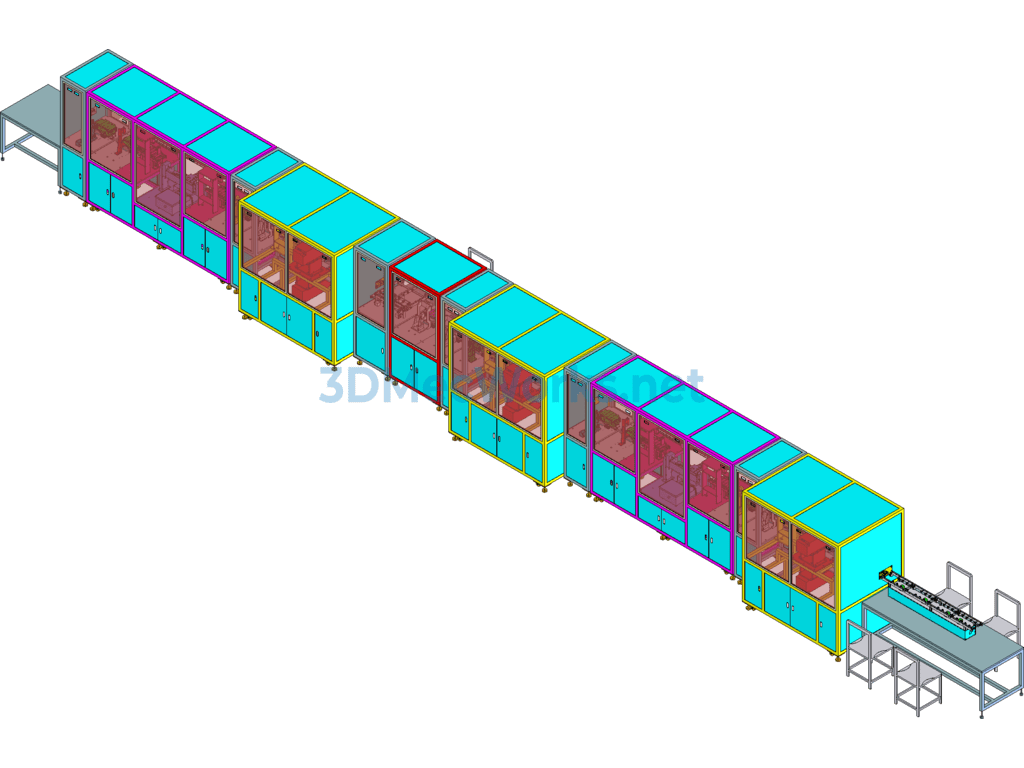

Mobile phone processing production line equipment blueprint, this is a fully automated unmanned production line with a total line length of over 16 meters. The structure and design style of the line are entirely based on the Japanese automated production line design. Each workstation and every machine in the line is an individual unit. The whole line is assembled from individual unit frame structures, yet each unit or machine can be easily removed for maintenance without affecting the entire production line in case of failure. The entire 16-meter-long line is controlled by individual structures and circuits, and the circuits transmit signals to each other via communication. From the structure of the line, it can be seen that many handling structures and frames are of individual single design. From the starting point of product entry to the completion of processing at the backend, all intermediate processing stages require no manual operation.
The mobile phone UTMC automated processing production line’s total processing workflow and workstations primarily include the following: conveying and feeding position, detection position, automatic pick-and-place handling manipulator, laser cutting and forming position, punching and cutting, automatic flux spraying, 180-degree rotating automatic tinning workstation, conveyor 90-degree conversion position, dispensing position, CCD camera vision inspection position, automatic conveying position, handling unloading manipulator, and discharge conveyor. Each of these workstations can be replaced or restructured to achieve the desired effect. Different customer requirements may result in different processing workstations, necessitating new designs or structural changes. With this line, minor modifications can transform it into another automatic production line or the automated assembly line you desire. Why is this so? Because regardless of the type of production line, the unchanging component is the line structure and handling manipulator. Typically, only processing workstations differ; some require screw driving, dispensing, labeling, or others. Therefore, this line is excellent for learning and adapting the blueprints. Friends in need are encouraged to download and gain design inspiration to skillfully apply in their designs, compensating for design shortcomings.
