Mobile Terminal Punching and Cutting, Ccd Vision Inspection Packaging Integrated Automation Equipment

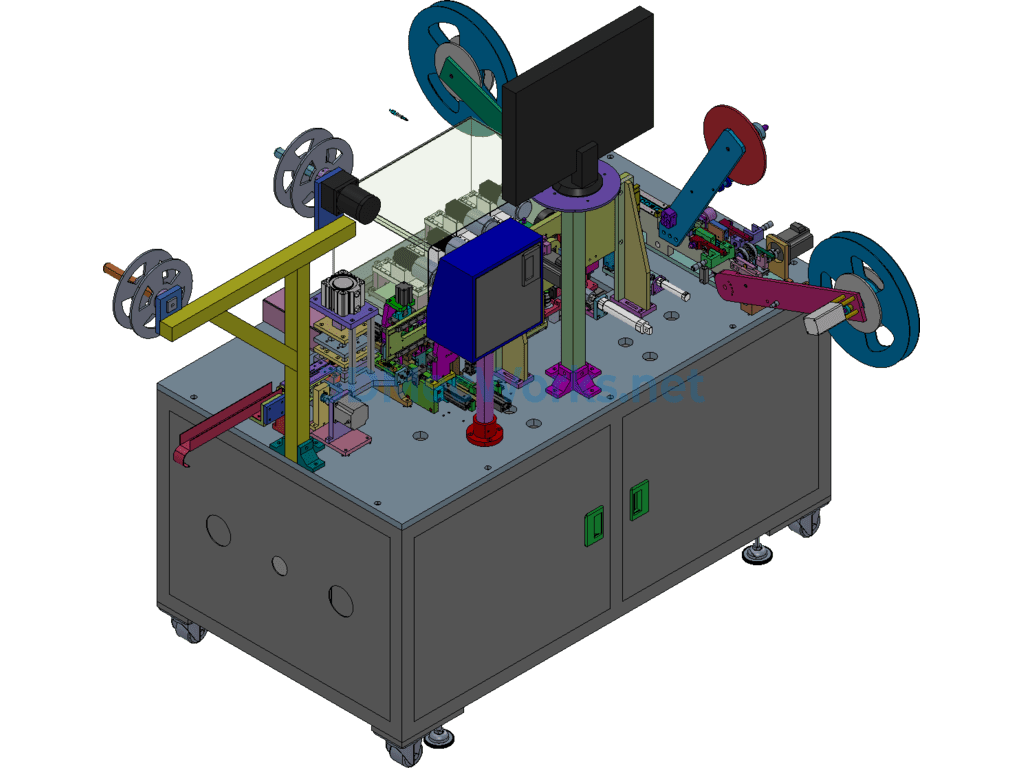

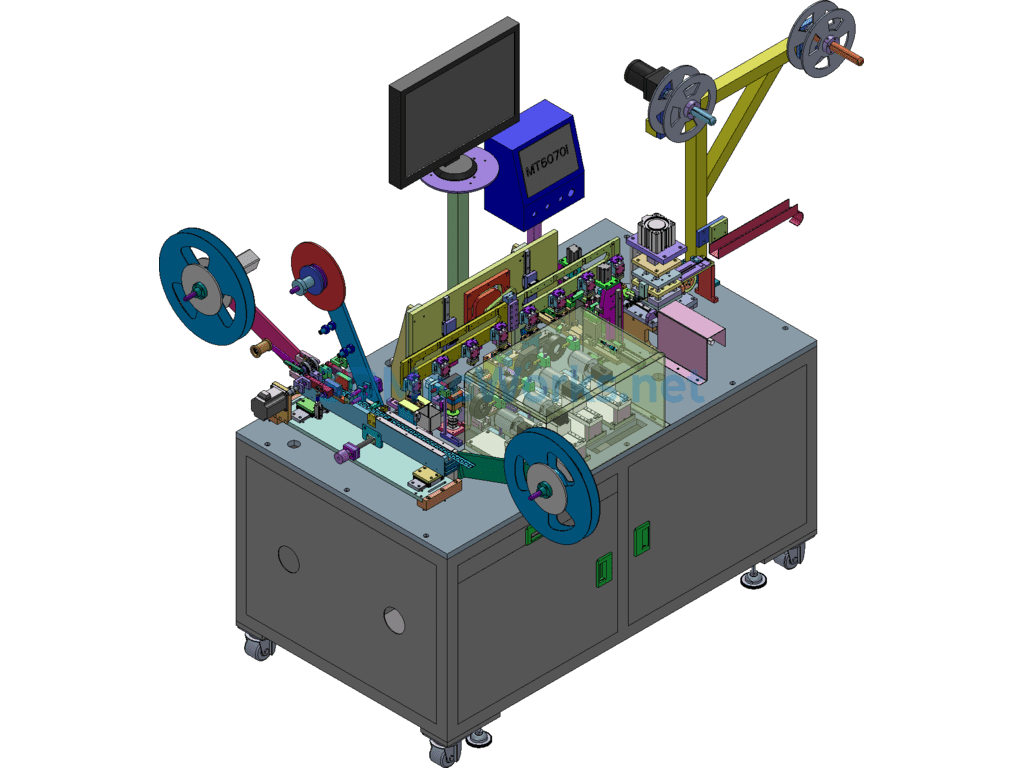

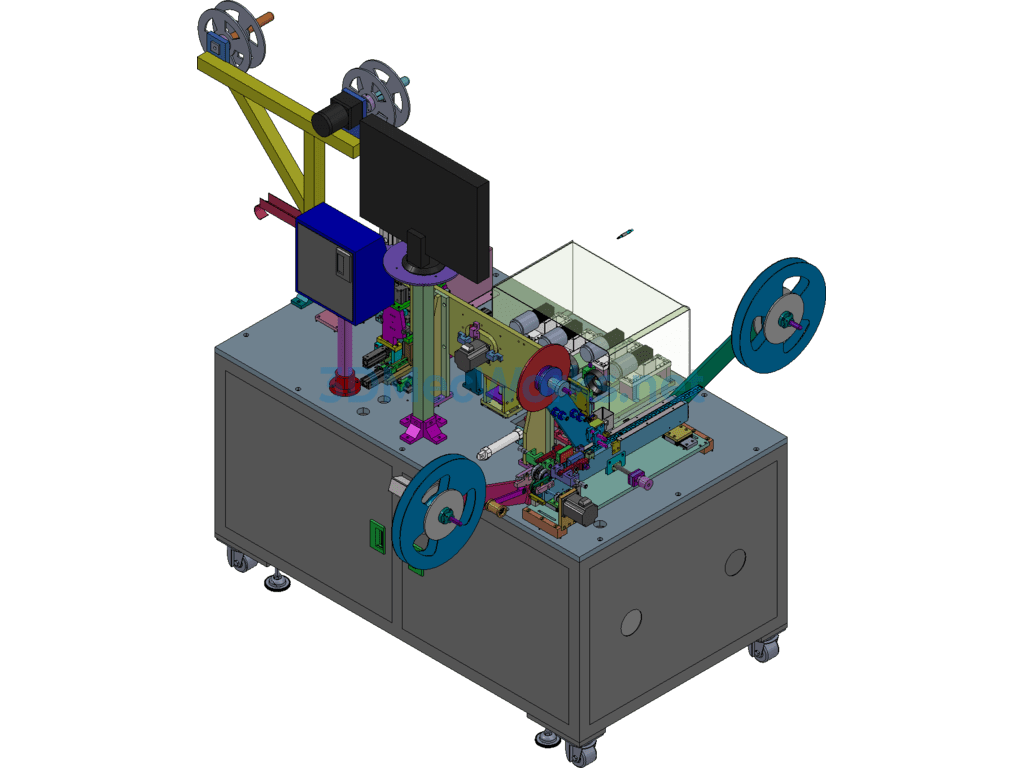

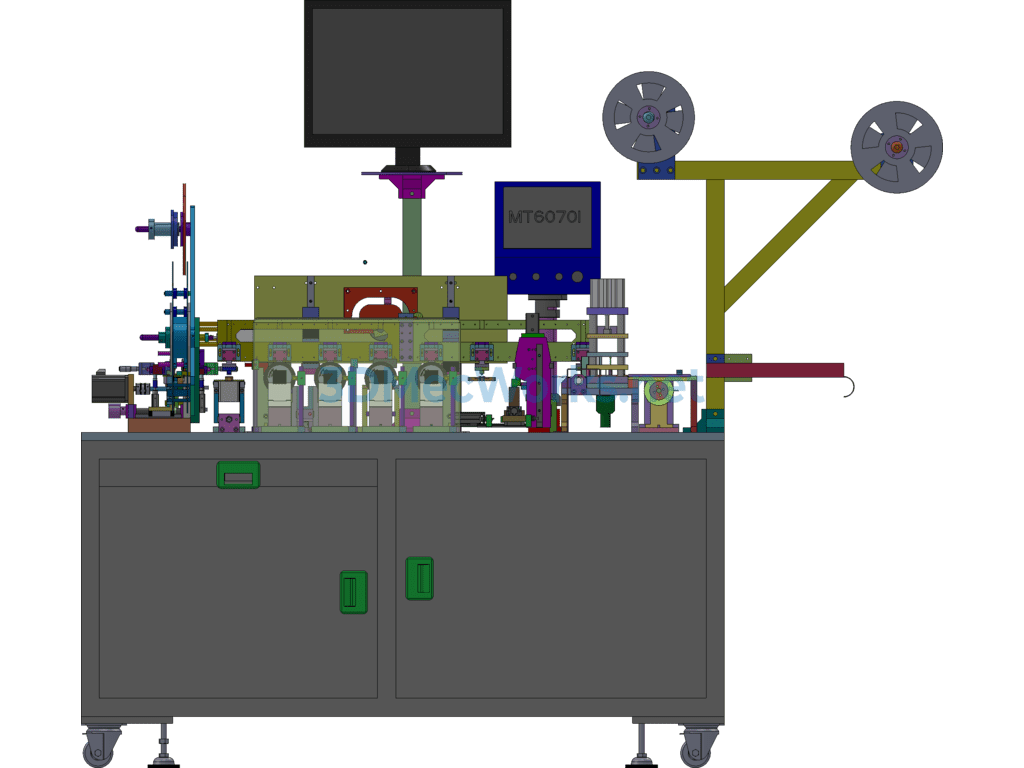

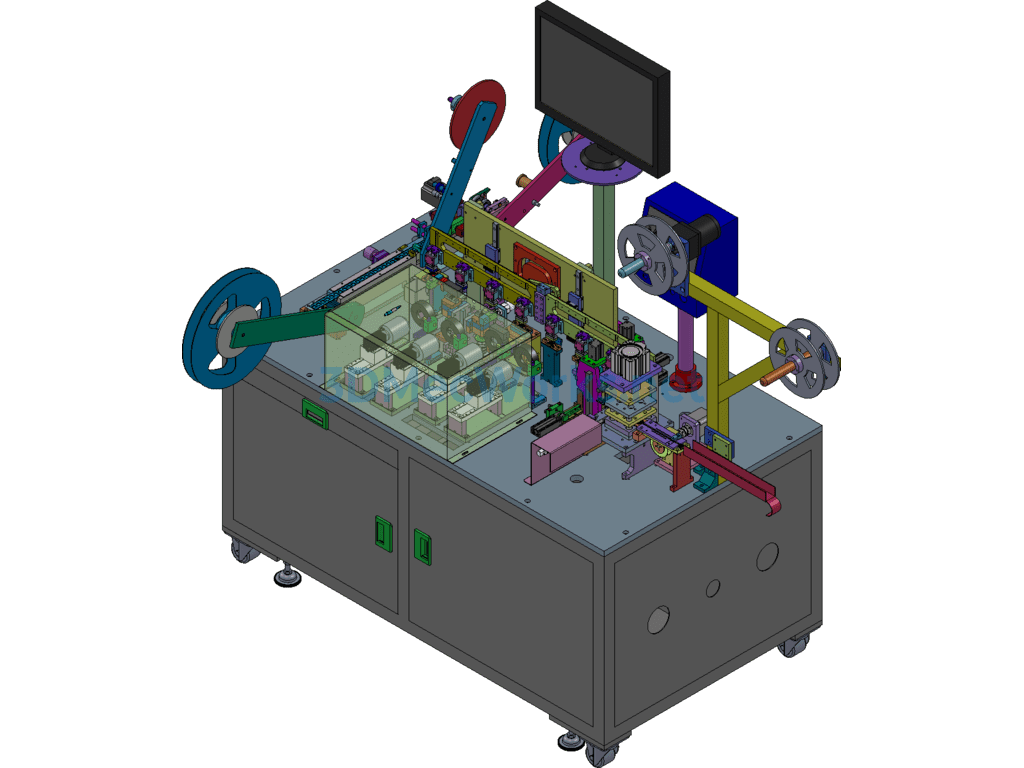

CCD Visual Inspection Mobile Terminal Punching and Packaging Automation Machine. This blueprint is for a terminal inspection and packaging device used inside OPPO mobile phones. From the front-end feeding position, it can be seen that the incoming terminal materials are in a loop. What this machine needs to do is cut the terminals one by one, then inspect for any defects in incoming materials or punching. To increase efficiency, four CCD visual inspection cameras are used at the inspection position to simultaneously conduct appearance inspections of four products. When there are defective products, a robotic arm will place them into a defective products box to one side, while all other good products are packaged. This is also a fully automated and unmanned device. We hope many will download it. Thank you. The model is designed with SW2011 design source files provided. Mobile Terminal Cutting and Bending CCD Visual Inspection Packaging Machine.
