Mobile Terminal Cutting, Blanking, Bending, and Ccd Inspection Automatic Packaging Machine

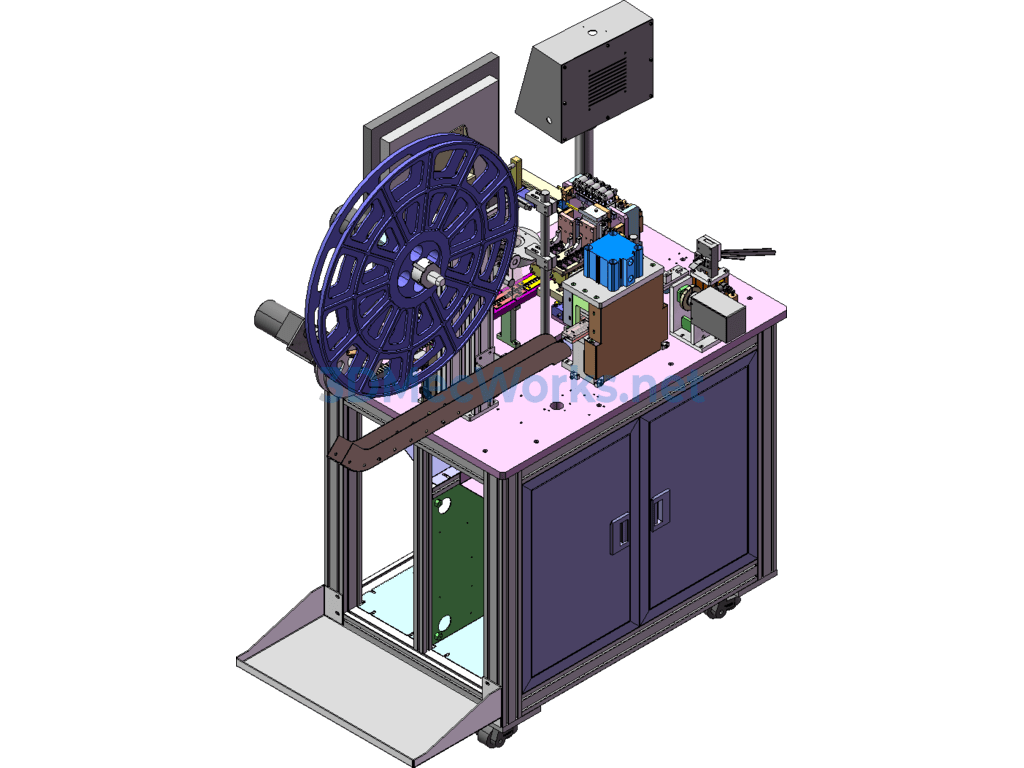

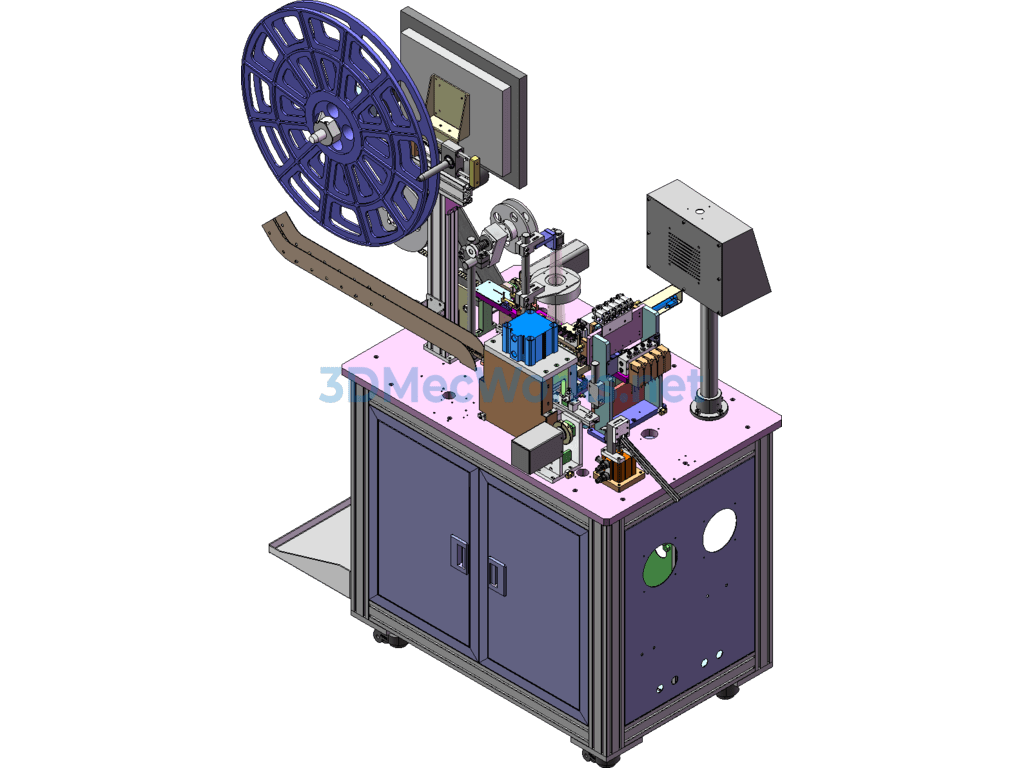

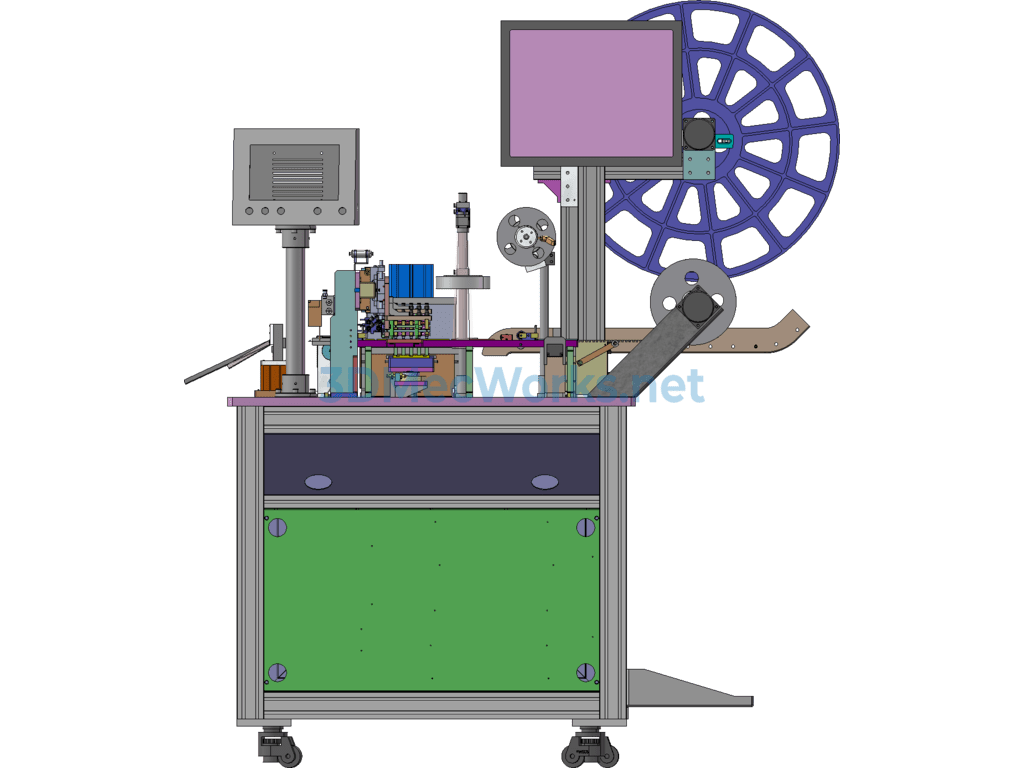

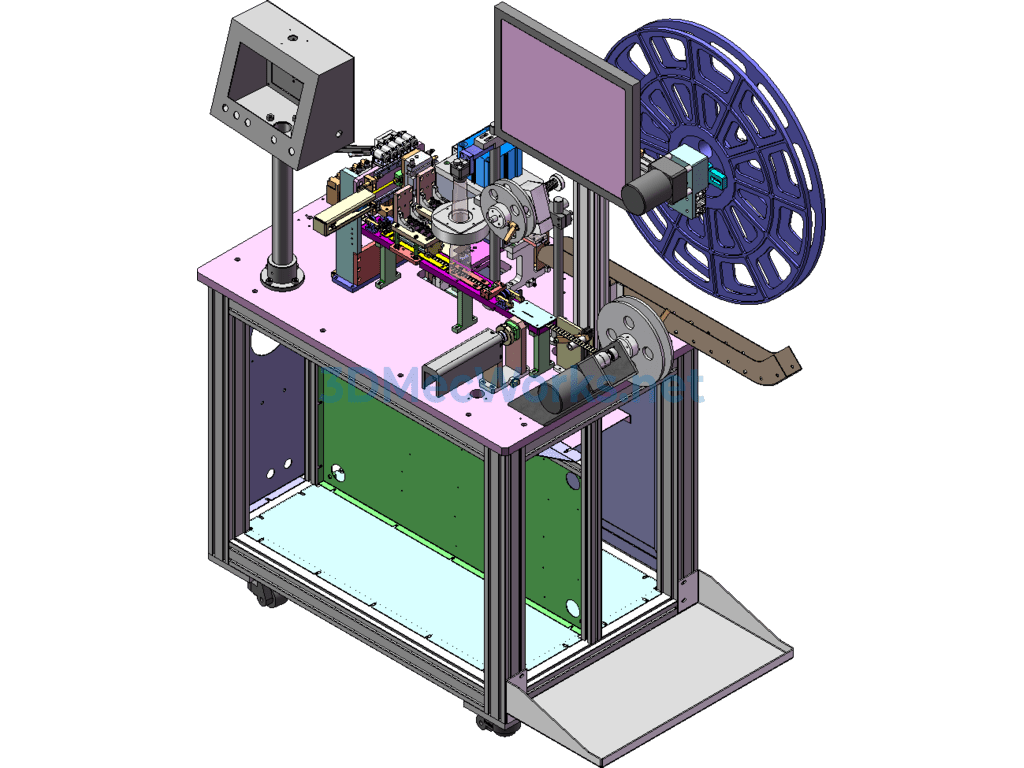

Mobile Terminal Cutting Blanking Bending CCD Inspection Automatic Packaging Integrated Machine Drawing Model, this equipment is used for the blanking, bending, automatic packaging, and waste cutting collection of a certain mobile phone terminal. This set of drawings includes classic mechanisms such as frame, terminal material rack, blanking die, bending mechanism, feeding drive mechanism, waste cutting mechanism, rotary receiving mechanism, pitch-changing vacuum picking mechanism, CCD inspection mechanism, and automatic packing machine. The design of each mechanism module is very compact and ingenious, very worthy of being learned from. This equipment has successfully achieved mass production, and the entire set of drawings can be edited, with all standard parts having the correct model, very worthy of being learned from. Welcome to download and reference!
