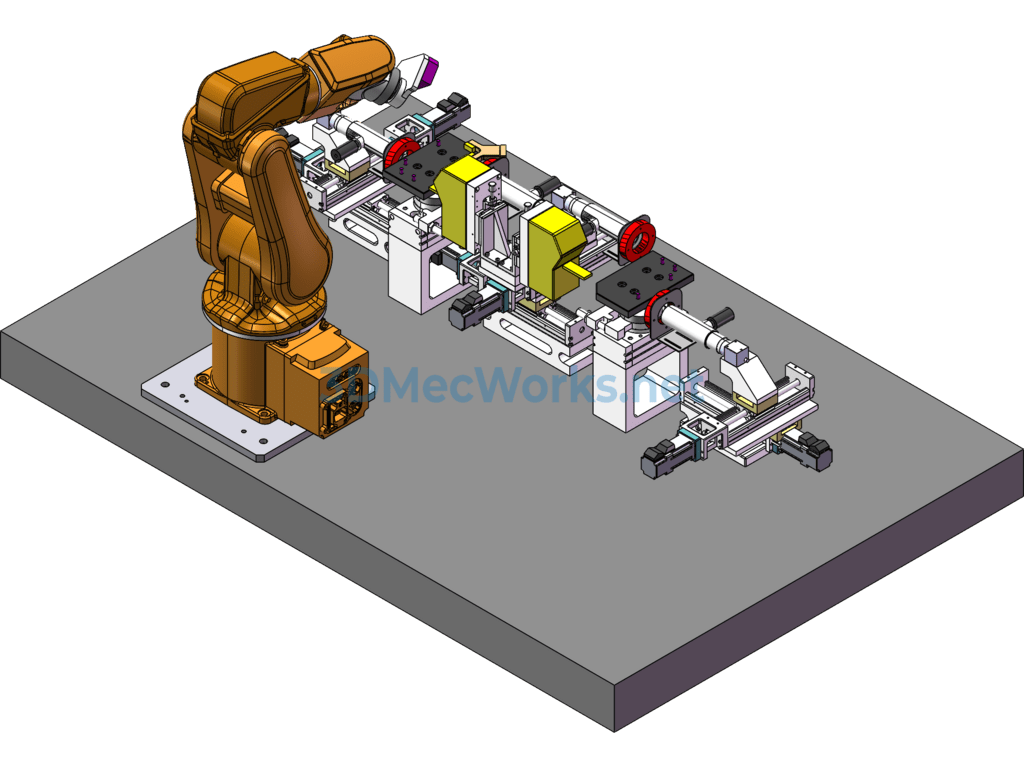

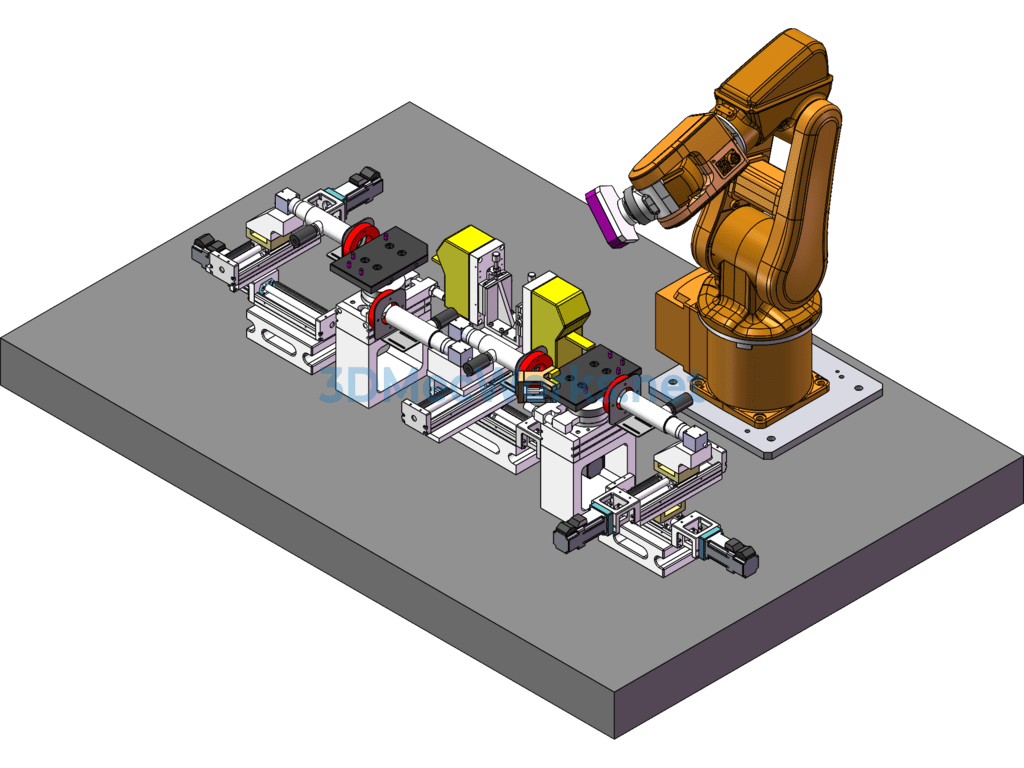

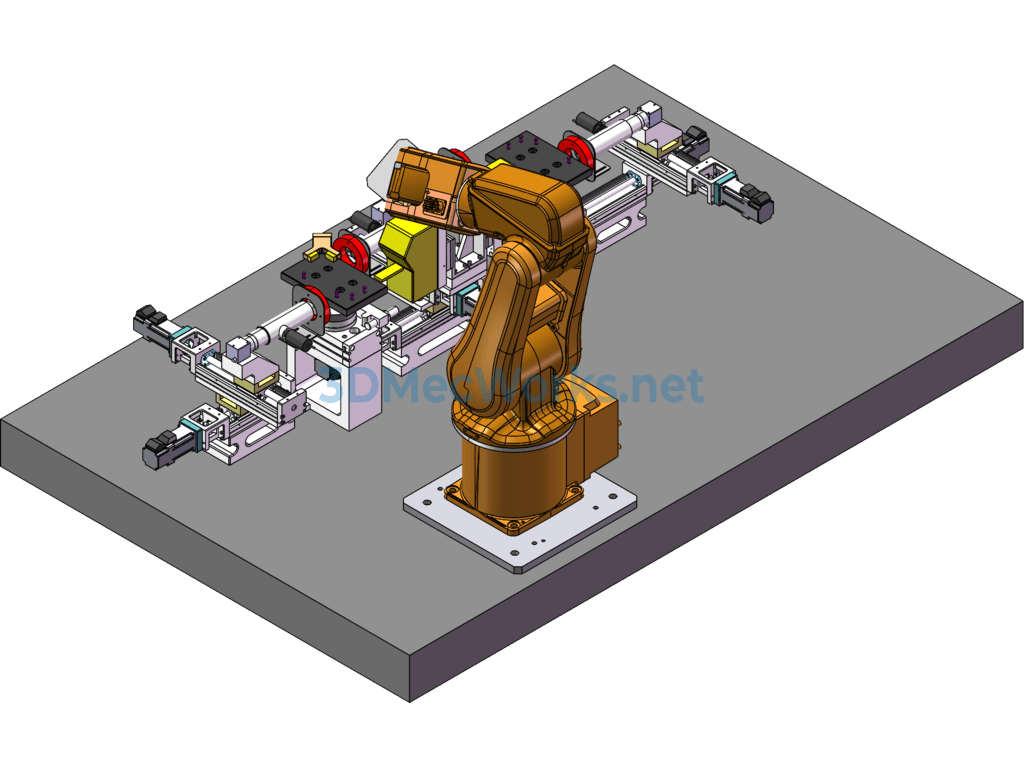

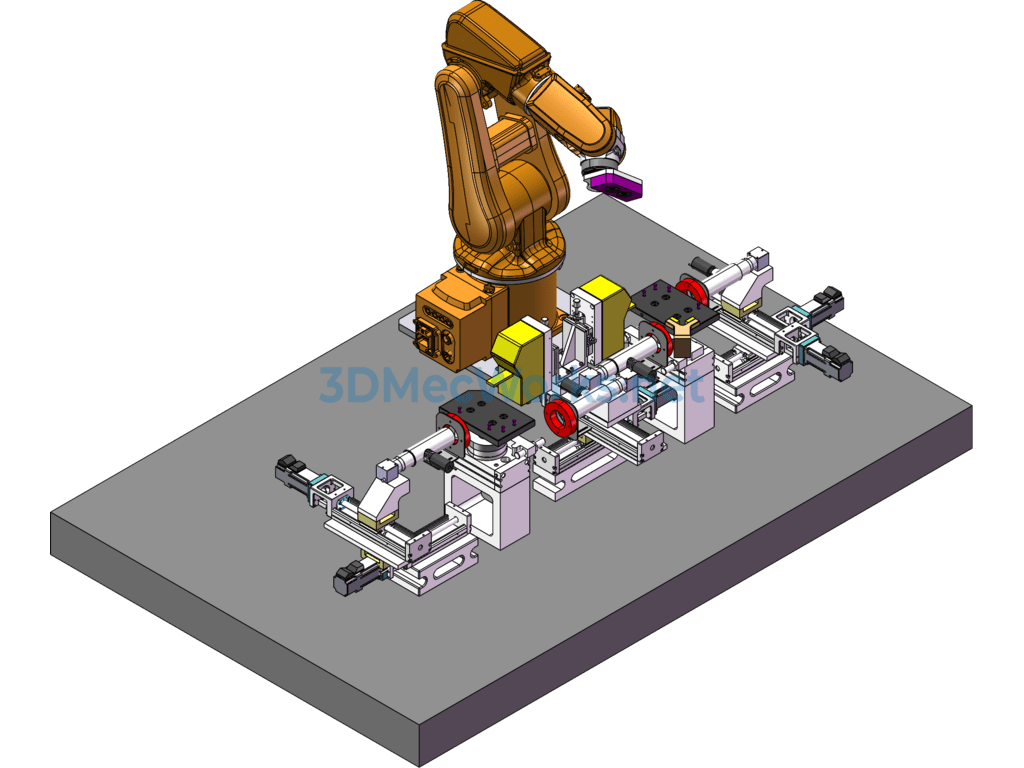

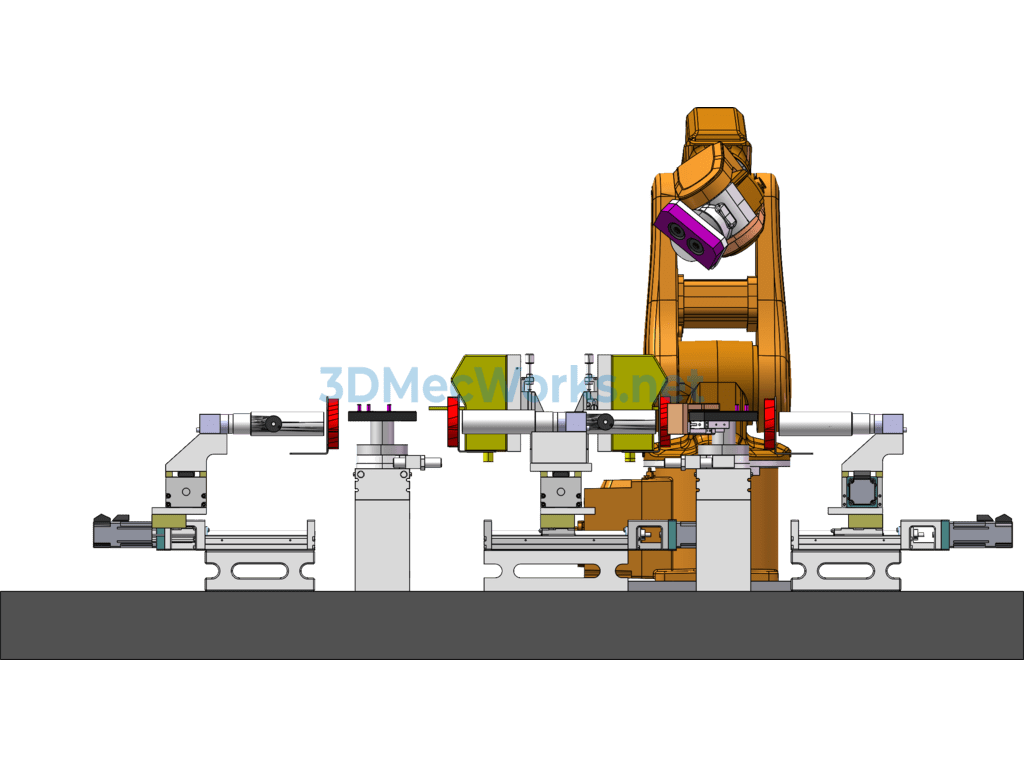

Mobile Phone Side Profile Dimension Inspection Machine (including Dfm)

Overview of the operational process for the side profile dimension inspection machine for mobile phones:
1. The robotic arm automatically grabs the material, moves it, and places it inside the fixed fixture for side clamping and positioning.
2. The fixture’s side clamp utilizes vacuum suction to securely fix the product.
3. The XY moving module, equipped with a CCD vision module, inspects the mobile phone’s side for scratches and performs dimension inspection.
4. The line-scan XY moving module, equipped with a laser line-scan platform and CCD, checks the product for flatness and step dimensions.
