Mobile Ffc Stamping Inspection Machine (ffc Flexible Flat Cable Stamping Machine and Ccd Vision Inspection Equipment)

This is a set of automatic punching and detection equipment used for processing FFC flexible flat cables for mobile phones. Only the cables processed by this equipment can be used at the connection points of screen cables and motherboards in Apple phones. There are more than 1000 different parts of various sizes inside, and many structures are worth learning from. Therefore, I am uploading this excellent set of original drawings to share with everyone for download. I hope everyone will support my original works. Thank you.

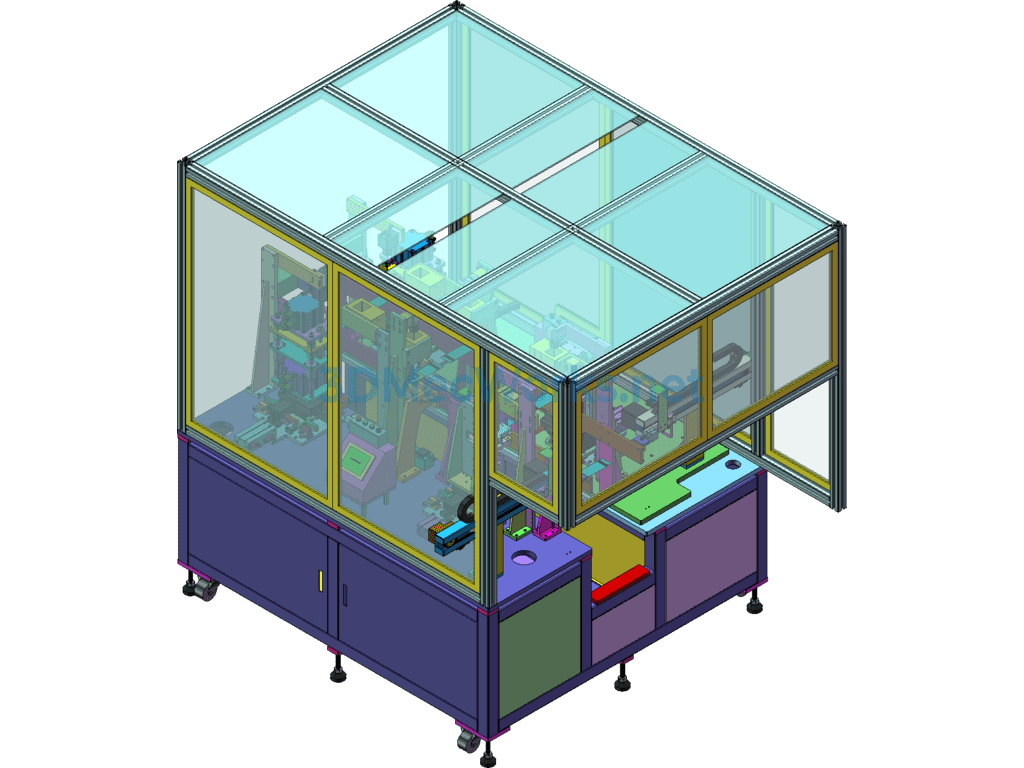

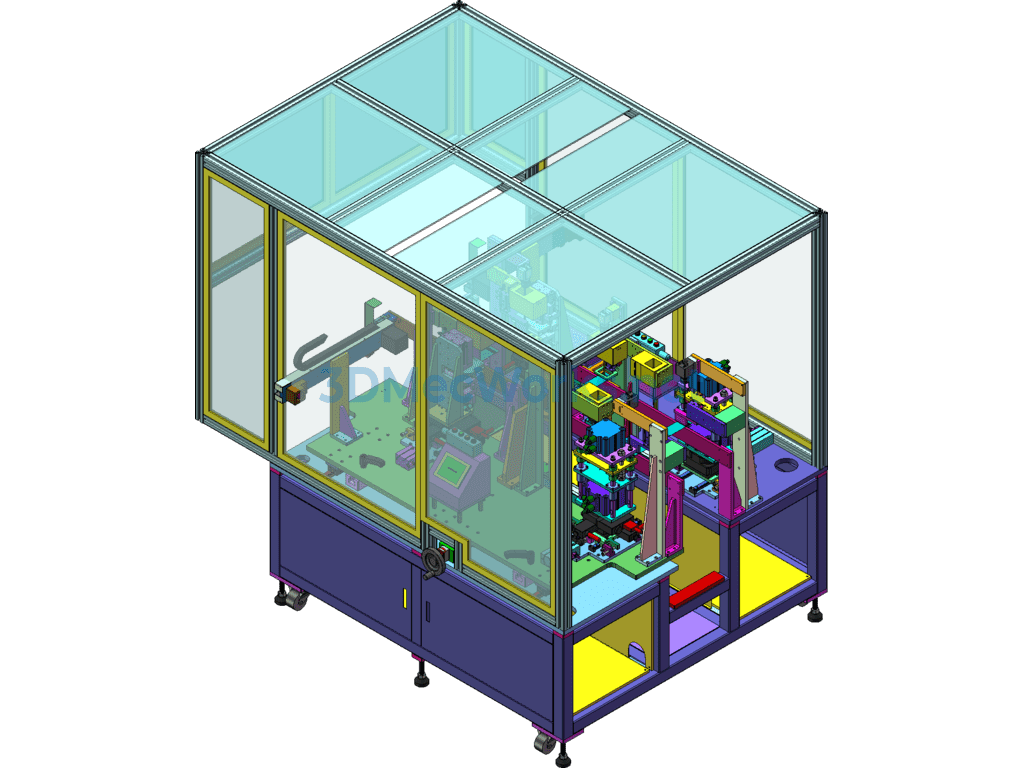

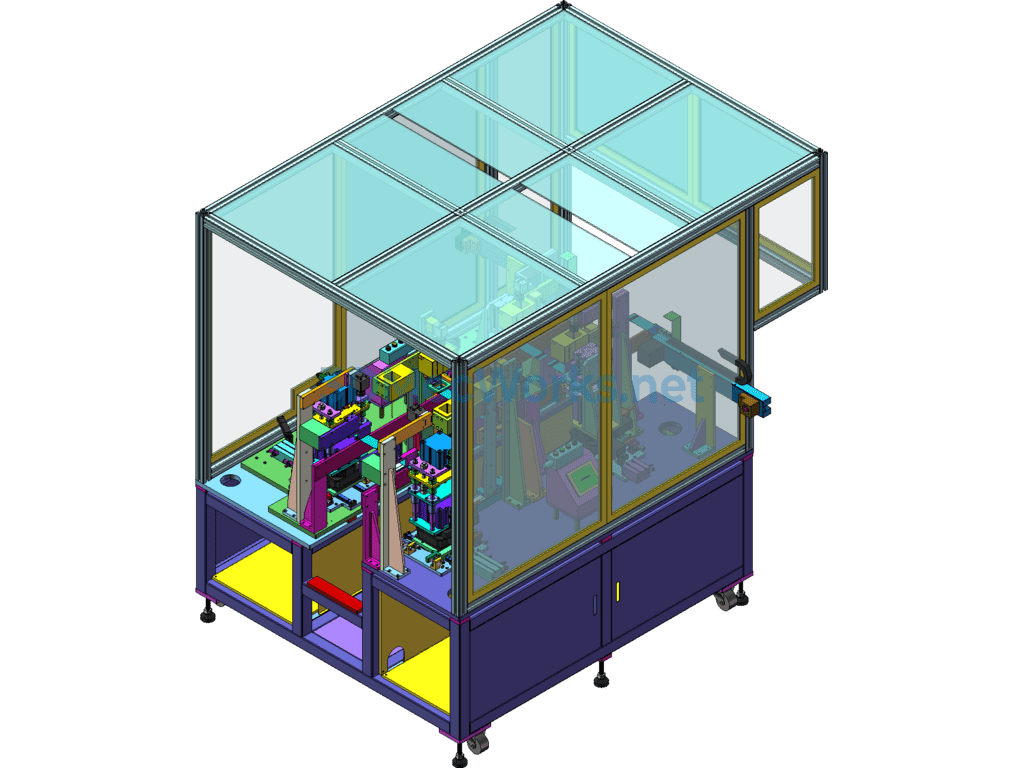

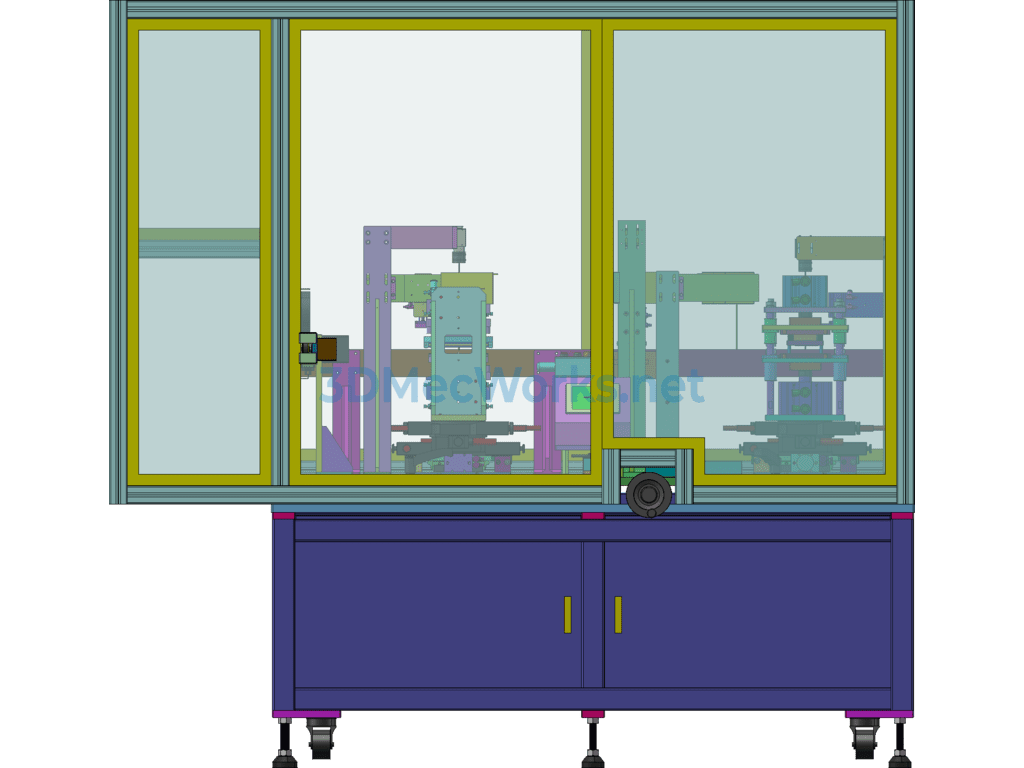

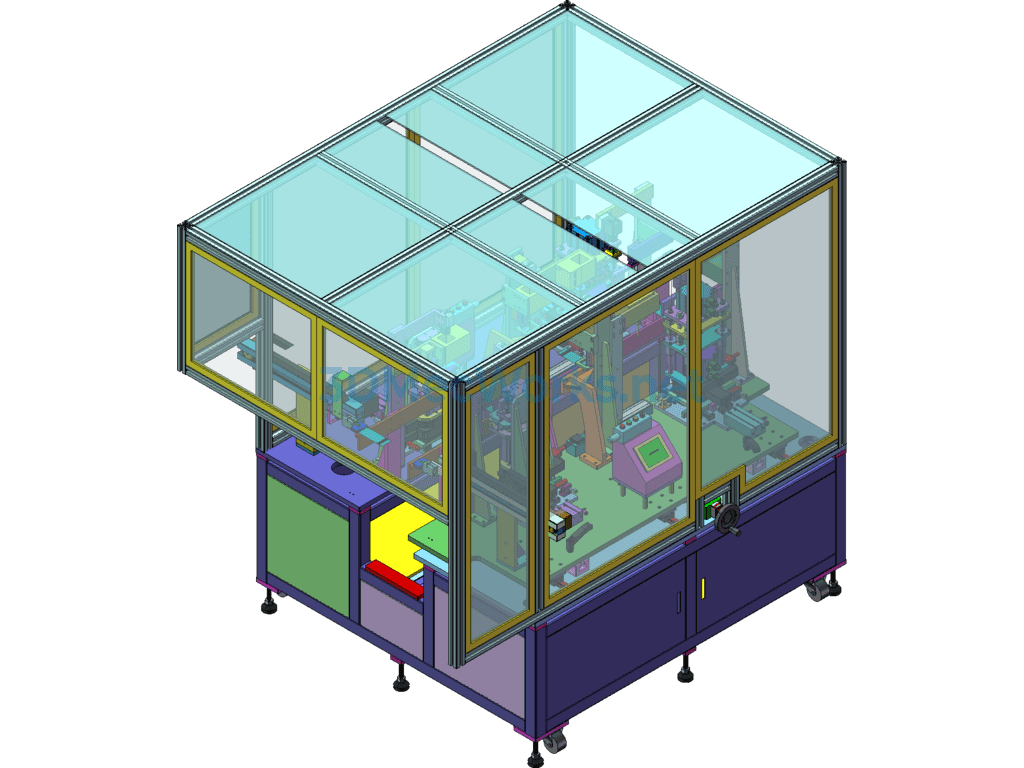

Mobile phone FFC cable punching machine and CCD visual detection equipment 3D model SW design source file sharing, STP document is also provided, welcome to download.
