The 180 Iron Rear Cover Four-in-One Machine is designed and developed for micro-motor assembly and processing. I am now uploading the complete set of drawings for everyone, including full engineering drawings to facilitate faster learning and self-improvement. Micro-motors, also known as small motors, are fully named ‘micro electric motors,’ referring to motors with a diameter of less than 160mm or a rated power of less than 750W. Micro-motors are commonly used in control systems or for mechanical load transmissions. The operational principle of this equipment is: vibration plate feeds the iron rear cover — distribute the iron rear cover before feeding — push the iron rear cover (positioning) — pull the paper belt, punch the paper belt, press the paperboard piece in — feed the cup bushing (positioning) — press the cup bushing in — feed the mid-rubber plate — press the mid-rubber plate in — hot riveting positioning — automatic hot riveting — finished product output.

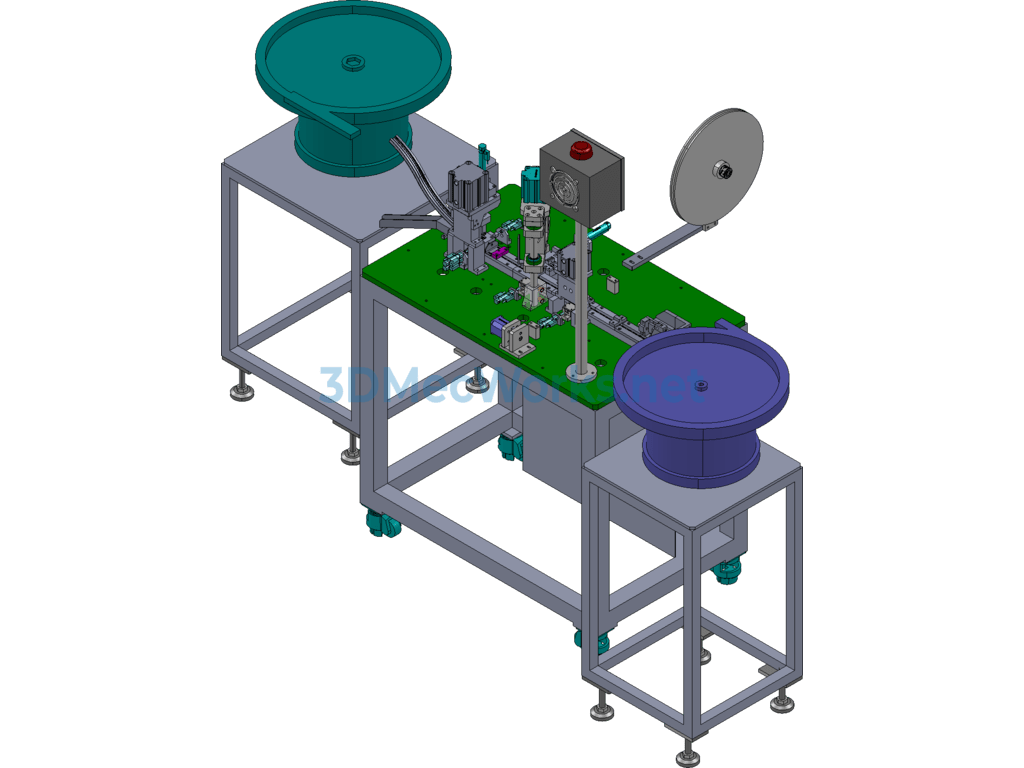

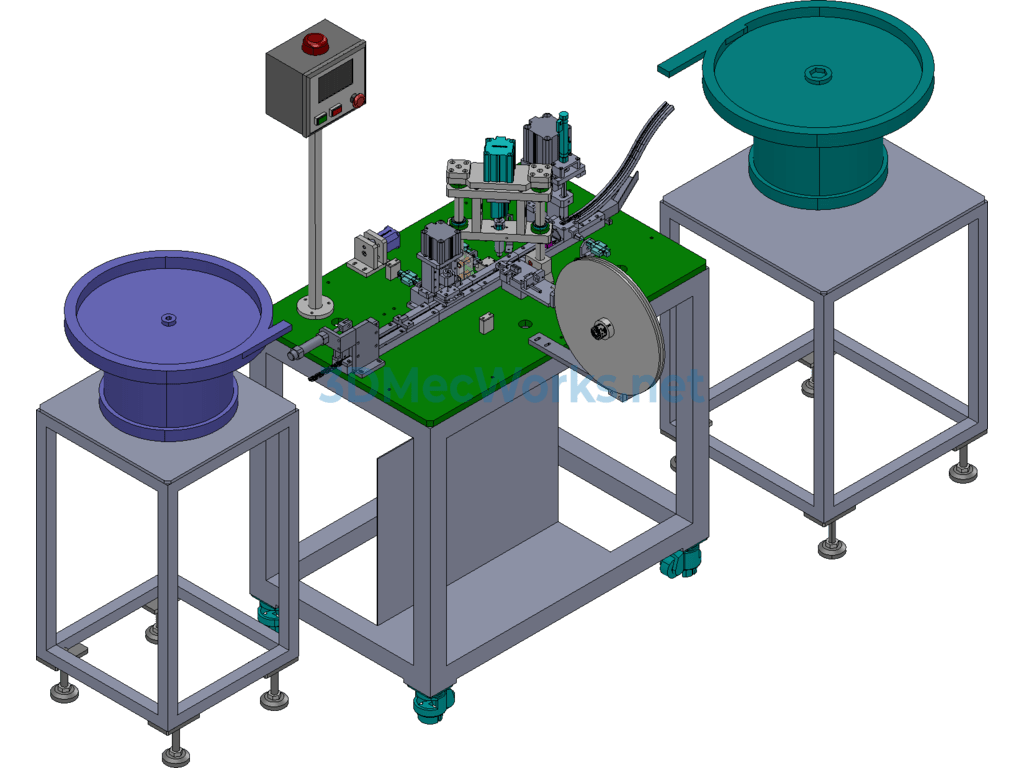

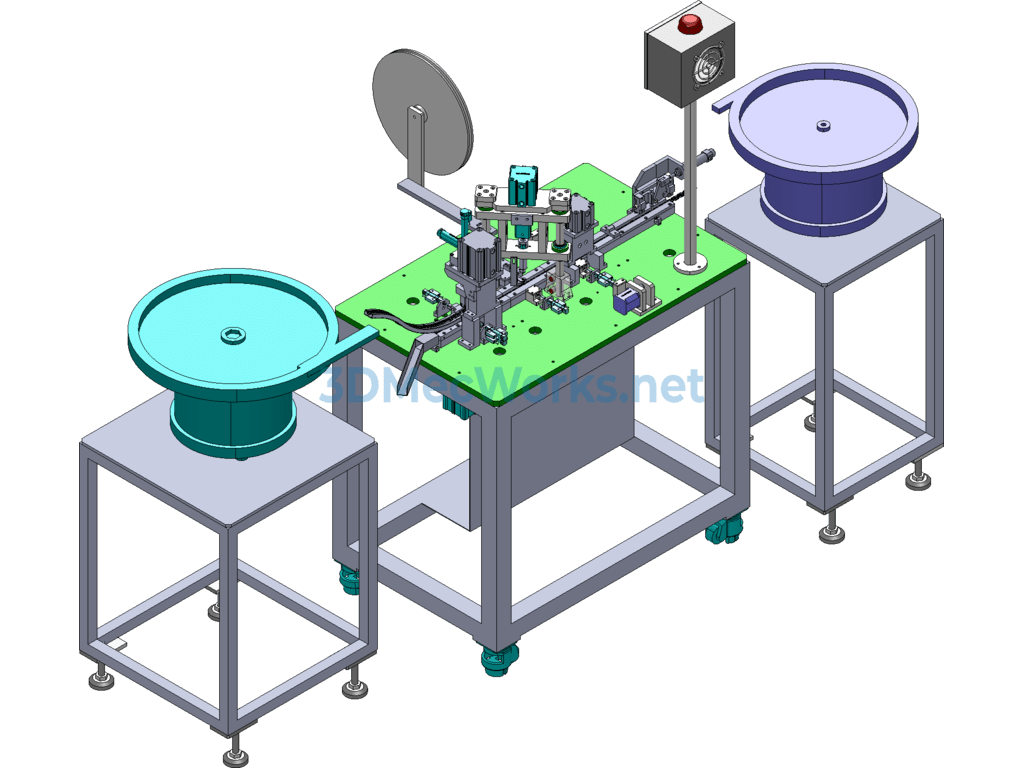

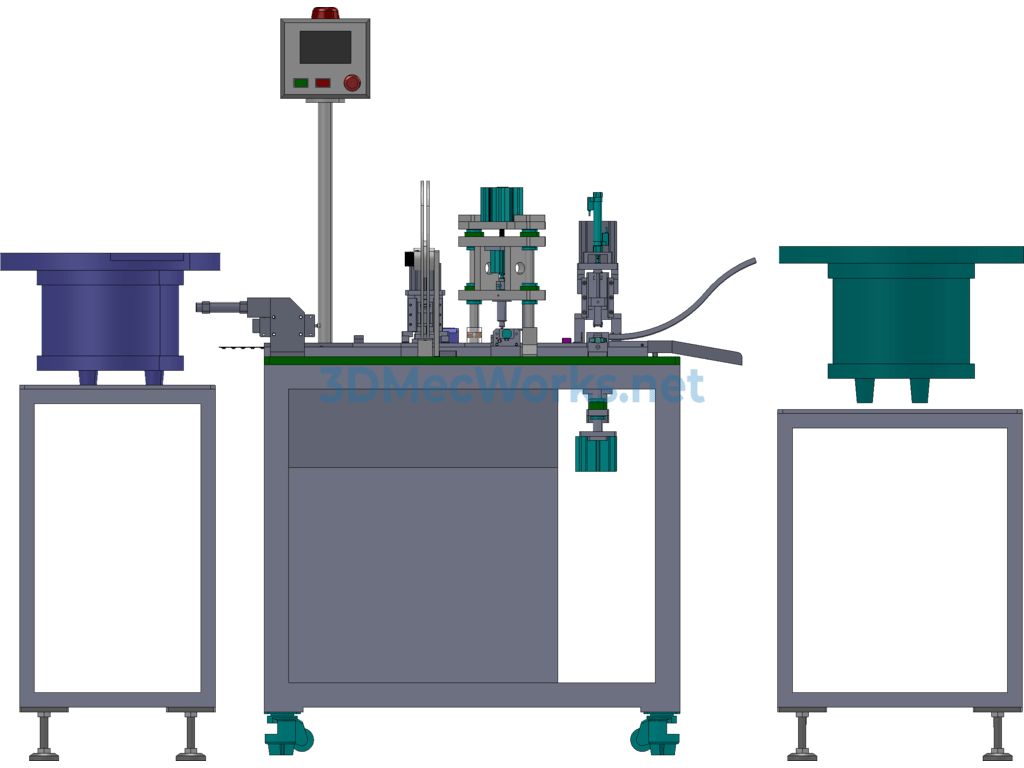

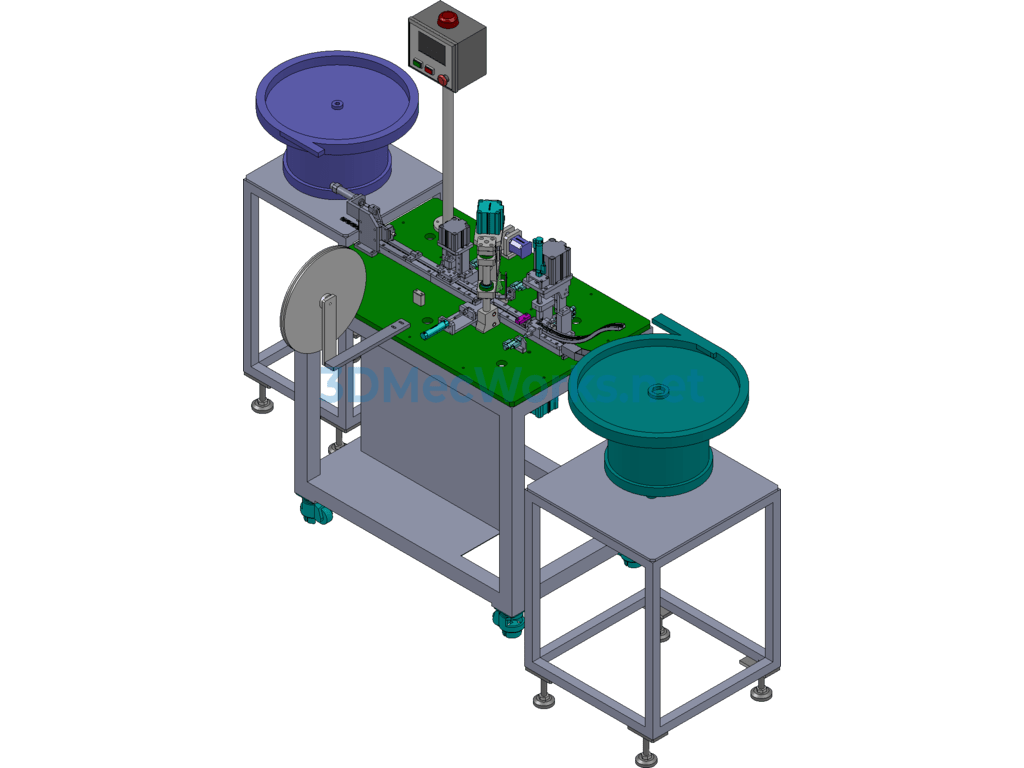

Micro-motor 180 Iron Cover Four-in-One Assembly Machine (Micro Electric Motor Assembly and Processing Equipment) This is a complete set of 180 Iron Cover Four-in-One Assembly Machine-R2.0, Working Voltage: AC-220V/50HZ Working Air Pressure: 5-6kgf/cm Working Efficiency: 45-50 pieces/min Machine Dimensions: 850*550*1000
