Mfgzs-20s-00_electronic Product Visual Inspection Machine

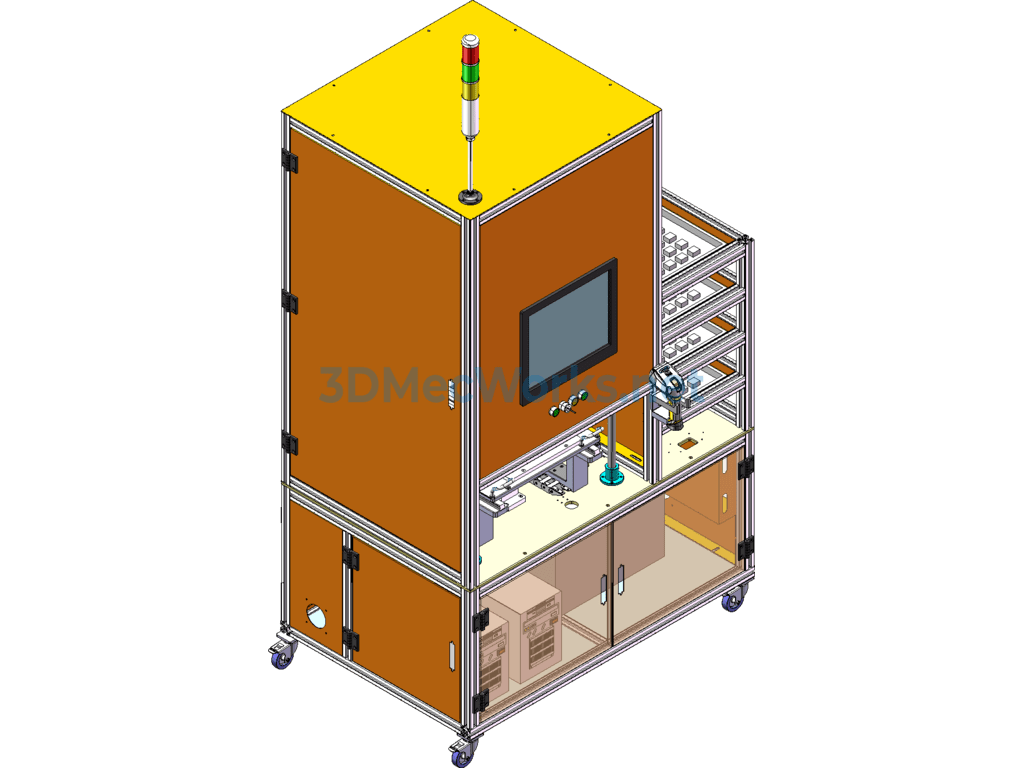

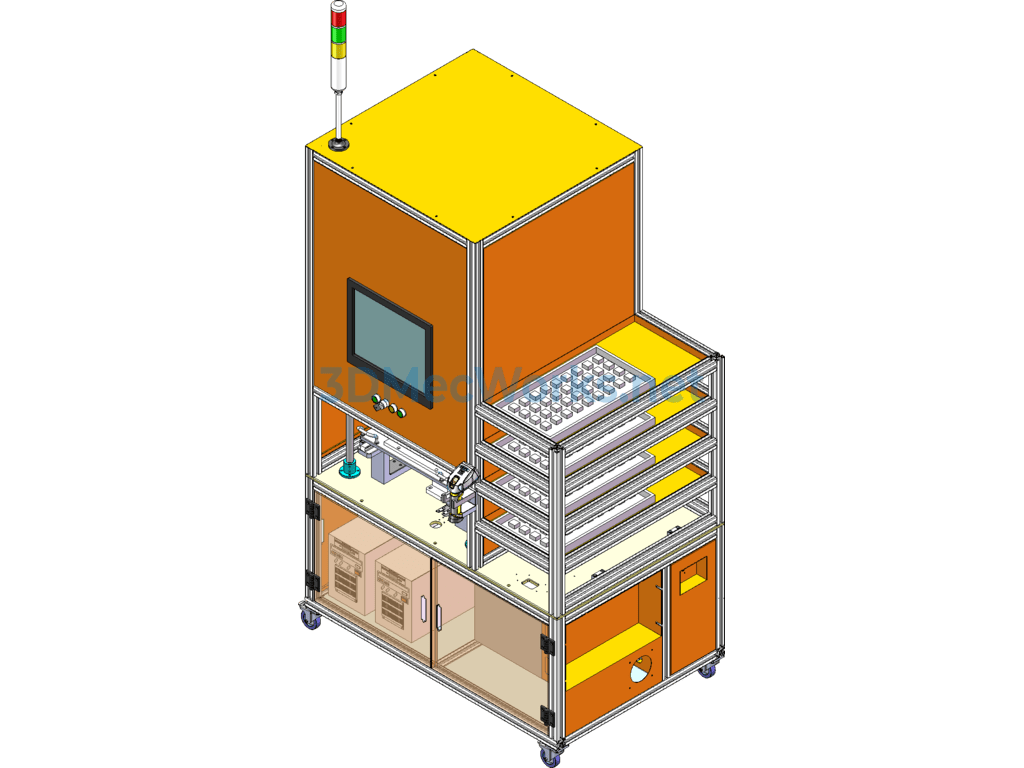

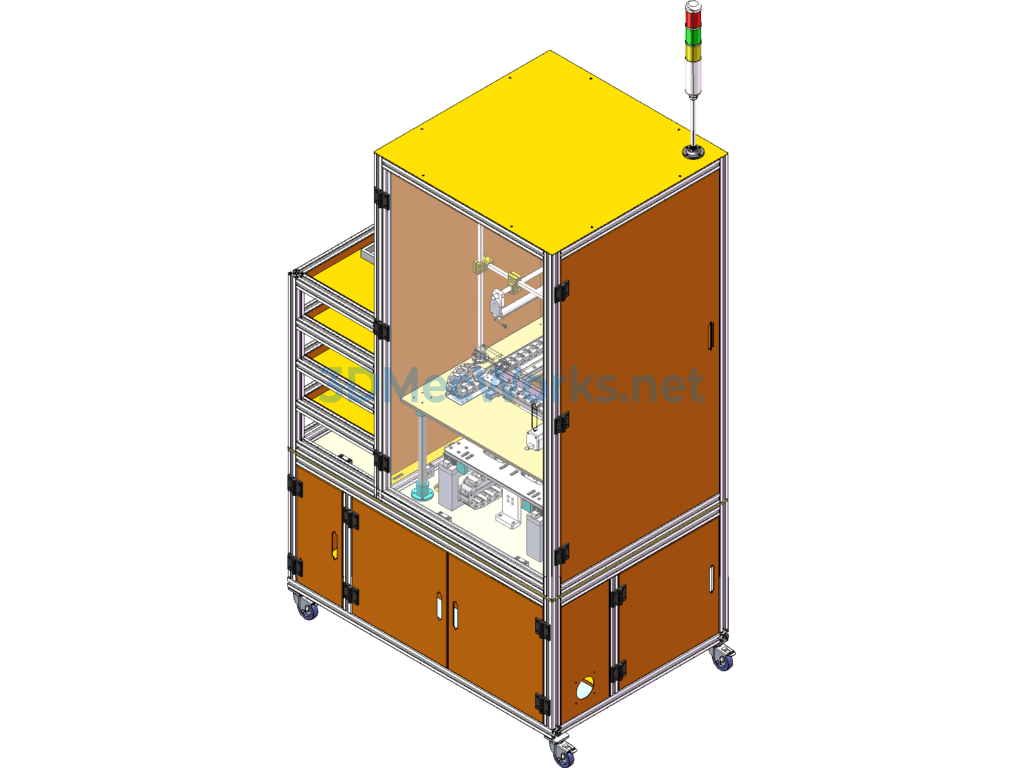

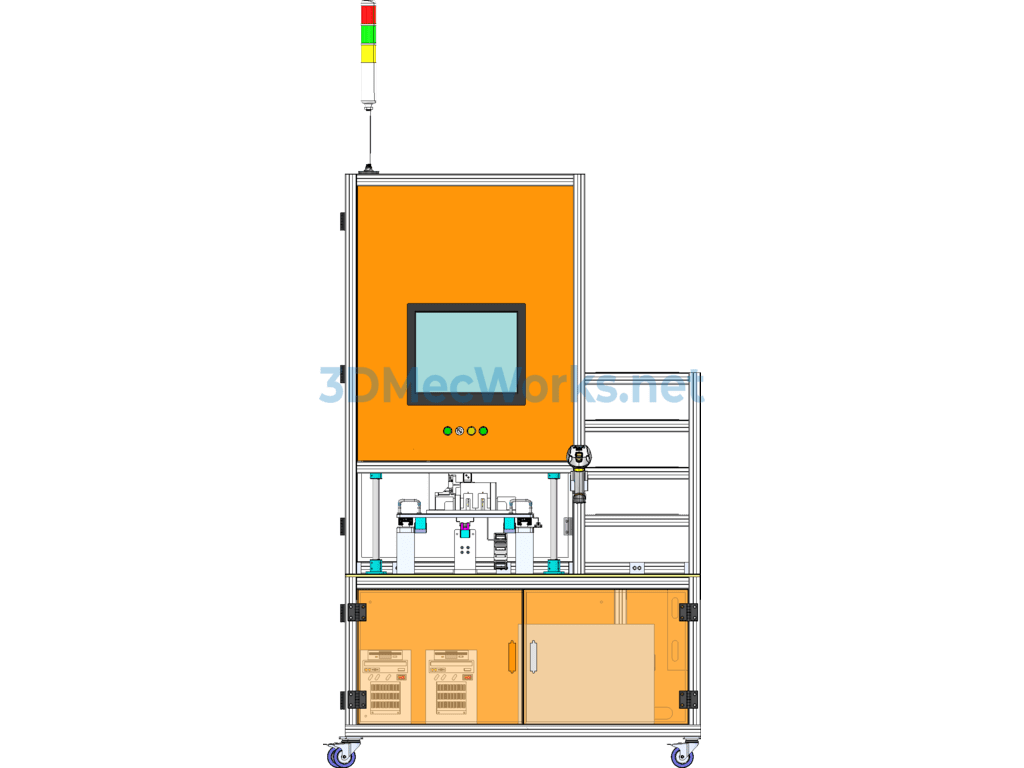

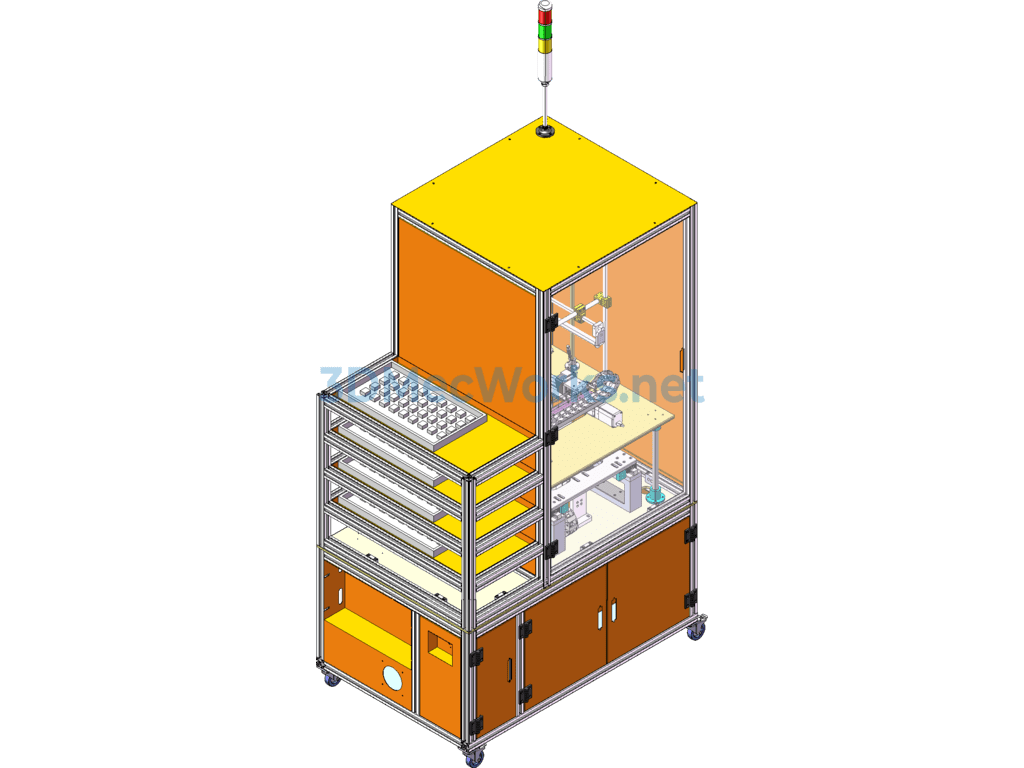

This model is a visual inspection platform for electronic products, version SW2016, including fully parameterized parts, detailed engineering drawings, and a component BOM list. The content is extremely detailed. This equipment model is suitable for assistant engineers who have just entered the workforce for reference and learning. The content includes: 1. 3D design for the automation industry; 2. Engineering drawing output standards; 3. Standard BOM list creation; 4. Sheet metal and aluminum profile frame construction standards, etc. This model is a visual inspection platform for electronic products, divided into four parts: the workbench frame made of aluminum profiles and sheet metal, a two-axis module combination scanning mechanism, a camera component, and a shelf for storage. The basic operation process is: 1. The operator takes the product from the TRAY on the right side and places it in the fixture of the inspection platform; 2. The visual system automatically determines if the product is OK or NG. If the product is NG, the equipment will alarm and prompt for removal.
