Mfgzs-19s-00 Electronic Product Visual Inspection Platform

This model is more suitable for recent graduates entering the field of automation industrial design for reference and learning! The version is SW2016, including fully parameterized parts and detailed engineering drawings.

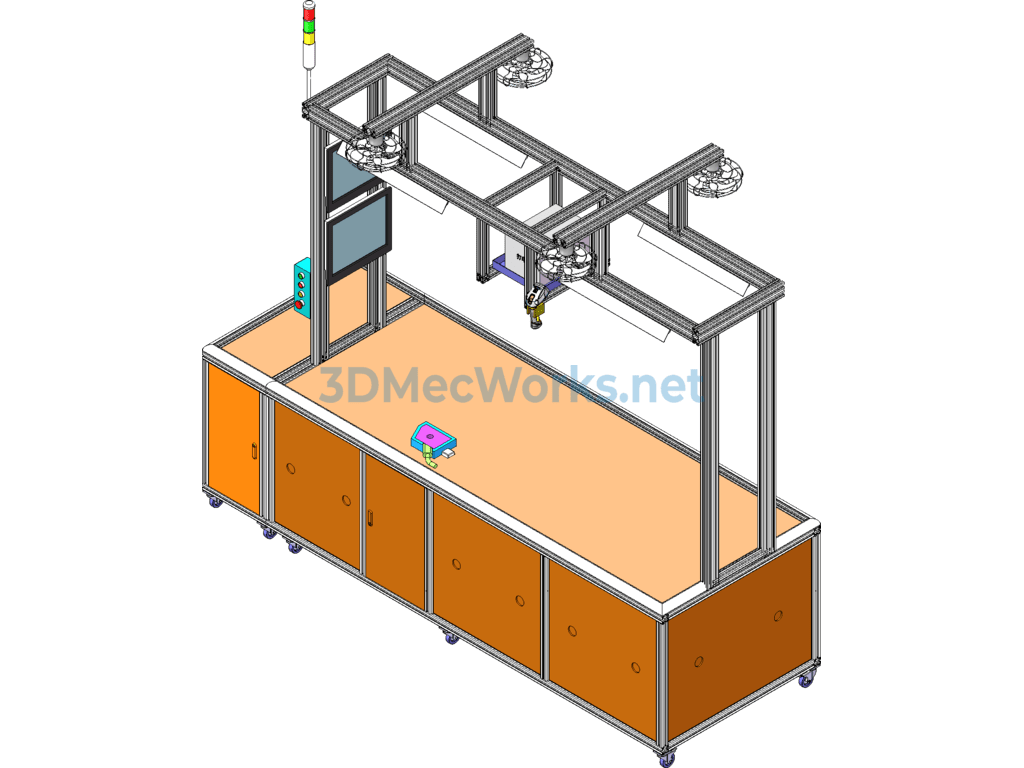

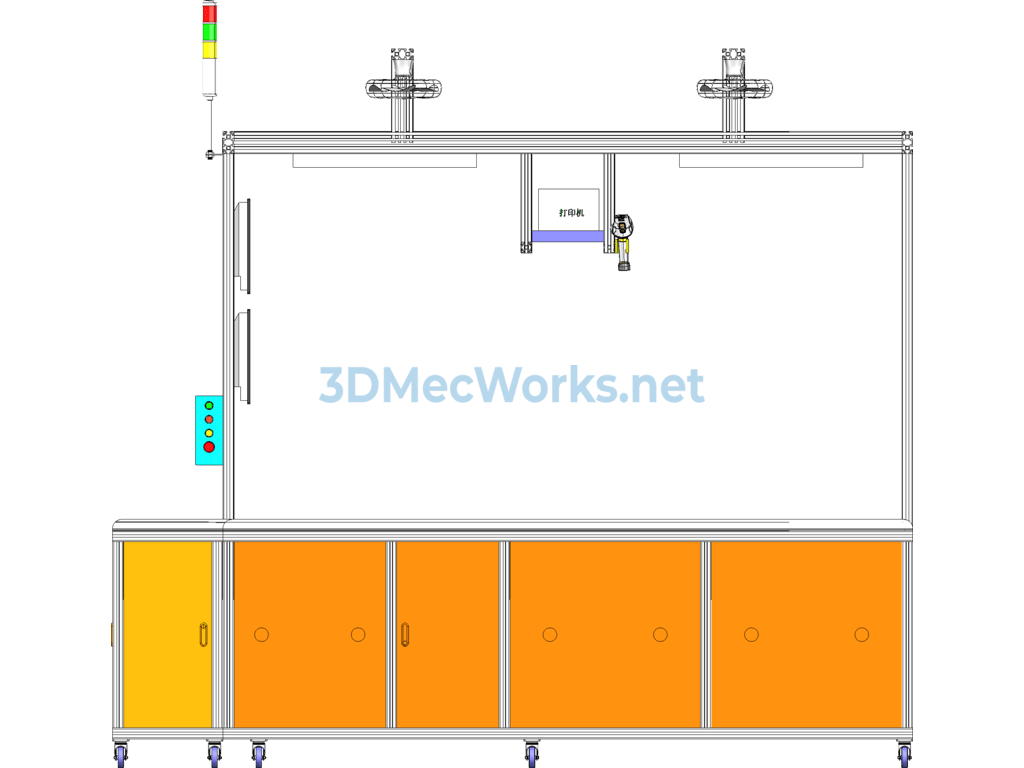

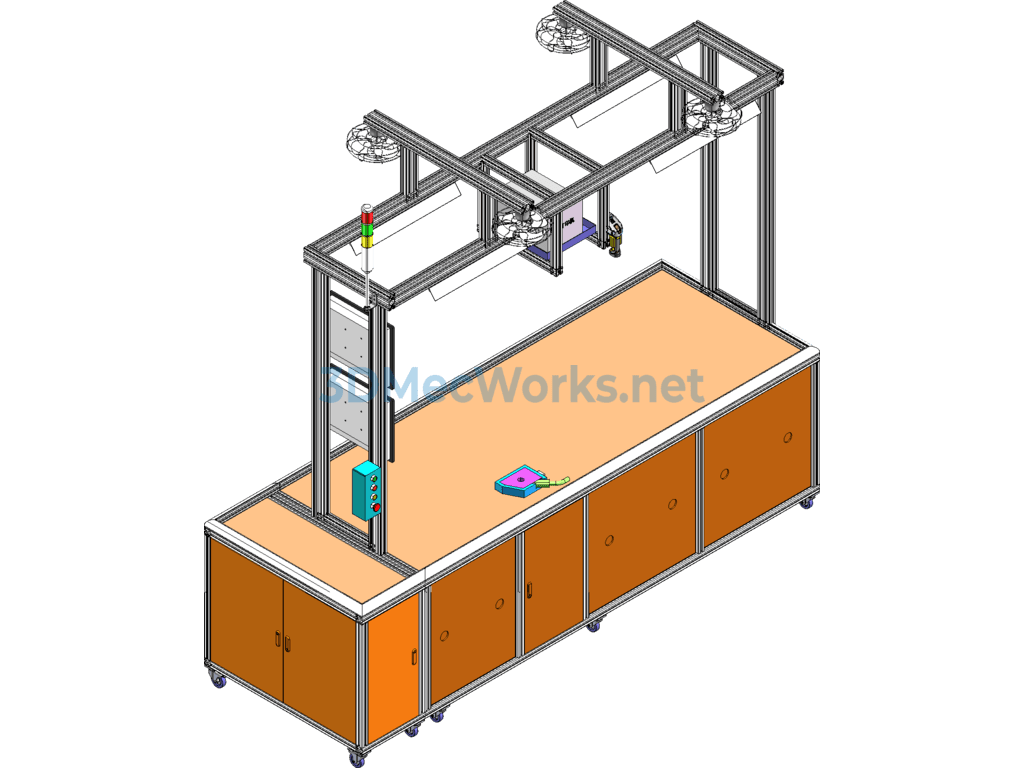

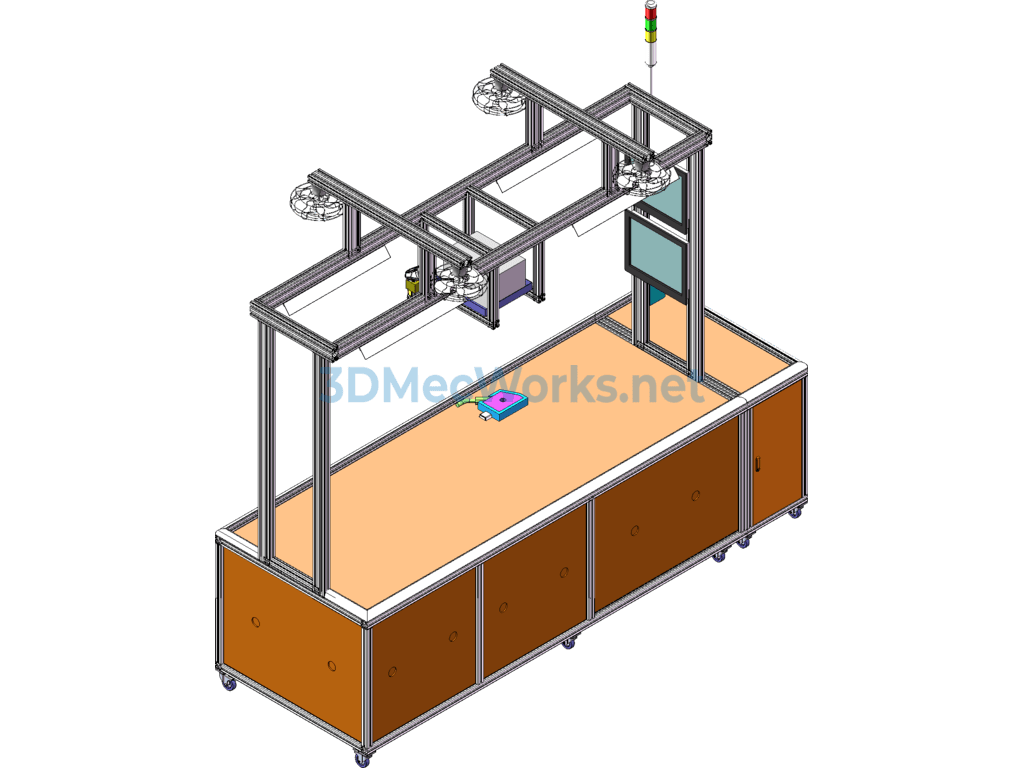

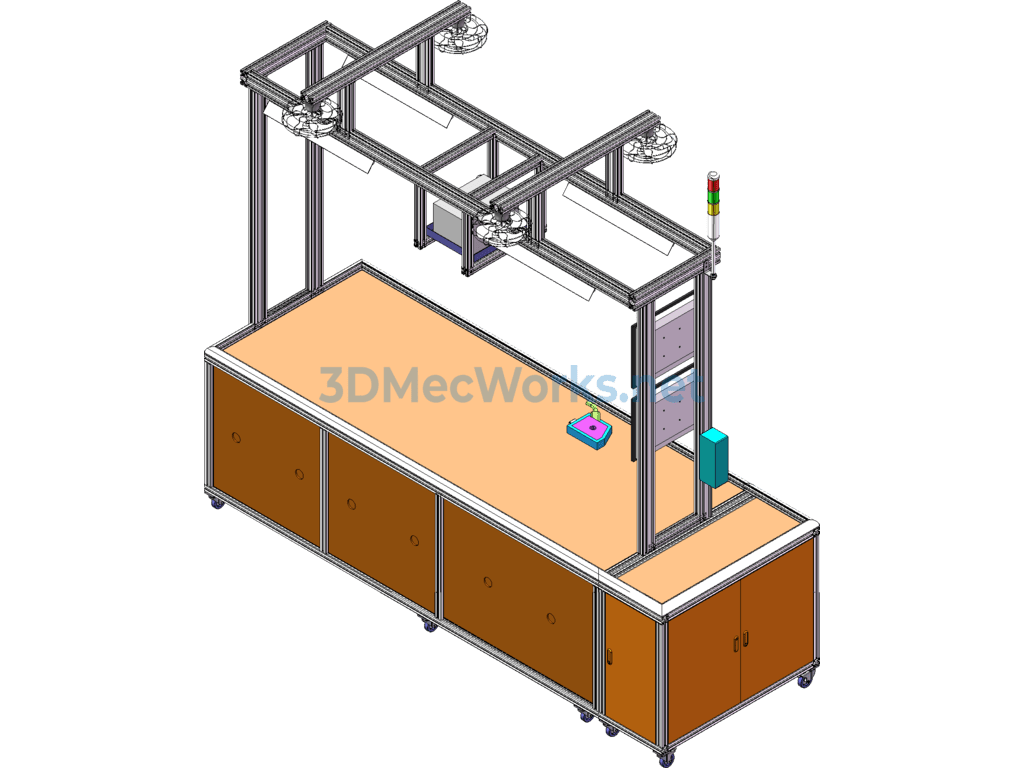

This model is a platform for visual inspection of electronic products, consisting of three parts: a workbench frame built from aluminum profiles and sheet metal, a camera lens and light source assembly, and a barcode scanning system.
The basic operation process is: 1. The operator places batches of material on the workbench; 2. Scans the product batch number with a handheld barcode scanner; 3. Places the product on the inspection fixture to start visual inspection; 4. The visual system determines whether the product is OK or NG.
