Material Arrangement Integrated Molding Capacitor, Resistor, And Inductor Clip Loading Robot Fixed-Point Transfer Machine - SolidWorks - Free Download

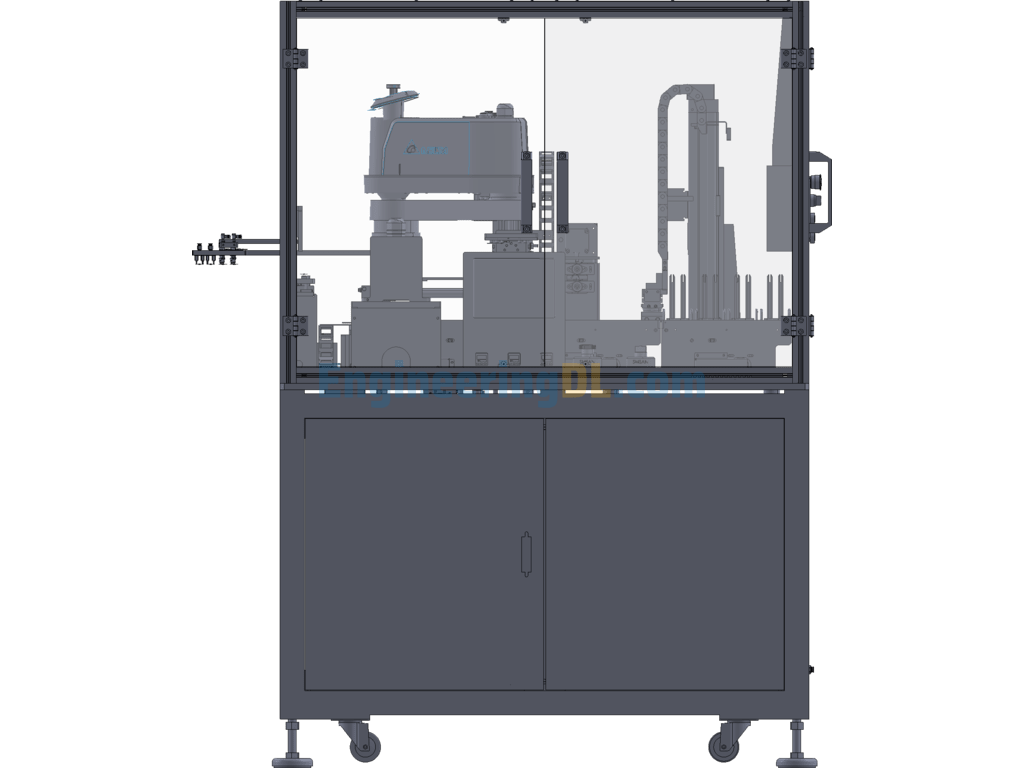

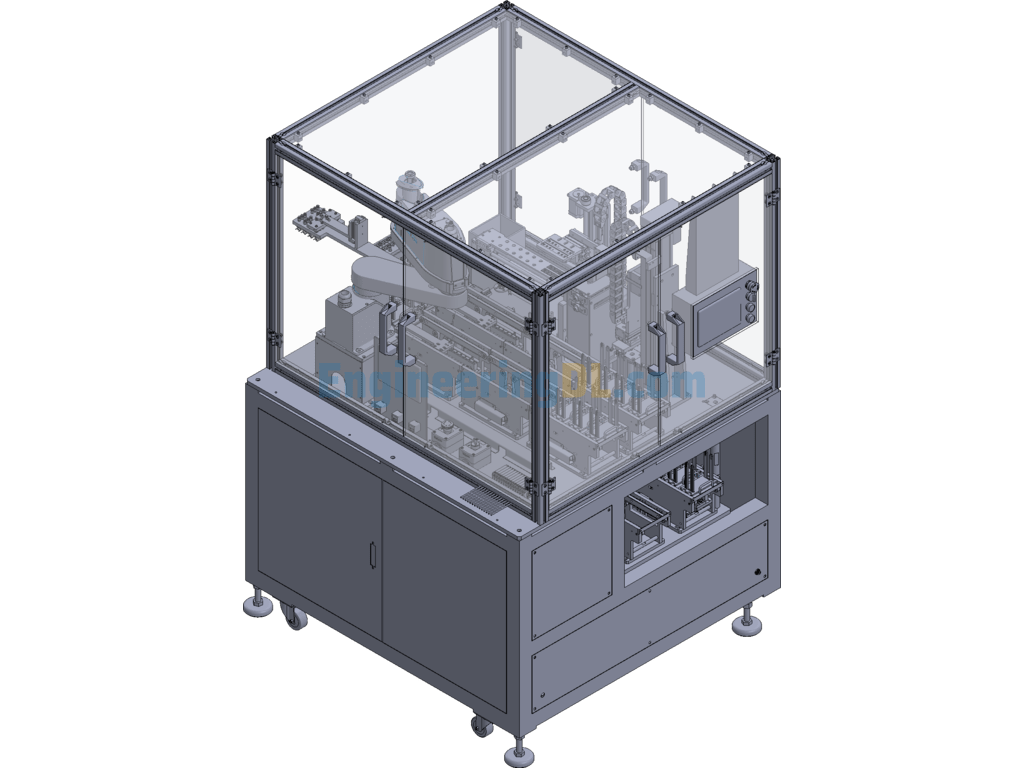

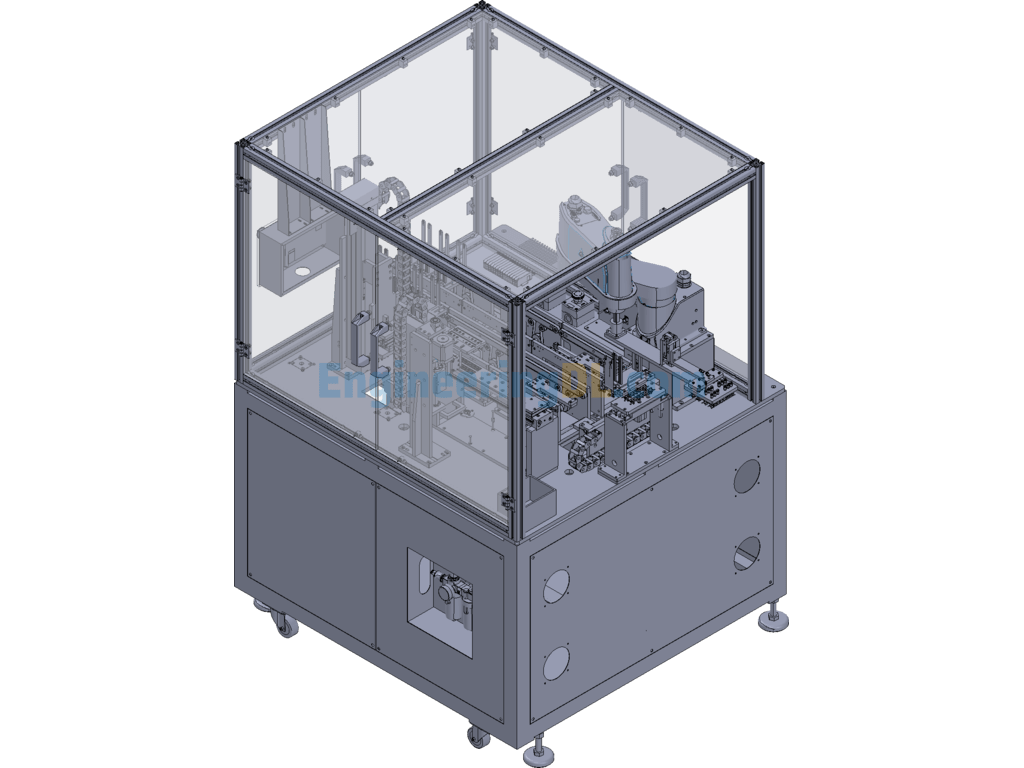

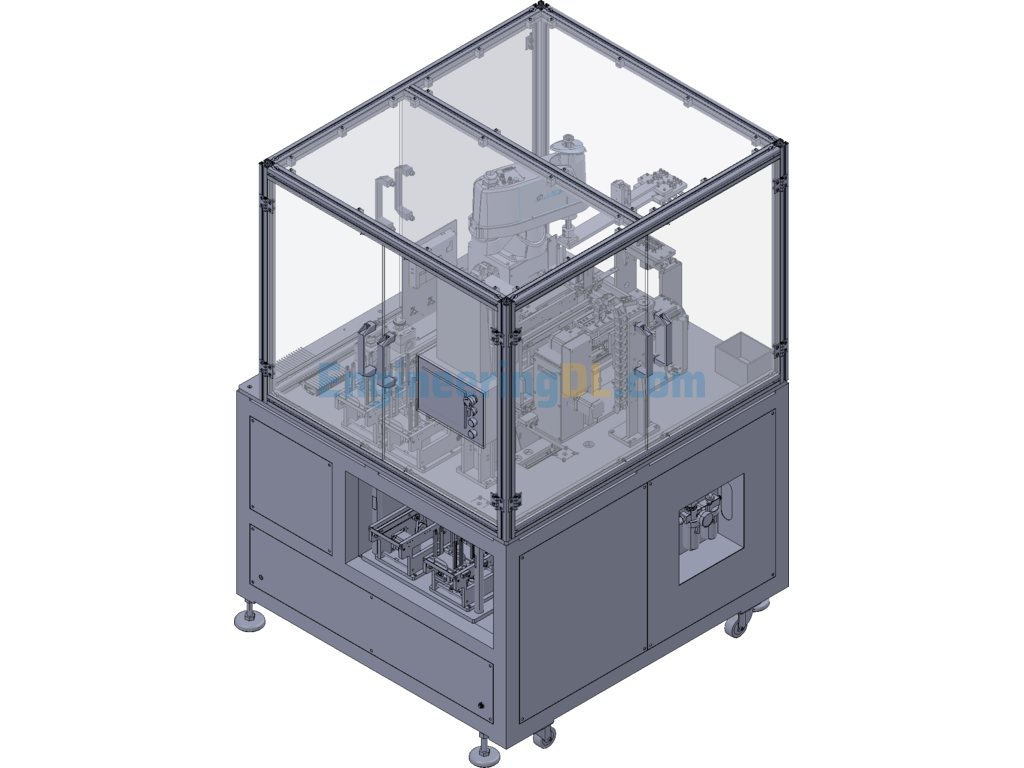

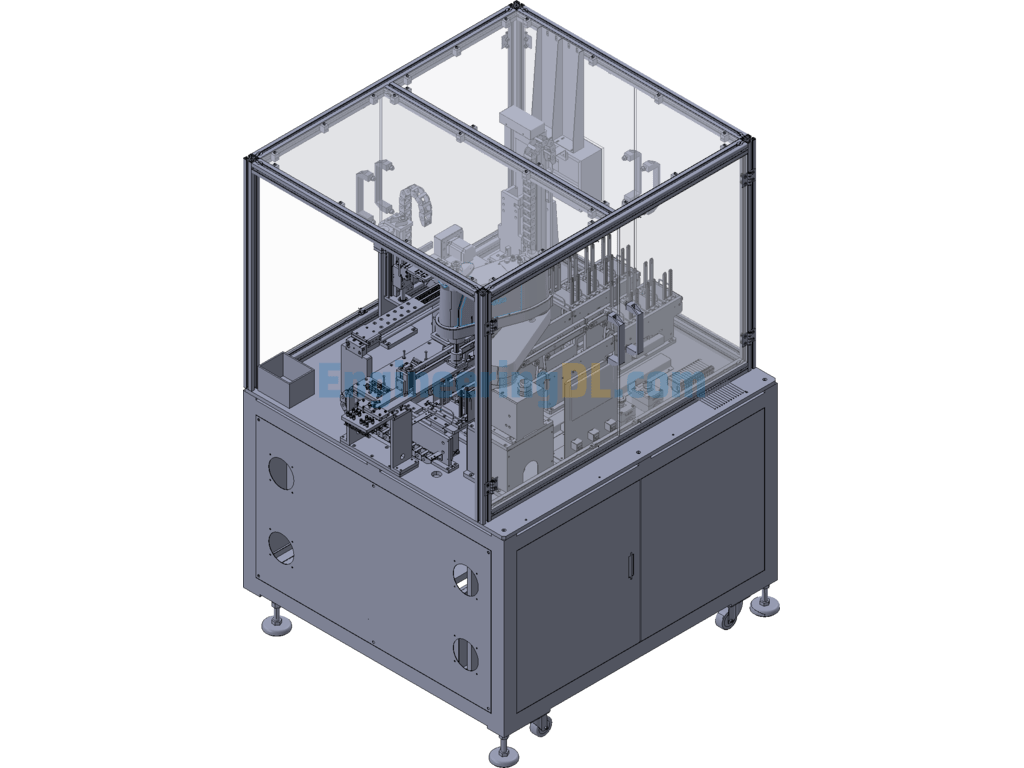

A newly designed strip-type integrated molding capacitor, resistor, inductor magazine feeder robot specific-point transfer machine. This set of drawings includes a full 3D model and is used for automatic feeding, hot pressing molding, and automatic unloading of products like resistors, capacitors, and inductors. The feeding method involves loading semi-finished group magazines. After automatic positioning, the robot extracts and transfers the components. Post-molding, the robot continues to extract to the unloading mechanism’s finished product magazine. It is highly precise, with a repeat positioning accuracy reaching 0.01. The 3D modeling is fully complete and can be used after modifying the jig according to the product. The engineering drawings are clearly marked with machining tolerances, and a STEP document is also provided, which can meet the reference needs of most technicians._x000D_
_x000D_
This is a very complex set of drawings, especially the feeding and unloading conveyor transfer and positioning part and the robot design. The structure is also designed very cleverly. Interested friends are welcome to download it, and other drawings are available for download on the homepage.
