Mass Production Model 0.64 Square Pin Loose Pin Terminal Insertion Compression Bending Machine - SolidWorks - Free Download

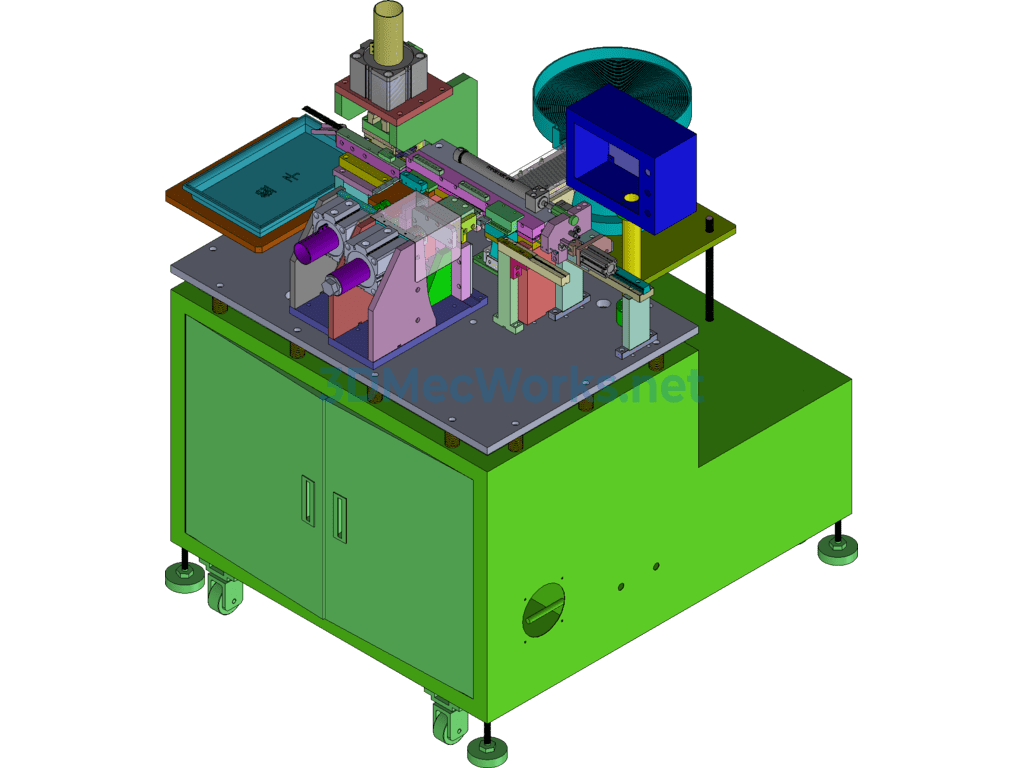

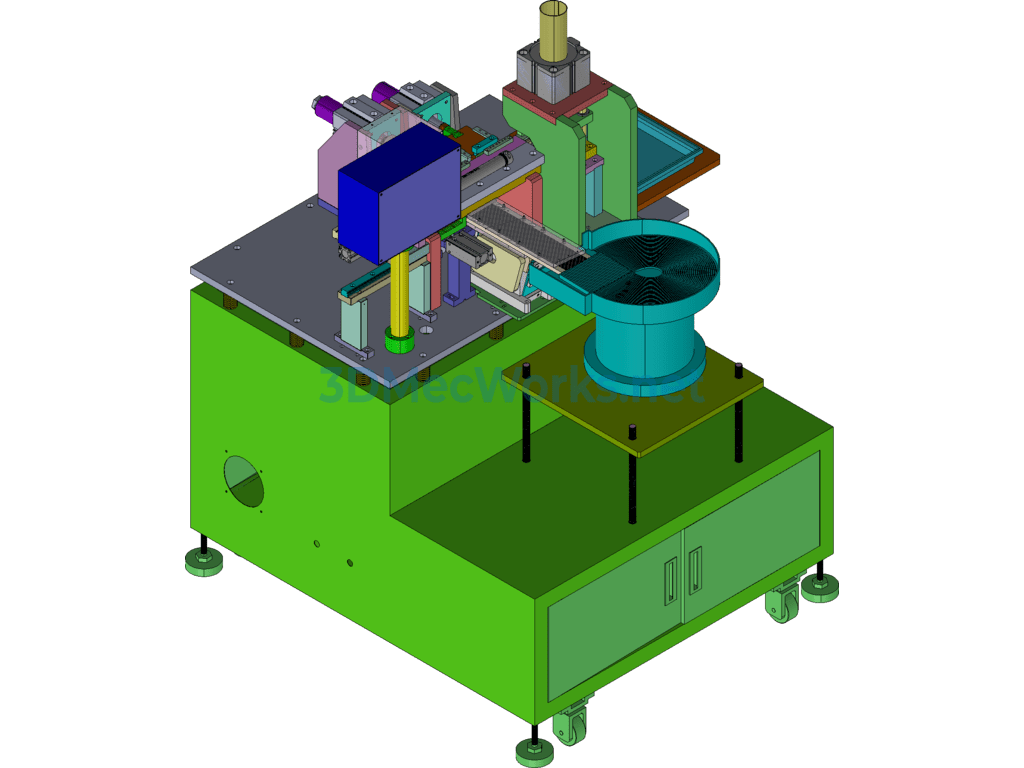

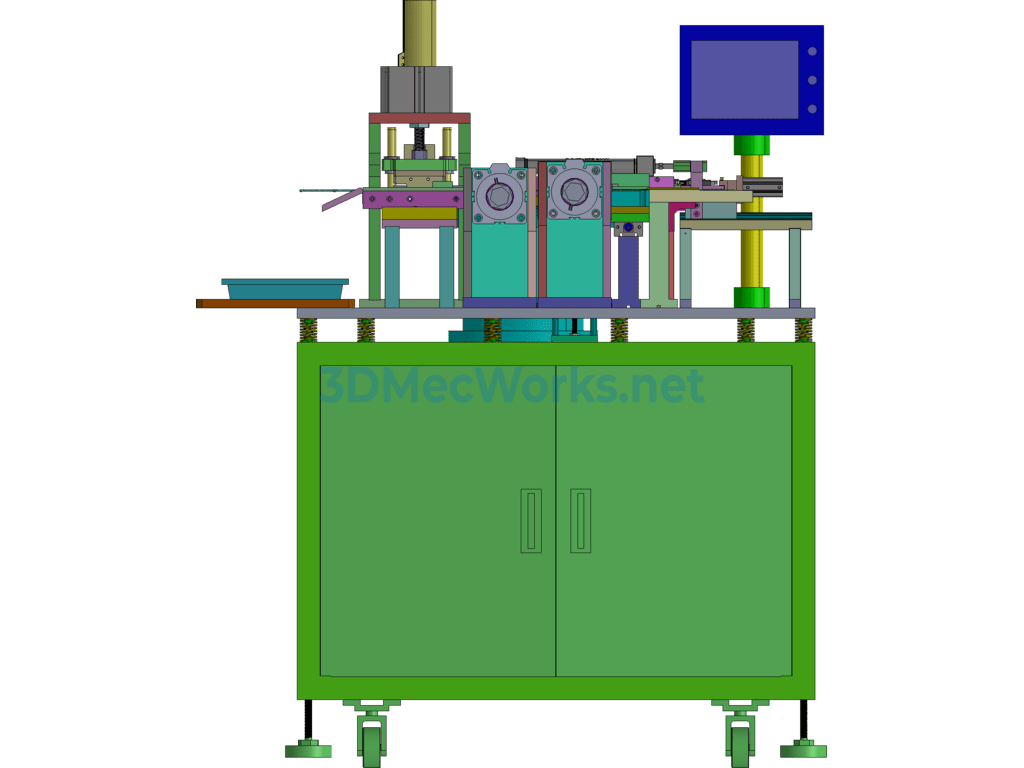

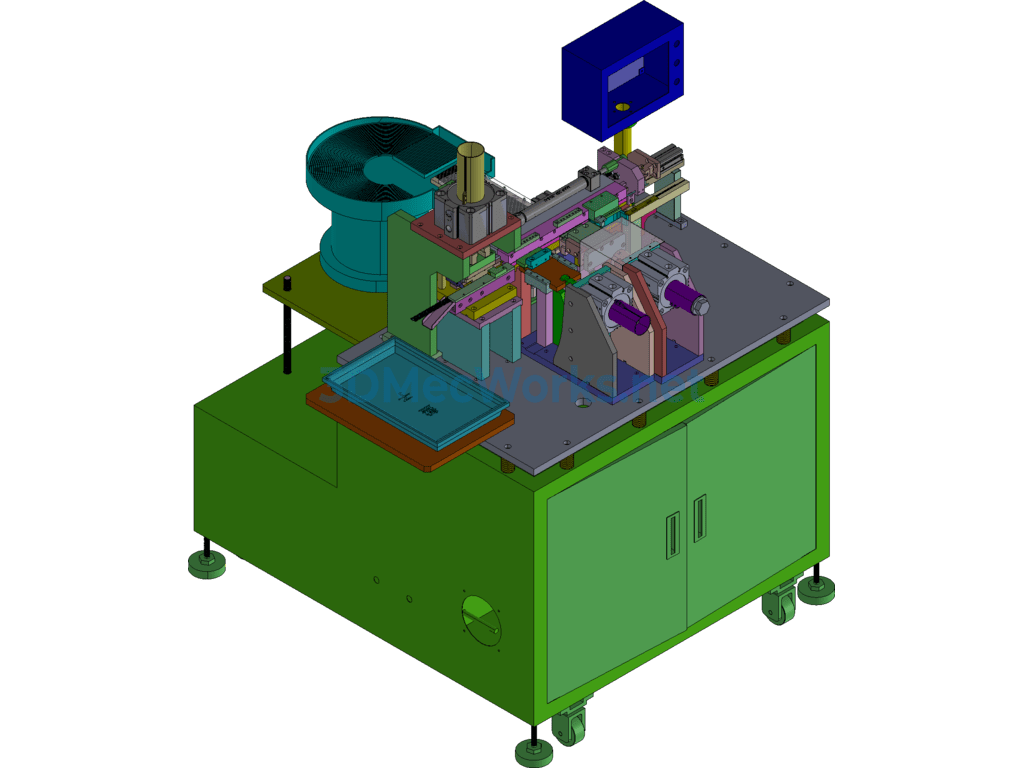

A connector assembly machine for 0.64 square pin scattered terminals, includes vibratory bowl feeding terminals, flat plate vibration feeding followed by lifting to insert terminals, claw sending plastics, pin inserting, pressing dimensions, and then a bending action on the terminals. The entire machine structure is well-organized, easy to maintain, highly compatible with similar products, and has entered mass production with strong stability. _x000D_
Original work, complete set drawn in SolidWorks 2012, with all machine parts containing editable parameters. Provided for reference, thank you!
