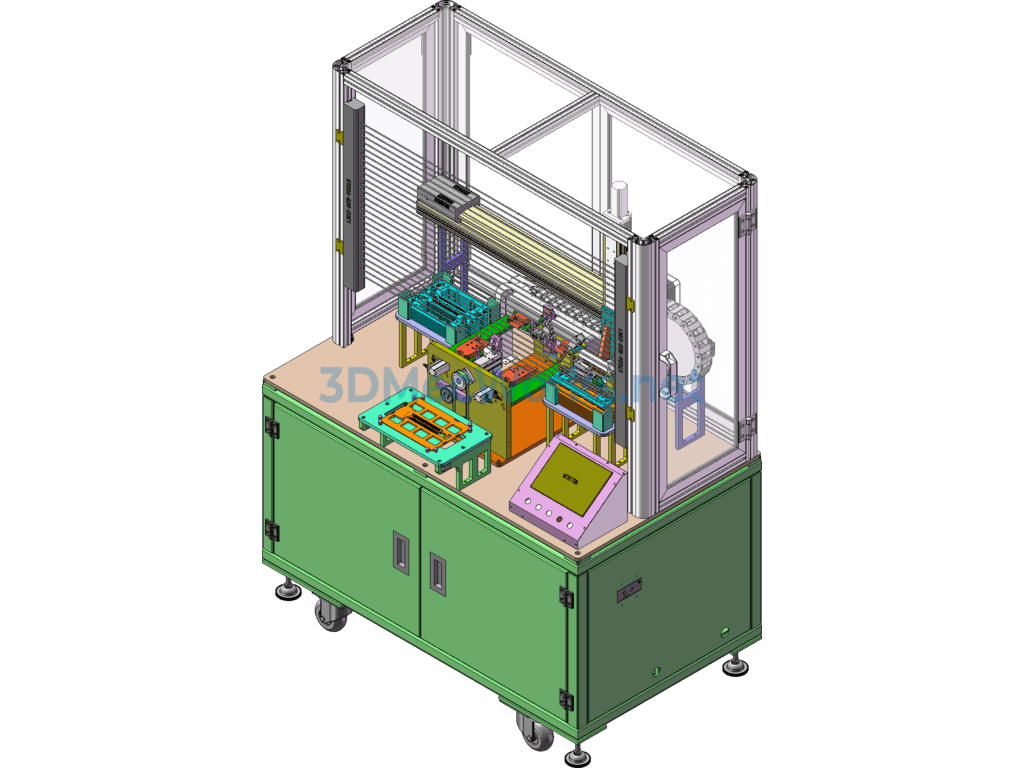

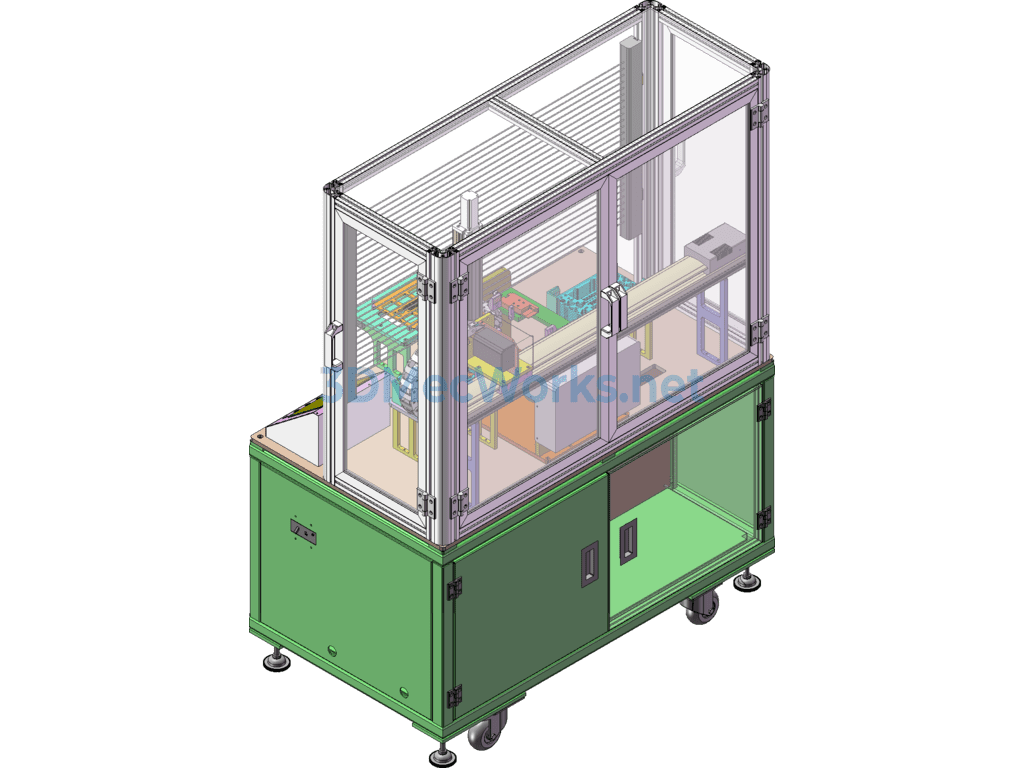

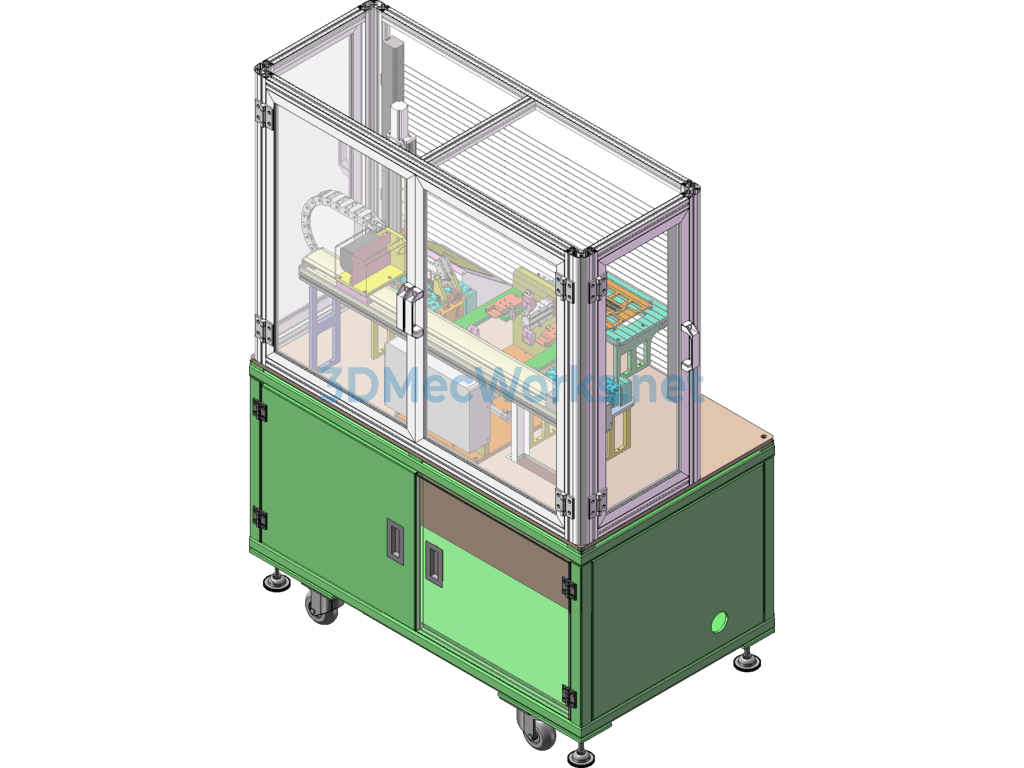

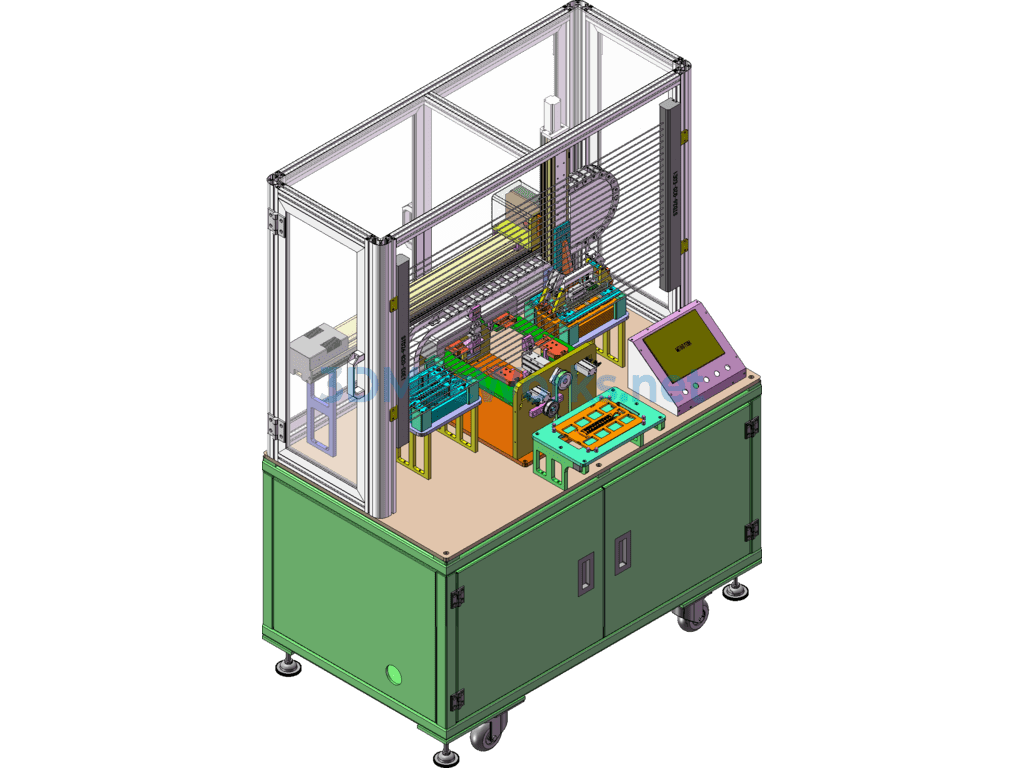

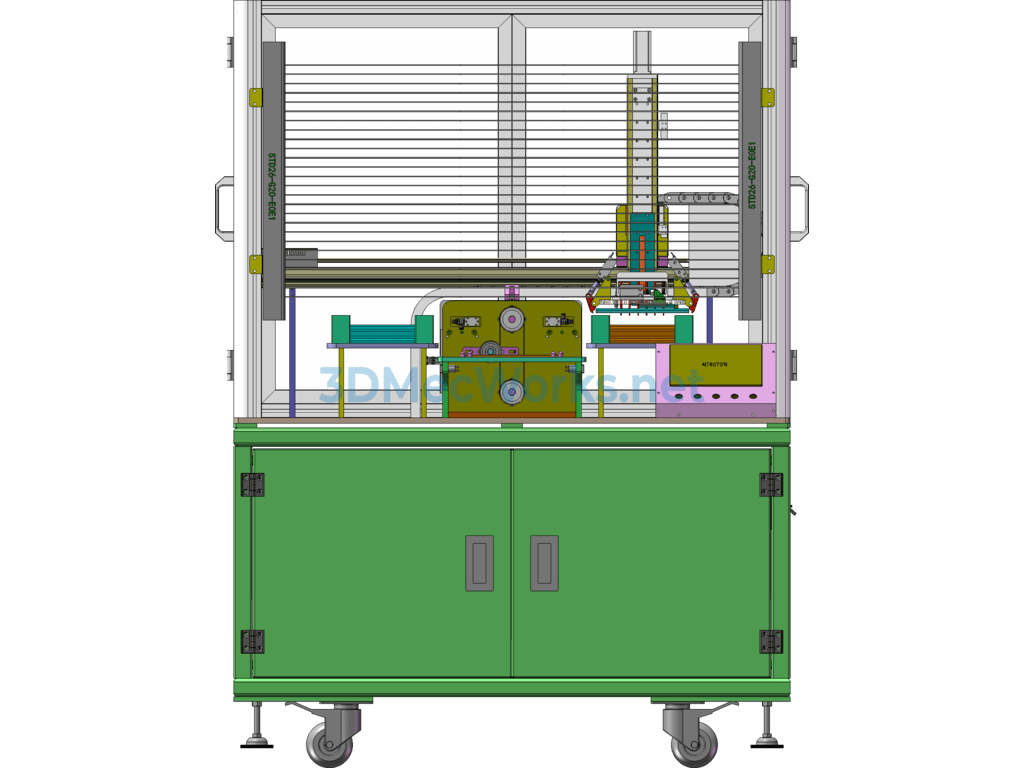

Mass-Produced Equipment: Semi-Automatic Carrier Flip Machine (Including Detailed DFM Instructions) - SolidWorks - Free Download

Semi-automatic flipping device for carriers Equipment process:_x000D_
1. Manually place carriers in the transfer area for material handling;_x000D_
2. Stack carriers into the carrier loading module for positioning;_x000D_
3. The carrier gripping module clamps 1 PCS carrier in the carrier loading area;_x000D_
4. Place into the carrier flipping mechanism, clamp, position and flip 180 degrees;_x000D_
5. The gripping module moves the flipped carrier to the carrier unloading area, and prompts the operator to unload once completed;
